Mitseiki HBM-4T CNC Horizontal Borer

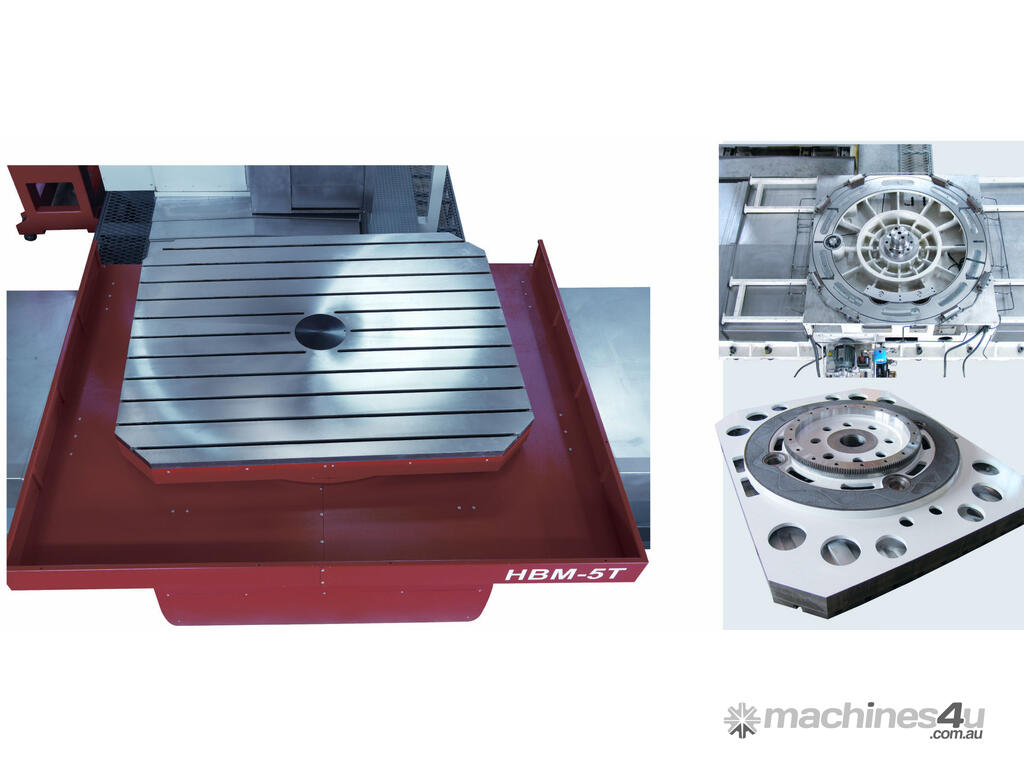

Table size (mm): 1400 x 1600 (1600 x 1800 opt)
Max table load (kg): 8000 (10000 opt)
Travels X, Y, Z, W (mm): 2000 ~ 3000 x 2000 x 1400 x 700
Rapid traverse (m/min): 10
Spindle diameter (mm): 130
Spindle taper: BT 50
Spindle speeds (rpm): 3000
ATC (optional): 60 tools
Spindle motor (kw): 22 /30
Controller: Fanuc / Siemens / Heidenhain
Machine weight (kg): 40000
C/w: 0.001° table indexing, chip auger, spindle oil chiller. Many other options are available on request.
