Mitseiki HBM-5T CNC Horizontal Borer
Table size (mm): 1800 x 2200 (2500 x 2500 opt)
Max table load (kg): 15000 (20000 opt)
Travels X, Y, Z, W (mm): 3500 ~ 5500 x 2600 ~ 3200 x 1400~ 2000 x 700
Rapid traverse (m/min): 10
Spindle diameter (mm): 130
Spindle taper: BT 50
Spindle speeds (rpm): 3000

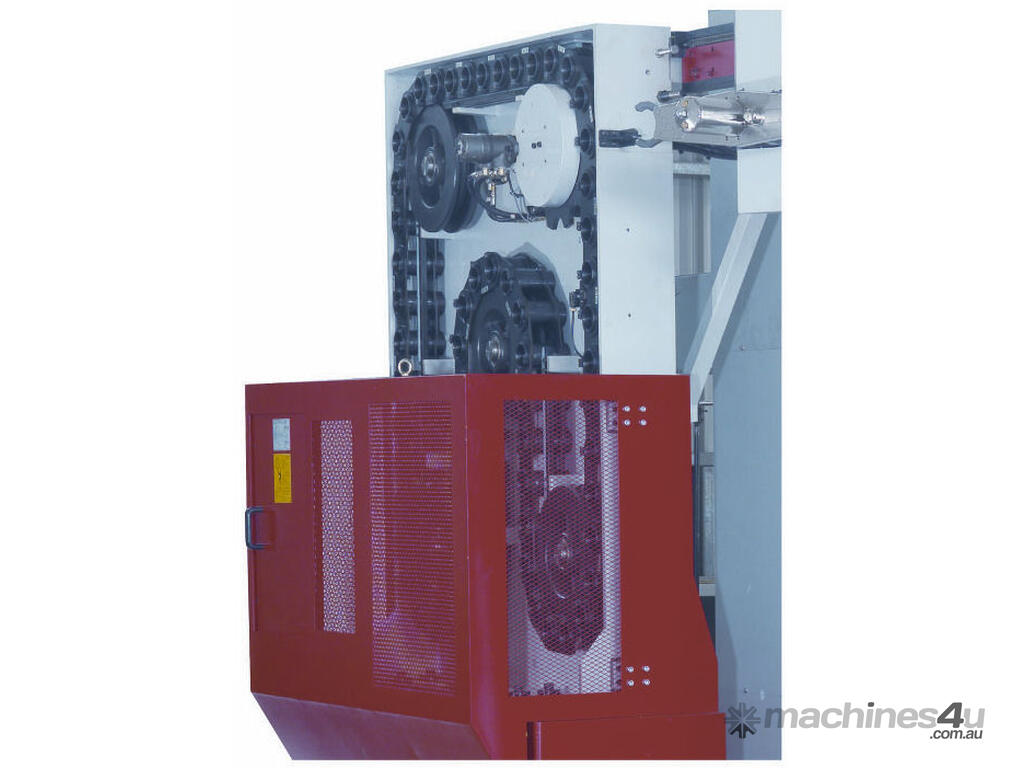

ATC (optional): 60 tools
Spindle motor (kw): 37/45 Fanuc or 37/56 Siemens & Heidenhain
Controller: Fanuc / Siemens / Heidenhain
Machine weight (kg): 49000
C/w: 0.001° table indexing, chip auger, heavy duty box / linear ways for all axes, spindle oil chiller. Many other options are available.
