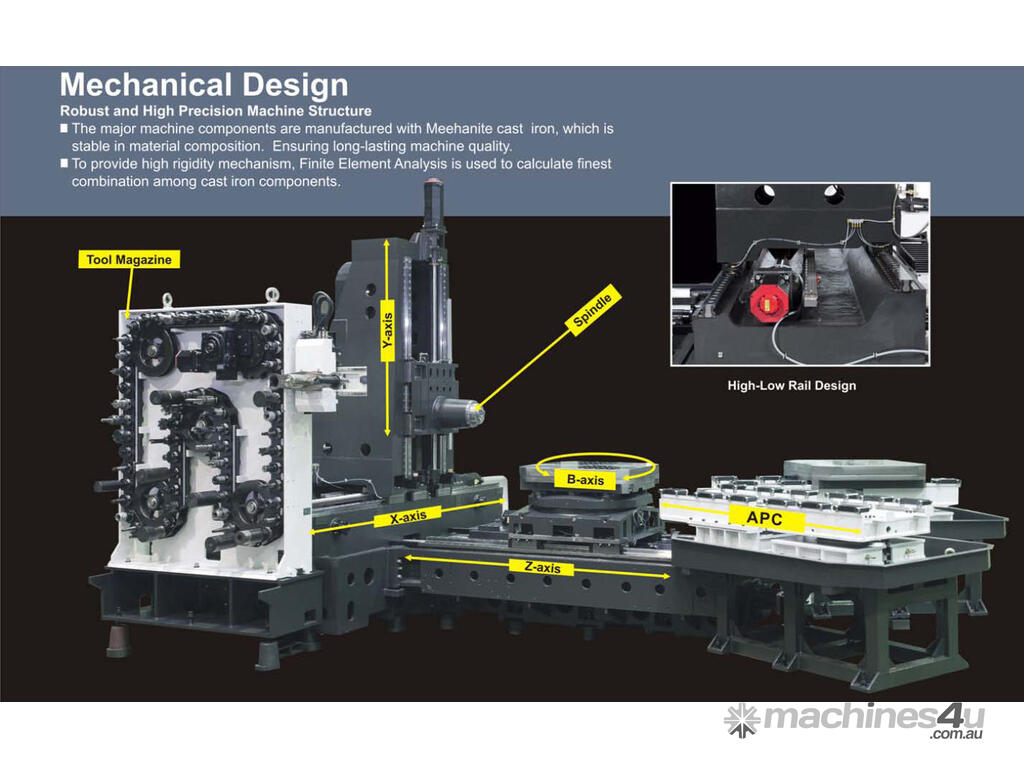

Mitseiki LH-1000 Horizontal Machining Centre

Mitseiki LH-1000 Horizontal Machining Centre

Pallet size (mm): (2 x) 1000 x 1000
Max table load (kg): 3500
Travels X, Y, Z (mm): 2100 x 1235 x 1235
Rapid traverse (m/min): 24
Cutting feed range (m/min): 1 ~ 10,000
Spindle taper: BT 50
Spindle speeds (rpm): 6000
ATC (arm type): 60 tools
Spindle motor (kw): 26 / 22
Controller: Fanuc OiMD
Machine weight (kg): 32000

C/w: chain type ATC, 0.001° pallet indexing, 2 speed gearbox, preparation for CTS, heavy duty roller type linear guide ways for all axes, oil skimmer, spindle oil chiller, oil chiller for ball screws. Many other options are available on request.

This is one of the highest quality machines currently available from Taiwan, the manufacturer says European specification & quality at affordable prices. The fact that most of our users never consider any other manufacturers machines when a second or third VMC is required speaks volumes about their performance, quality and reliability.
