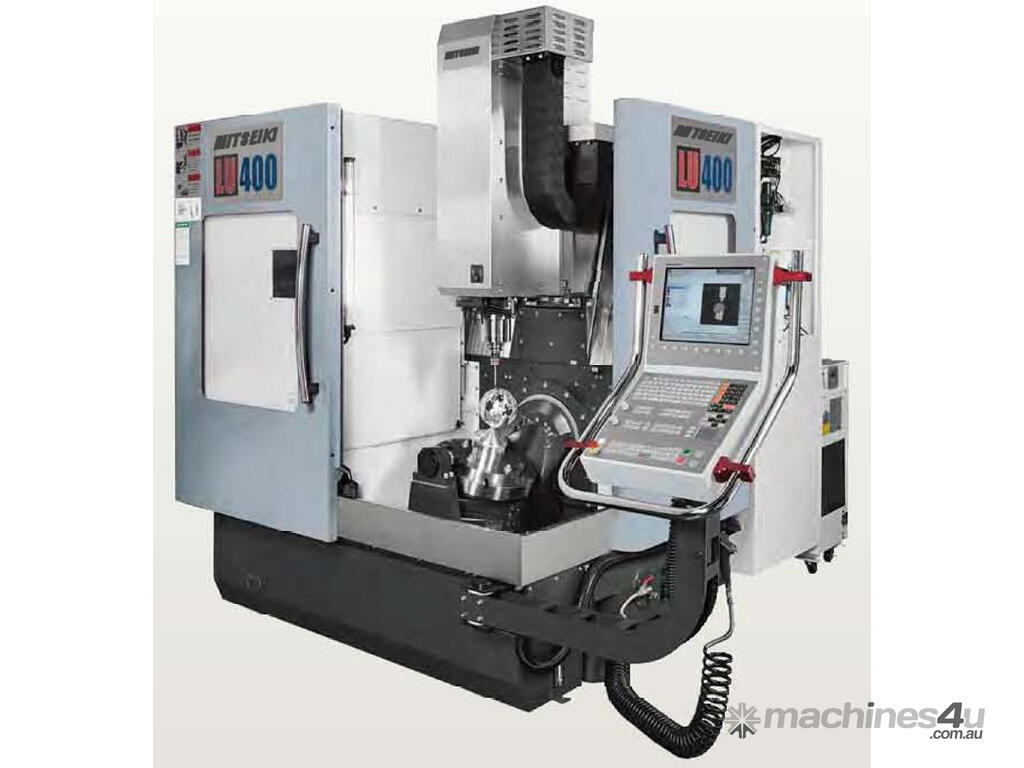

Mitseiki LU-400 & 620 5 Axes

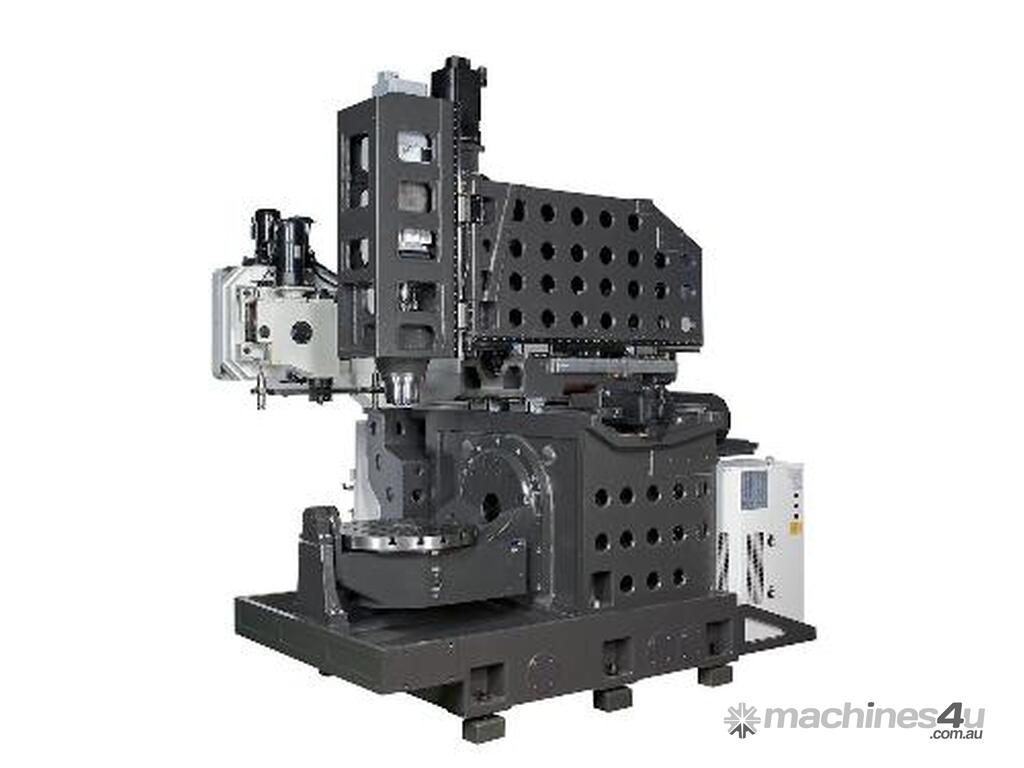

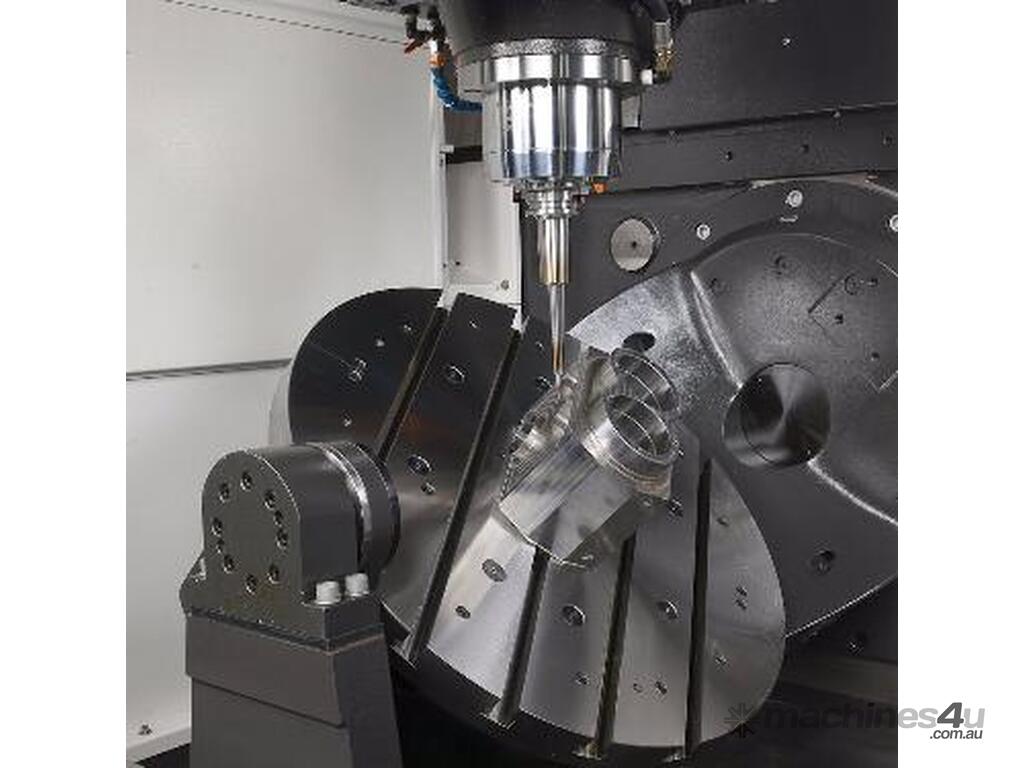

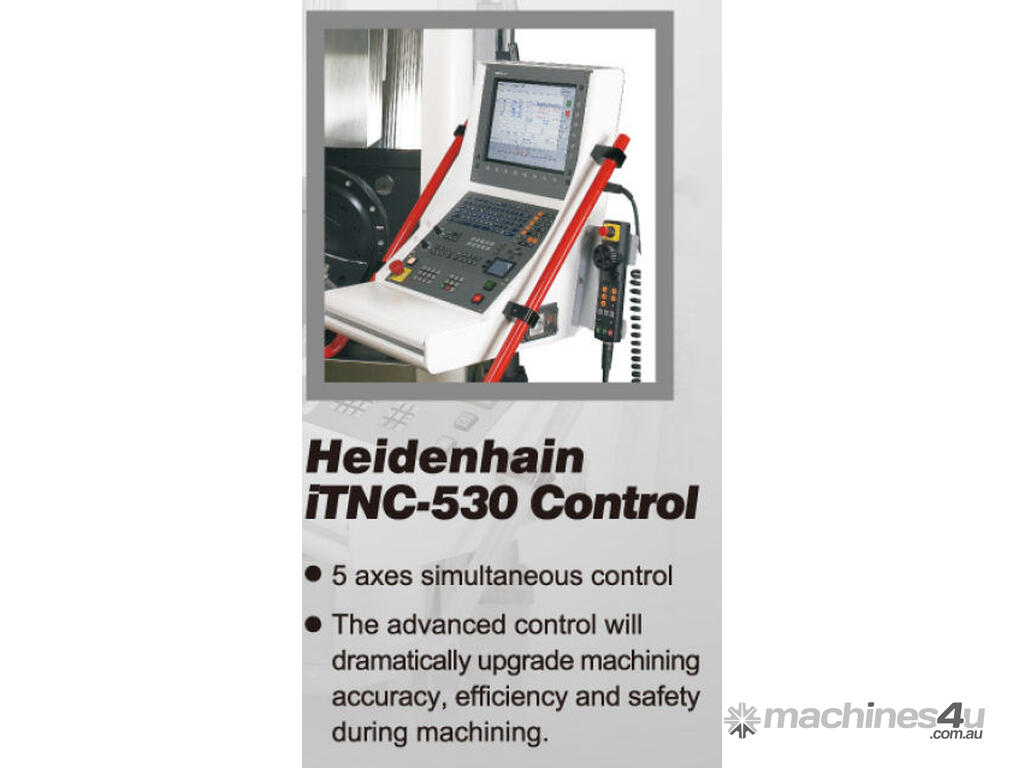

The LU-400 and 620 are advanced, multi tasking 5 axis vertical machining centre designed for producing complex parts at high speed, with a 5 axis configuration, complex machining can be accomplished in one set up drastically reducing machining time and helping you stay competitive. Available with Heindehain, Siemens and Fanuc CNC Controls offering the option of 4 axes simultaneous + 1 OR full 5 axes simultaneous for more demanding applications.

LU-400 LU-620
Table working area (mm): Ø450 Ø580
Max table load (kg): 150 300

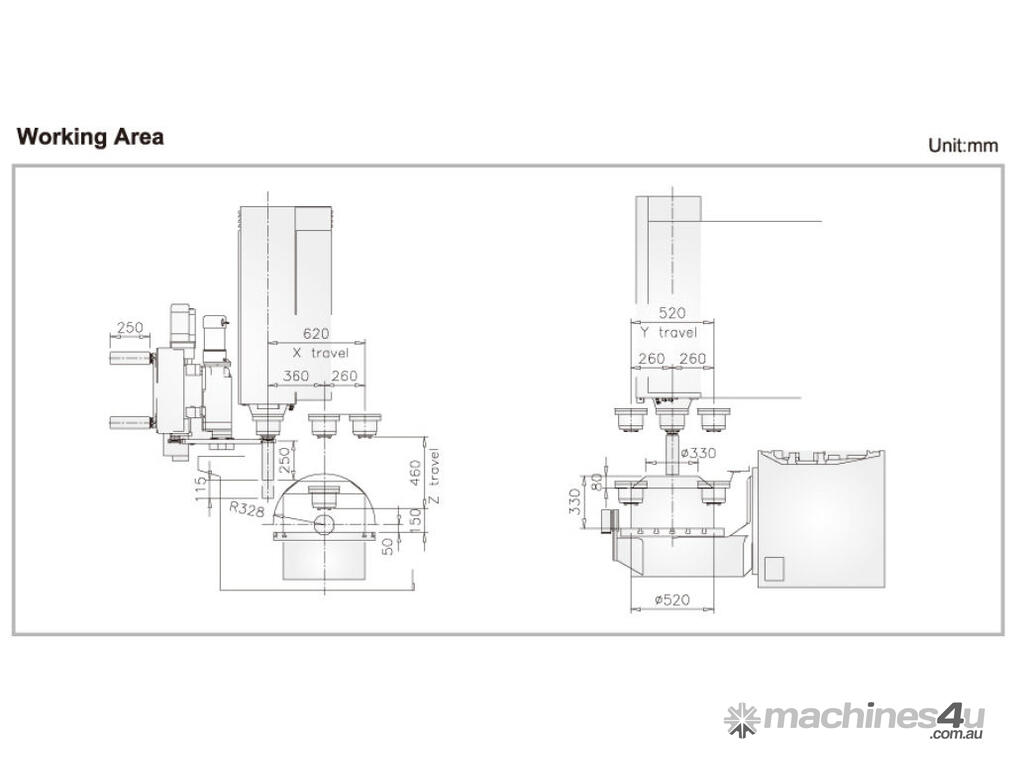

Travels X, Y, Z (mm): 400 x 350 x 350 620 x 520 x 460

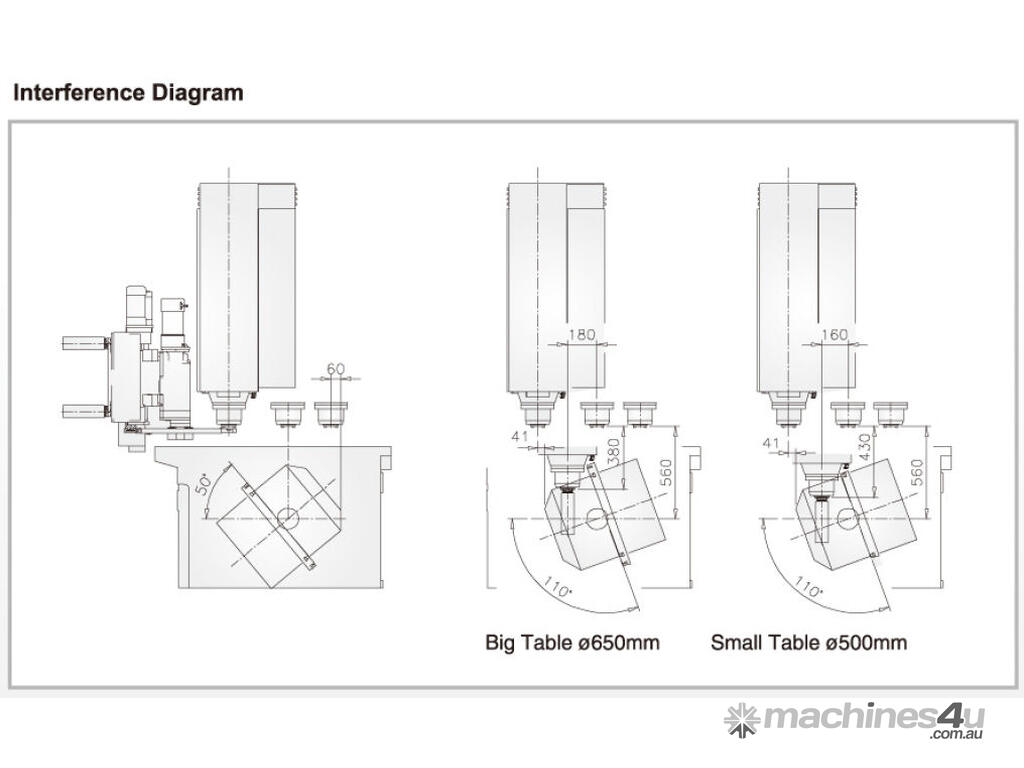

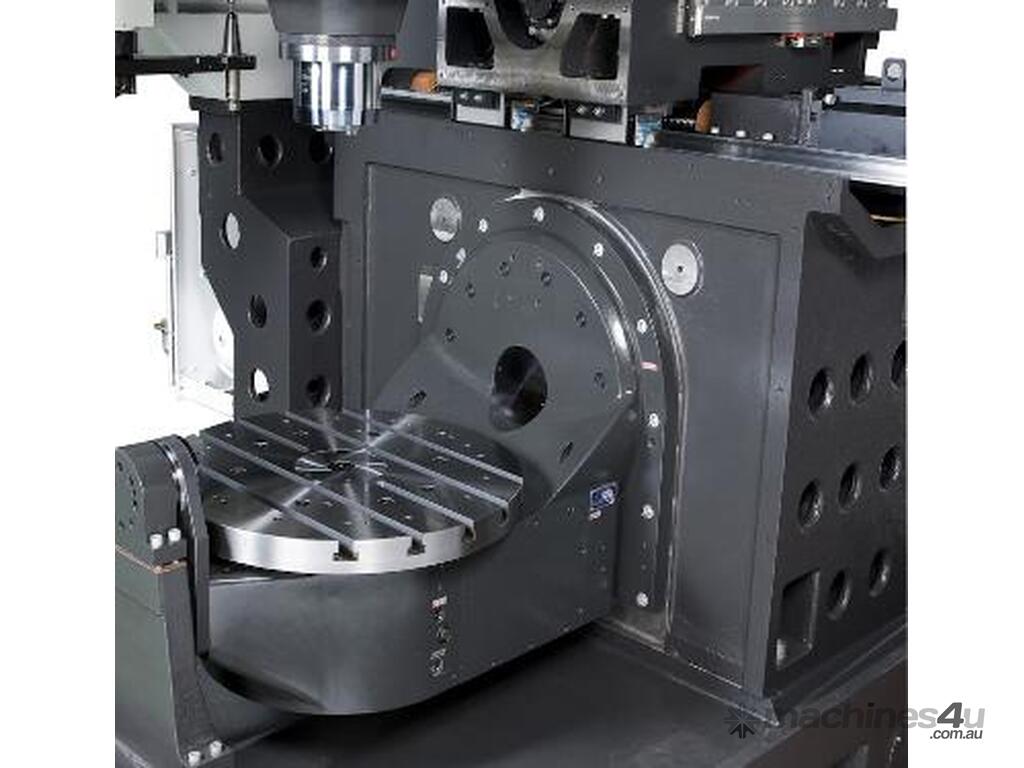

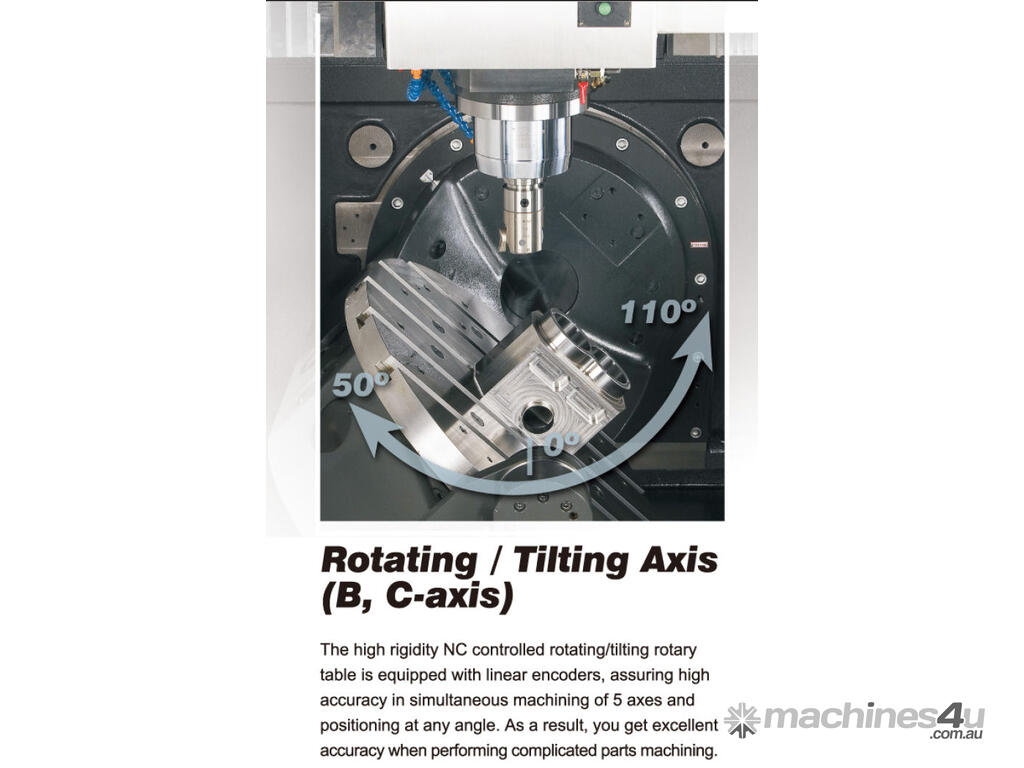

B axis tilting range (deg): -50 ~ +110º
C axis rotating range (deg): 360º
Rapid traverse X, Y, Z (m/min): 48 36
B / C axis rapid feedrate (rpm): 25
Cutting feed range (m/min): 1 ~ 20,000
Spindle taper: BBT 40
Spindle speeds (rpm): 12,000

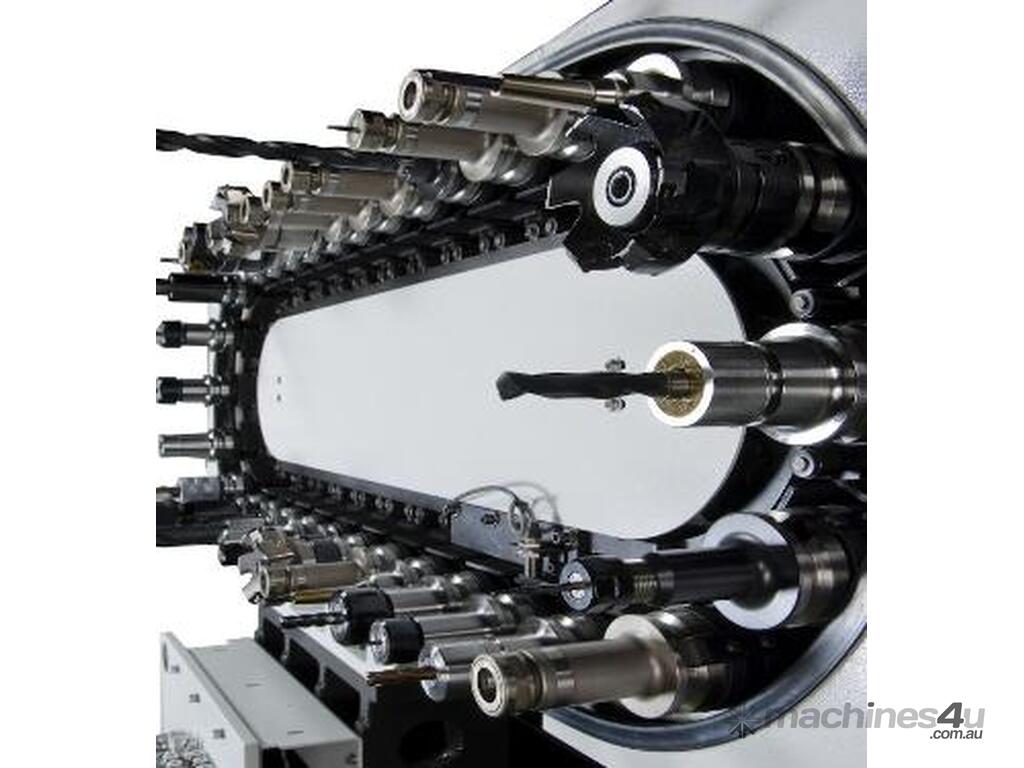

ATC (arm type): 30 tools 32 tools

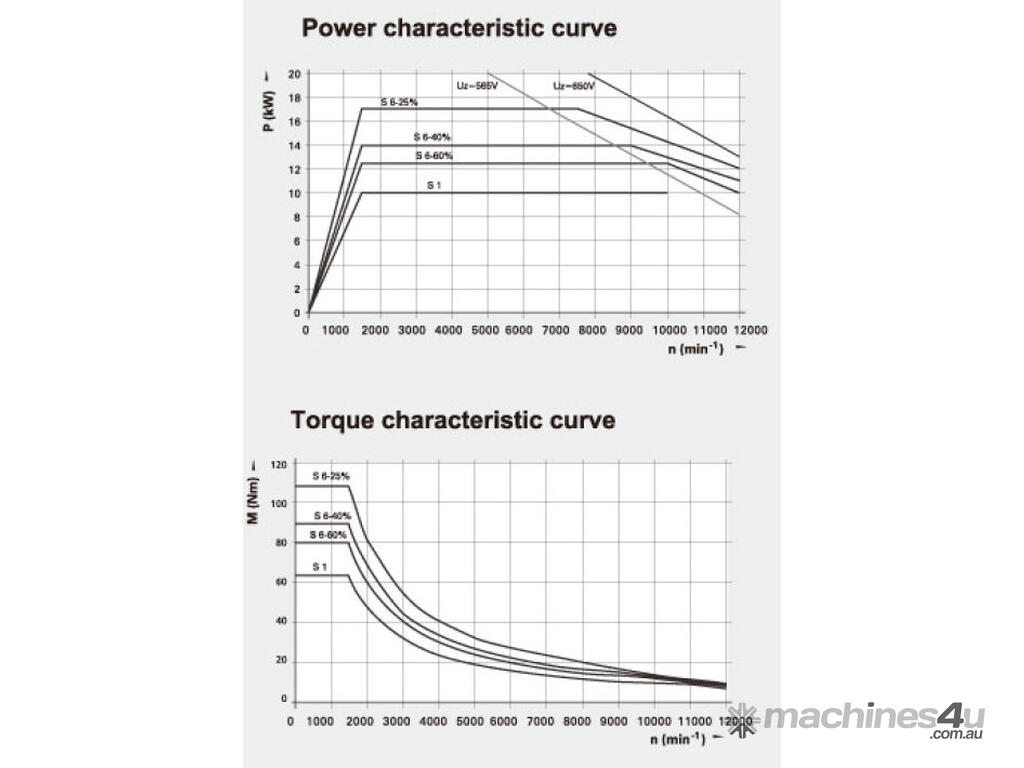

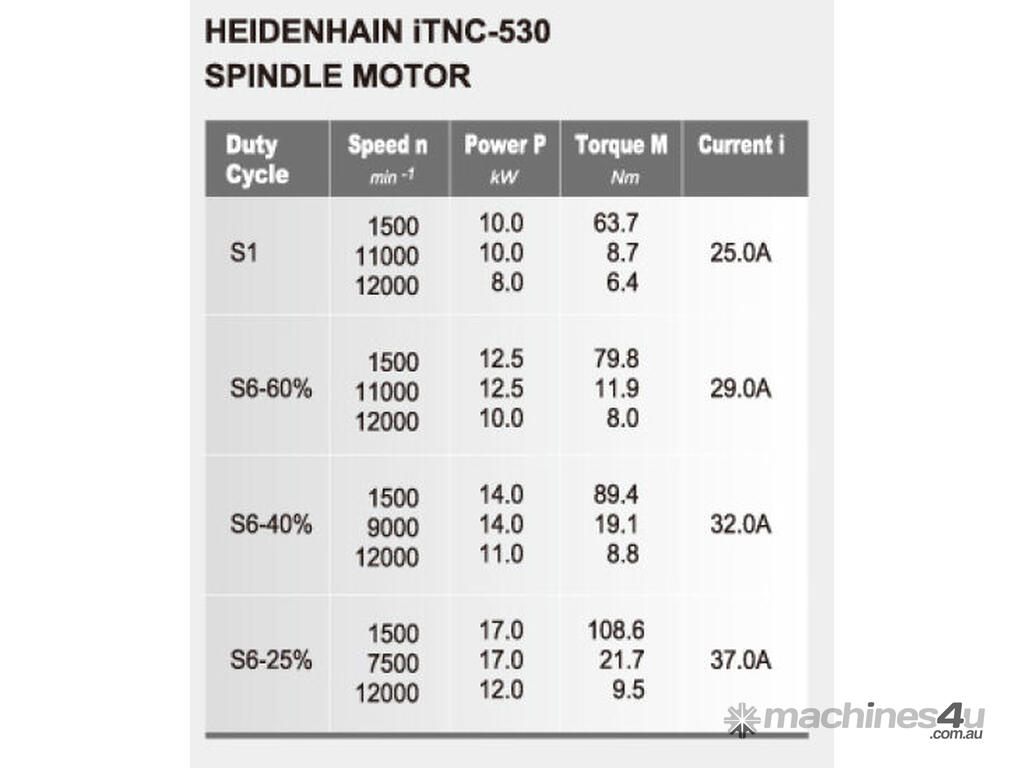

Spindle motor (kw): 5.5 / 7.5 18 / 21
Machine weight (kg): 6,000 9,000

C/w: high speed arm type ATC, linear feedback scales on X, Y & Z axis, heavy duty roller type linear guides, swarf wash down system & Siemens or Heidenhain CNC Controls. Other options are available on request.

This is one of the highest quality machines currently available from Taiwan, the manufacturer says European specification & quality at affordable prices would suit DMG, Okuma, Mazak, or Mori Seiki buyer.
