8Mitseiki TV-500 / TV-700
Table working area (mm): 650 x 400 / 850 x 400
Max table load (kg): 250
Travels X, Y, Z (mm): 500 x 400 x 330 / 700 x 400 x 330
Rapid traverse (m/min): 60 (48)
Cutting feed range (m/min): 1 ~ 20,000
Spindle taper: BT 30
Spindle speeds (rpm): 12,000

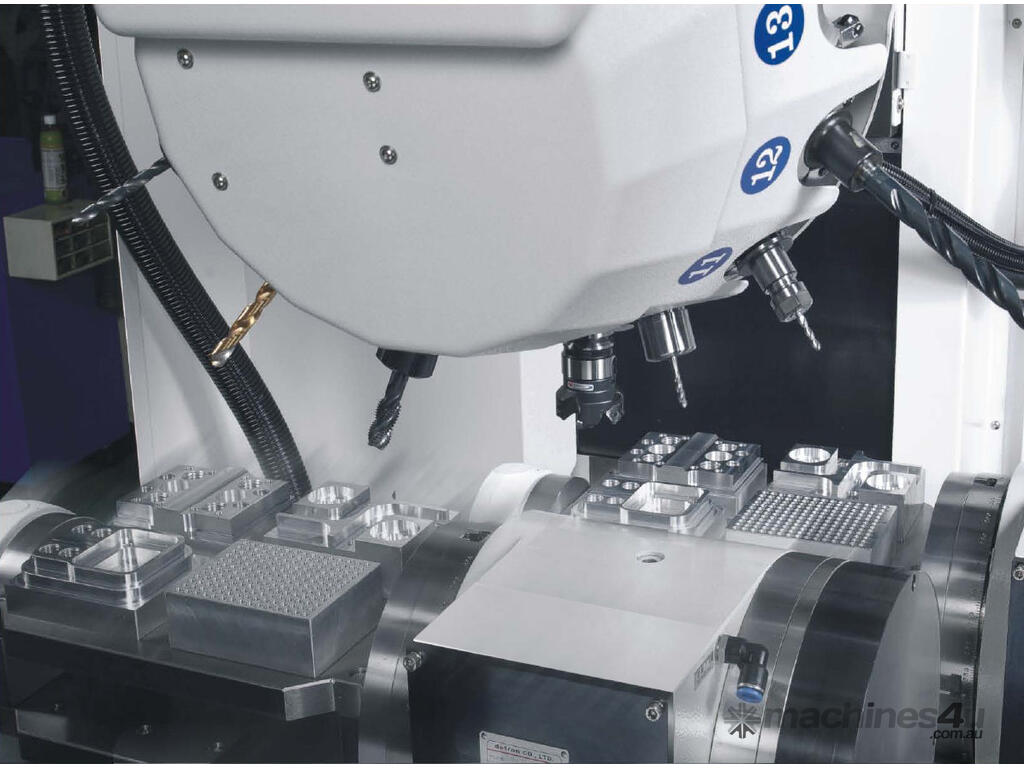

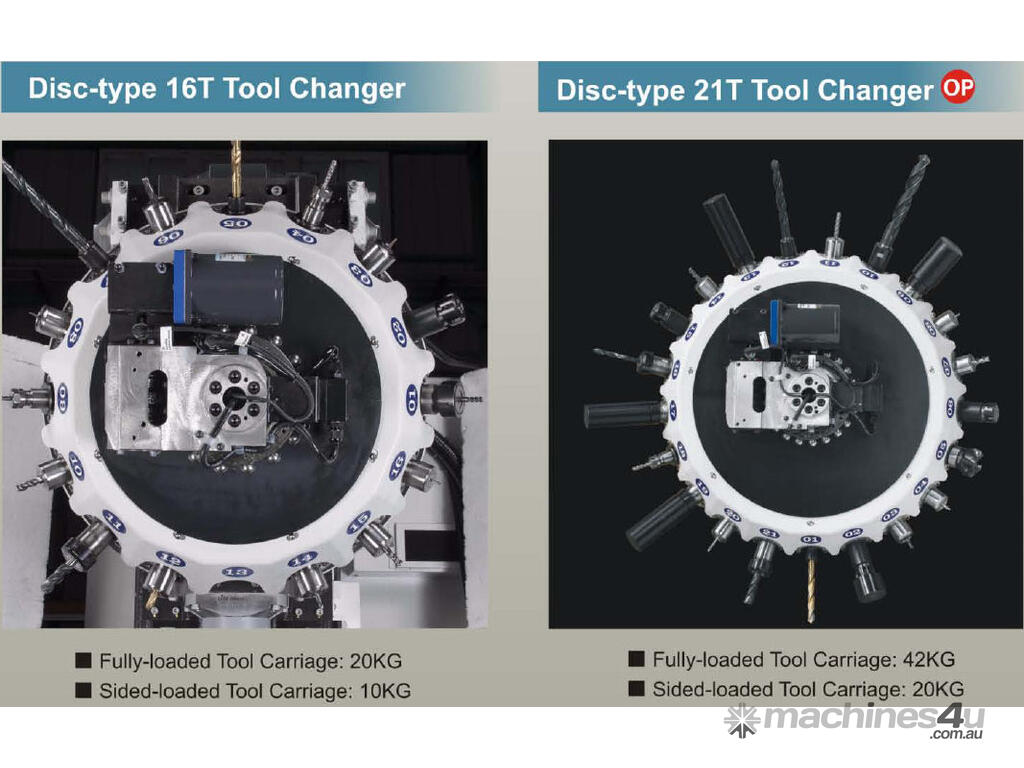

ATC : 16 tools
Spindle motor (kw): 5.5 / 3.7
Controller: Mitsubishi, Fanuc or Siemens
Machine weight (kg): 2500 / 3000
This is one of the highest quality machines currently available from Taiwan, the manufacturer says European specification & quality at affordable prices. The fact that most of our users never consider any other manufacturers machines when a second or third VMC is required speaks volumes about their performance, quality and reliability.
