Model B2 Quick Change Toolpost - 40 Position 150 - 250mm Lathe Centre Height

TOOLMASTER Model B2 Quick Change Toolpost - 40 Position 150 - 250mm Lathe Centre Height
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L2994

40 Position European style quick change toolpost.
Basic body and tool holders are made of high quality steel which is hardened and ground. The tool holders are clamped against the body with an eccentric bolt.

Features:
The system allows a repeat accuracy of 0.01mm with 40 possible angular positions of the tool holder
Body and tool holder are both made of high quality steel which is hardened and ground
Tool holder is clamped against the body by an eccentric bolt

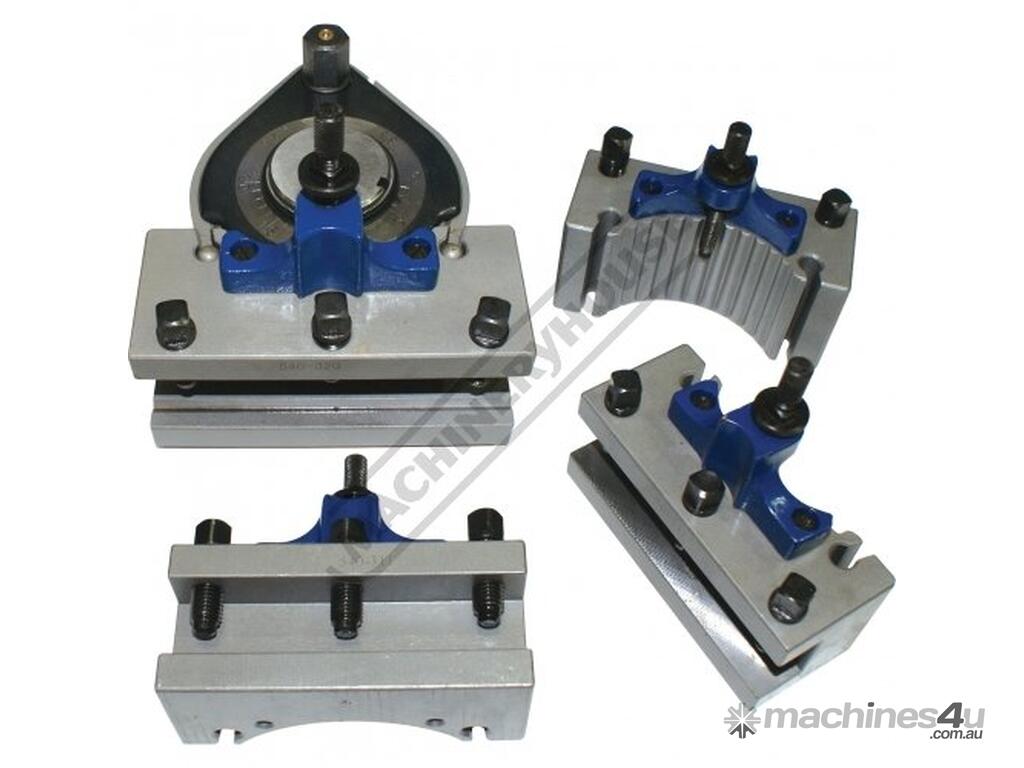

Supplied with 3 square tool holders and one vee tool
Please Note: Some machining required to suit your lathe holder

Includes:
- 3 x square tool holders
- 1 x Vee tool holder



Specifications:
ORDER CODE: L2994
MODEL: B2
Lathe Centre Height (mm): 150 - 250
Lathe Swing (mm): 300 - 500
A (mm): ~
B (mm): 14
C (mm): 73
D (mm): 150
E (mm): ~
H (mm): 38 - 57
h (mm): 76
S (mm): 32
T (mm): 25
Y (mm): ~
Number of Sides (No.): ~
Number of Holders (No.): 4
Nett Weight (kg): 9.8


To Purchase Online Please Visit The Machineryhouse & Search For 'L2994'
