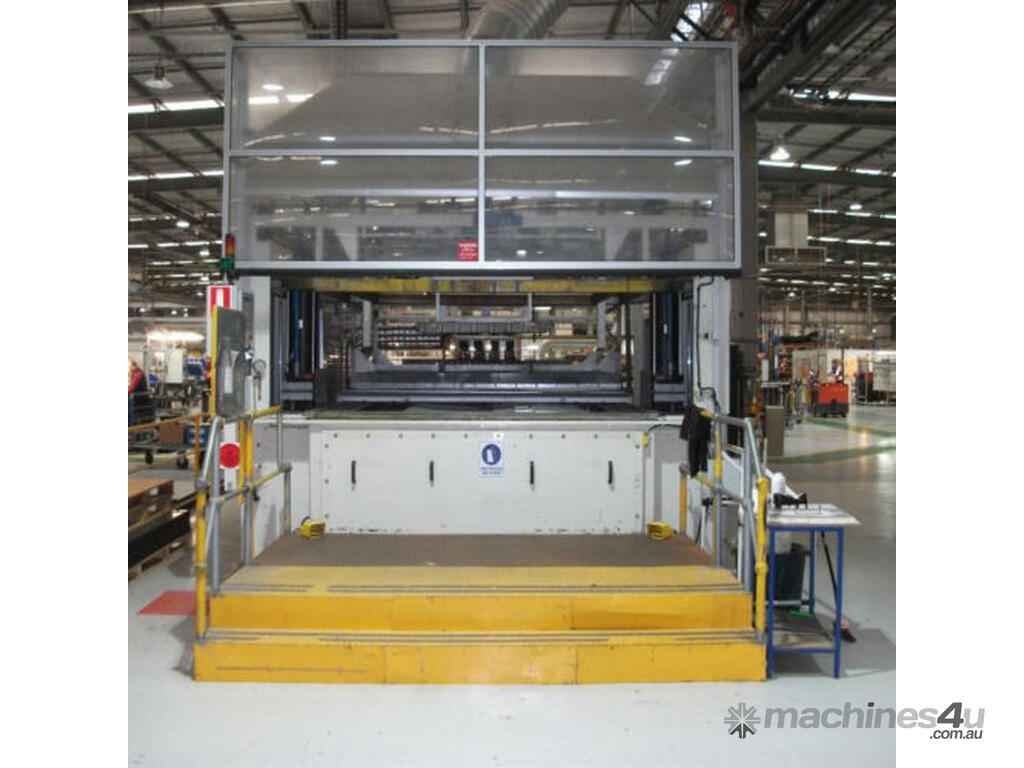

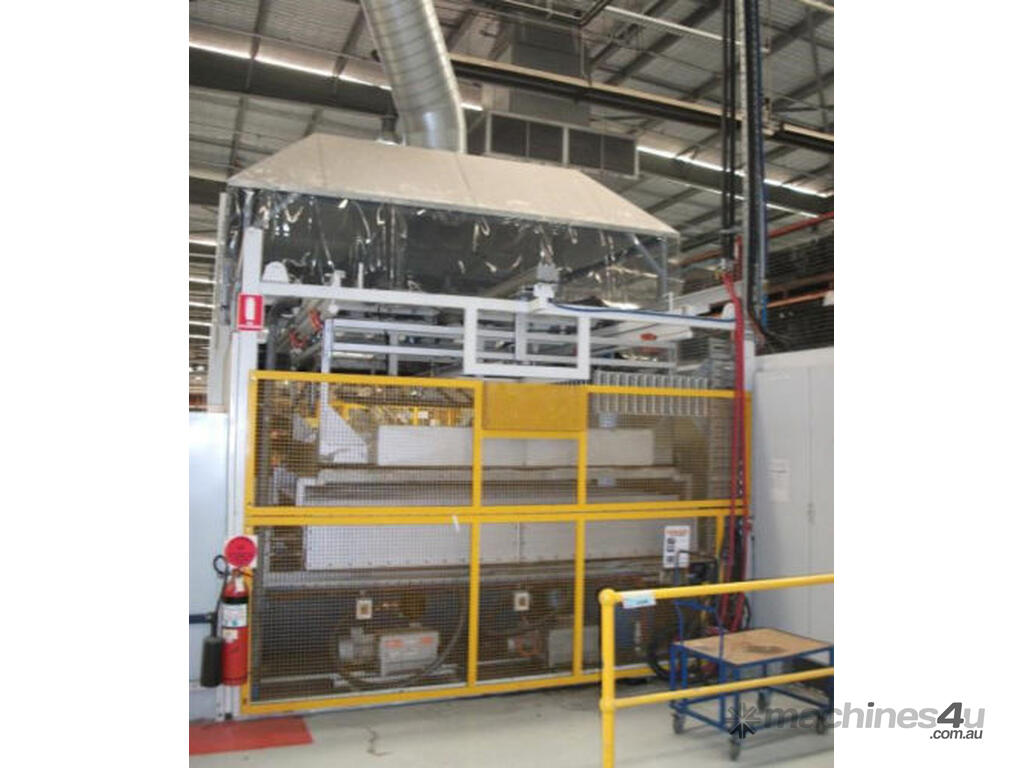

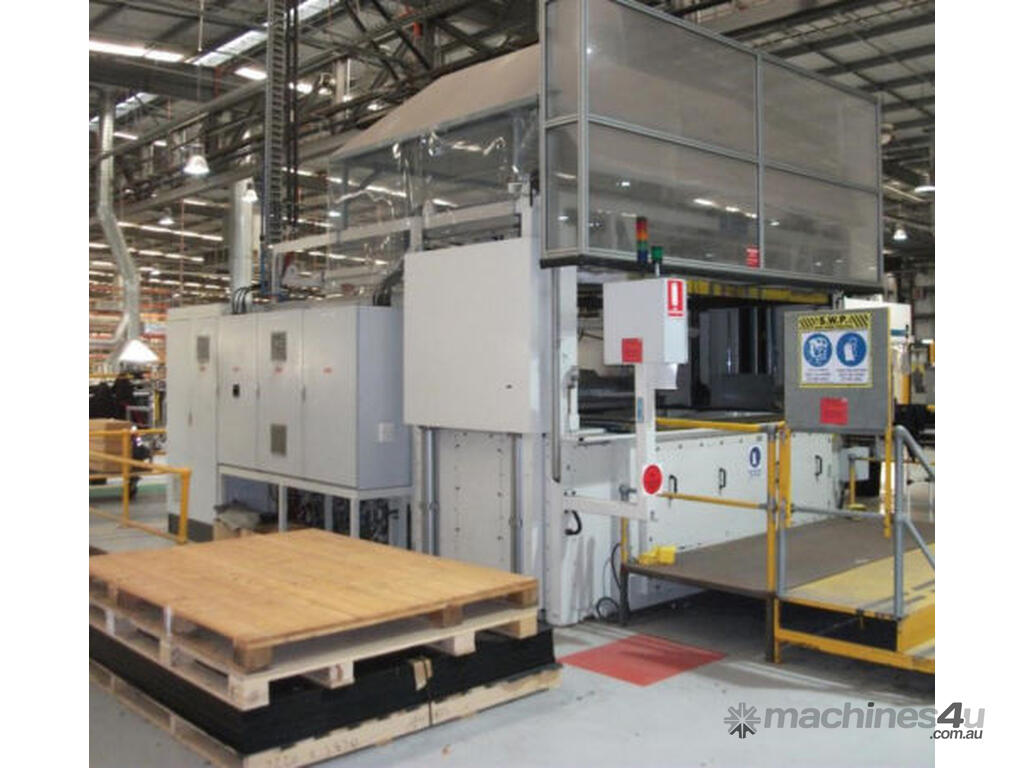

Modern large capacity vacuum former

Modern large capacity vacuum former with blow pre stretch function 100KW heating

Seal face for this machine is 2060mm x 175mm

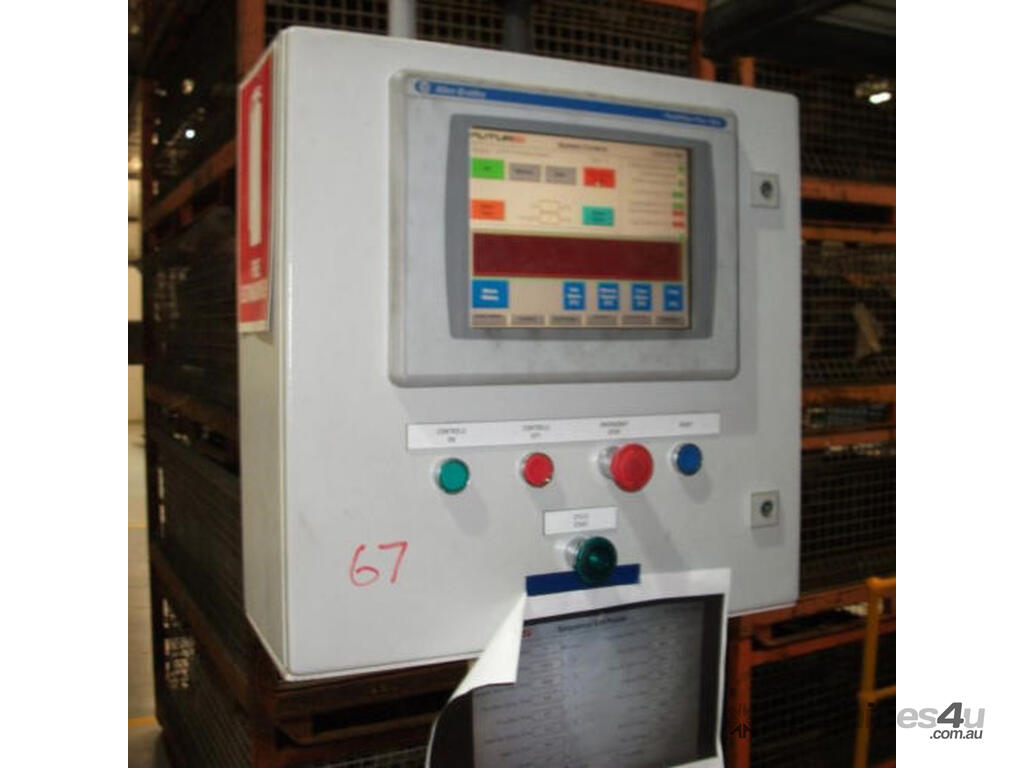

100KW heating power (Total of 400 x 250W ceramic elements) full machine refurbishment and new controls fitted 2011 at a cost of nearly $500,000.00

Top heating bank 6 thermocouple zones and 200 250W elements in a 1850 x 2650mm elements with individual SSR control and current transmitters for monitoring.

The bottom bank is almost identicle its still a 10 x 20 element layout but 100mm narrower at 1850 x 2550mm

The platten lock rams are 813mm stroke

Main clamp rams 1100mm stroke

Secondary clamp rams 600mm stroke

100KW total heating power.

Full control documentation and drawings for the system available.

We opted to bite the bullet and relocate the machine its now at our ottoway yard and the price has been revised accordingly. lift required move required 2 cranes each end a drop deck and an escort
