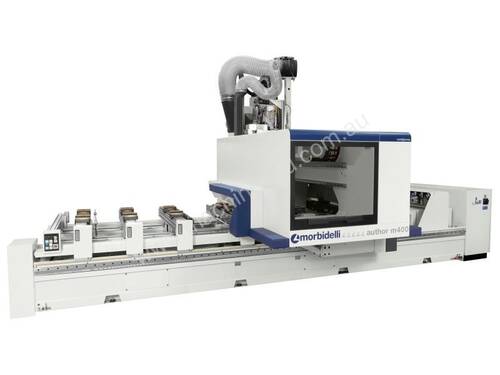

Morbidelli Author M400 CNC Machining Centre / Router

THE SOLUTION THAT COMBINES QUALITY AND TECHNOLOGY

Modular machining centre designed and developed to satisfy the requirements of furniture manufacturers.
Performance without comparison with the mobile gantry structure and easy programming of all production process by means of Xilog Maestro software.

Advantages:
SUPERIOR TECHNOLOGY FOR MACHINING WITH 5 AXES: PRISMA ELECTROSPINDLE
Reduced maintenance, maximum flexibility and optimal finishing quality with the BEL.TECH technology (Belt technology system), the belt transmission system which eliminates vibration and heat from tools to the motor. Due to the compact structure, it allows easy operations in limited spaces.

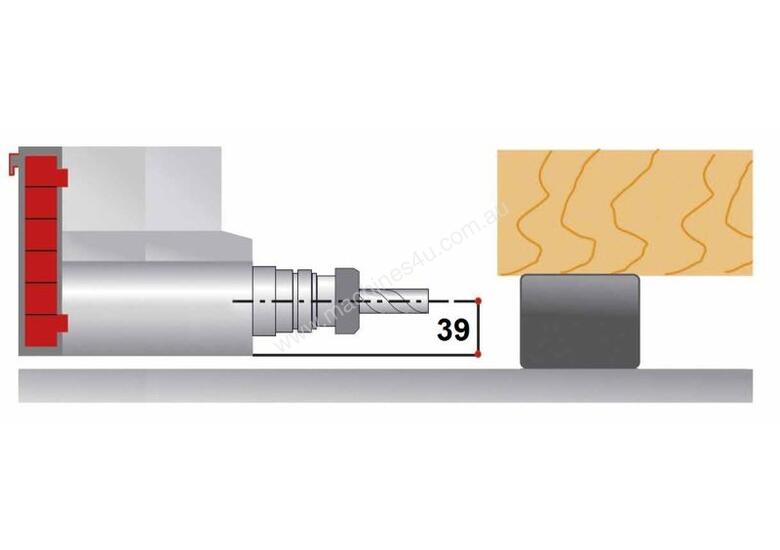

THE PERFECT DRILLING: RO.AX SPINDLE
Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm. The sturdiness of drilling heads is proven by the reduced maintenance costs: five times less than that imposed by the majority of other machine manufacturers.

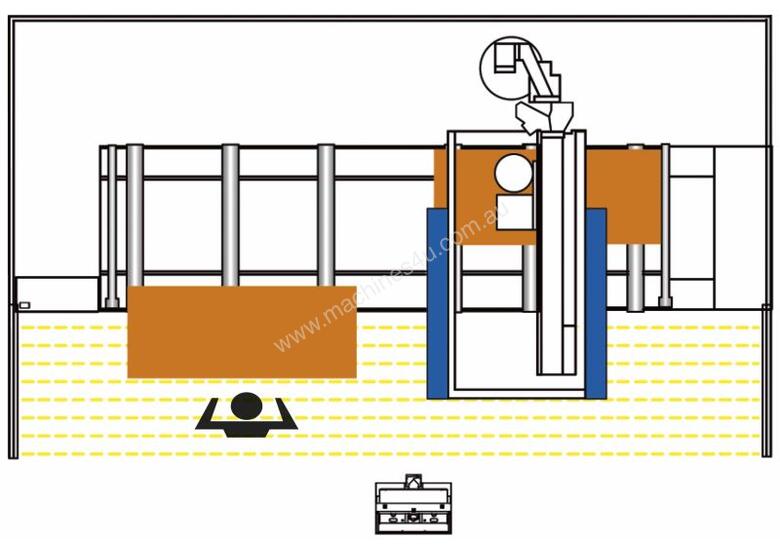

THE PERFECT COMBINATION OF SAFETY AND PRODUCTIVITY: PHOTO-BUMPERS
High production capacity and greater freedom of movement also during alternated work process due to the safety system that brings together the bumpers devices with the photocells for the detection of the operator’s position inside the loading/unloading area.

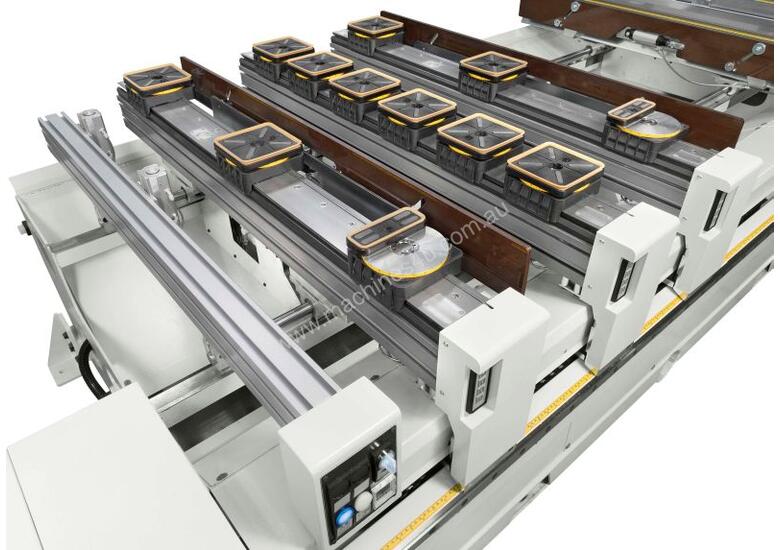

TOTAL CUSTOMISATION: TV FLEXMATIC WORK TABLE
This automatic table allows the management of a variable number of suction cups on the bar, according to the dimensions and shape of the work piece to be machined, in order to always have the best holding without risks of collision.

Technical data:
author m400

Working areas
X-Y axes dimensions mm 3680x1380
3680x1680
5020x1380
5020x1680
6360x1380
6360x1680

Axes
Vectorial speed X-Y axes m/min 85
Z axis speed m/min 30
Z axis panel passage mm 170

Routing unit
Motor power (max.) kW (hp) 15 (21)
Rotation speed (max.) rpm 24000
Available tools on tool changer (max.) places 36

Drilling unit
Independent vertical spindles (max.) n. 25
Independent horizontal spindles (max.) n. 12
Rotation speed (max.) rpm 8000
Integrated blade in X, diameter mm 125
0-90° integrated blade, diameter mm 160
