Morbidelli Author M600/800 F

THE SOLUTION THAT COMBINES QUALITY AND TECHNOLOGY

Modular machining centres equipped with multi-function aluminium work table, able to guarantee high quality standards.
Performance without comparison with the mobile gantry structure and easy programming of all production process by means of Xilog Maestro software.

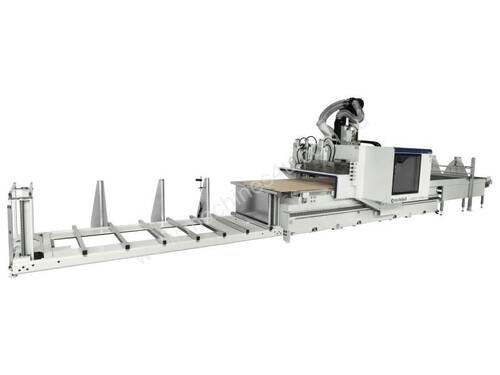

Available also in "cell" version with lifting table and unloading belt

Advantages:
SUPERIOR TECHNOLOGY FOR MACHINING WITH 5 AXES: PRISMA ELECTROSPINDLE
Reduced maintenance, maximum flexibility and optimal finishing quality with the BEL.TECH technology (Belt technology system), the belt transmission system which eliminates vibration and heat from tools to the motor. Due to the compact structure, it allows easy operations in limited spaces.

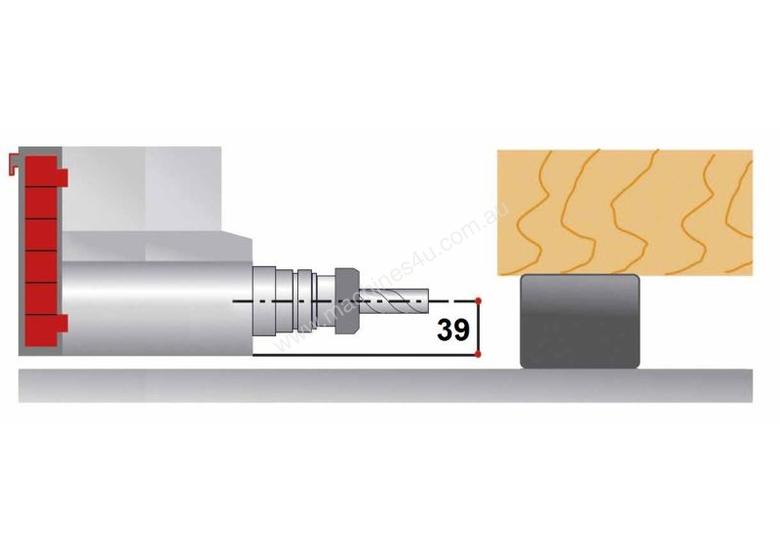

THE PERFECT DRILLING: RO.AX SPINDLE
Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm. The sturdiness of drilling heads is proven by the reduced maintenance costs: five times less than that imposed by the majority of other machine manufacturers.

THE PERFECT COMBINATION OF SAFETY AND PRODUCTIVITY: PHOTO-BUMPERS
High production capacity and greater freedom of movement also during alternated work process due to the safety system that brings together the bumpers devices with the photocells for the detection of the operator’s position inside the loading/unloading area.

VERY HIGH FLEXIBILITY: MULTI-FUNCTION WORK TABLE

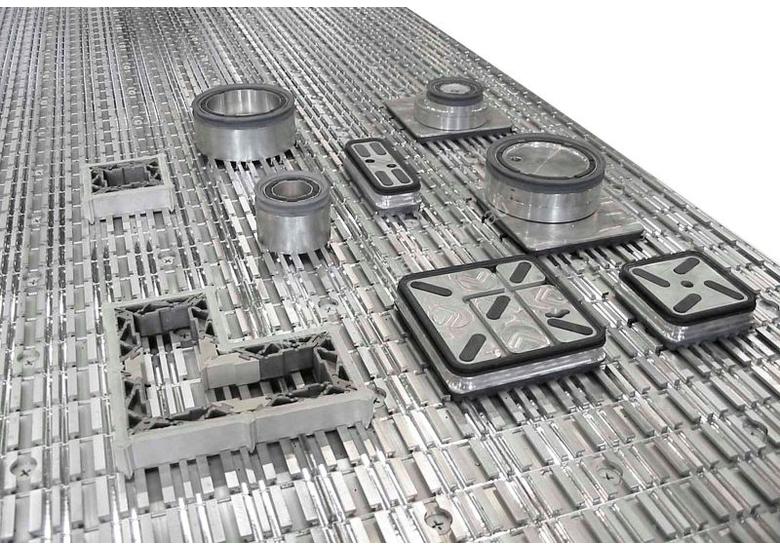

Extremely stiff work table made of extruded aluminium, designed to maintain a perfect planarity over time, even after repeated mechanical stresses. It is ideal also for nesting machine.

Technical data:
author m600 f m800 f

Working areas
X-Y axes dimensions mm 3650x1600 3650x1600
3650x1840 3650x1840
3650x2120 3650x2120
4970x1600 4970x1600
4970x1840 4970x1840
4970x2120 4970x2120
6170x1600 6170x1600
6170x1840 6170x1840
6170x2120 6170x2120
Axes
Vectorial speed X-Y axes m/min 127 127
Z axis speed m/min 30 30
Z axis panel passage mm 250 350

Routing unit
Motor power (max.) kW (hp) 17 (23) 17 (23)
Rotation speed (max.) rpm 24000 24000
Available tools on tool changer (max.) places 54 54

Drilling unit
Independent vertical spindles (max.) n. 38 38
Independent horizontal spindles (max.) n. 12 12
Rotation speed (max.) rpm 8000 8000
Integrated blade in X, diameter mm 125 125
0-90° integrated blade, diameter mm 160 160
