Morbidelli Universal NB CNC Nesting Machine / Router

CNC machining centre mainly dedicated for nesting process, specified for those manufactures who need to produce in batches or "order by order".
Performance without comparison with the mobile gantry structure and easy programming of all production process by means Xilog Maestro software.
Available also in "cell" version with lifting table and unloading belt.

Advantages:

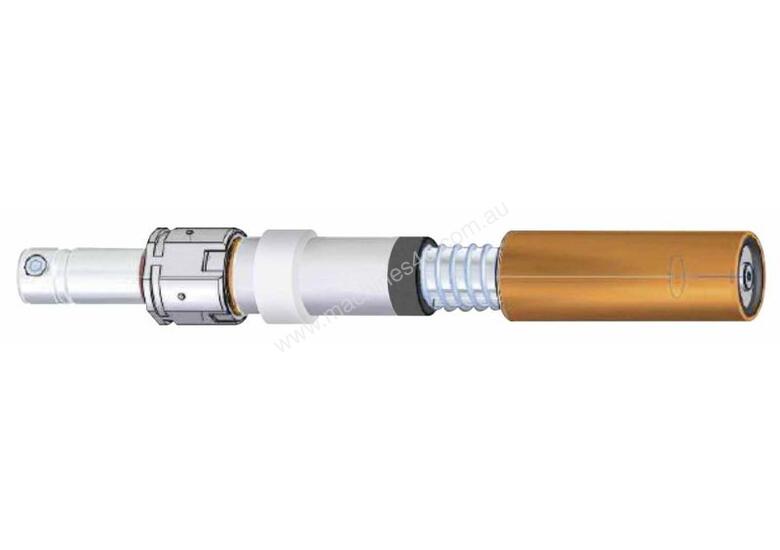

THE PERFECT DRILLING: RO.AX SPINDLE
Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm. The sturdiness of drilling heads is proven by the reduced maintenance costs: five times less than that imposed by the majority of other machine manufacturers.

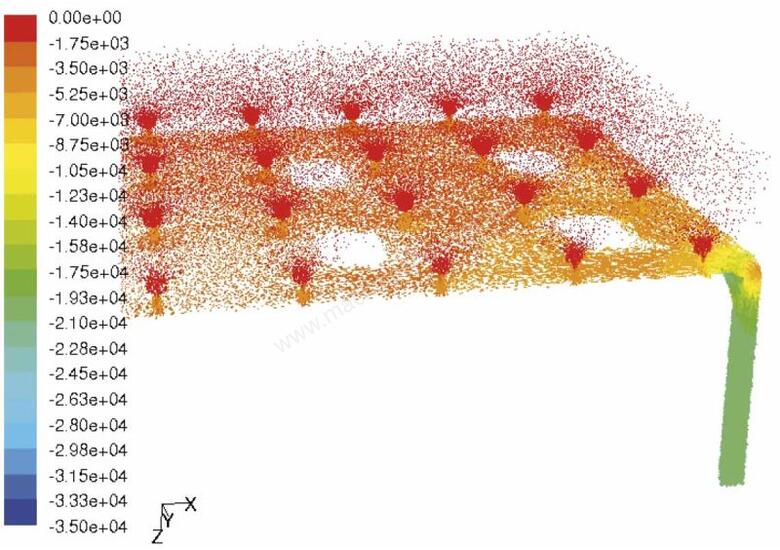

DESIGNED FOR EFFICIENCY AND SAVING: "HE" WORKTABLE
Careful studies and tests allow us to achieve a high level of workpiece holding down without resorting to several highpower vacuum pumps.

Technical data:
Universal nb 2412

Axes
Working area along X-Y-Z axis mm 2440 - 1220 - 150
Vectorial speed X-Y axes m/min 103

Boring head
Vertical spindles up to no. - rpm 12 (7X / 5Y) - 8000
Integrated blade in X Ø mm - rpm 125 - 10000

Electrospindle
Standard motor power (S6) kW (Hp) 12 (16,5)
Max. speed rpm 24000
Tool changer on machine base (max.) places 32
