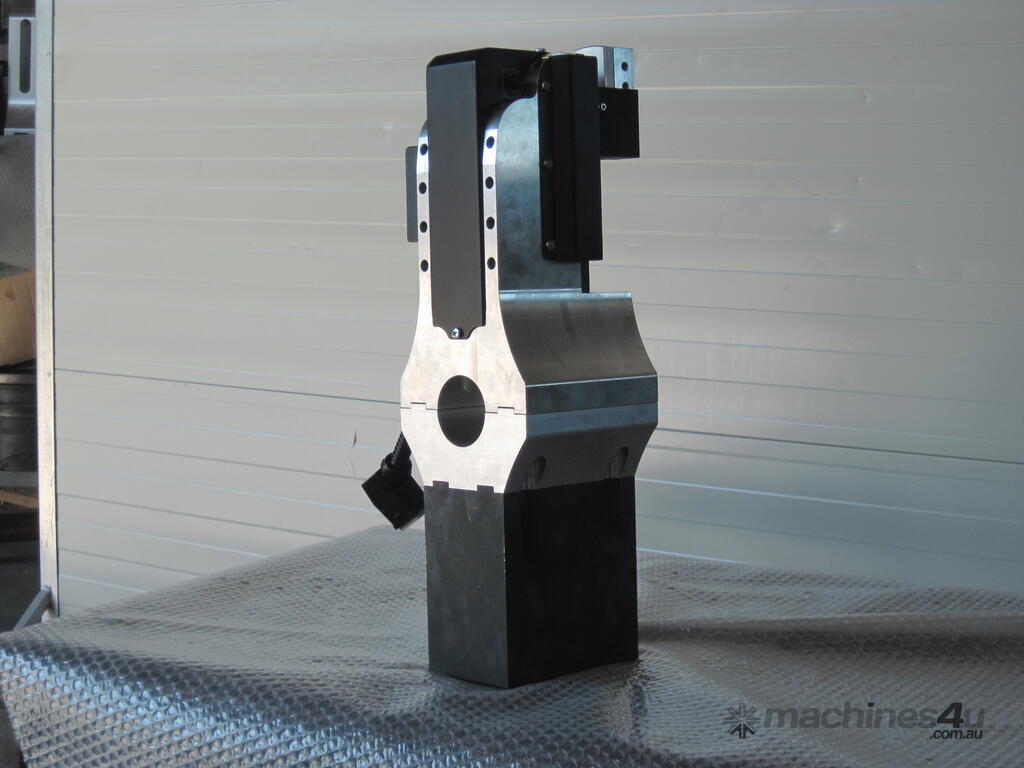

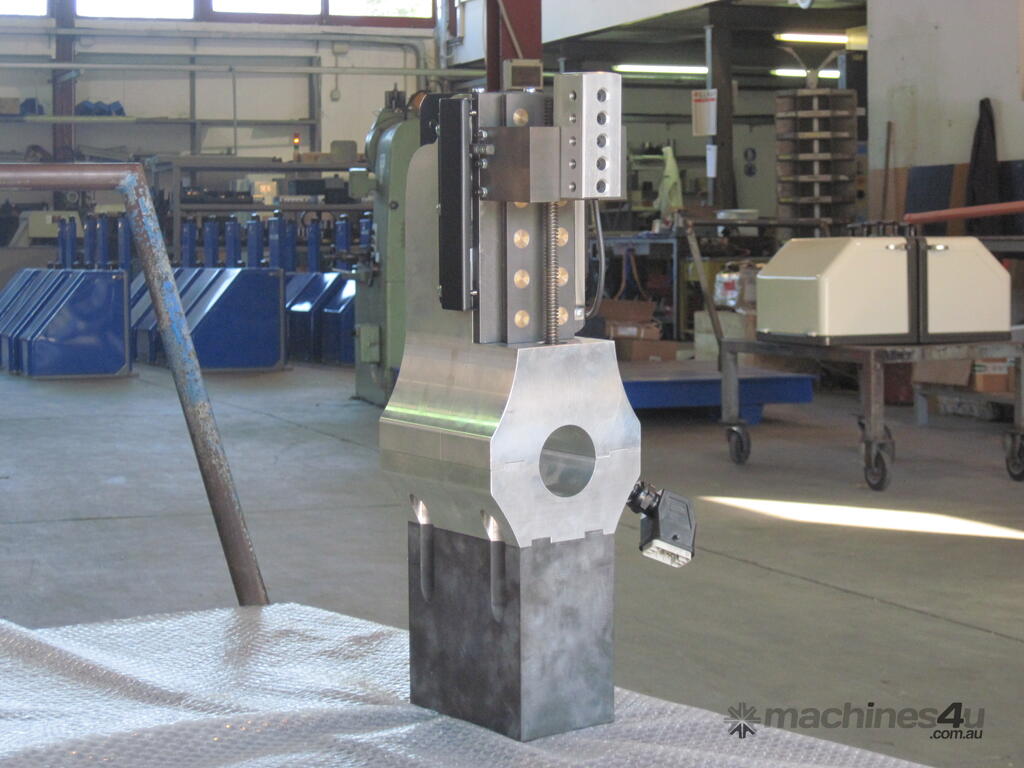

Motorised Facing Head for WS Series Line Borers

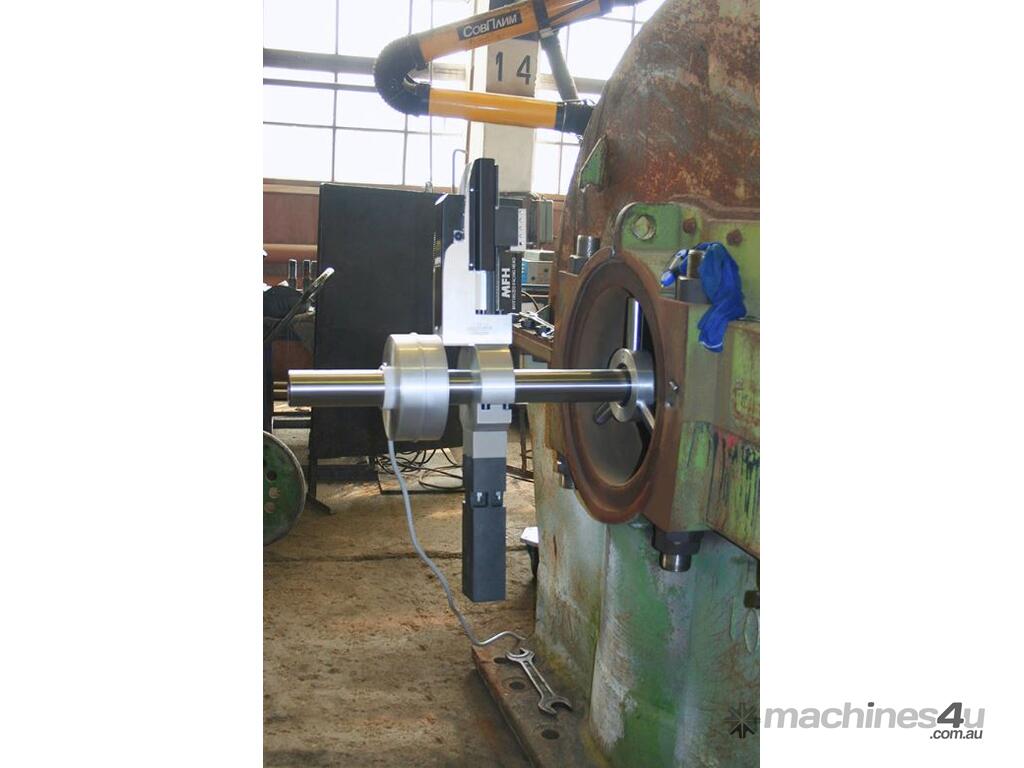

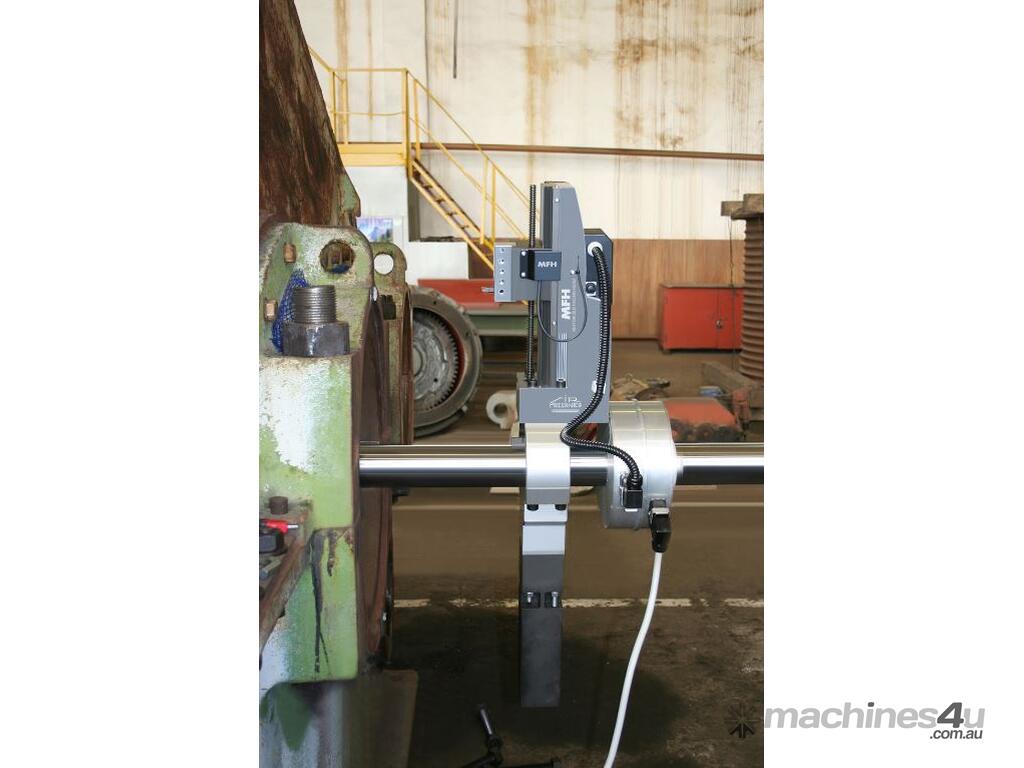

CNC MACHINERY SALES AUSTRALIA PRESENTS - MFH Motorised Facing Heads for facing jobs or internal turning jobs (linear or nonlinear) on tubular cylindrical bodies, allowing the operator to control all the steps of the machining through an electronic control panel.
Therefore, the radial movement of the tool is controlled with regards to position and speed allowing for automatic precision machining. Through dedicated modular extensions, different ranges of diameters can be handled and the counterweight can be proportionally set in order to obtain a perfectly balanced system.
The stroke allowed to the tool is 90mm
The range for diametrical machining goes from Ø70mm to over Ø450mm (it is expandable and customizable upon request)

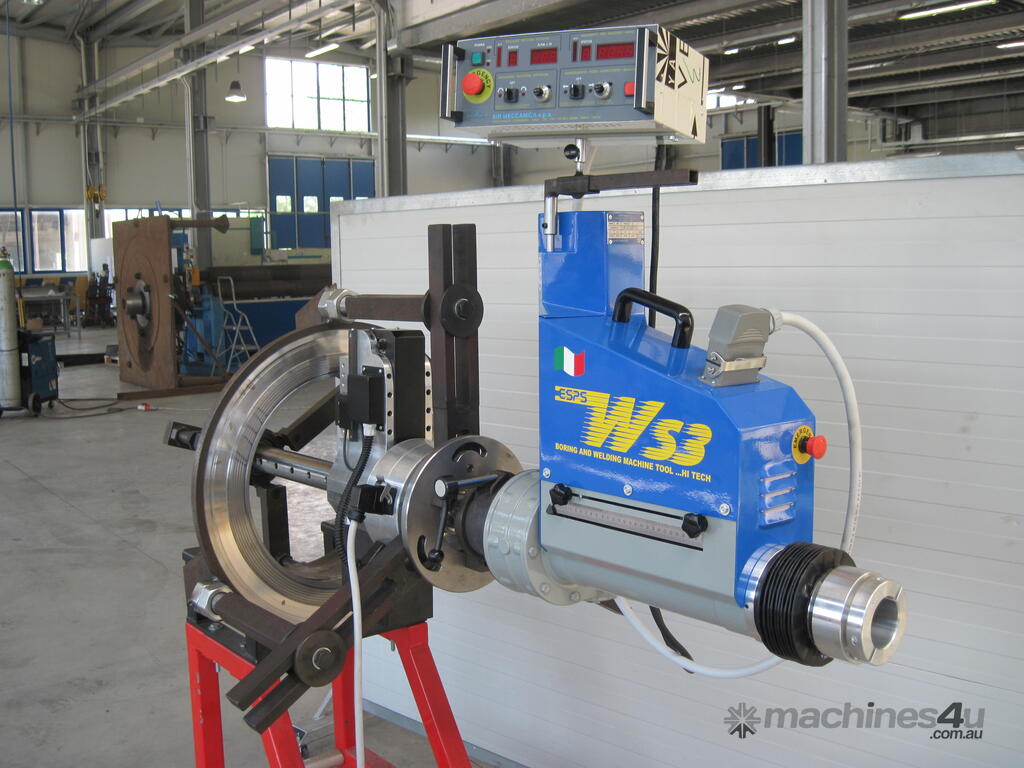

The system is controlled by a control panel that is separate from the main control.
The system is electronically powered, in an autonomous and separate way. The power supply is managed through a rotating collector, bound between the shaft and the system.
The new Motorized Facing Kit can do the following working operations: Orthogonal facing of the surfaces; Creation of circlip grooves.

Delivery and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
