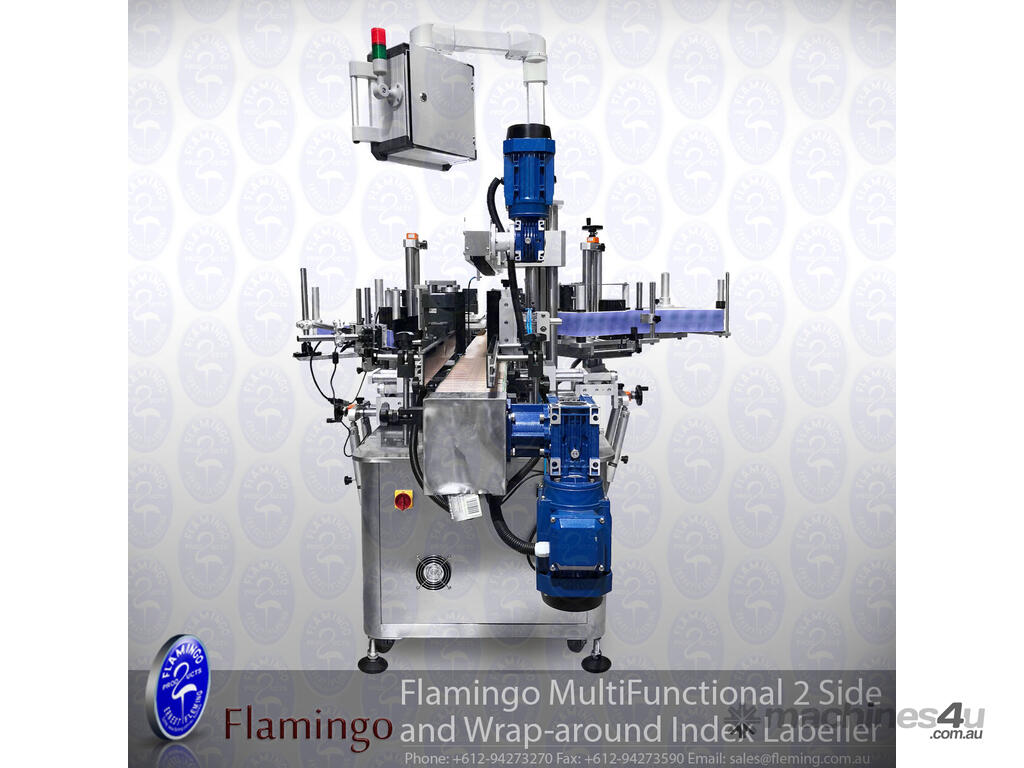

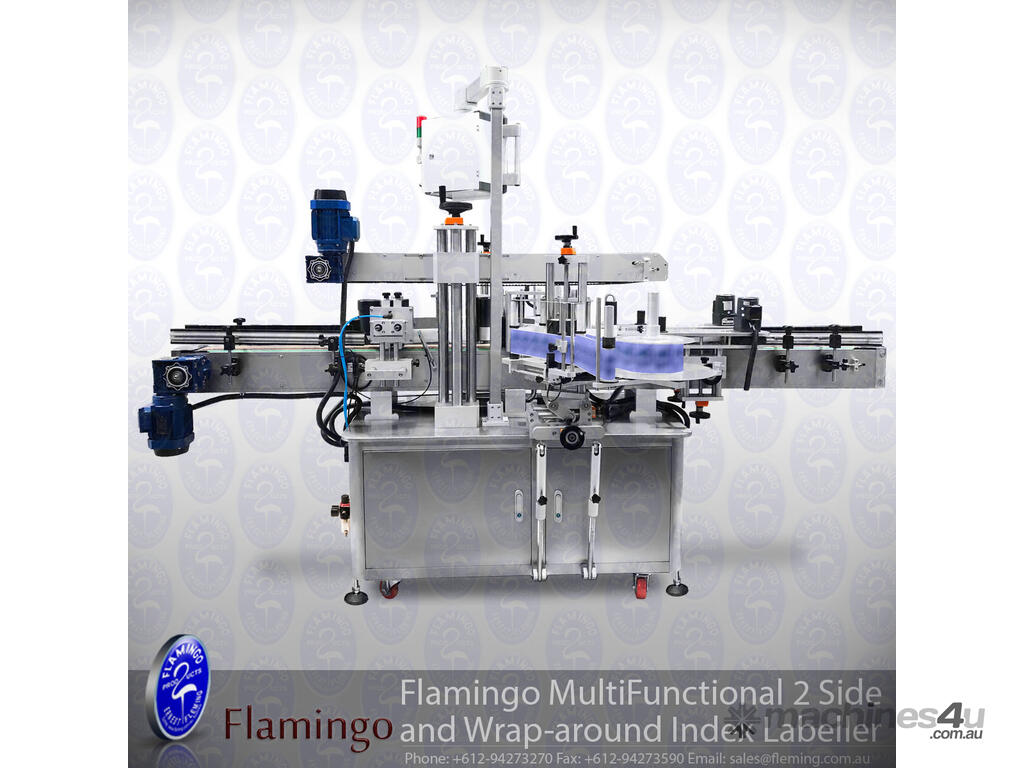

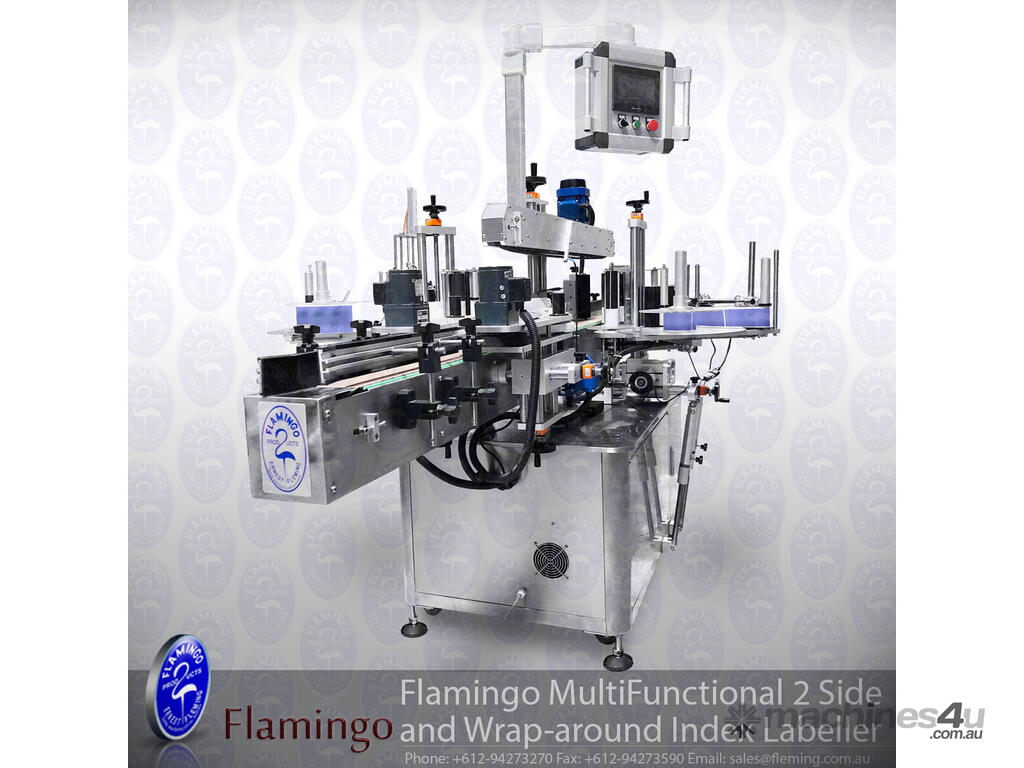

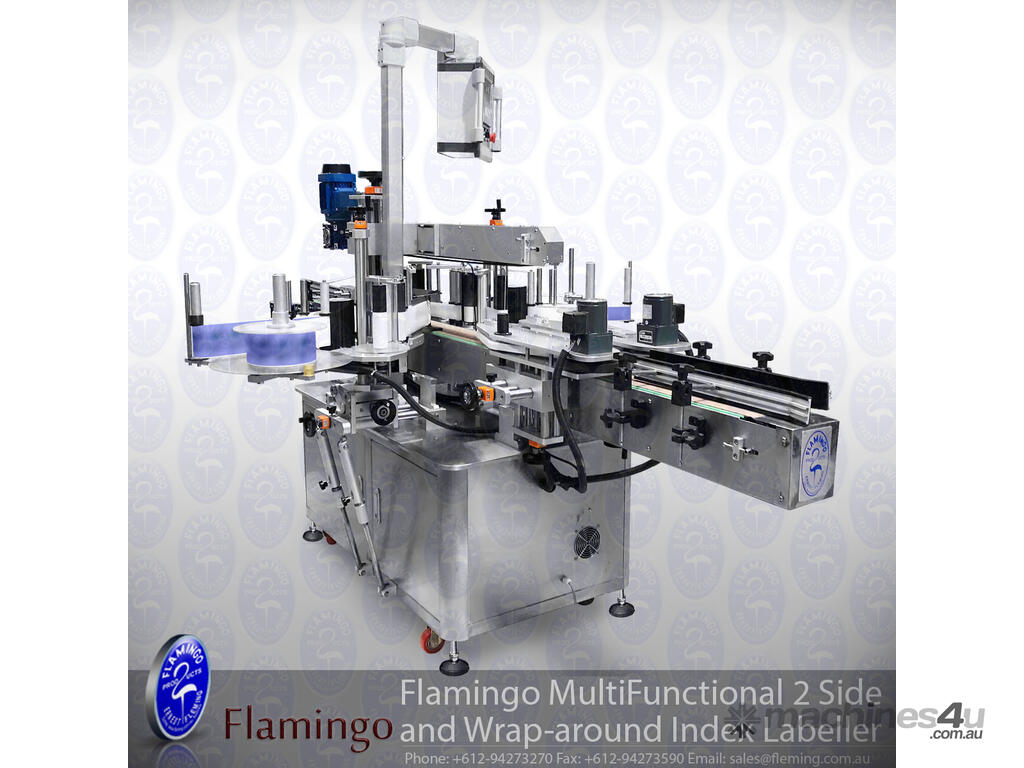

Multi Functional 2 Side Wrap-Around Index Labeller

The Flamingo Multi-Functional 2 Side Wrap-Around Index Labeller is a cutting-edge labelling machine designed for versatility and efficiency. Ideal for use in the pharmaceuticals, daily chemicals, food, and beverages industries, this labeller provides automatic labelling solutions for various container shapes, including round, oval, and flat.

Key Benefits and Advantages

• Automatic Label Detection:
The Labeller automatically detects label size and bottle diameter, adjusting labelling parameters to ensure optimal performance. This feature is especially beneficial for users managing multiple products.

• Versatile Labelling Capability:
This machine can apply one or two pressure-sensitive (self-adhesive) labels, with options for partial and wraparound labelling, accommodating a wide range of container types.

• High Performance:
Capable of labelling at speeds of 60 to 180 labels per minute (depending on label length), the Labeller combines speed and accuracy to enhance production efficiency.

• Robust Container Handling:
Equipped with a 2.2-meter-long speed-adjustable conveyor and a synchronized container top conveyor, the machine ensures stability by gripping the crown of the container during labelling.

• Customizable Options:
The Labeller supports various label dimensions, with a maximum label length of 300mm and a maximum height of 150mm. It can accommodate container diameters ranging from 20mm to 150mm and heights up to 400mm.

• Reliable Engineering:
Backed by a strong engineering team, the Labeller is designed and programmed in Australia, ensuring compliance with GMP standards and long-term reliability.


Features:

• Enhanced Flexibility:
The ability to label different container shapes and sizes makes the Labeller a versatile addition to any production line.

• User-Friendly Operation:
The Flamingo Design Easy Operate HMI, programmed in-house, provides an intuitive interface for easy operation and quick adjustments.

• Precision and Accuracy:
With labelling accuracy of ±1mm, this labeller delivers professional results, enhancing product presentation and customer satisfaction.

• Durable Construction:
Built with high-quality materials, the Labeller is designed for durability, featuring rust-proof components for long-term use.

• Custom Solutions Available:
Tailored solutions can be provided to meet unique production needs, ensuring optimal performance for your specific application.

Specifications:

Label Width: 10-150 mm
Label Length: 10-300 mm
Labelling Speed: Up to 6000 bottles/hour
Labelling Accuracy: ±1 mm
Bottle Diameter: 20 – 180 mm
Maximum Bottle Height: 400 mm
Power Source: 450W, 380V, 50Hz/60Hz
Label Reel Inner Diameter: 75 mm
Label Reel Outer Diameter: 360 mm
Control System: Japanese Mitsubishi PLC


Optional Batch Coder / Printer can be integrated!
