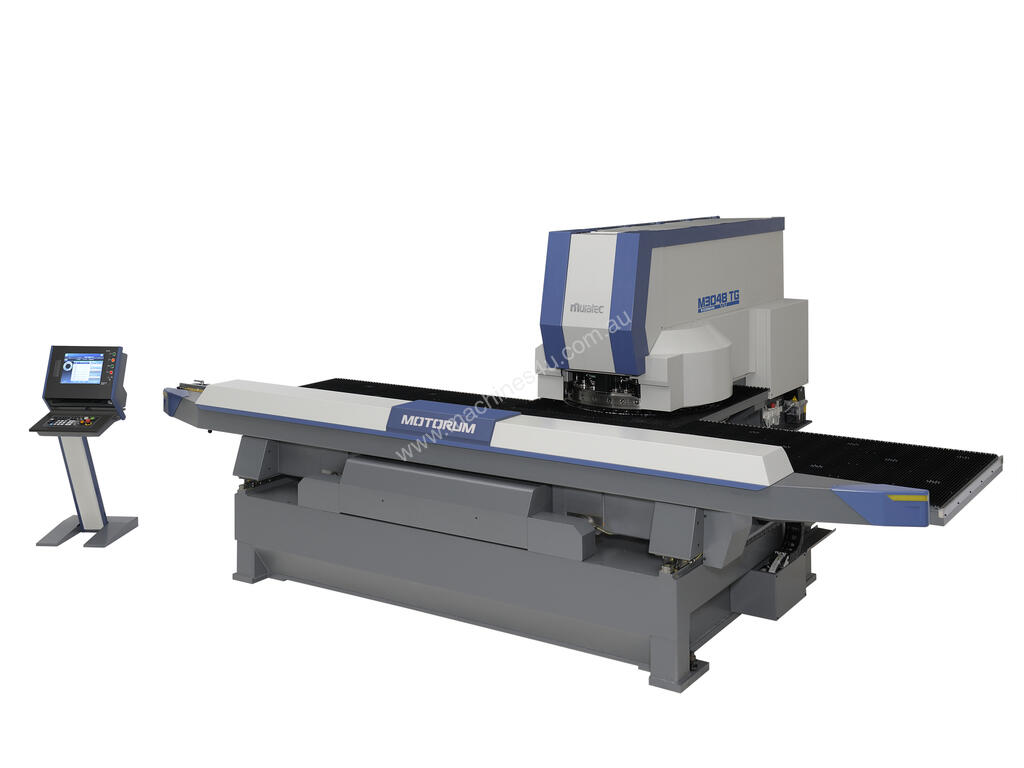

Muratec M3058 TG Servo Turret Punch

Made in Japan - The fastest turret punch on the market.

Punching Capacity: 300 kN (30 Tons)
Sheet size: 5000mm x 1525mm
Max Sheet Thickness: 6.35mm
Hit Rate (25mm Pitch – 7mm Stroke): 510hpm
Simultaneous Axis Speed: 125 m/min
Punching Accuracy: +/- 0.1mm
CNC Control: FANUC FS-31iPB base, Muratec Original
Brush Table
Wiedemann Style or Thick turret Tooling Available
Up to 4 auto index- customizable by you

Options Available:
Retractable Die mechanism for forming
Vari Mark - a letter stamp for every letter and number in 1 tool
4 or 8 Tapping stations
Automatic Programmable clamps
Wheel tool functionality
Video Jet Inkjet Printing

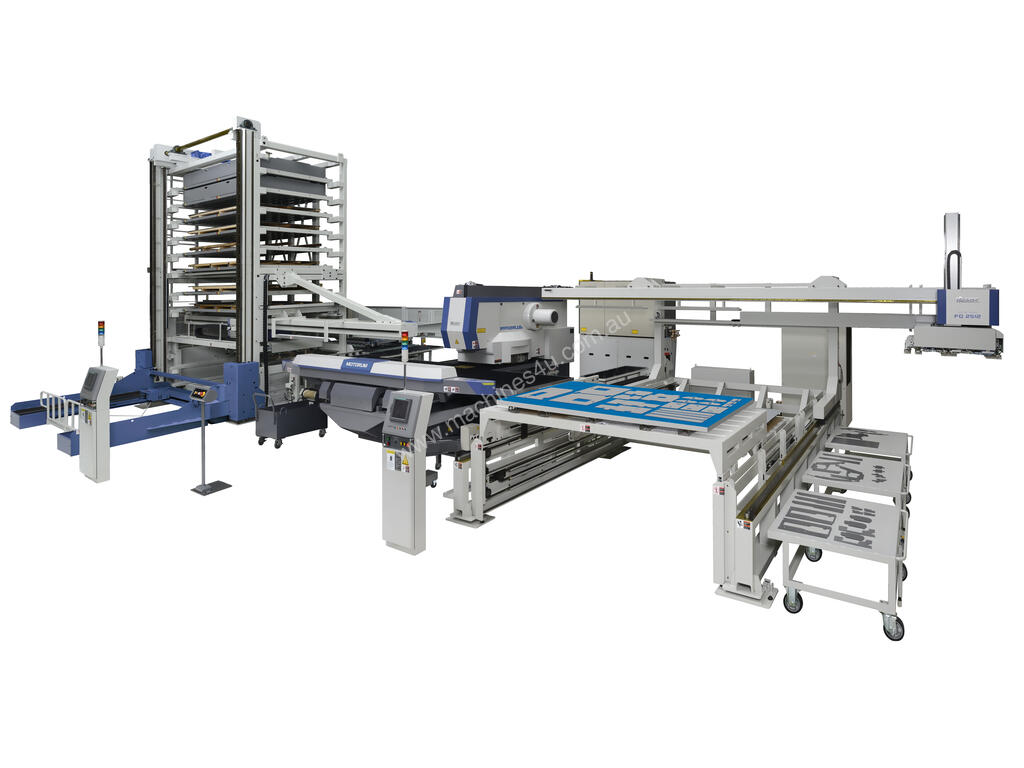

Full sheet Load and Unload
Part Picking individual parts and stacking

Includes Nesting Software and full set of tooling
