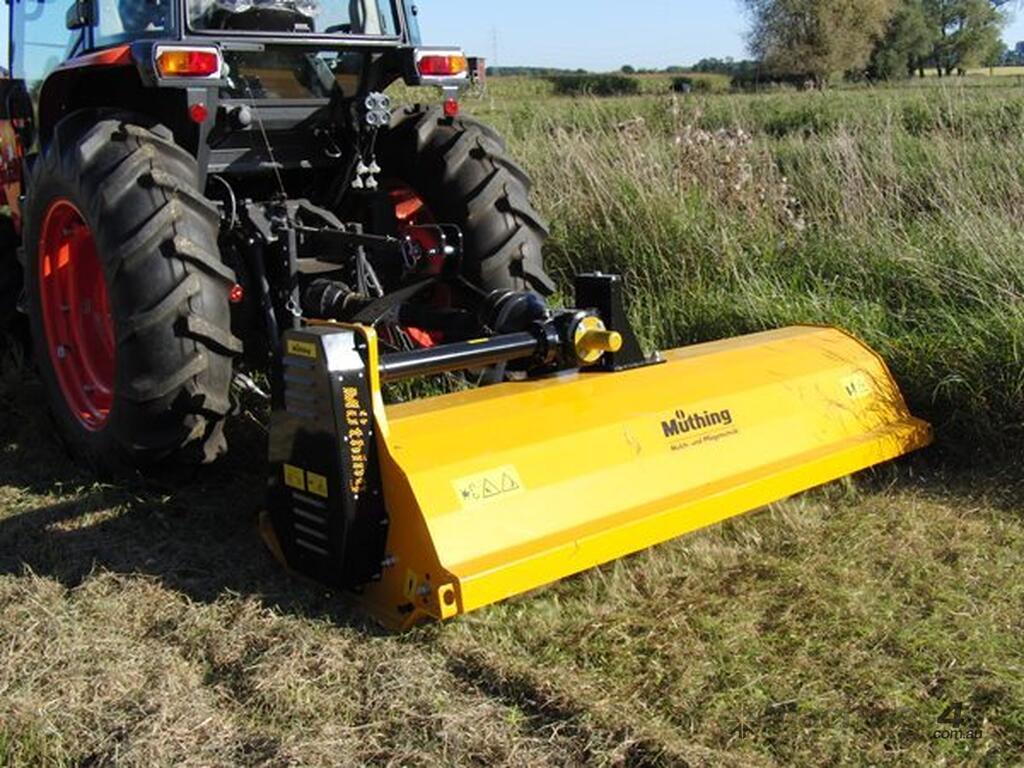

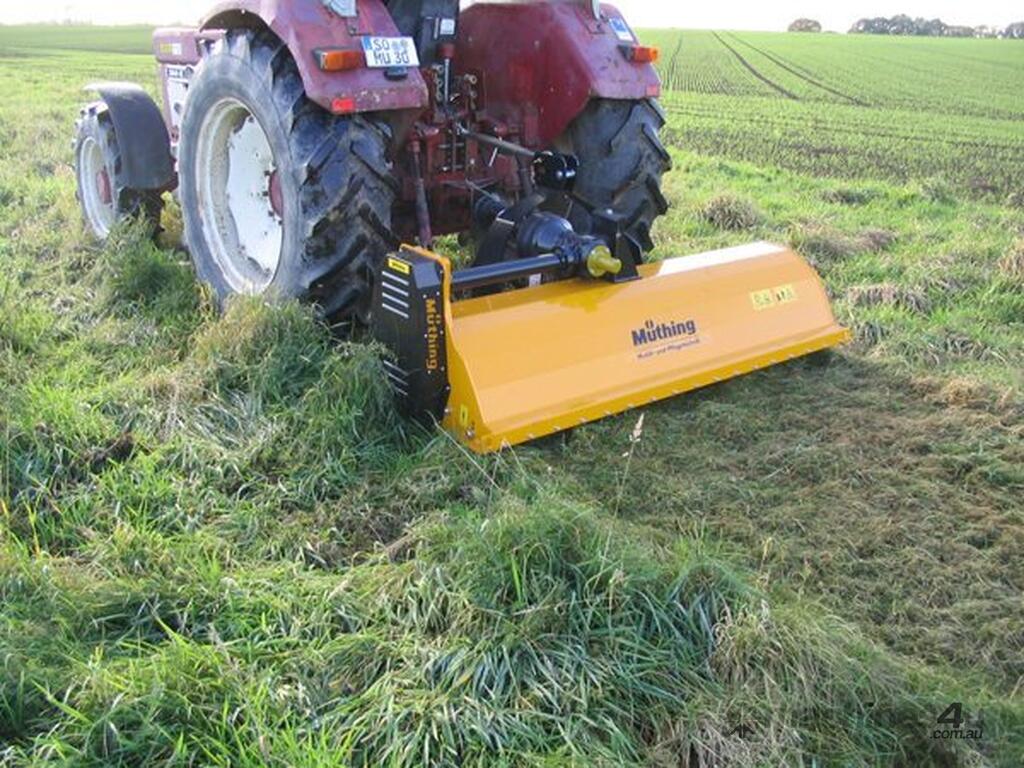

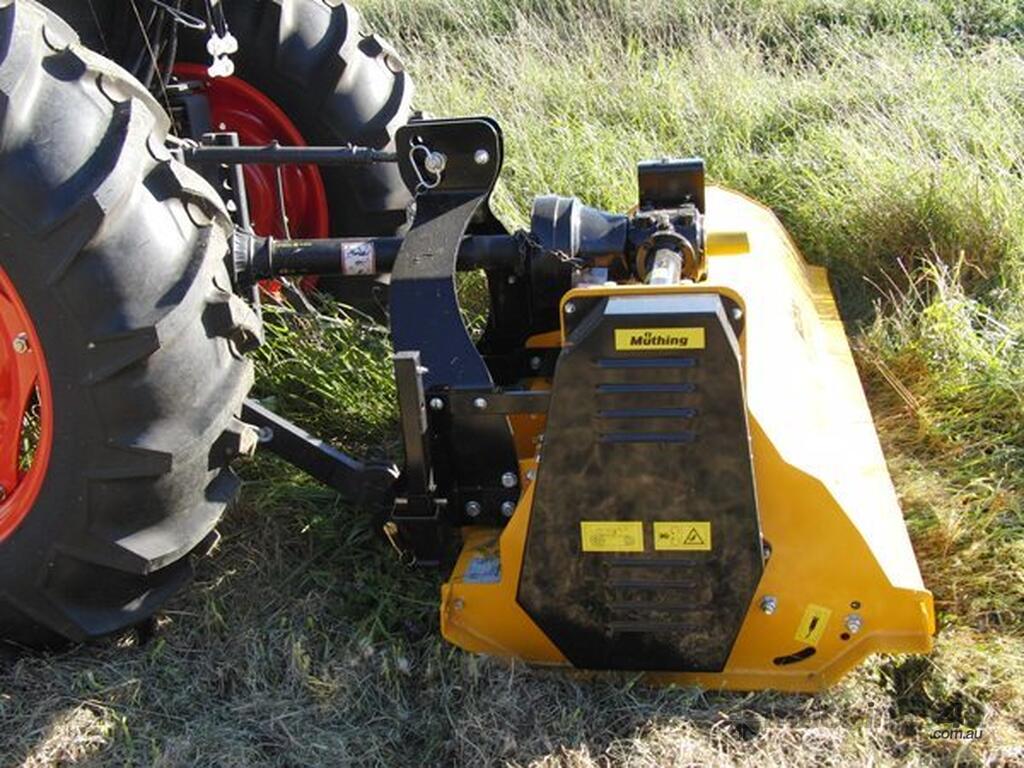

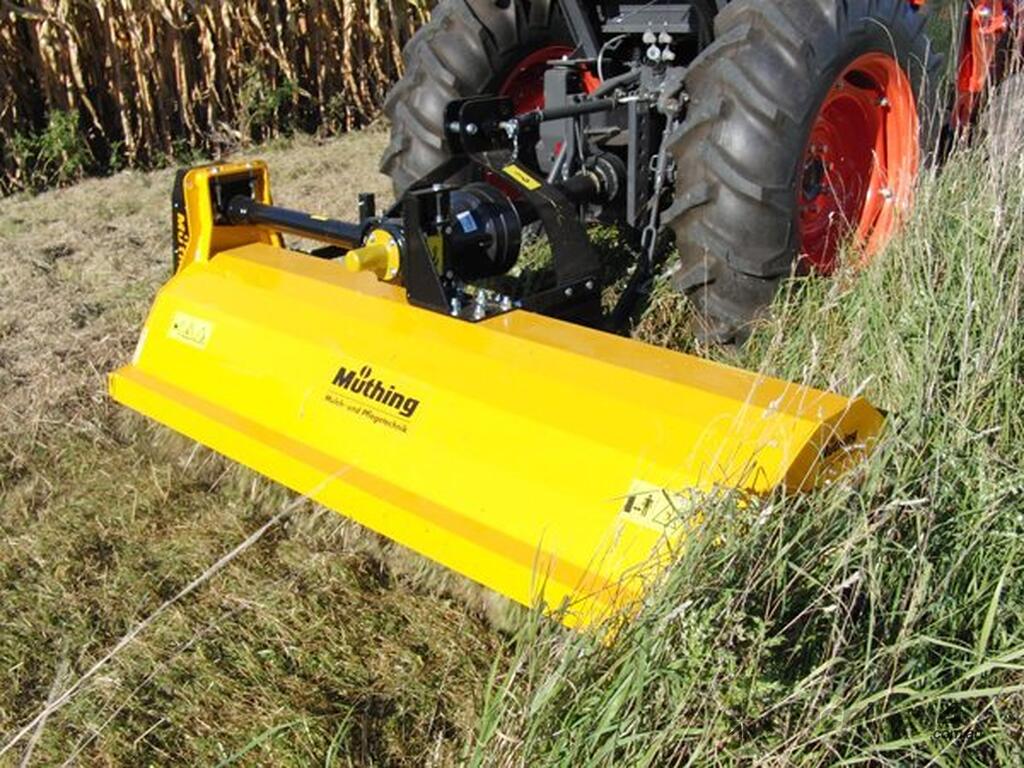

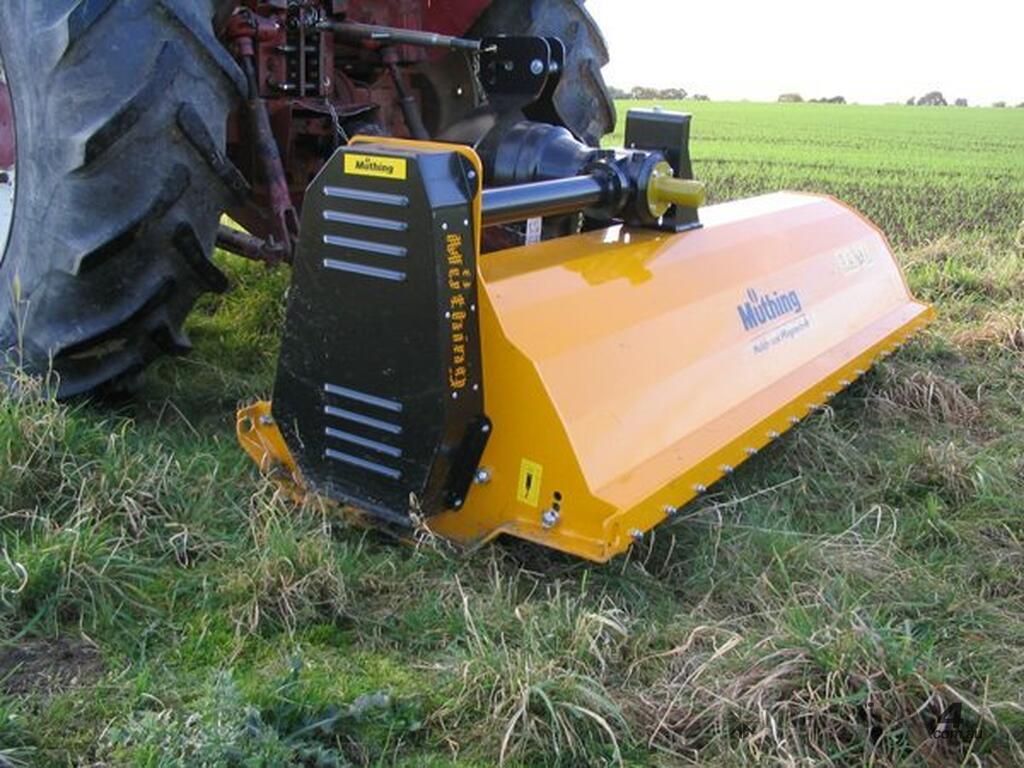

Muthing MU-ECOTOP 160 Flail Mower

Features
Standard Equipment

Manufactured from High Quality QSt/E Steel
Headstock Cat. I + II for Rear mounting
Mountable in two positions variable by 30cm (Offset)
Gearbox with integrated over run clutch and through drive 540 r.p.m. or 1000 r.p.m.
Belt protection with tension measuring slot
Stand
High tempered “M” Hammer flails
Smooth running Spiral rotor with specially formed lugs
Patented removable shredding bar – System: “Shark Fin”
Roller to carry the flail, adjustable for different heights
High tempered spring steel one way protection flaps in front of the mower
Optimised distance between the outer rotor circle and the roller guarantees perfect contour following and an even quality of cut
P.T.O. shaft and Guarding to ISO Standards

Options
Warning signs and lights (dealer fit)

Technical Data
MODEL: MU-ECOTOP 160
WW (cm): 160
OVERALL WIDTH (cm): 177
MAX. TRACTOR HP (540 r.p.m / 1000 r.p.m): 60 / 75
Weight (kg): 350
NO. OF FLAILS: 14
