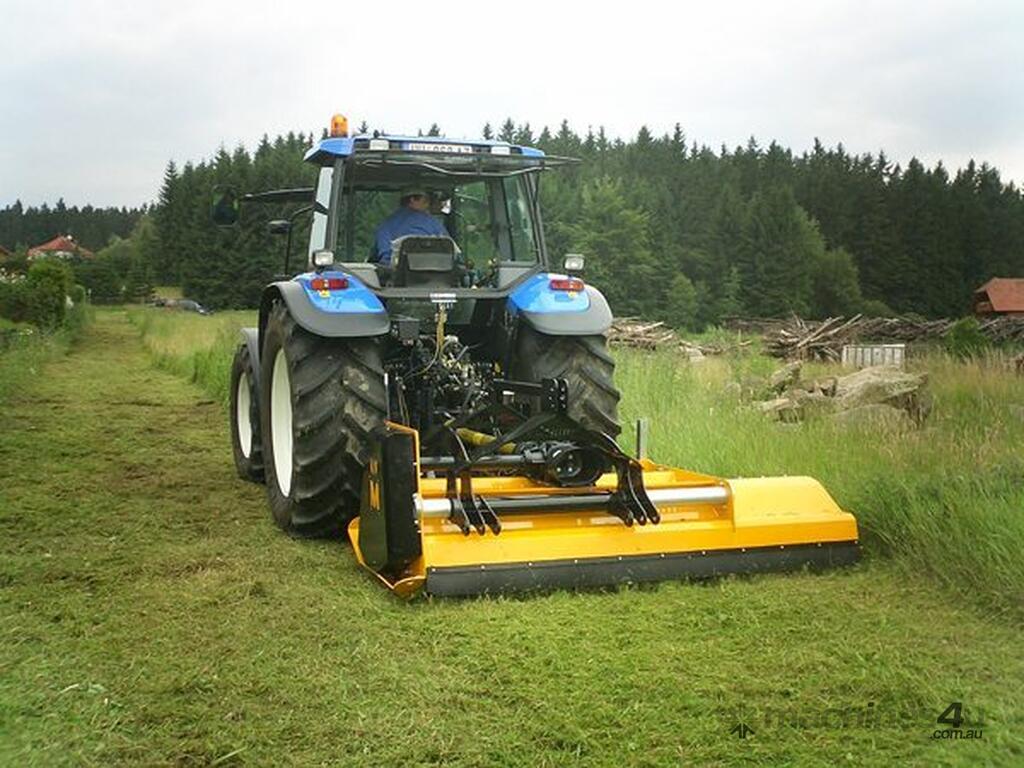

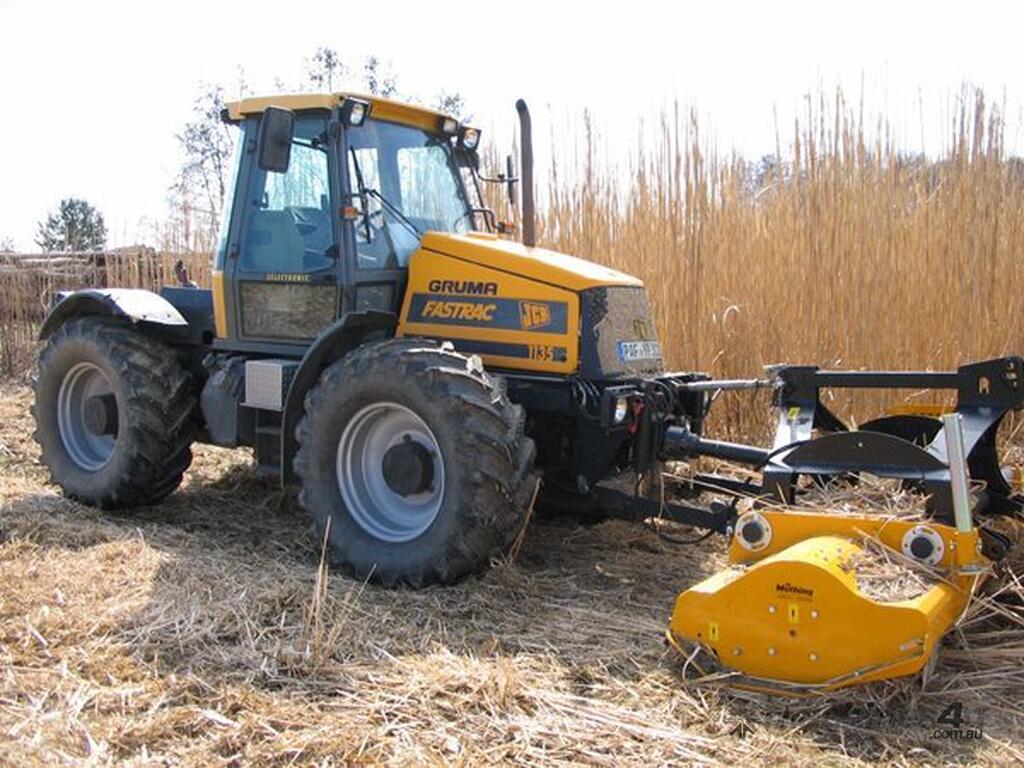

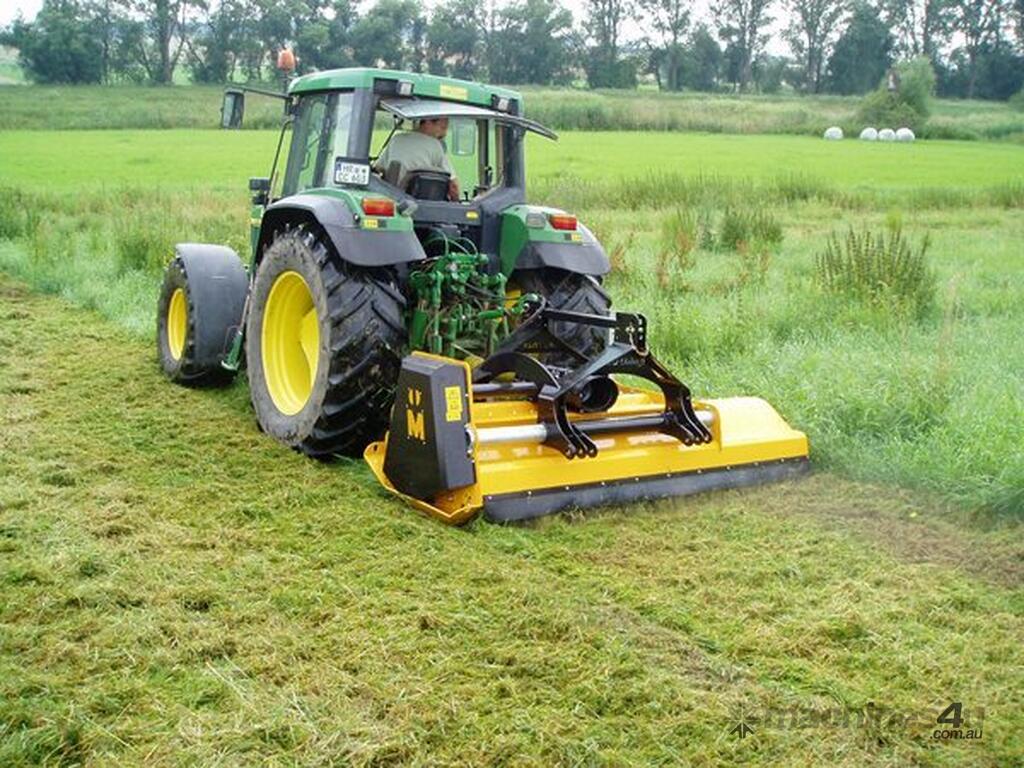

Muthing MU-M 250 Flail Mower

Features
Standard Equipment

Manufactured from High Quality QSt/E Steel with heavy duty multi position Headstock Cat. II for front and rear mounting.
Hydraulic side shift: 56 cm lifting range (1 double acting spool valve required).
Gearbox with integrated over run clutch and through drive for 1000 r.p.m.
Automatic belt tensioning
High tempered “M“ Hammer flails with self sharpening cutting edge to ensure a clean cut and maximum shredding using less power
Spiral rotor with specially formed flail lugs to protect against damage from obstacles and internal bearings protecting against dirt, wear and tear
Large self-cleaning roller to carry the flail mower, adjustable for different heights
Wearing skids
Stand
P.T.O. shaft and guarding to ISO Standards
Optimised distance between the outer rotor circle and the roller guarantees perfect contour following and an even quality of cut.
Purposely designed hood in conjunction with high rotor and cutting speeds and a fixed shredding bar spreads the shredded material evenly behind the roller giving an excellent Mulching and Shredding Quality
Patented removable shredding bar – System: “Shark Fin”

Options

Shock absorbing linkage springs (for Front Mounting recommended)
Hydraulic Weight Transfer MU-SOFA®, for Front mounting recommended
Second patented removable shredding bar – System: “Shark Fin”
Hood Wear plate (delivery time to be asked for)
Warning signs and lights (dealer fit)
Galvanised frame for Warning signs and lights to be mounted on for Front and Rear Headstock Cat.II
Heavy P.T.O. shaft with cap bottom lubrication
Height adjustable rubber wheels with fixed axle
Working hours meter with electronic sensor
Alternative flails and rotor systems (3 back to back Flails, M Shackle Flails)

Technical Data
MODEL: MU-M 250
WW (cm): 250
OVERALL WIDTH (cm): 270
MAX. TRACTOR HP (1000 r.p.m): 150
Weight (kg): 900
NO. OF FLAILS: 22
