NESTING "M" - MW 21.75M5

“All in one”. The top of the range

TECHNICAL SPECIFICATIONS
The Nesting M series consists of 5-axis machining centers for "nesting" operations, best suited to be part of higly automated production lines.

Available (optional) automatic vacuum subdivision on the working area in order to optimize the workpiece holding.

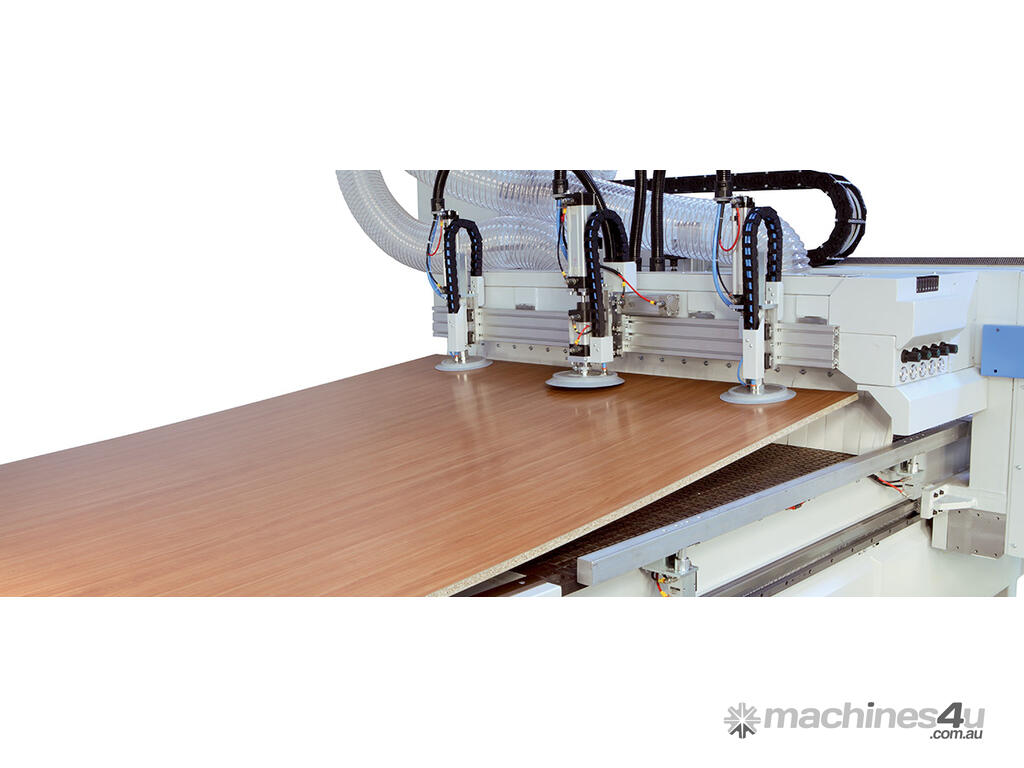

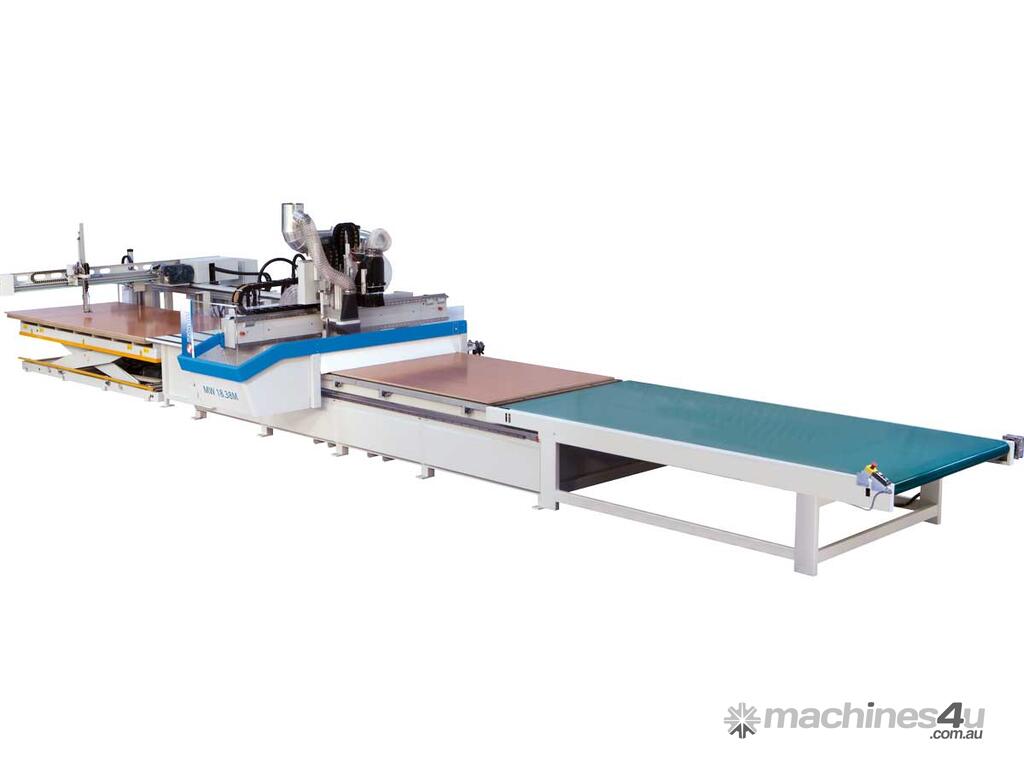

Automatic loading and unloading systems for large productivity.

Working Area X-Y-Z (mm):
Boring head - total spindles: 10 - 19
Electrospinde - max power (kW): 12 (14 opt.) - HSK 63F

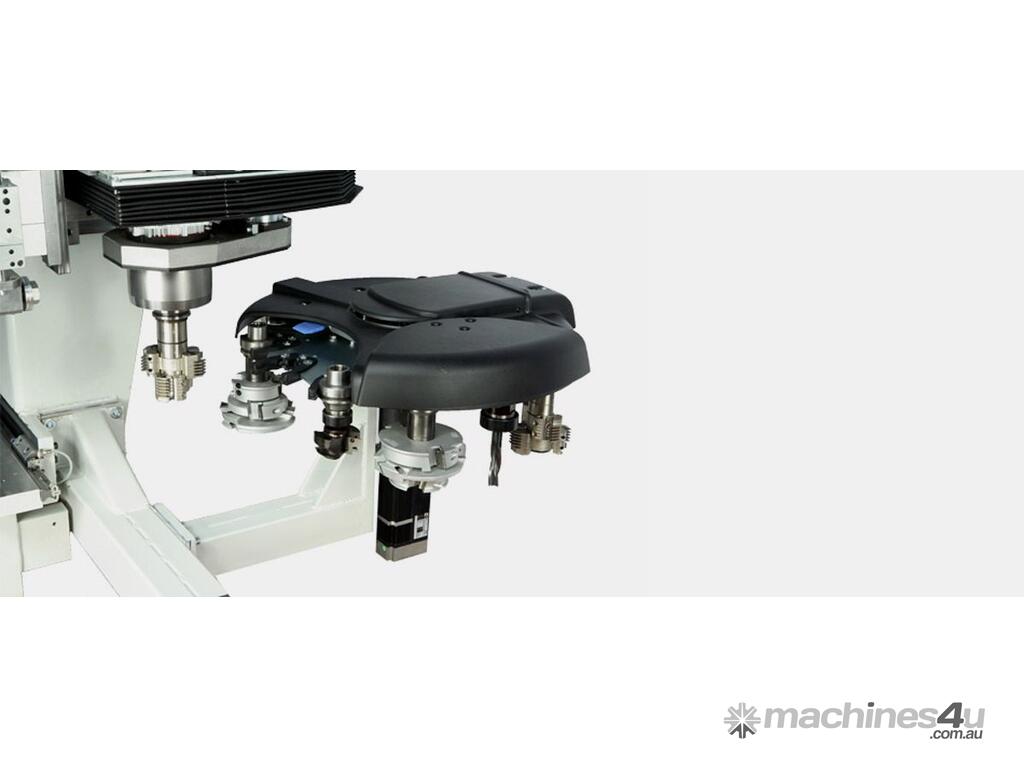

Tools magazine- max tools n.: 16
Max. tool diam. (mm): 160
Vacuum pump - max. suction capacity (m3/h): 2 x 360 (opt.)

SOFTWARE FOR NESTING “M”

Masterwork
The graphic programming system for all the Masterwood CNC's complies with Windows™ standards

Master 3D
Masterwood presents the new 3D CAD/CAM software developed in partnership with DDX group

MasterDOOR
An easy and powerful software for the production of any kind of doors

Masternest
Masternest is the software to automatically optimize the provision of details to be obtained in a single panel
