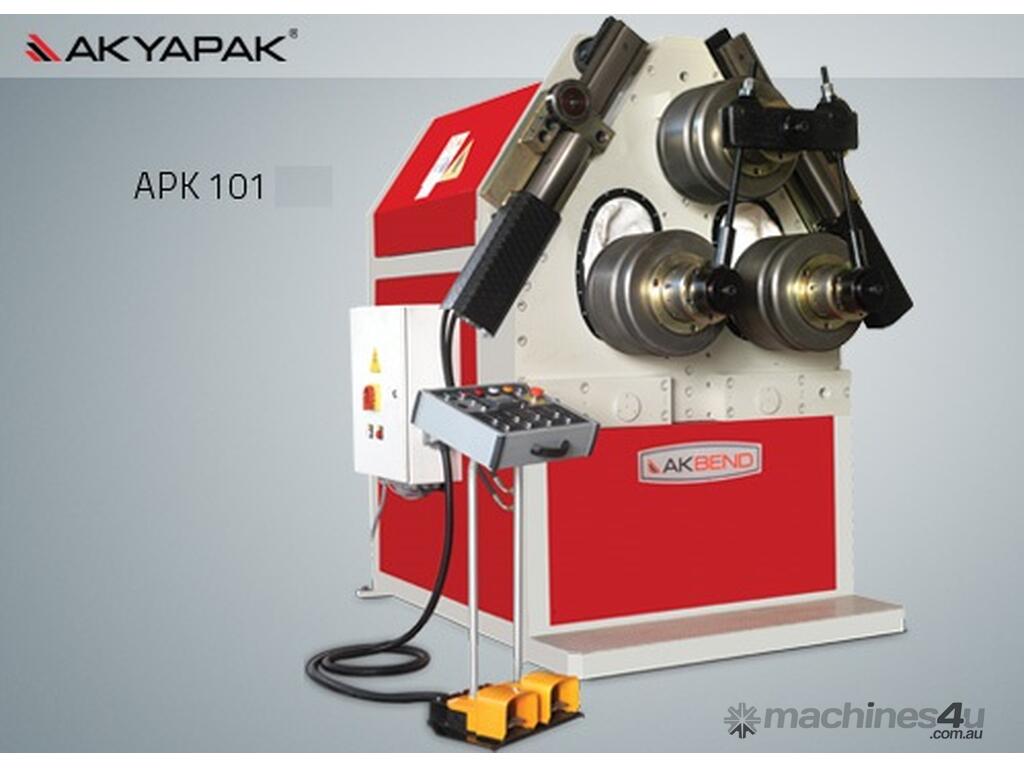

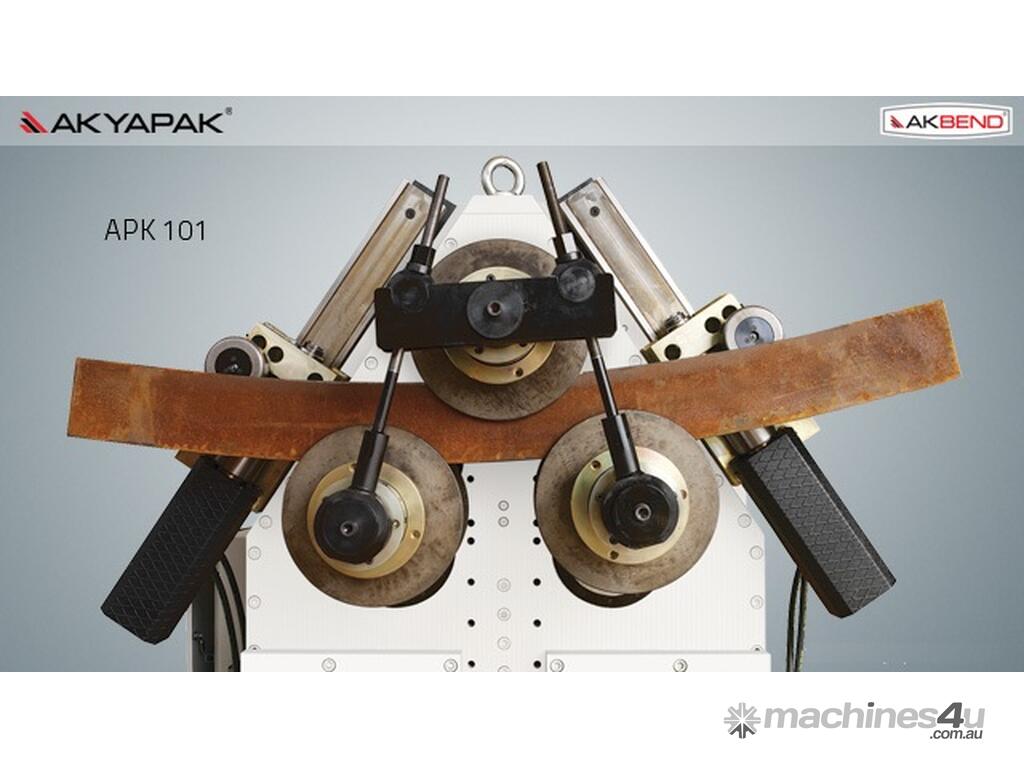

NEW Akyapak APK 101 Section & Plate Rolling Mach.

Akyapak are premium European manufacturers of section rolls that are built to a standard of absolutely no compromise.

Take the APK 101 Section rolls for example .....

Features and Inclusions:

o Set of standard rolls
o Special steel shafts, hardened and ground
o Hydraulic up/down for lower rolls
o Digital display for lower rolls
o Horizontal and vertical working positions
o Hydraulic guide rolls
o Rolls driven by hydraulic planetary gear box
o CE certified
o Roving control panel with foot pedal

Capacity:

o Angle iron (leg out): 50 x 50 x 6mm - 700mm diameter, 90 x 90 x 8mm - 1000mm diameter, 100 x 100 x 10mm - 1400mm diameter
o Angle iron (leg in): 50 x 50 x 6mm - 800mm diameter, 80 x 80 x 8mm - 1200mm diameter, 100 x 100 x 10mm - 1600mm diameter
o Flat bar (on edge): 40 x 10mm - 400mm diameter, 100 x 20mm - 600mm diameter, 120 x 25mm - 1600mm diameter
o Flat bar: 60 x 10mm - 400mm diameter, 100 x 40mm - 600mm diameter, 200 x 35mm - 1000mm diameter

General:

o Motor power: 11kW
o 315mm diameter of rolls
o 100mm shaft diameter
o Dimensions: 1220 x 1435 x 1680mm (L x W x H)
o Weight: 2240kg

Please get in touch via the machines4u links to the right. We look forward to speaking with you.

This machine is arriving IN STOCK shortly. No lengthy wait for delivery and you can have the machine on your floor as quick as you can pay for it.

Give us a call. Put us to the test.
