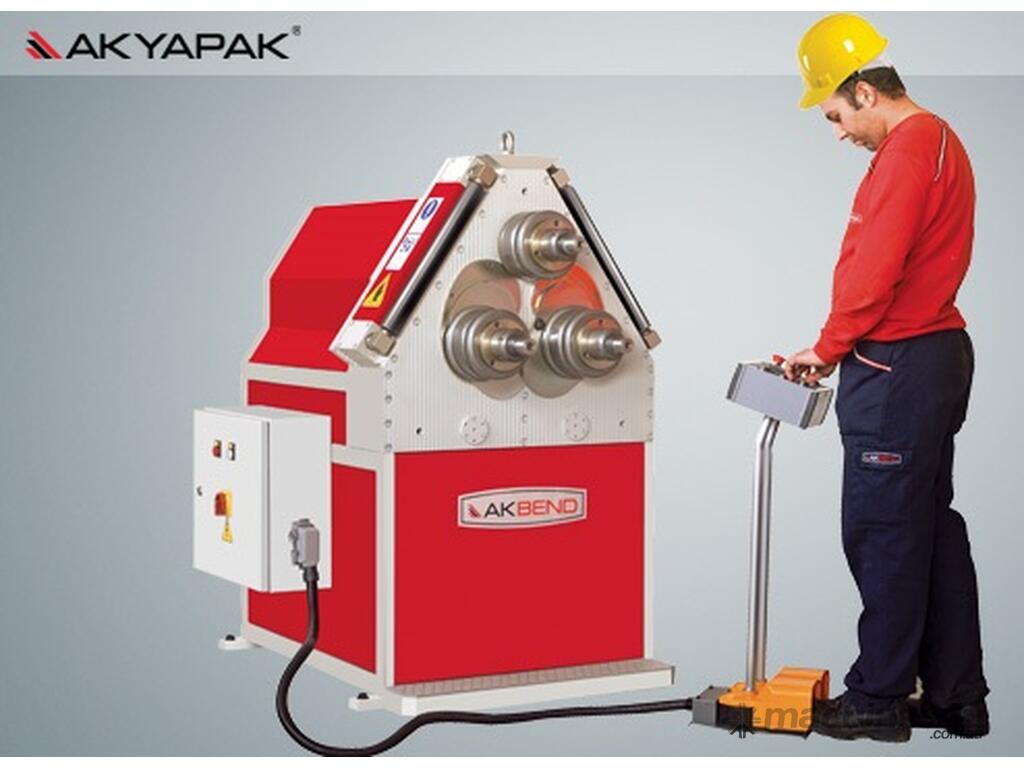

NEW Akyapak APK 61 Section & Plate Rolling Machine

Akyapak are premium European manufacturers of section rolls that are built to a standard of absolutely no compromise.

Take the APK 61 Section rolls for example .....

Features and Inclusions:

o Set of standard rolls
o Special steel shafts, hardened and ground
o Hydraulic up/down for lower rolls
o Digital display for lower rolls
o Horizontal and vertical working positions
o Guide rolls
o CE certified
o Roving control panel with foot pedal

Capacity:

o Angle iron (leg out): 30 x 30 x 3mm - 250mm diameter, 50 x 50 x 5mm - 500mm diameter
o Angle iron (leg in): 30 x 30 x 3mm - 400mm diameter, 40 x 40 x 5mm - 600mm diameter, 50 x 50 x 6mm - 1000mm diameter
o Flat bar (on edge): 40 x 10mm - 220mm diameter, 60 x 20mm - 500mm diameter, 80 x 25mm - 2100mm diameter
o Flat bar: 50 x 5mm - 200mm diameter, 80 x 16mm - 400mm diameter, 80 x 20mm - 1200mm diameter


General:

o Motor power: 4kW
o 177mm diameter of rolls
o 60/60mm shaft diameter
o Dimensions: 940 x 1260 x 1390mm (L x W x H)
o Weight: 1080kg

Please get in touch via the machines4u links to the right. We look forward to speaking with you.

This machine is arriving IN STOCK shortly. No lengthy wait for delivery and you can have the machine on your floor as quick as you can pay for it.

Give us a call. Put us to the test.
