NEW DIGGA HYDRIVE 1200mm XD TRENCHER ATTACHMENT to suit MACHINES upto 8 Tonne

DIGGA Hydrive 1200mm XD Trencher — Machines Up To 8T. | Skid Steer, Track Loader, Telehandler, Excavator. Price starting from $6,969.00+

Get ready for some serious trenching with Digga's Hydrive range of Trenchers. Choose from standard models up to 1200mm digging depth - Ideal for excavators, skid steer loaders, and machines up to 3.5 tonne, or from the bigger XD models with a wider cutting width perfect for excavators, backhoes, and telehandlers up to 8 tonne..

Trencher usage ranges from pipe laying for irrigation, to underground power & communications, road repairs, and general construction.

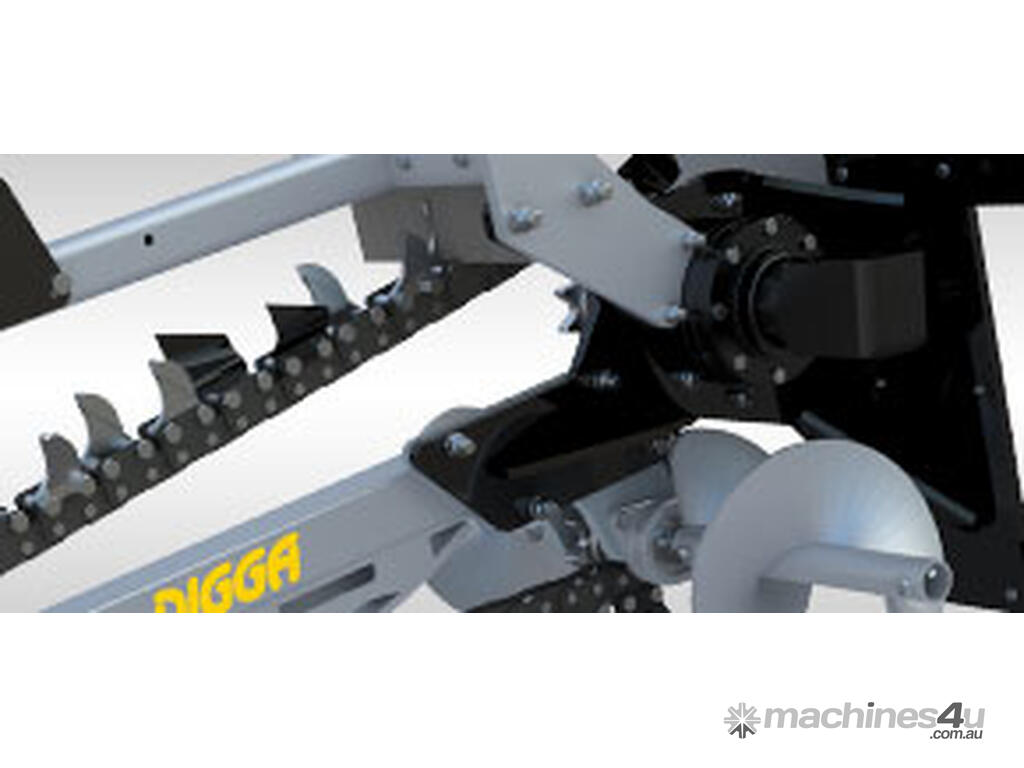

Unique drive system positioning
Drive System positioning allows for more usable horse power, providing greater efficiency for serious trenching. The EATON motor is housed above the spoil, protecting from rocks and debris.

Heavy duty crumbing system
Start trenching with the crumber in-ground. A super heavy duty spring ensures the crumber stays engaged with the bottom of the trench for maximum spoil removal from start to finish.

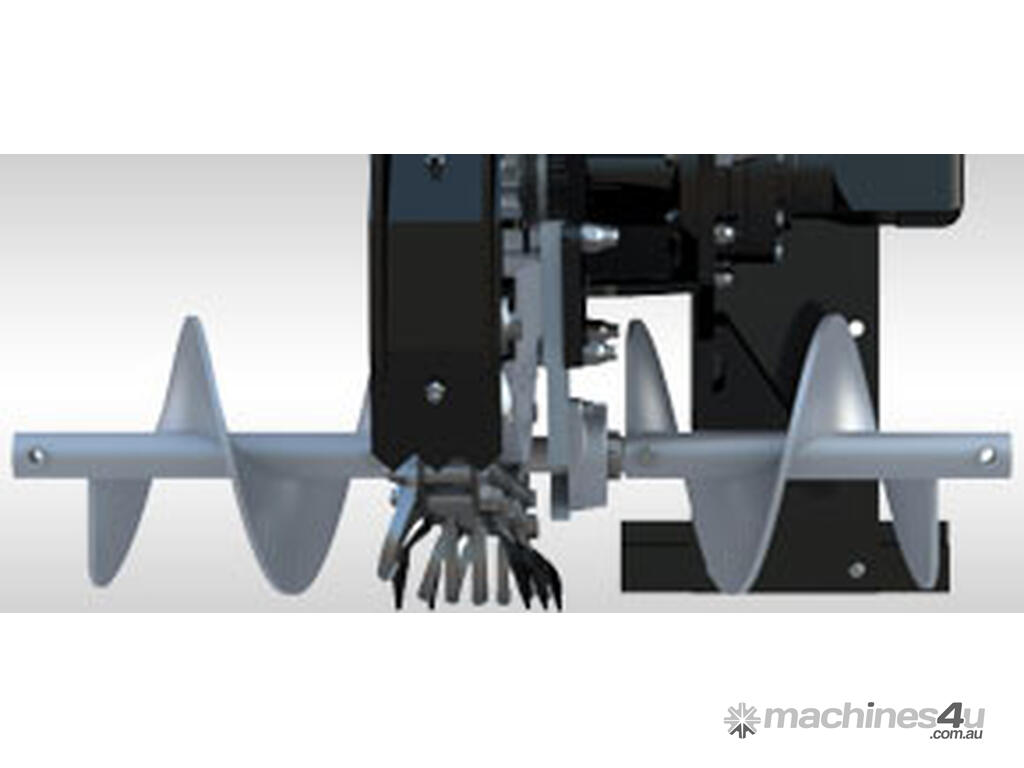

Remove spoil from both sides
Twin Spoil Augers remove finely crumbled spoil to both sides of the trench for a cleaner finish. Both augers can be detached when needed for close-up trenching to walls or fences.

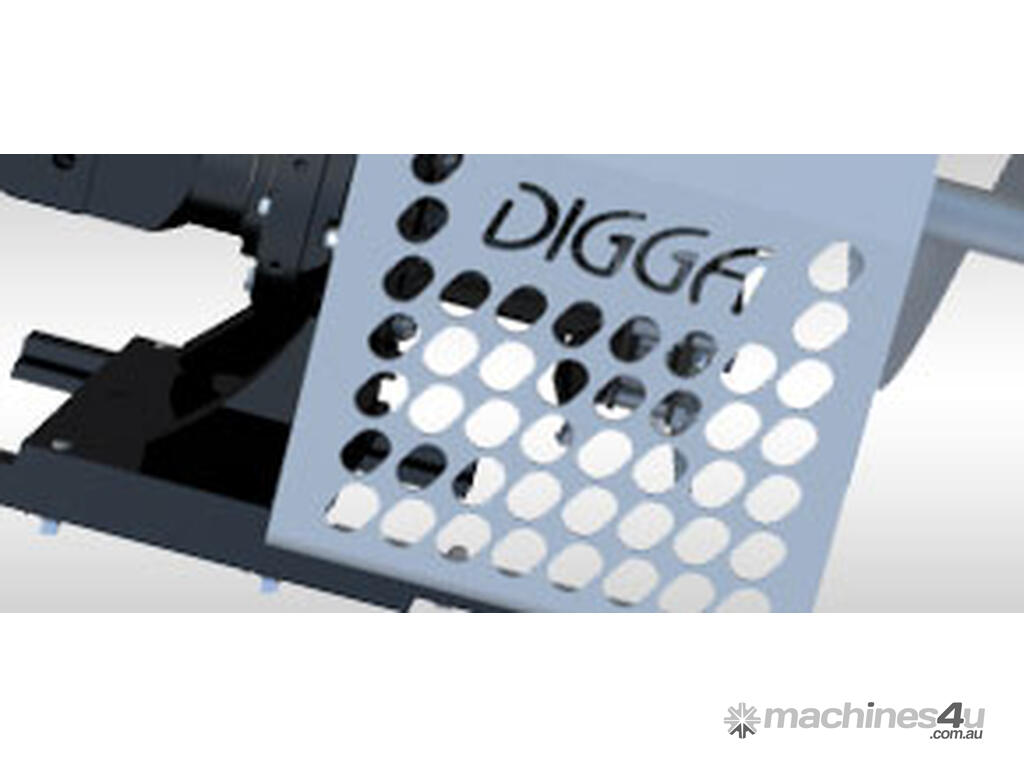

Trench faster & safer with a high visibility grill
A High Visibility Grill lets the operator see what thery are doing regardless of the trencher's angle, helping them to work faster and safer.

Advanced design for minimal ground disturbance
Advanced design creates finely crumbed spoil for effective re-compaction and minimal ground disturbance.

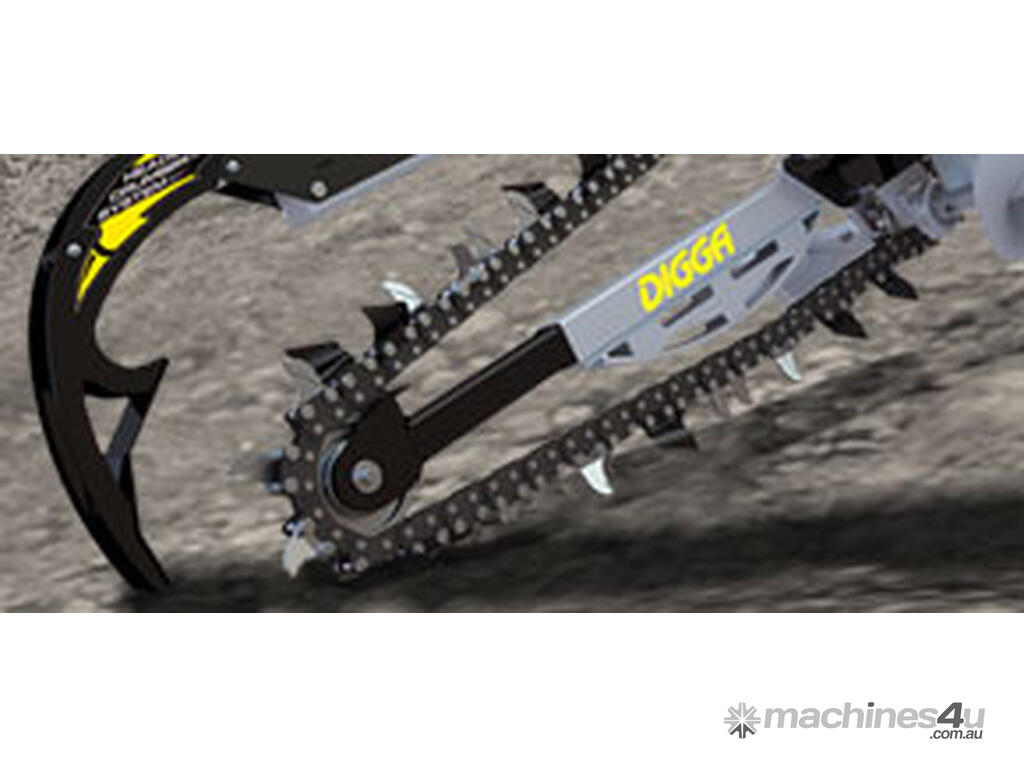

Anti-back flex chain design
You can be guaranteed of quality and superior performance with our Anti-back Flex design. It prevents the chain links from flexing back in tough soil conditions.

Trench in all ground conditions
Available in a number of different tooth configurations for trenching in soft ground, mixed grounds and even permafrost so you can get the job done no matter what environment you are in.

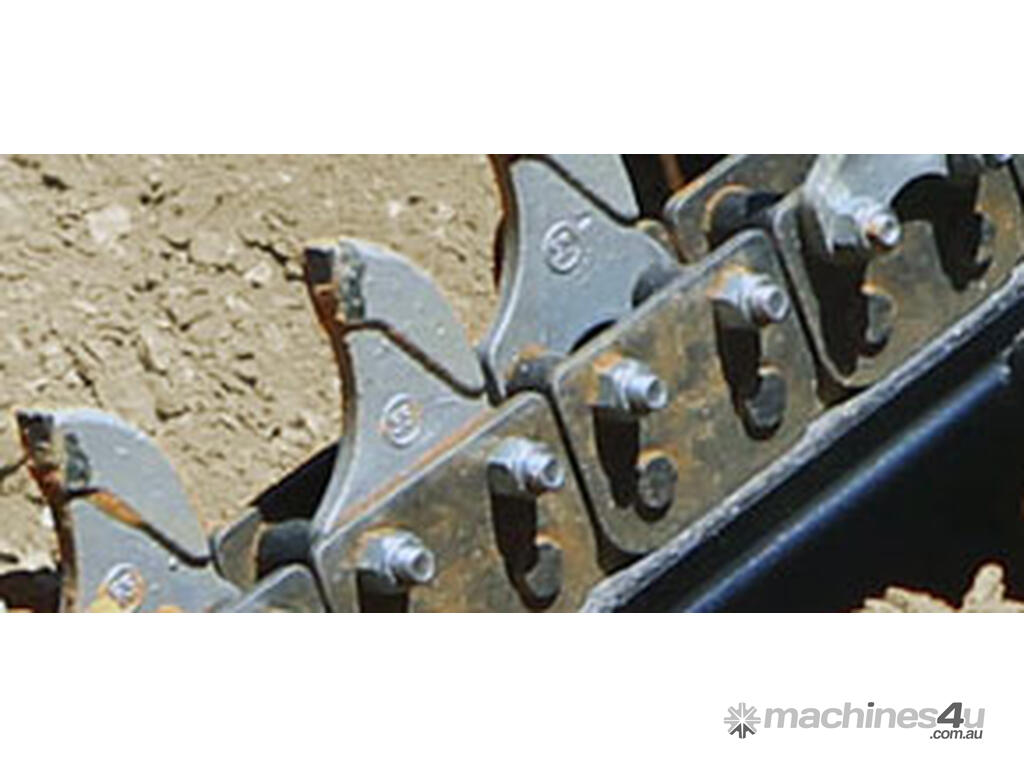

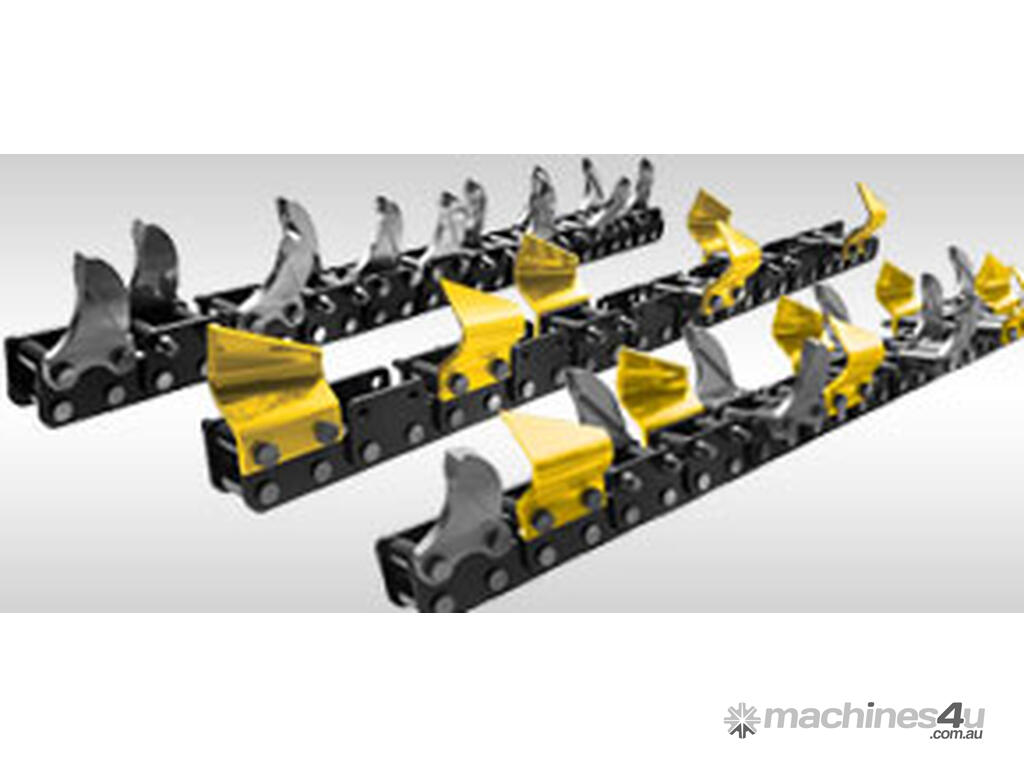

CHAINS FOR ALL GROUND CONDITIONS
EARTH - Best used in soft ground like earth and clay
COMBINATION - Best used in dry, hard or medium ground conditions
TUNGSTEN - Best used in hard or frozen ground conditions and asphalt

Specs: Hydrive 1200 XD
Cutting Width: 150 / 200 / 250 / 300 / 350 mm
Hydraulic Flow: 60-115 lpm
Motor Size: 2K Bell EATON
Max Pressure - Do not exceed: 240 bar 60 lpm
Max Flow - Do not exceed: 115 lpm 130 bar
Max Continuous Power: 25 Kw (34 hp)
Length: 2478 mm
Horizontal Height: 957 mm
Width: 1212 mm
