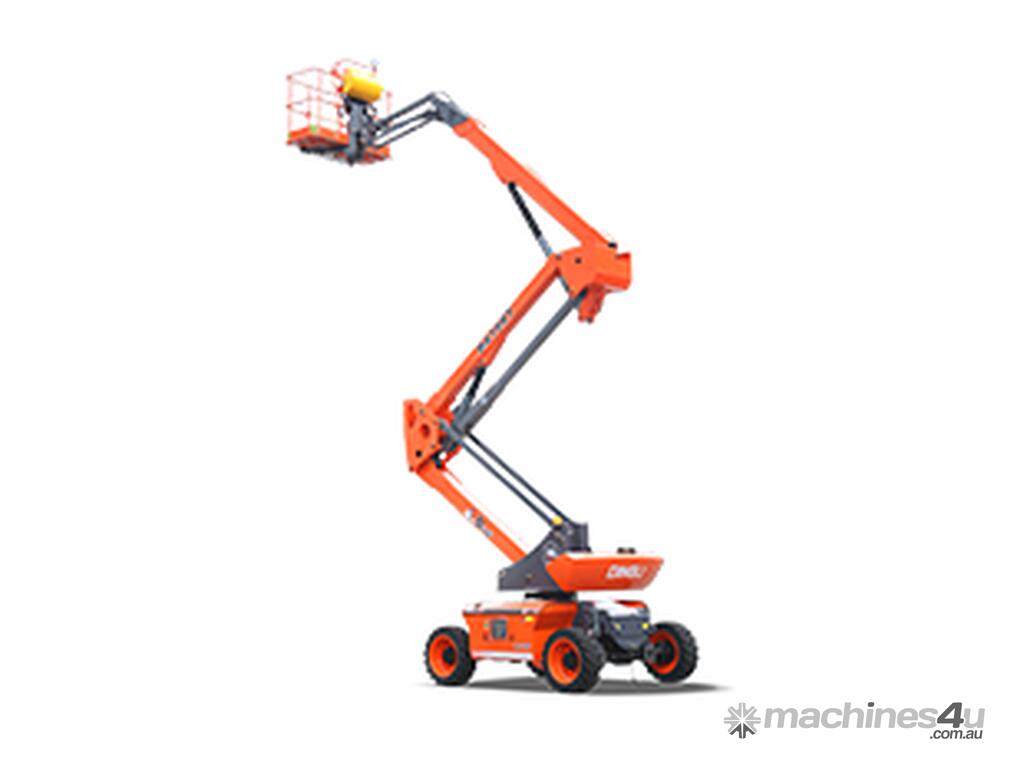

NEW DINGLI BA18RT (53ft) Diesel Rough Terrain Articulating Boom Lift

Dingli is currently the largest supplier of EWP's in the Australian market, and 3rd largest supplier in the world. Leading the charge with quality and innovation, the Dingli products will not disappoint.

Product Highlights and benefits:

D Series Booms adopt family modular design, with whole series developed on the same platform base, 90% of the main components and more than 95% of the structural parts are common, lowering the storage cost and making the maintenance more efficient.

Equipped with low-power engine, lower energy consumption.

Unique design shifts the whole parts down, making the machine more stable.

All components are located on both sides of the chassis, making maintenance easier.

Equipped with axle integrated four-wheel drive system for greater rough-terrain capability.


Dimension:
Max. Working Height 18.04m
Max. Platform Height 16.04m
Max. Operating Range (+0.6m) 9.64m
Max. Platform Range 9.04m
Max. Up And Over Clearance 8.23m
Max. Down Probing Depth 1.30m
Overall Length(Stowed) 7.41m
Overall Length (Transport) 5.57m
Overall Width(Stowed) 2.33m
Overall Width(Transport) 2.33m
Overall Height(Stowed) 2.55m
Overall Height(Transport) 2.63m
Platform Size (Length × Width) 1.83m×0.79m
Turntable Tailswing 0.19m
Ground Clearance 0.31m
Wheelbase 2.30m

Performance:
S.W.L 250kg
Max. Occupants 2
Gradeability 40%
Travel Speed (Stowed) 6.0km/h
Travel Speed (Raised) 1.1km/h
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 132°
Main Boom Maximum Angle 72.9°
Turning Radius (Inside/Outside) 2.92m/4.49m
Tyres 315/55D20

Weight:
Overall Weight 7920kg

Power:
Diesel Engine Kubota D1105/18kW
Diesel Tank 115L
Hydraulic Tank 145L
