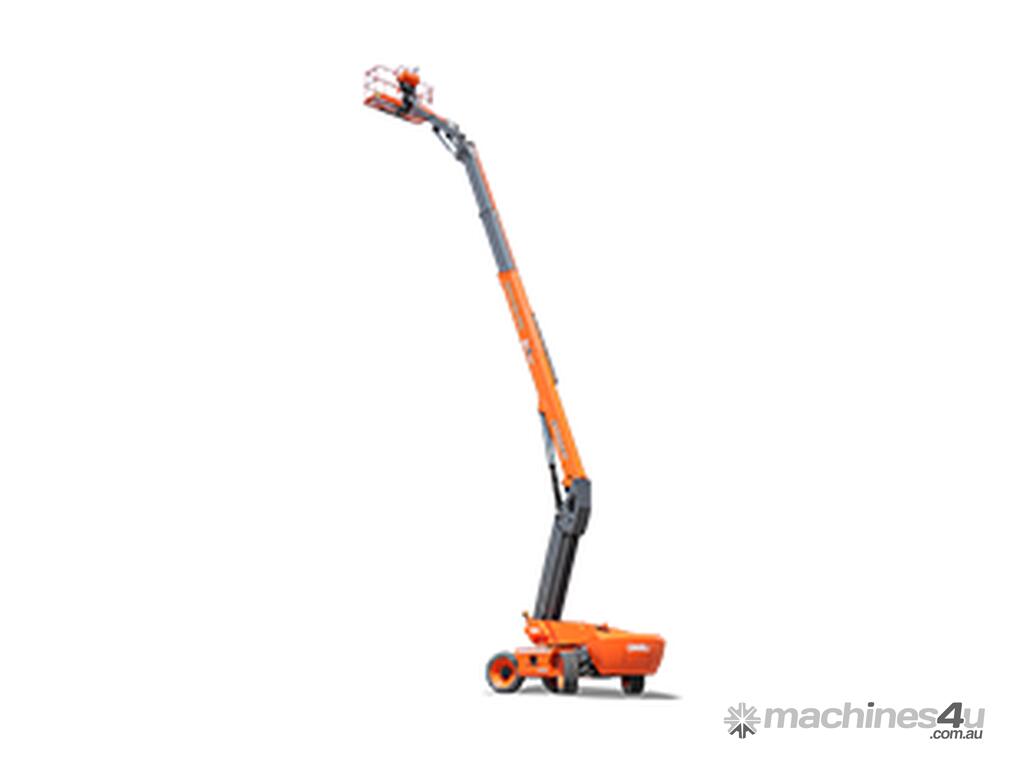

NEW DINGLI BT30RT (93ft) Telescopic Boom

Dingli is currently the largest supplier of EWP's in the Australian market, and 3rd largest supplier in the world. Leading the charge with quality and innovation, the Dingli products will not disappoint.

Product Highlights and benefits:

Large load, strong power, easy maintenance, high chassis, great energy saving, stable control, easy transport

Family modular design, the whole series is developed on the same platform base, 90% of the main components and more than 95% of the structural parts are common, lowering the storage cost and making the maintenance more efficient

Unique design makes the whole part move down, so centre of gravity is shifted down, making the machine more stable

All components are located on both sides of the chassis, making maintenance easier

Equipped with integrated four-wheel drive system with axles for greater off-road performance

Dimension:
Max. Working Height 30.20m
Max. Platform Height 28.20m
Max. Operating Range(+0.6m) 23.00m
Max. Platform Range 22.40m
Overall Length(Stowed) 12.30m
Overall Length(Transport) 12.00m
Overall Width(Stowed) 2.50m
Overall Width(Transport) 2.28m
Overall Height(Stowed) 2.87m
Overall Height(Transport) 2.59m
Platform Size (Length × Width) 2.44m×0.91m
Turntable Tailswing 1.61m
Ground Clearance 0.41m
Wheelbase 2.80m


Performance:
S.W.L(Unrestricted/Restricted) 300kg/454kg
Max. Occupants 3
Gradeability 45%
Travel Speed(Stowed) 6.0km/h
Travel Speed(Raised) 1.1km/h
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 135°
Main Boom Maximum Angle 68°
Turning Radius(Inside/Outside) 1.87m/3.22m
Tyres 385/45-28


Weight:
Overall Weight 18,900kg

Power:
Emergency Power System 12V
Diesel Engine Deutz TD2.9 L4 / 55.4kW
Diesel Tank 135L
Hydraulic Tank 165L
