NEW Eldon Stainless Floor Standing Enclosure 1800x1000x500

FOR A STRICTLY LIMITED TIME, MERCURI TRADING IS ACCEPTING ALL REASONABLE OFFERS!

PRODUCT INFORMATION:

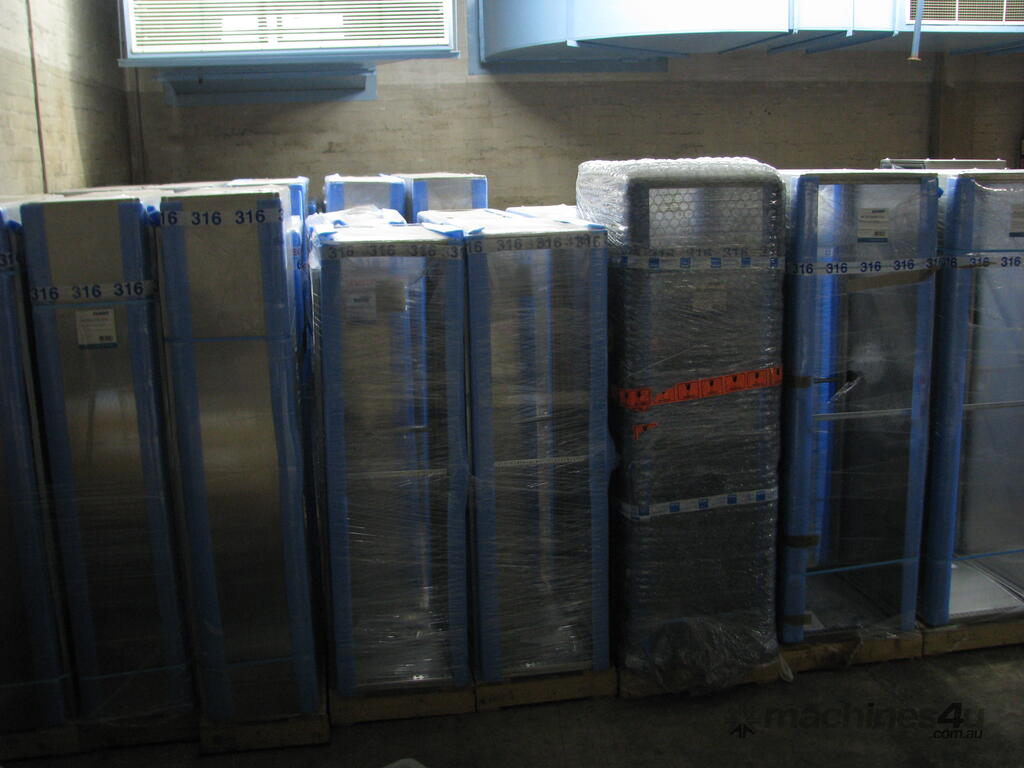

We have a surplus stock of excellent quality enclosures.
They are new and unused.

Make: Eldon
Part Number: MCSS18105-316
Made from stainless steel.

Manufacturer Description

The stainless steel single door floor standing enclosures sets new standards when it comes to strength and ease of use. The sturdy construction of the Eldon MCSS range, with its 1,5 mm thick stainless steel profile frame and 25 mm hole pattern in all directions, provides high corrosion resistance and rigidity. Intended for harsh environments, can be used as a stand alone system or suited together by the use of baying brackets.
Feature: IP 56 TYPE 4X, 12, 13 IK 10

Characteristics
Height 1800 mm
Width 1000 mm
Depth 500 mm
Mounting Plate
Height 1694 mm
Mounting Plate
Width 894 mm
Weight 139 Kg

Material:
AISI 304 pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.

Frame:
Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.

Door:
Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.

Rear panel:
Fitted by M6 torx screws. Standard facilities for rear door mounting.

Side panels:
Supplied as an accessory.

Roof panel:
Removable.

Lock:
Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.

Bottom plates:
One piece bottom plate with injected polyurethane gasket to ensure maximum sealing.

Mounting plate:
Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is delivered attached on the outside of the enclosure packaging.

Earthing:
All panels are earthed through their fittings and are equipped with a separate earthing stud.

Finish:
240s pre-grained stainless steel (0,5 microns average).

Protection:
Corresponds with IP 56 | TYPE 4X, 12, 13 | IK 10.

Approvals:
CE, EAC, DNV-GL, GOST, Kema Keur, Lloyds shipping, cULus_listed.

Mounting requirement:
Standard delivery ready for combined installation. For stand-alone installation add side panels.


NEED TO KNOW:

This item was removed from a functional environment and is backed by our guarantee to be in good working order.
