NEW Eldon Stainless Steel Floor Standing Enclosure 1800x1200x400

FOR A STRICTLY LIMITED TIME, MERCURI TRADING IS ACCEPTING ALL REASONABLE OFFERS!

PRODUCT INFORMATION:

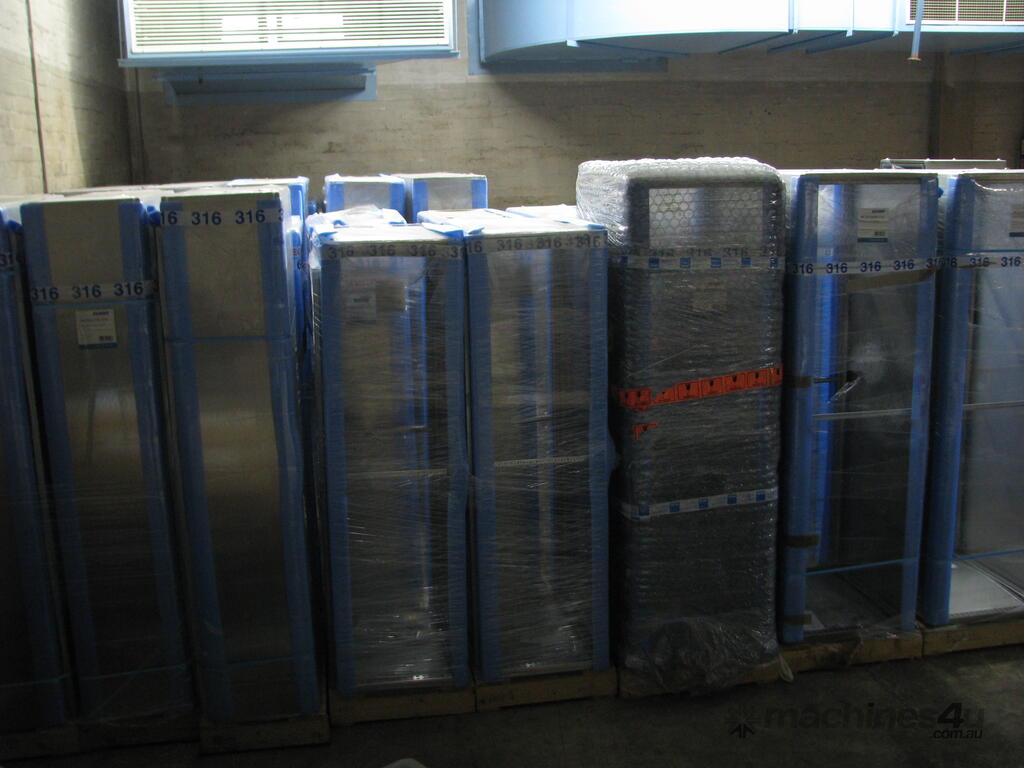

We have a surplus stock of excellent quality enclosures.
They are new and unused.

Make: Eldon
Made from stainless steel.

Manufacturer Description

As the double door version to EKSS, the EKDS offers the same improved design, strength and corrosion resistance. The sturdy construction, with the 25 mm hole pattern, one piece body and removable rear panel, ensures superior rigidity and easy access. Fully compatible with floor standing range of accessories, the EKDS range is the ideal solution for food and chemical industries, outdoor applications and marine environments.
Feature: IP 55 TYPE 12, 13 IK 10;

Characteristics
Note IP 55, TYPE 12, 13, IK 10
Height 1800 mm
Width 1200 mm
Depth 400 mm

Material:


AISI 304 pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom Plates: 1.5 mm. Mounting plate: 3 mm.

Body:
One piece enclosure body. Integrated depth profiles with hole pattern allowing mounting plate adjustable in depth.

Door:
Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.

Rear panel:
Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures.

Lock:
External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle. Integrated left door locking system. Standard inserts, cylinders, lift handles and T-handles are available as accessories.

Bottom plates:
One piece bottom plates with injected polyurethane gasket to ensure maximum sealing.

Earthing:
Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.

Mounting plate:
Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide enclosures. For 1600 mm wide, filler plate is included.

Finish:
240s pre-grained stainless steel (0.5 microns average).

Protection:
Double door version, complies with IP 55 | TYPE 12, 13 | IK 10. Individual doors with welded vertical divider, complies with IP 66 | TYPE 4X, 12 and 13 | IK 10.

Approvals:
CE, EAC, GOST, Kema Keur, Lloyds shipping, cULus_listed.


NEED TO KNOW:

This item was removed from a functional environment and is backed by our guarantee to be in good working order.
