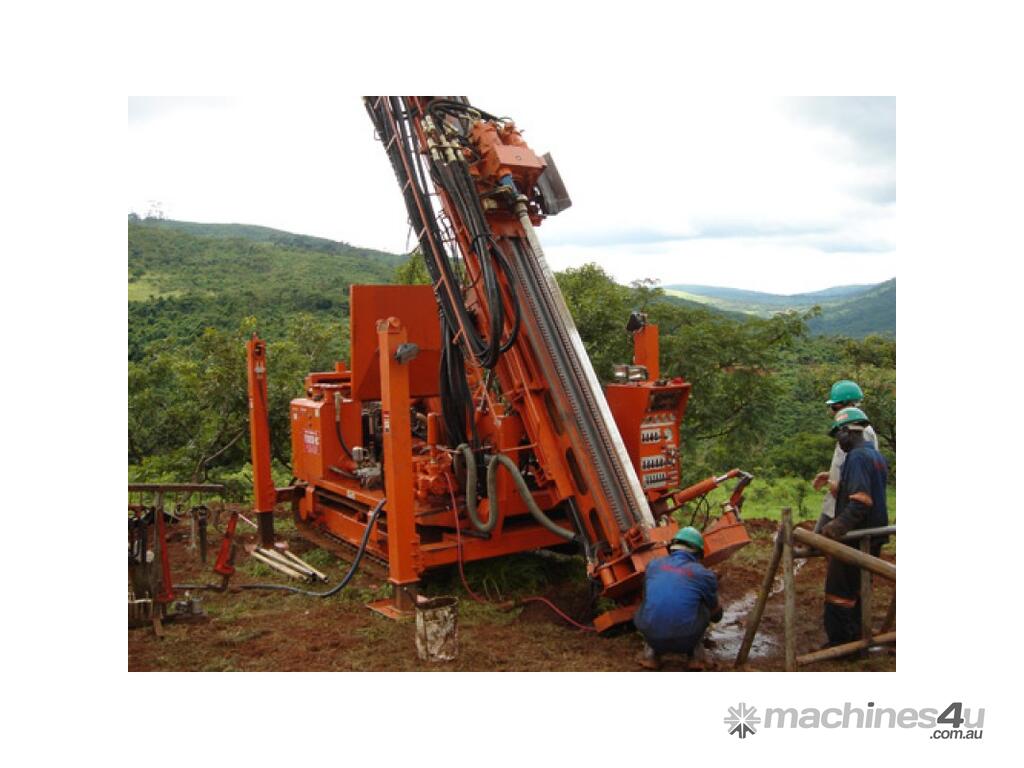

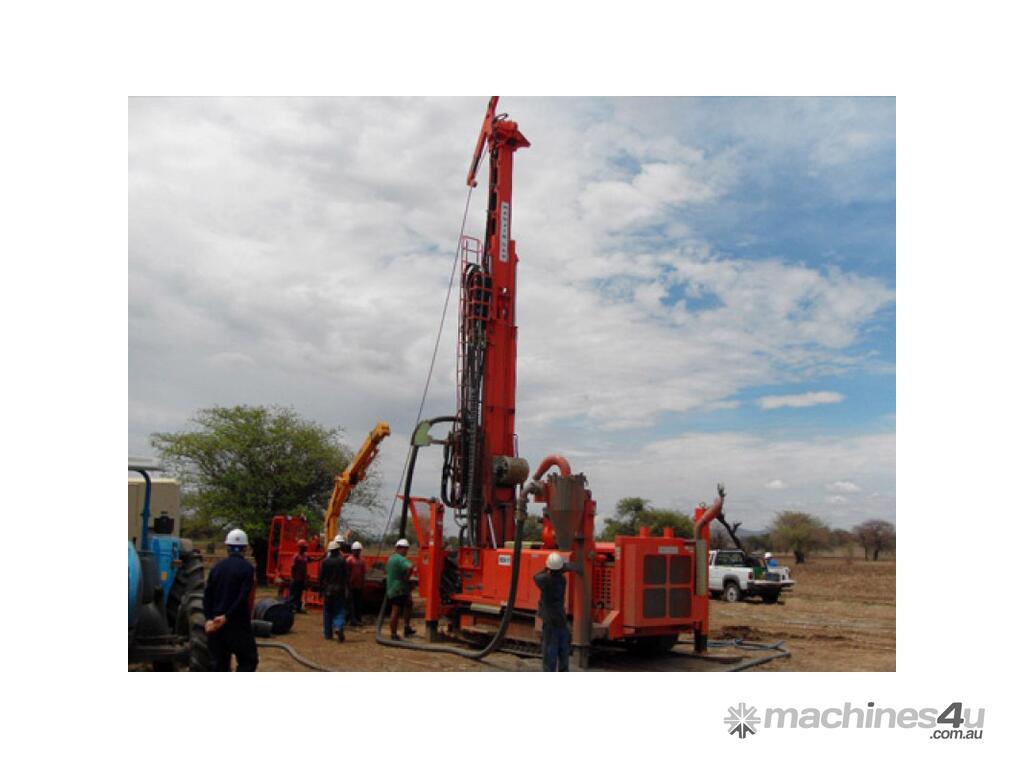

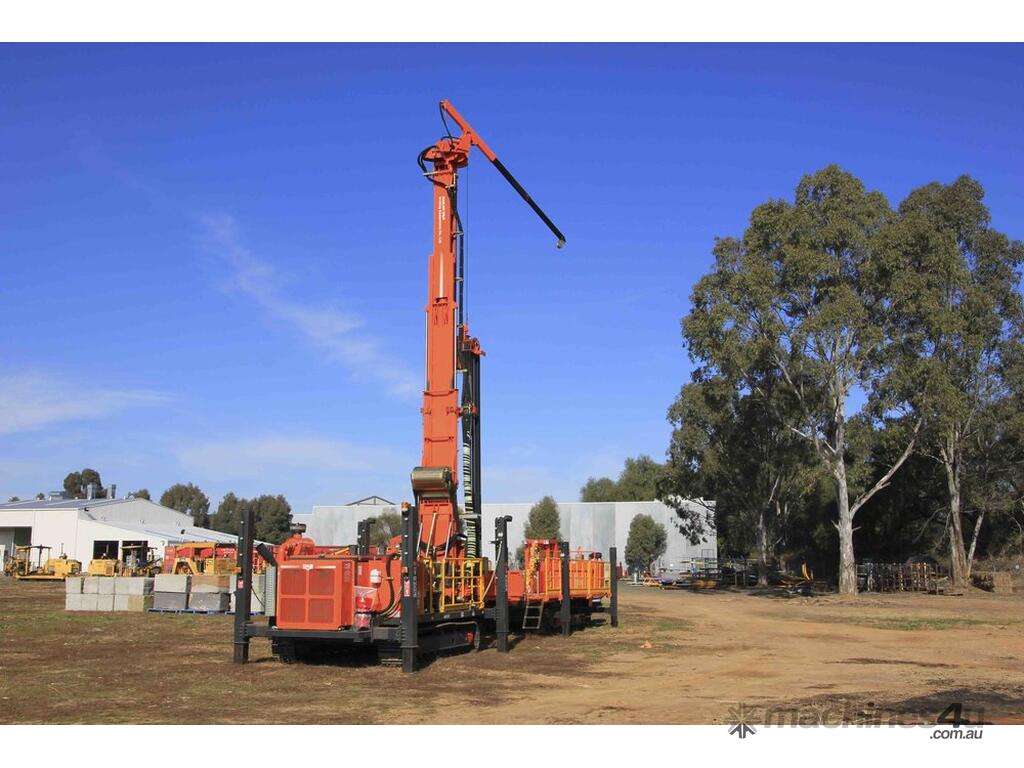

NEW Hanjin D&B 30-M Drill Rig - Ex Korea

HANJIN 30-MULTI

Making deeper holes and larger diameters within its capabilities.
This is all possible whilst still being mounted on a smaller footprint than the 35-Multi.

Truck or track mounted available!

STANDARD EQUIPMENT:
- Self loading jacks
- 30T pull-back
- 18T pull-down
- In built breakout system
- Manual breakout
- Wireless remote for tramming
- 6m Drill pipe capacity
- 1m - 200kg Jib winch
- Hose covering
- Risk assessment

Optional extras available to customise to your needs

Main Winch - 17,000kg
Retract Force -30,000kg
Retract Speed - 30m/min
Pull Down Force - 18,000kg
Pull Down Speed - 35m/min
Head Stroke - 7m
Rotation Speed - 1100rpm
Rotation Torque 10780nm 100rpm

Depth Capability
PWL - up to 500m
HWL - up to 1000m
NWL - up to 1,800m
BWL - up to 2,250m
