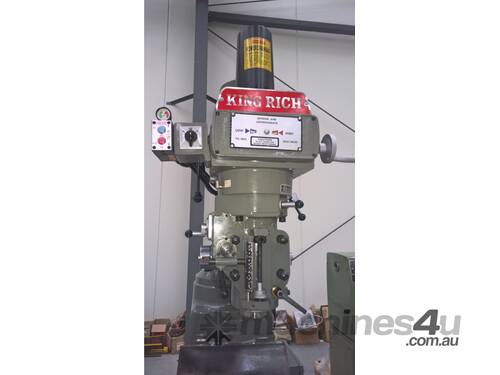

New King KING RICH Turret Mill – Model KR-V3000

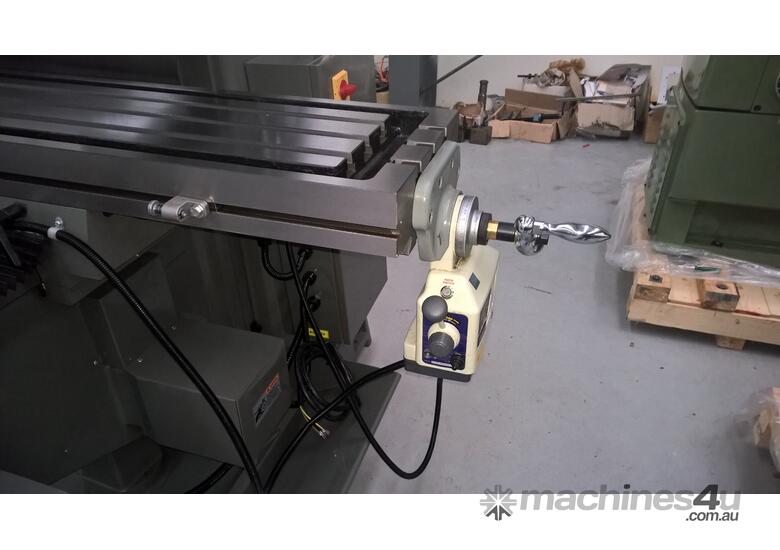

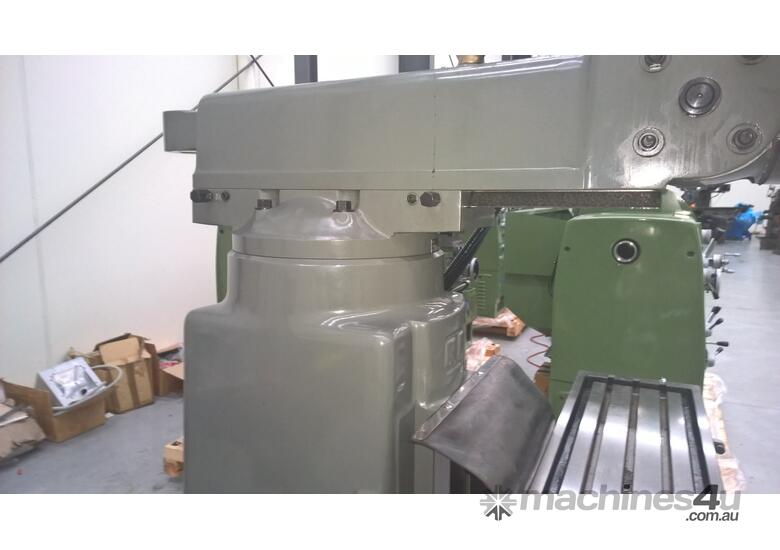

Table size 1372mm x 305mm – T-Slots (3) 15.9mm – Longitudinal travel (X) 850mm – Cross travel (Y) 400mm- Head travel 406mm – Quill travel 127mm – Spindle motor 5HP – Spindle speeds 70-3600Rpm – Spindle taper ISO40 – Over arm Swivel 360º – Coolant system – Splash tray – Power feed X and Y – Power up & down on knee.
Auto Lubrication

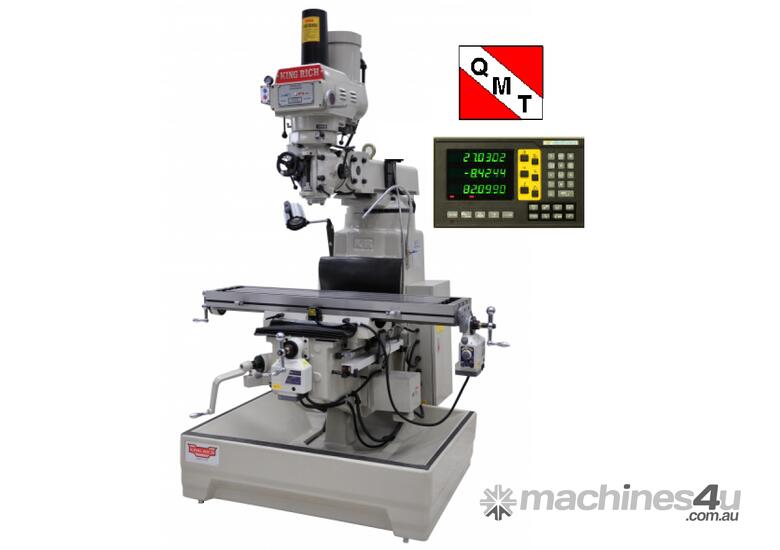

Optional: 2 or 3 axis Digital readout system with magnetic scales 5 microns P.O.A
Tooling P.O.A
