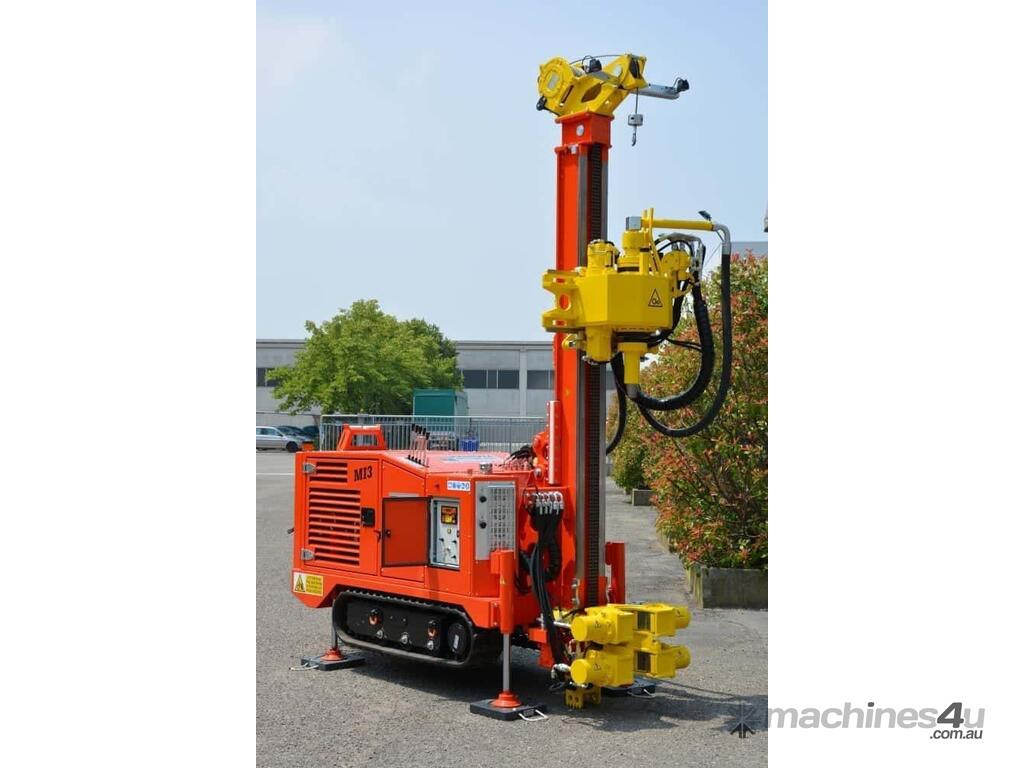

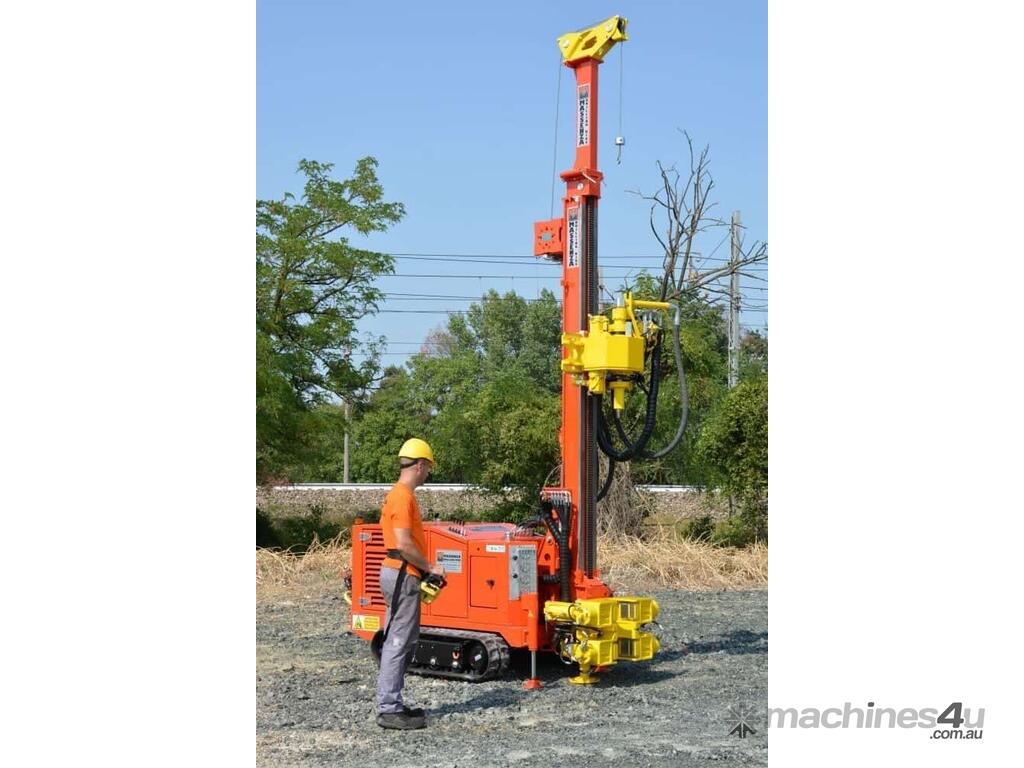

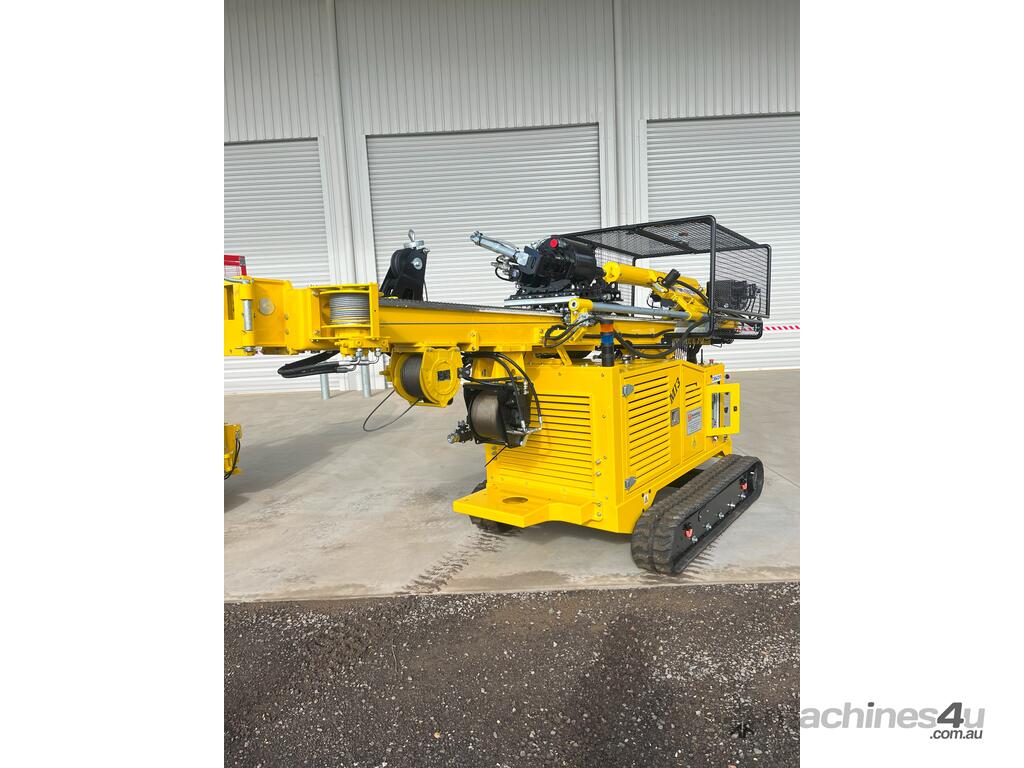

MASSENZA MI3
Designed specifically to be light enough to be tailored to save on mobilisation costs at under 2.7T.
This small machine really packs a punch with a powerful 70HP EC stage 3 engine to carry out the many tasks that your clients required when you get to site.

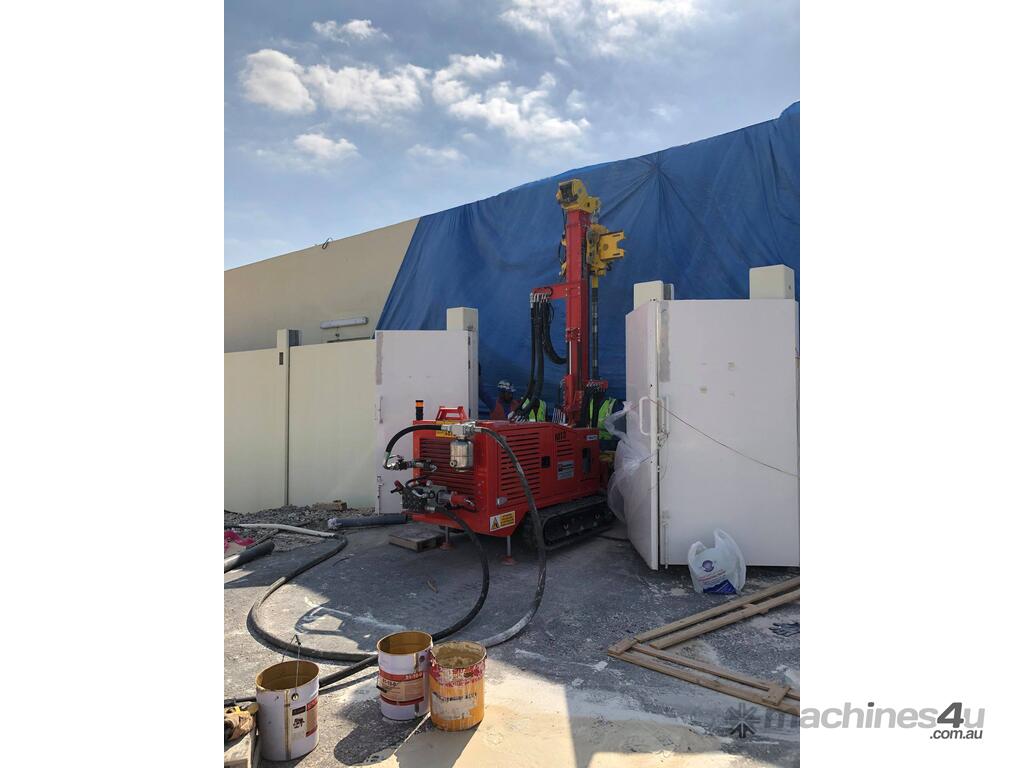

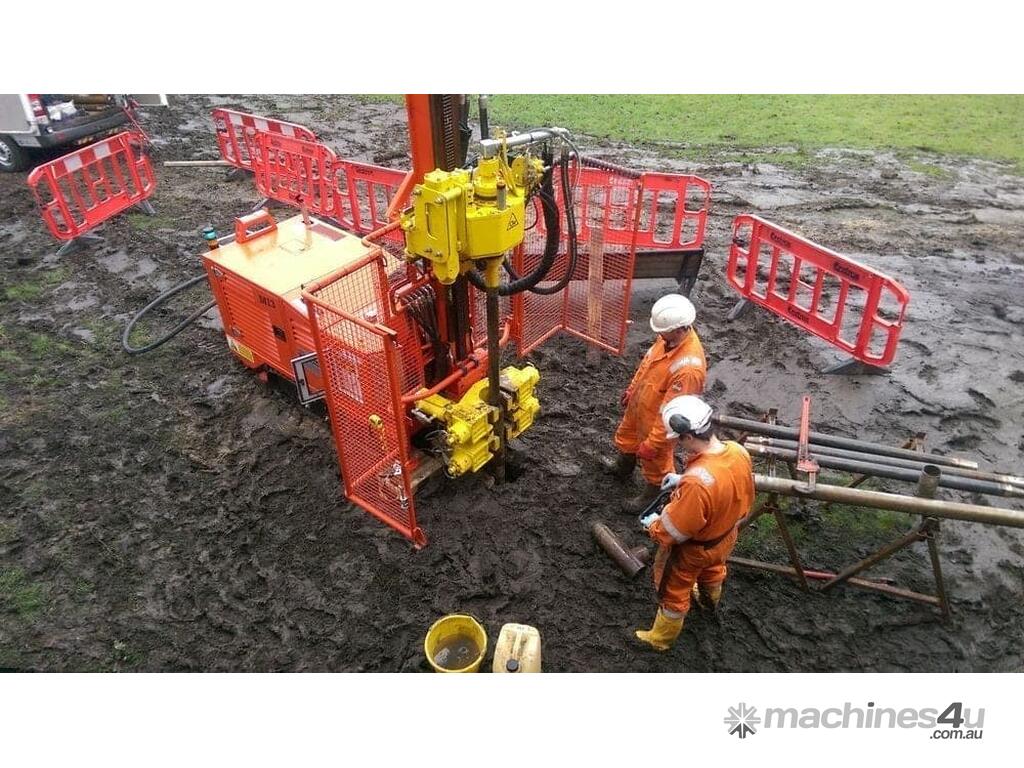

A sturdy and performing perforator, but with extremely reduced dimensions, for small water wells, geothermal applications, geotechnical and environmental surveys, cores and micropiles.

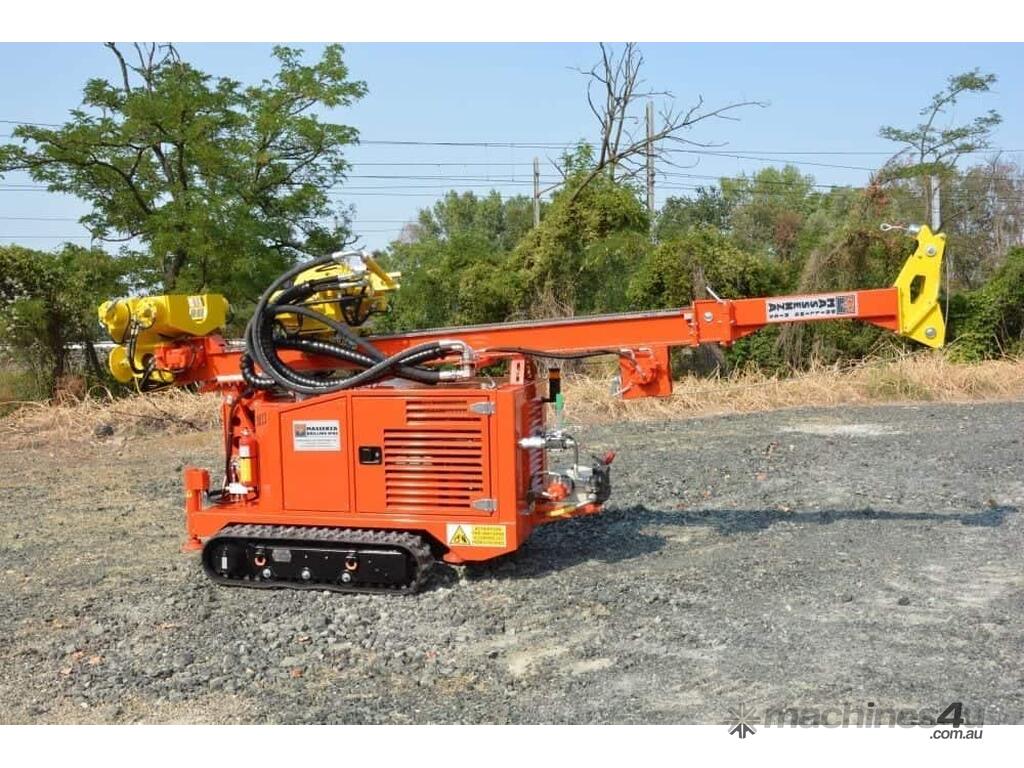

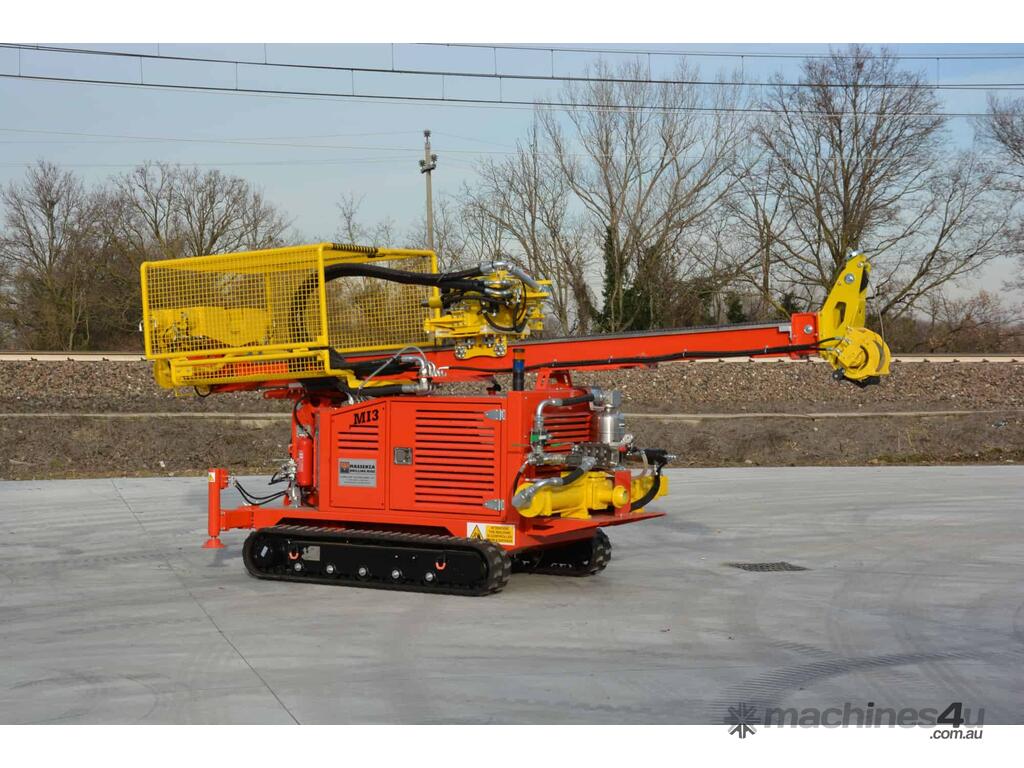

Weight (2700kg) and small dimensions allow rig to be loaded onto a small trailer!
51.5 kW motor = MORE POWER
choosing between 3100kg, 3600kg or 4000kg = MORE THROW
up to 800kg (max speed 712rpm) = MORE PAIR
WORK METHODS:
- Direct circulation rotation
- Core destruction with purging water, mud or foam
- Rotation with bottom-hole hammer
- Coring
- Percussion
AUXILIARY ENGINE - Maximum power 70Hp (51.5kW)
FUEL TANK - 60 litres
SLIDING ANTENNA - stroke 400mm

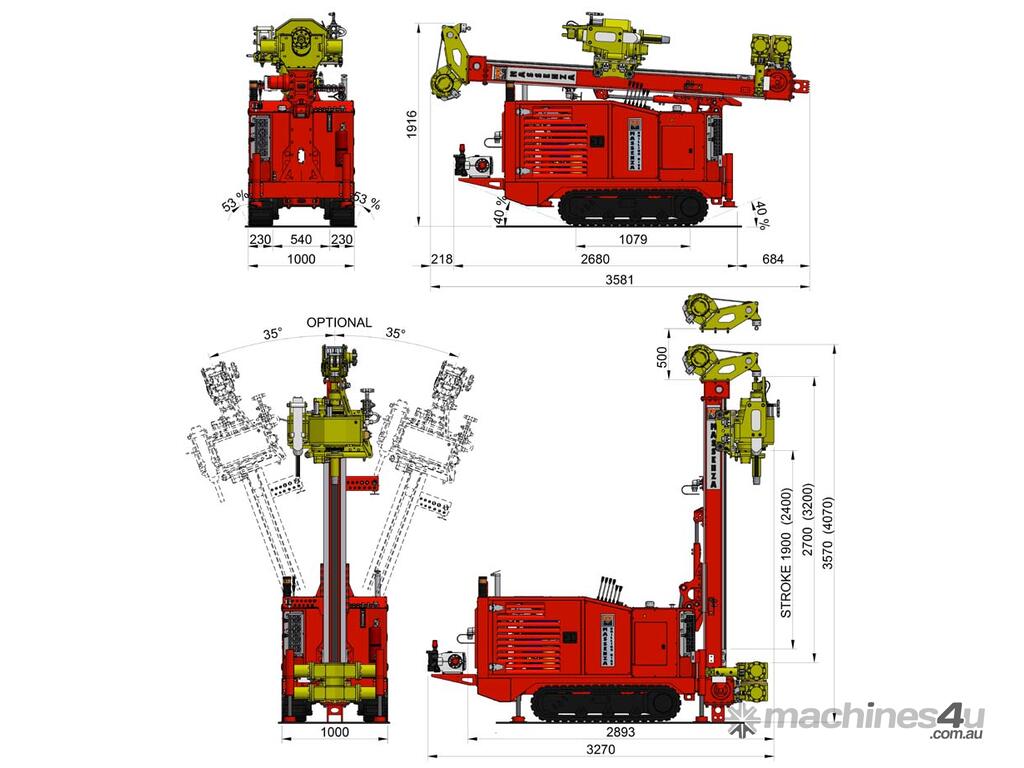

MAST - Maximum rotation head ravel 2,4m
- Standard pull up and down 3100 daN
- Optional pull up and down 3600 daN
- Optional pull up and down 4000 daN

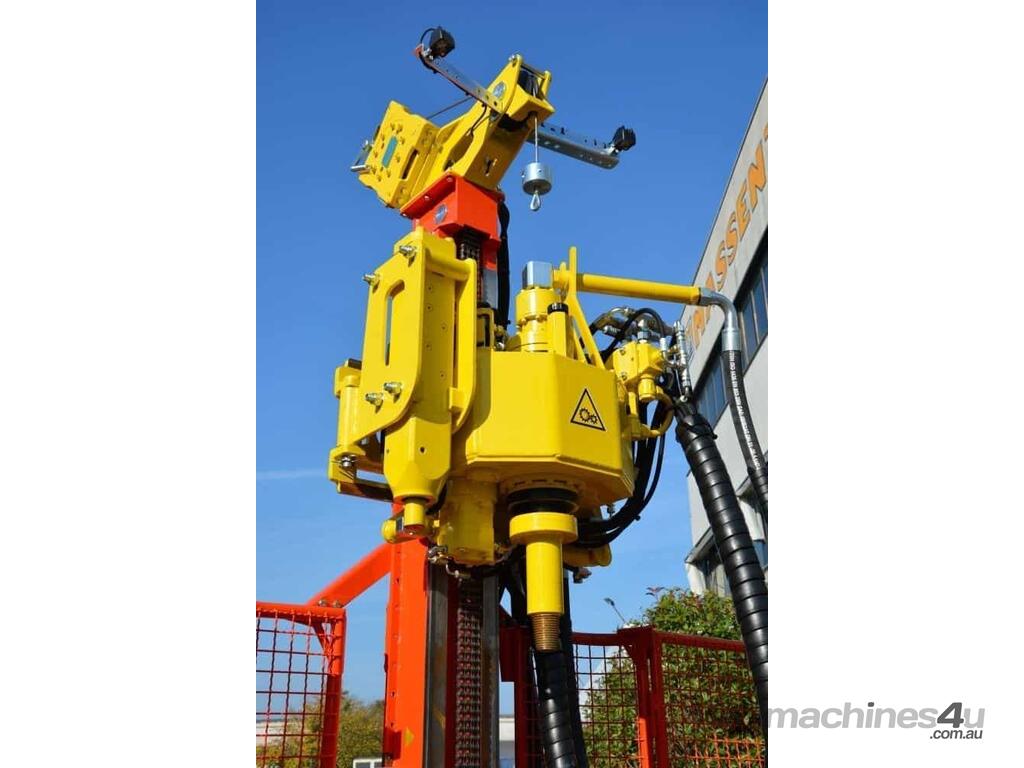

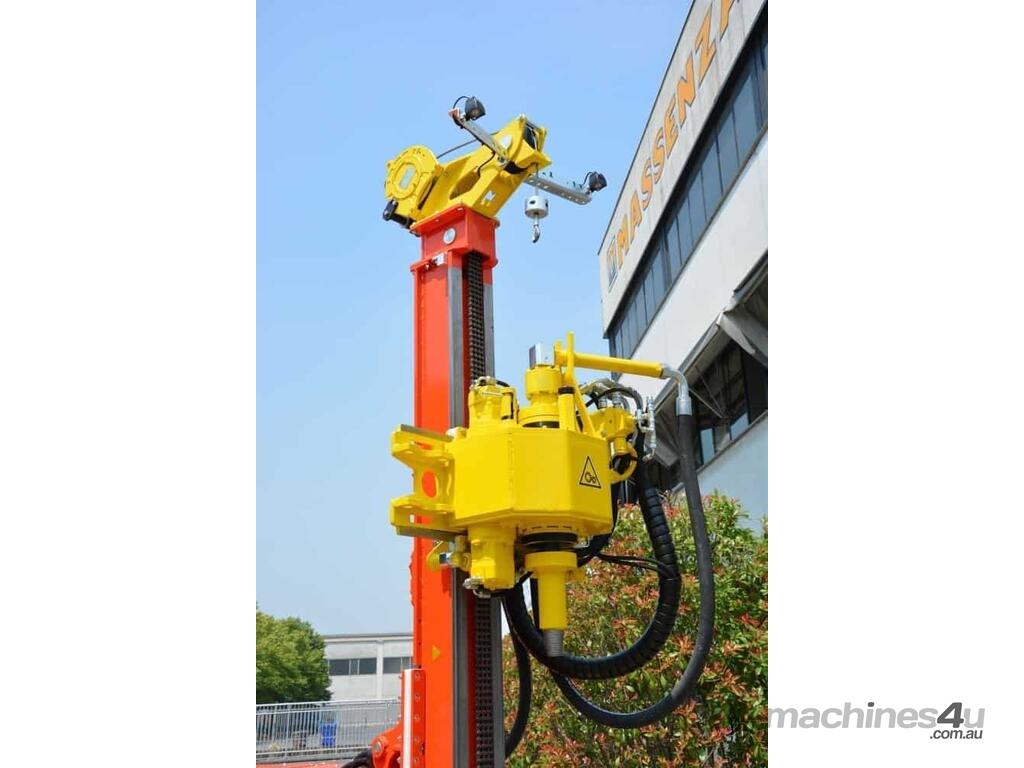

4-SPEED ROTARY HEAD
Model TM3C1 - max torque 4200 Nm - max speed 400RPM
Model TM3C3 - max torque 2350 Nm - max speed 714RPM
FIXED SIZE WITH SERVICE WINCH
Standard - direct shot max 1.000 daN

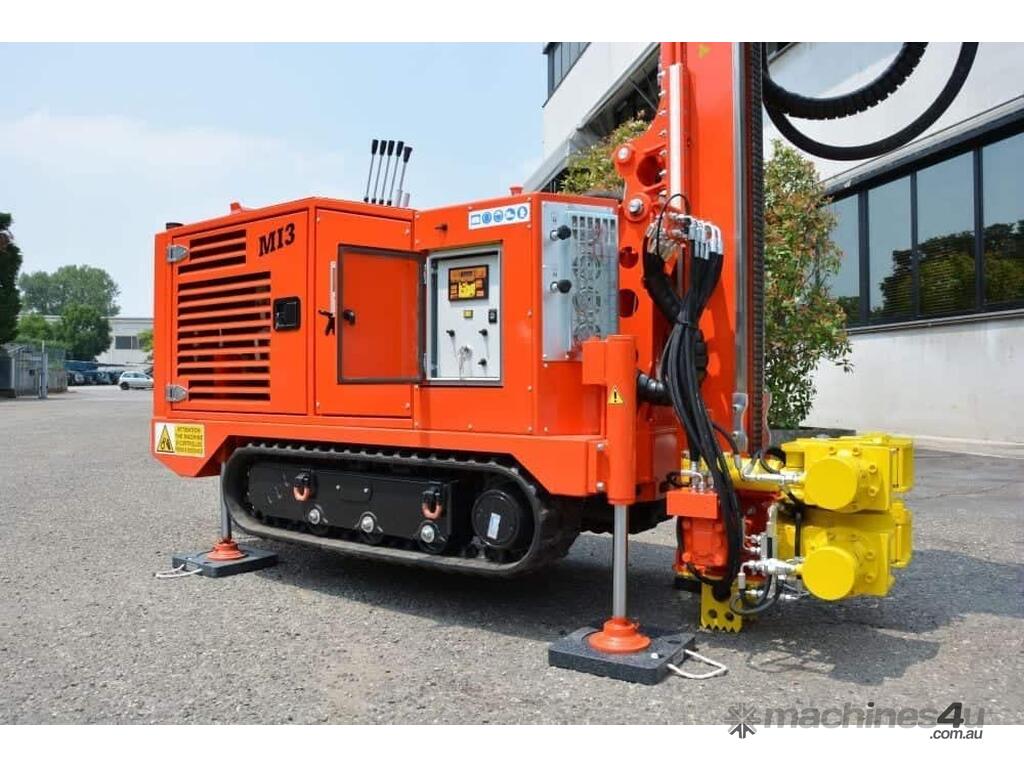

DOUBLE HYDRAULIC CLAMP:
Standard model MS175, max passage diameter 175mm
Optional model MS225, max passage diameter 225mm
