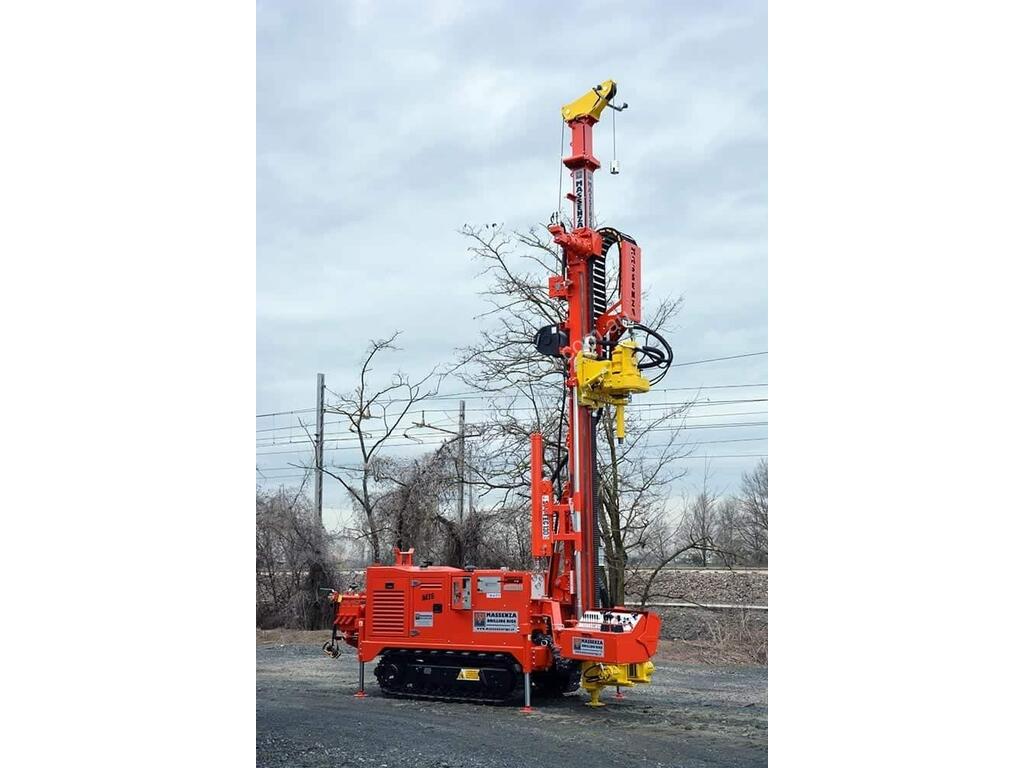

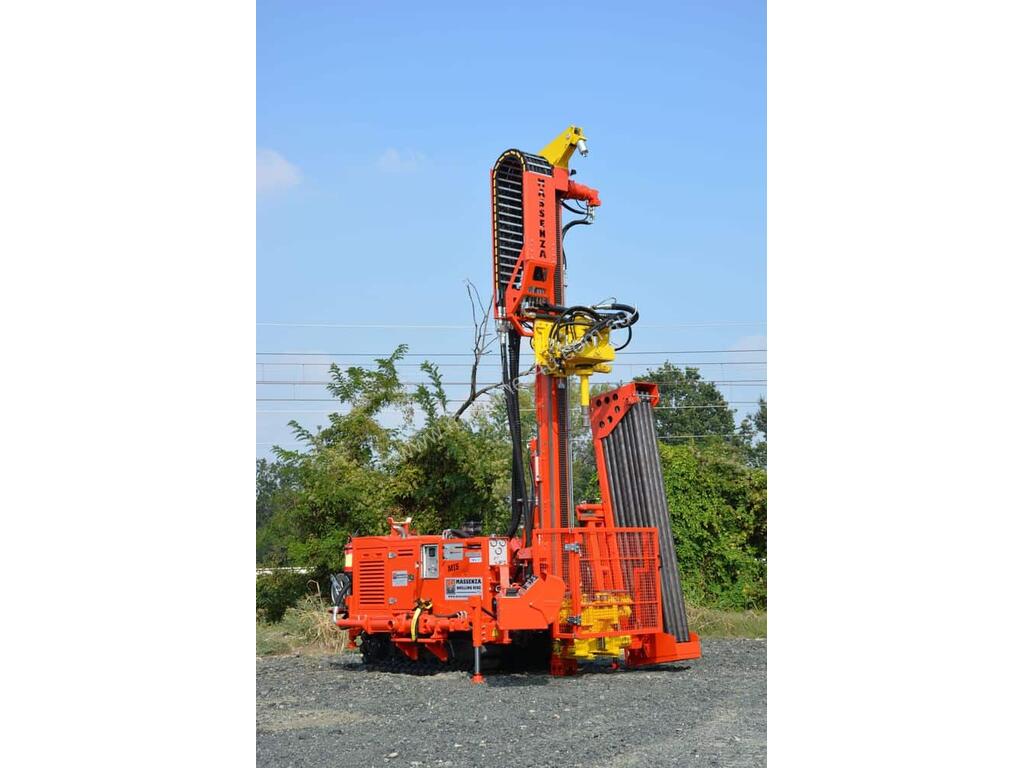

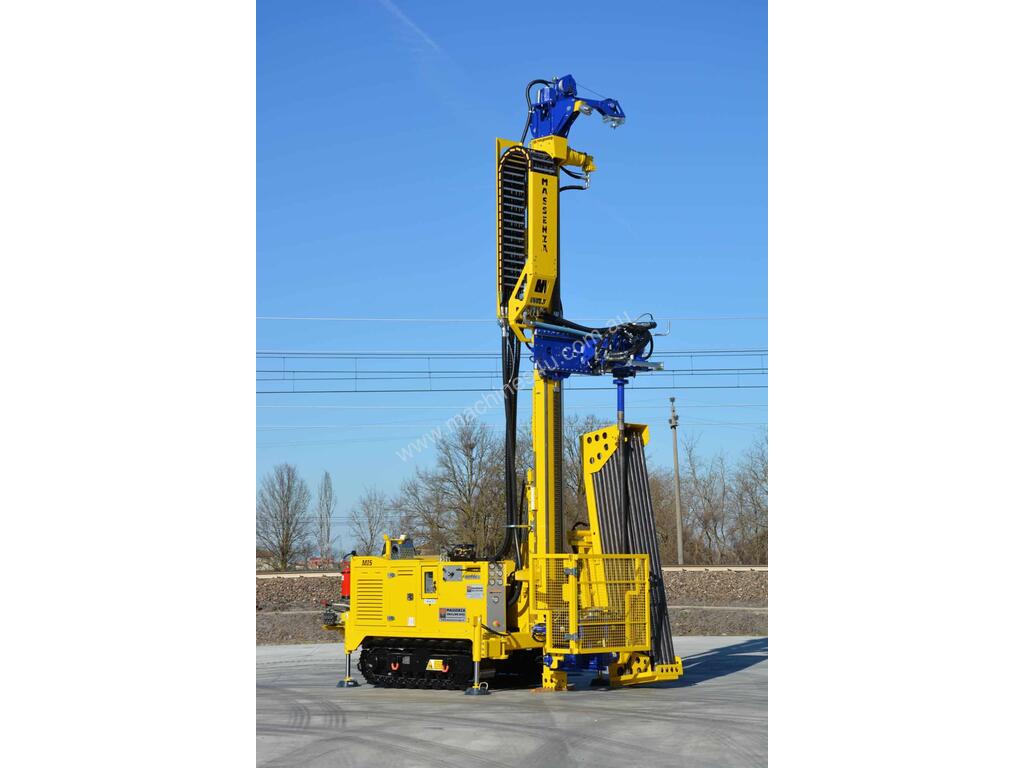

MASSENZA MI5
Very compact with moderate dimensions and high technical specification.

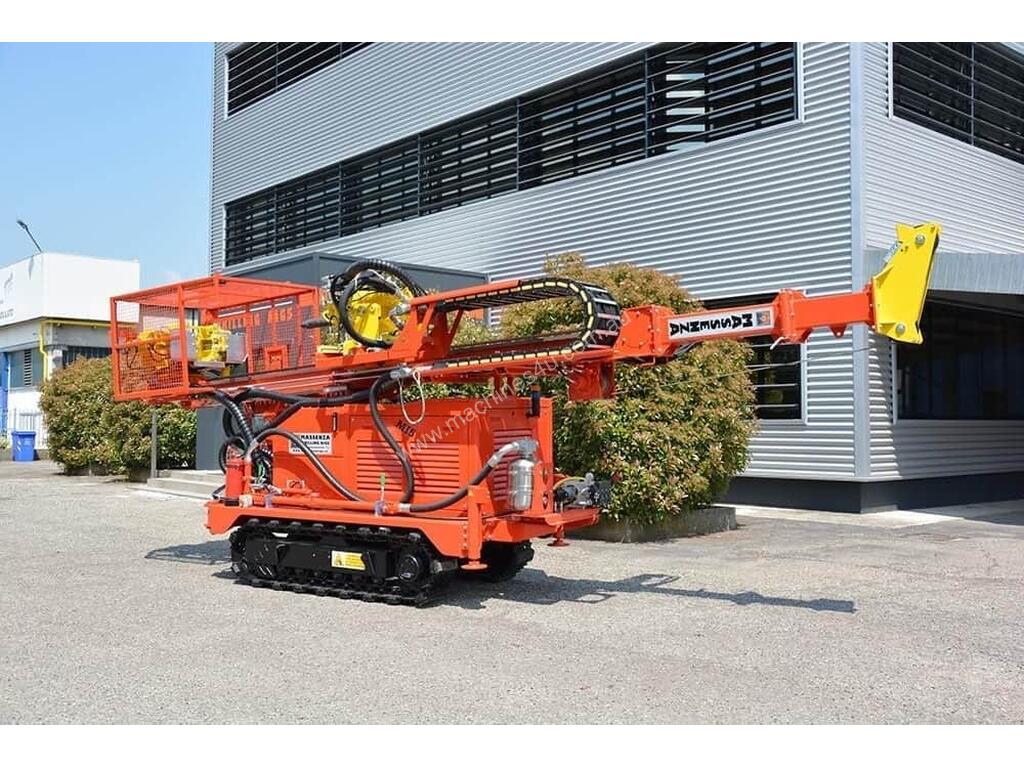

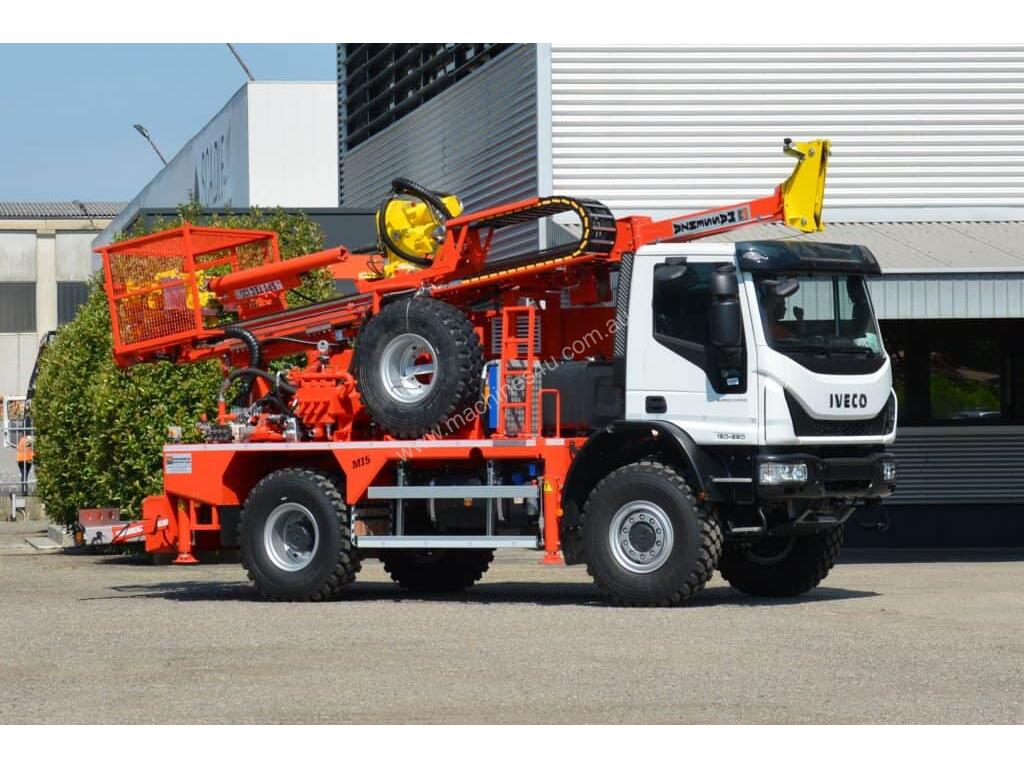

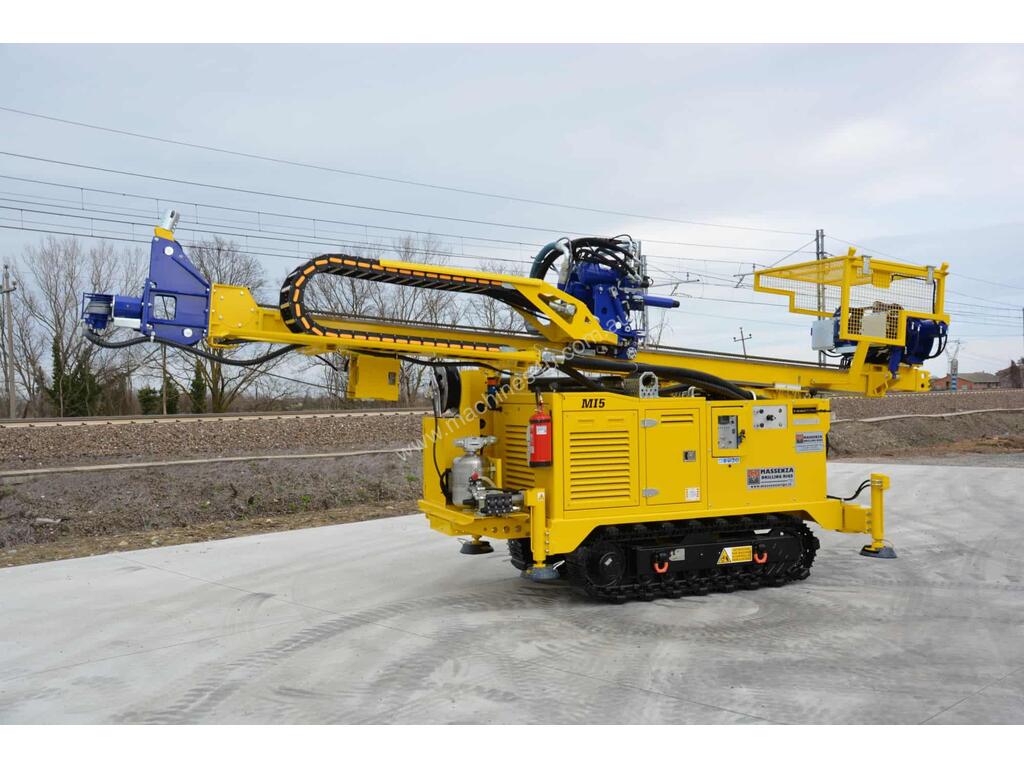

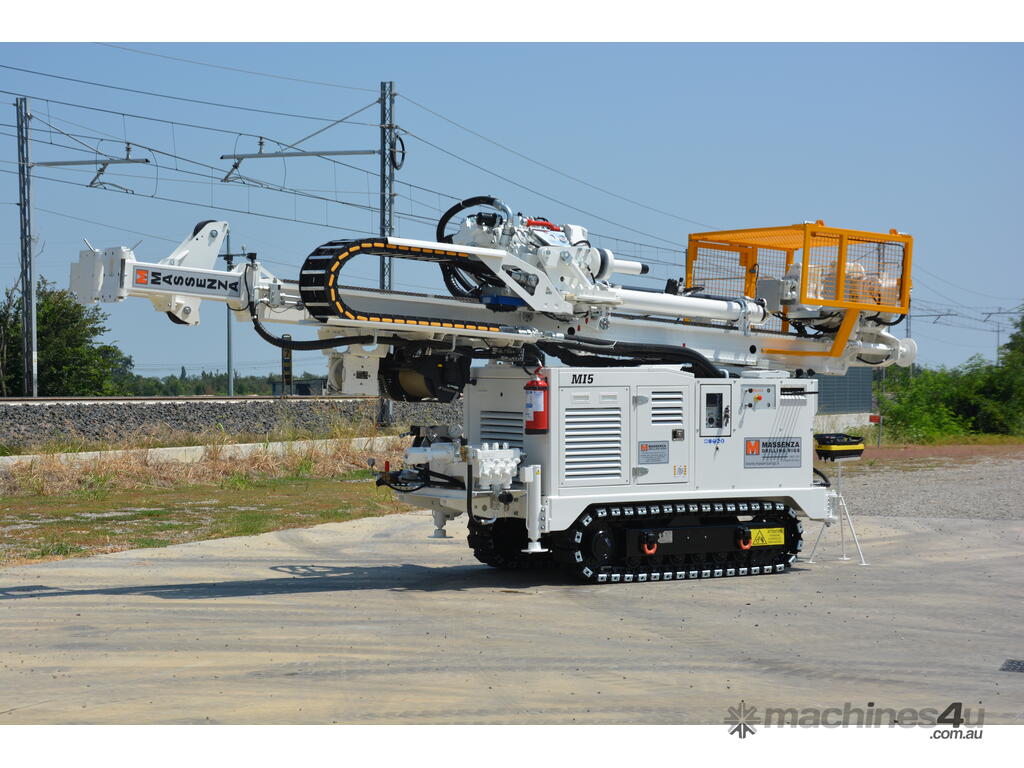

Available in crawler or truck mounted!
VARIOUS APPLICATIONS:
- water wells
- micro piles geothermal
- geotechnical
DRILLING METHODS:
- direct circulation
- coring
- down the hole hammer drilling
- augering
OPTIONAL:
- mast extensions
- SPT penetrometer

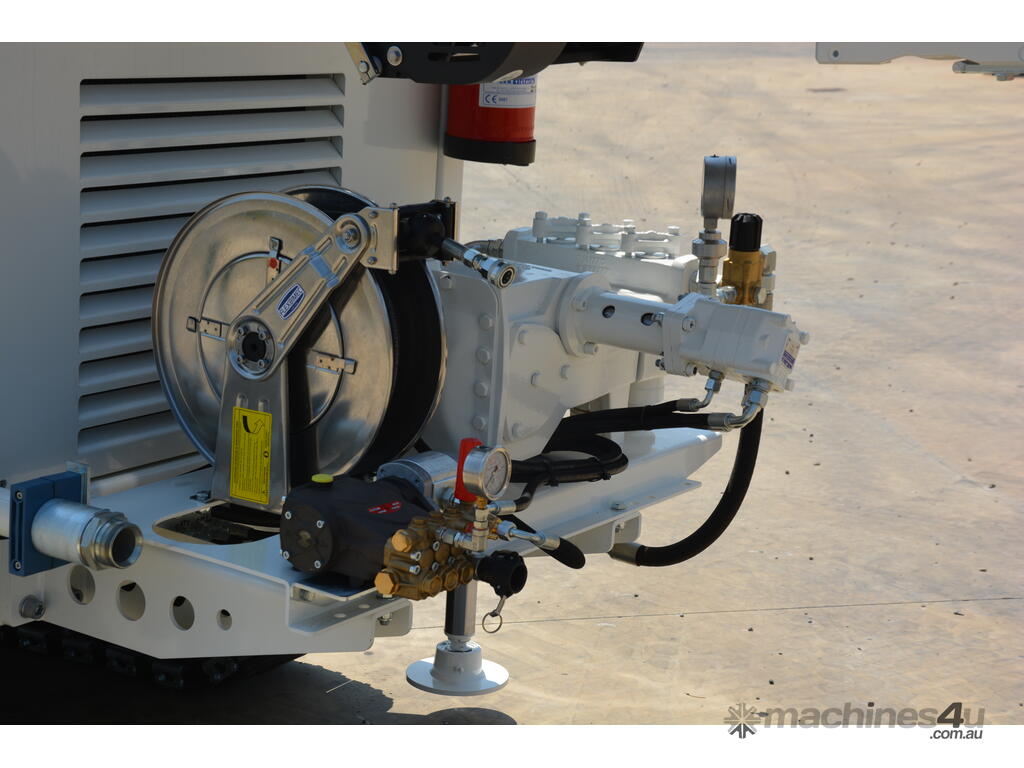

- various foam and mud piston pumps
- fixed or hydraulically tilting drill pipe boxes
OTHER SPECS:
- Engine power max 122HP (90kW)
- Mast pull up and down 6400daN/14390lbf (standard)
- Mast pull up and down 7000daN/15740lbf (optional)
- Maximum torque 10164 Nm (7500 lbf•ft)
- Maximum speed 900 Rpm
