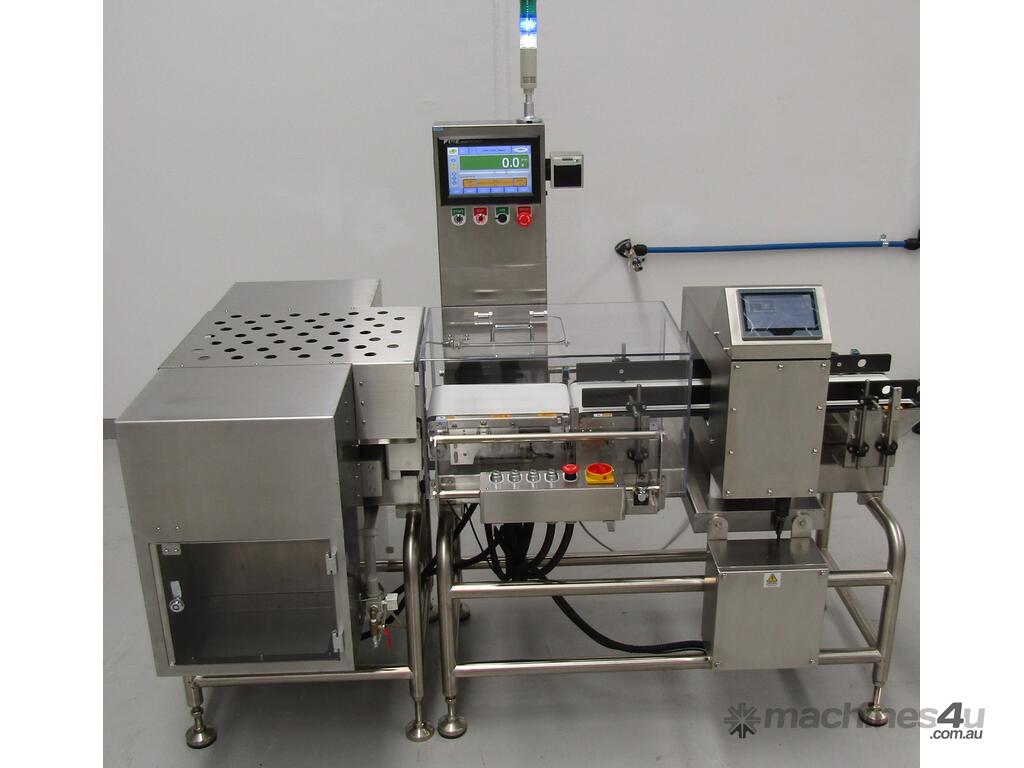

With the current stringent qualitative requirements being enforced upon the suppliers to Australian supermarkets, Autopac Systems will supply you with checkweigher and metal detection systems that meet and surpass them. This Now Systems checkweigher and metal detection combination systems is RETAIL READY!

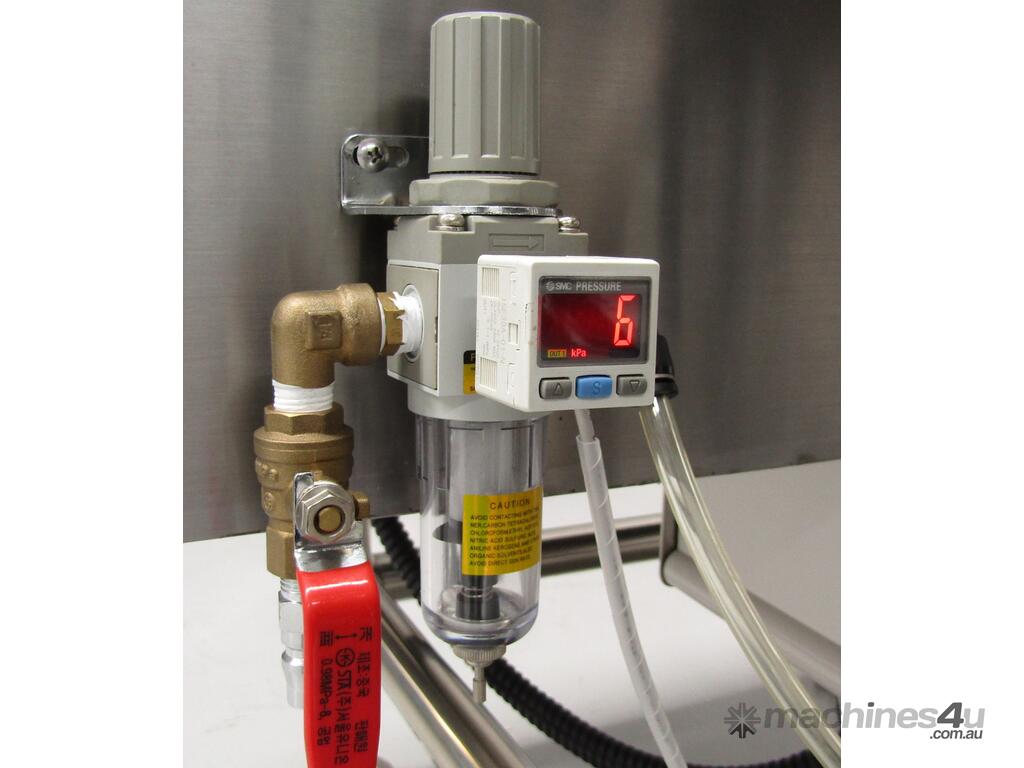

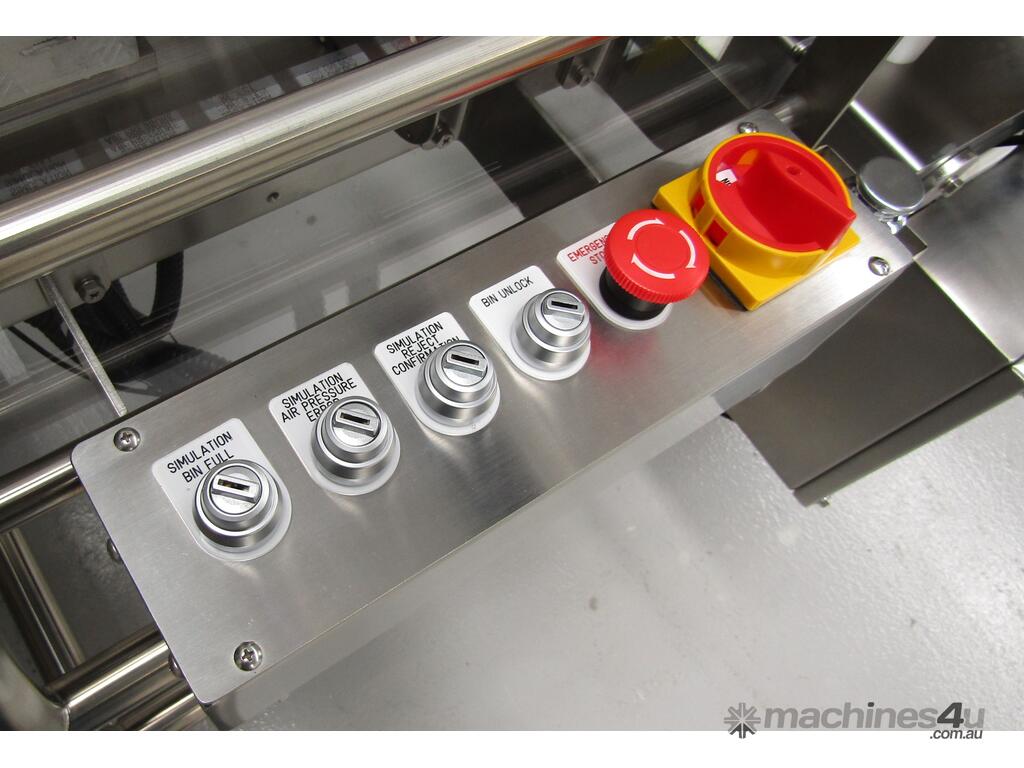

Requirements such as weight traceability, reject confirmation, low air pressure sensors, bin full sensors and safety interlocks are built in to the range as a standard.
The Now Systems combination system is of European build quality and to the standard of Japanese electronics.
The price of this system is very competitive. No other brands of comparable checkweighers and metal detectors can compete.
Autopac Systems have sold many hundreds of systems over the years and would like to inform you that the NOW Systems range of checkweighers and metal detectors are quality built, reliable, accurate and spare parts cost a fraction of other leading brands.
Machine DImensions:
Belt (BW): 220

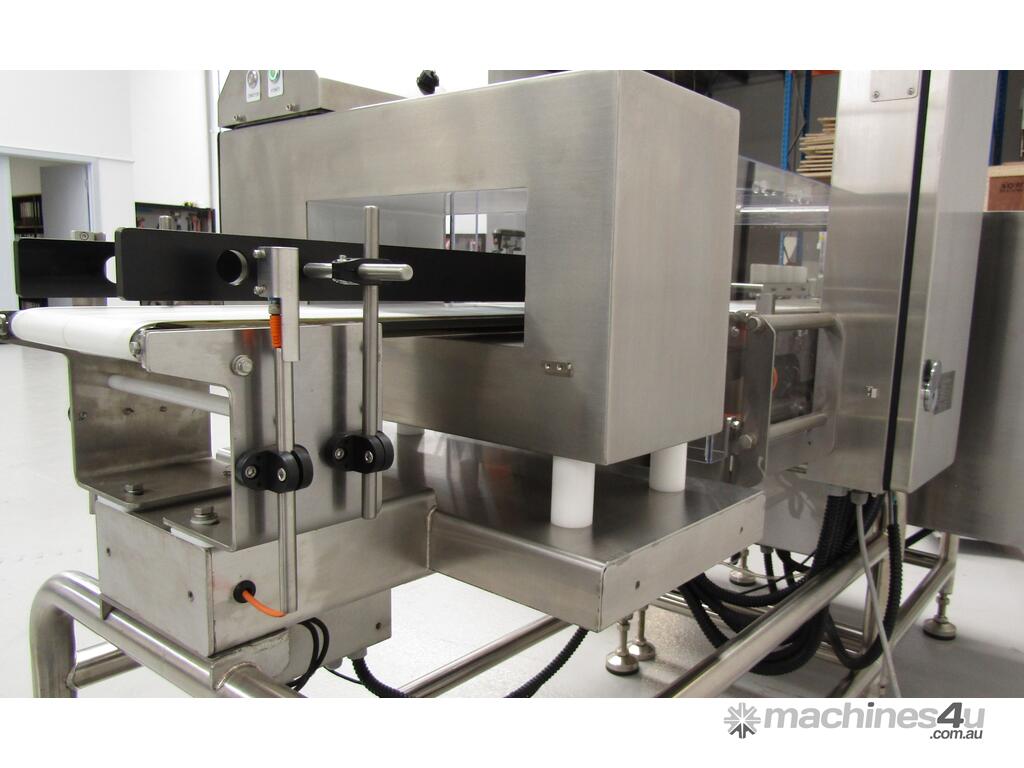

Metal Detector Tunnel Width (TW) 350

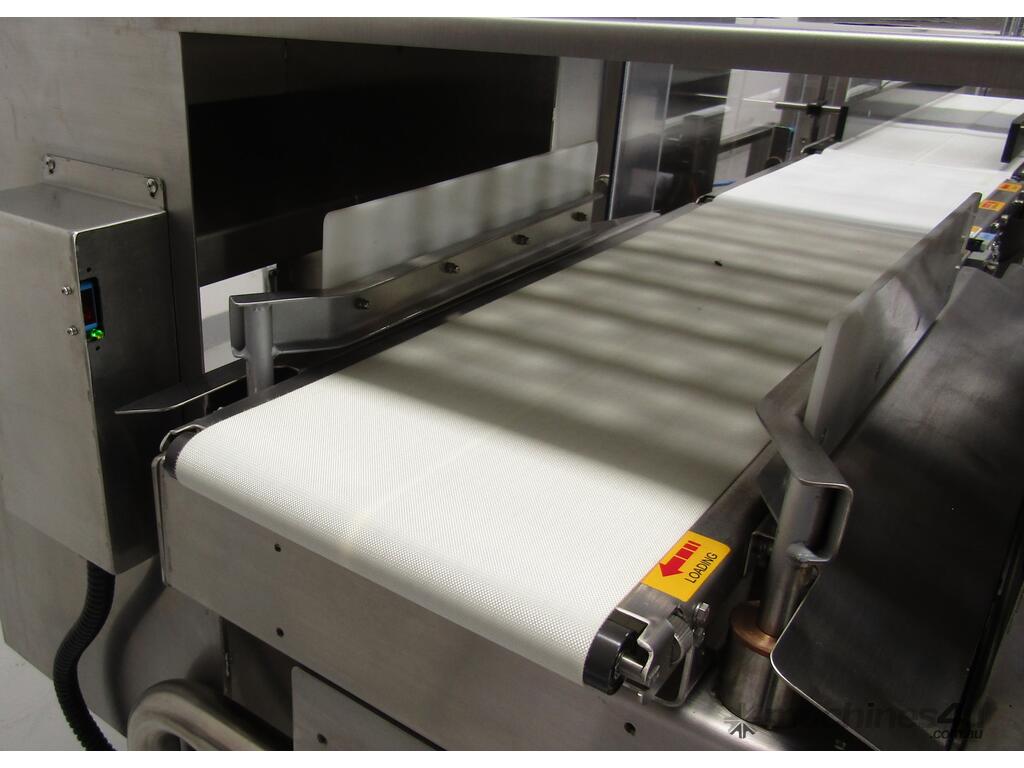

In-Feed Conveyor (MDL) 900
Weighing Conveyor (WL) 380
In-Feed & Weighing Conveyor (CL) MDL + WL +5mm
Rejecting Conveyor (RL) 700
Total Length (L) CL + RL +5mm
Min. Conveyor Height (mm) 750 ±100
Weighing Capacity (gram) 1200
Weighing Range (gram) 8 ~ 1,200
Optimum Accuracy (gram) ± 0.4
Scale interval (gram) 0.2
Max. Weighing Speed / Max. 95 ppm
Belt Speed / Min. 10 ~ 69 m
Zero Adjustment During Operation: Continuous Automatic Dynamic
Product Dimension
Width 30 ~ 220 mm
Length 30 ~ 300 mm
Height 10 ~ 125 mm
Outputs Relay (5A) / 1A1B 2EA, DC24V SOL, AC220V 0.2A
Power Supply Single Phase (110 to 220V)
Operating Temperature 0oC to 50oC (advised to use the machine under the normal temperature)
Rejection System: Twin Sweeper Arms
