NEW RHINO BUSINESS STARTER PACKAGES
YOU GET:
1 x NEW RHINO R4000S HOT MELT COMPACT EDGE BANDER (2022 YOM)
1 x NEW RHINO RJ3200M PANEL SAW
2 X NEW RHINO 9030 TWIN BAG DUST COLLECTOR'S
PRICE POA
DELIVERY TIME TBC

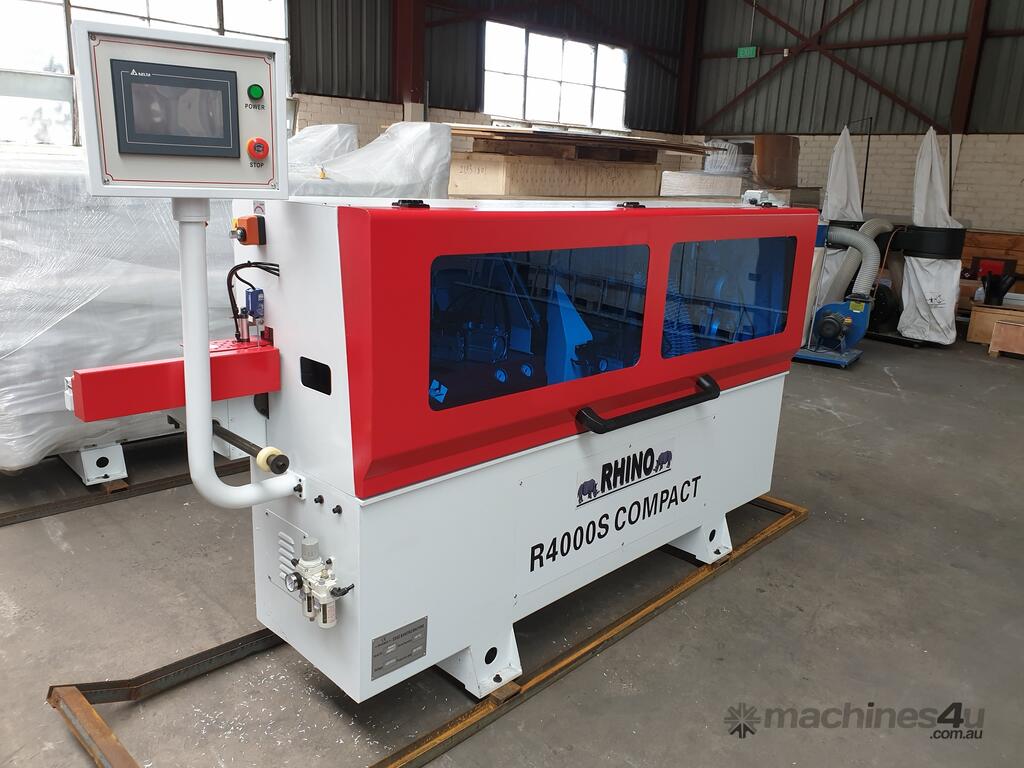

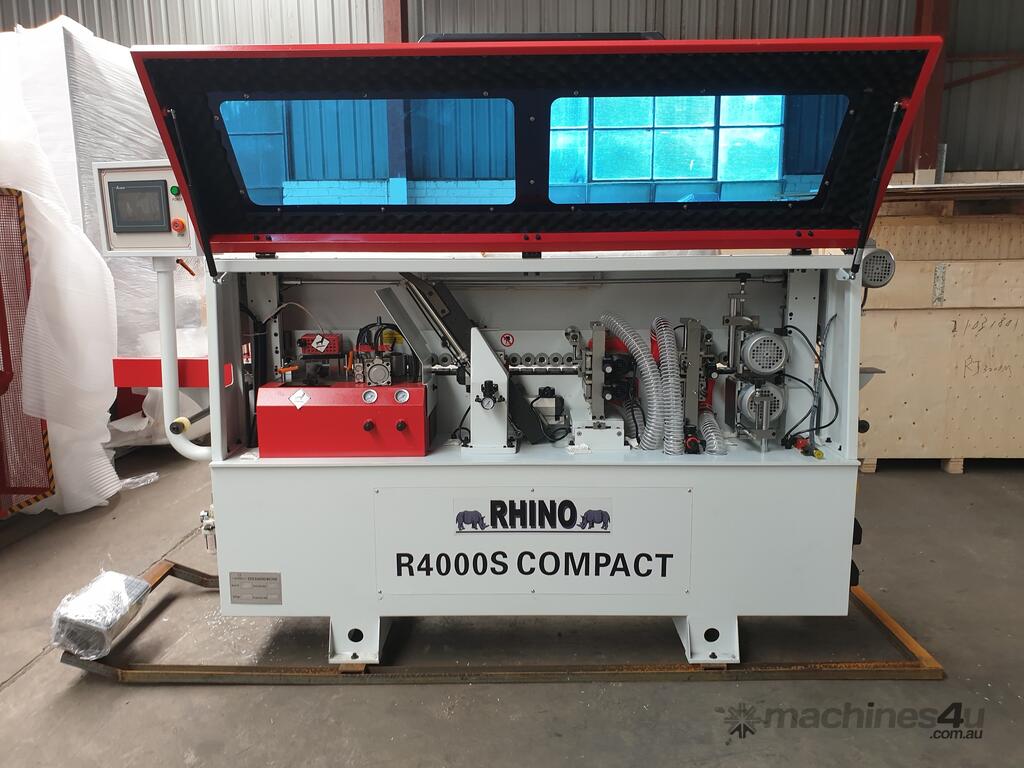

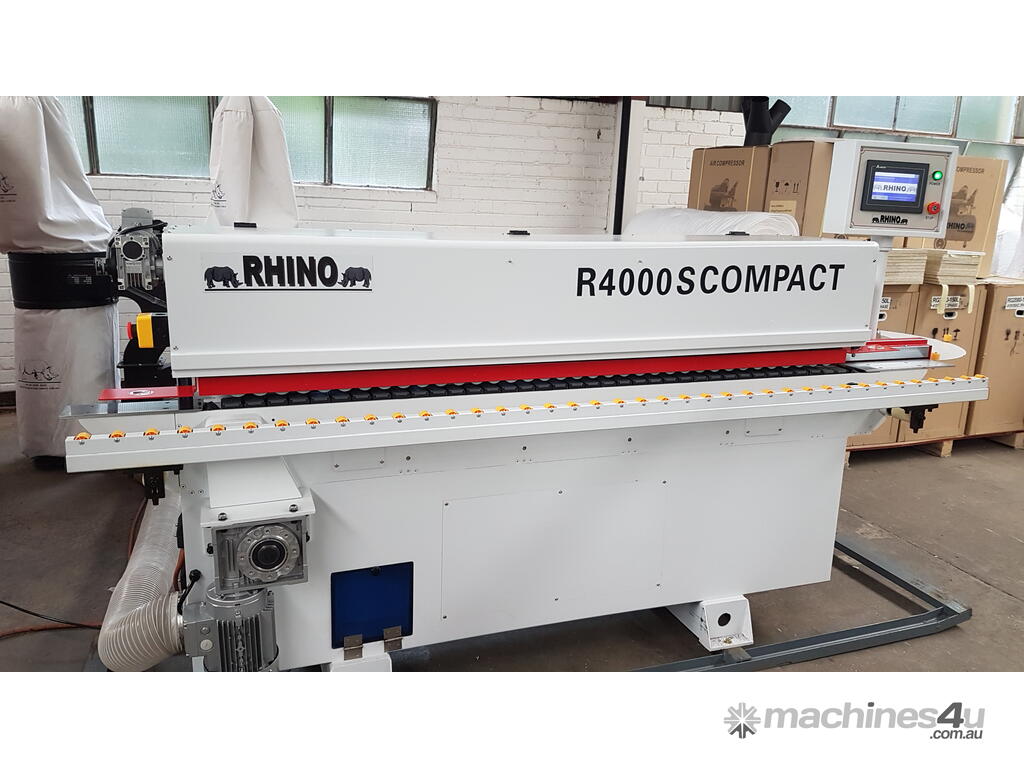

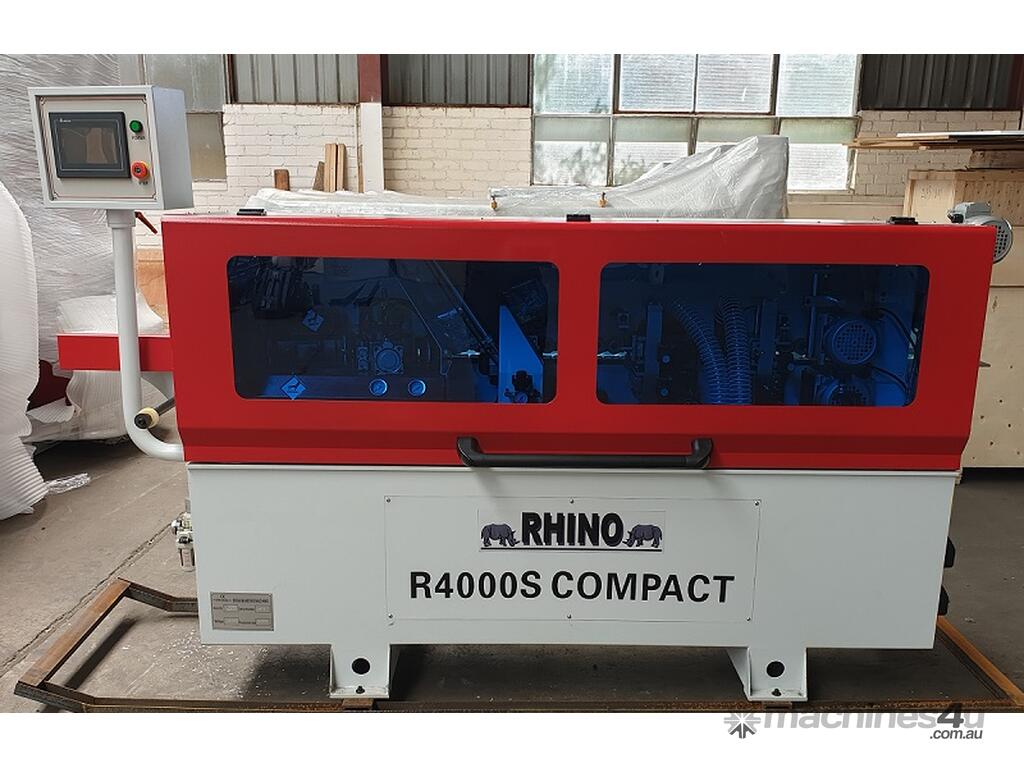

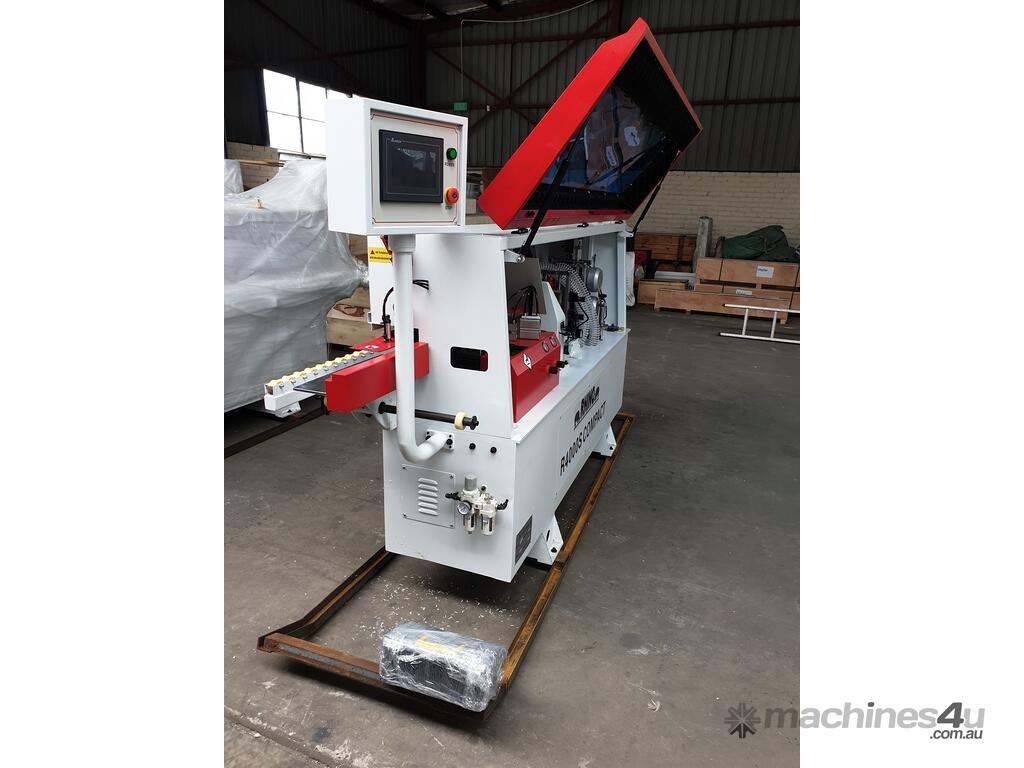

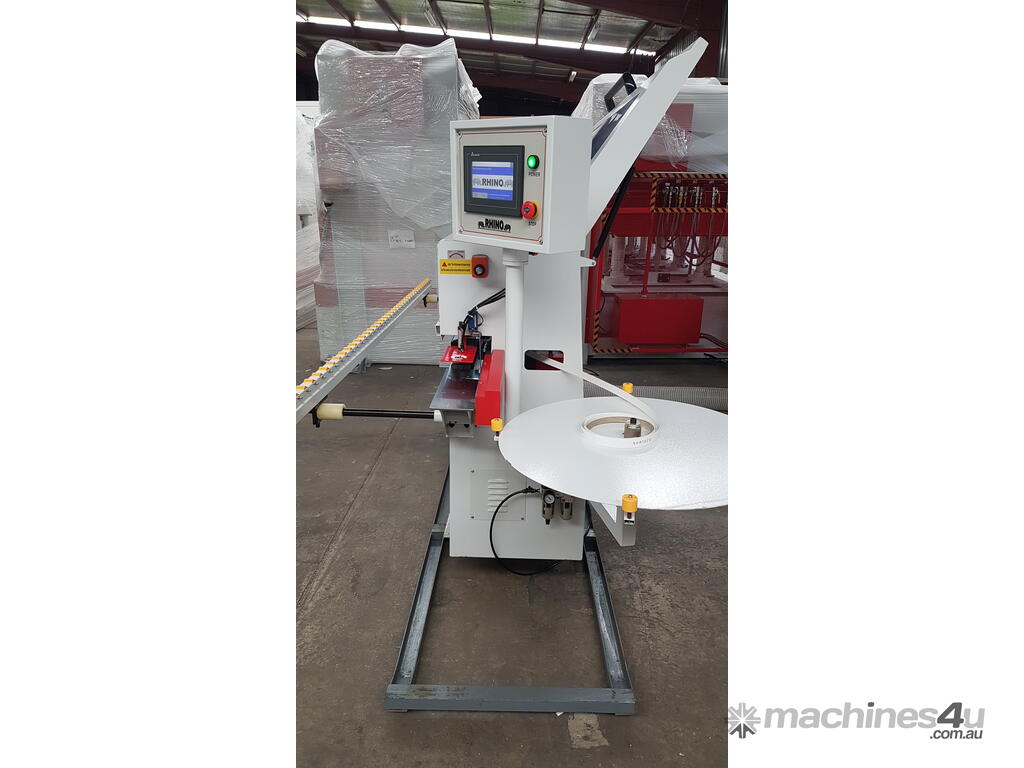

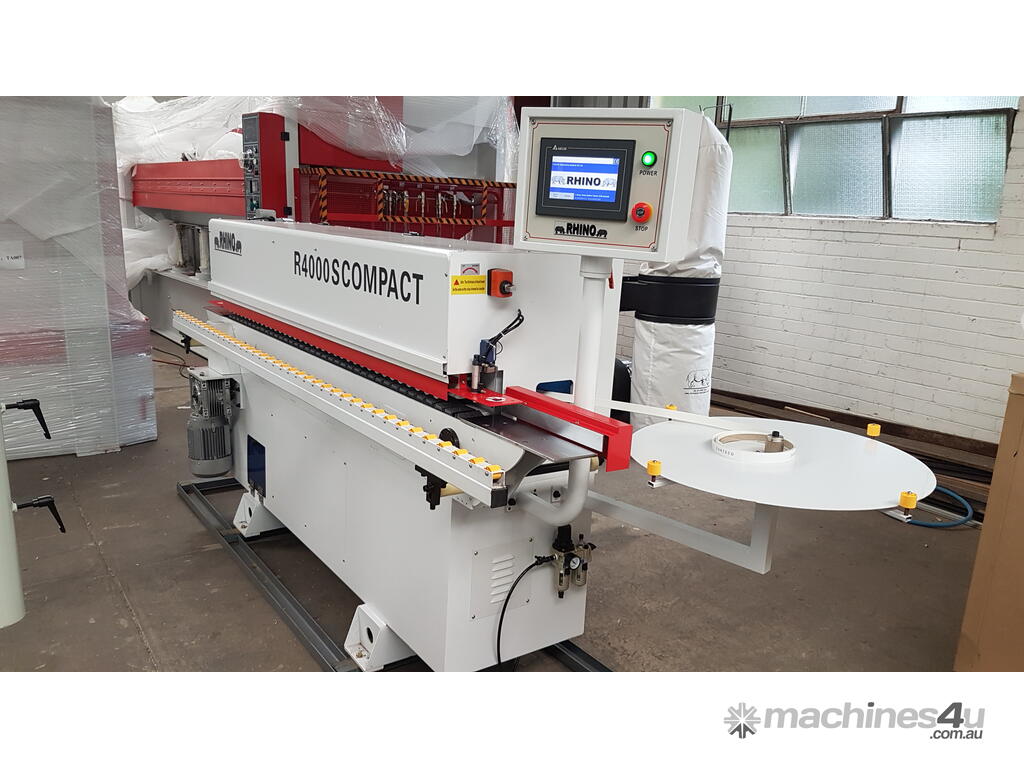

1 x RHINO R4000S Compact HOT MELT EDGE BANDING MACHINE with board feed system via rubber pad caterpillar track, chain driven with overhead rubber rolls

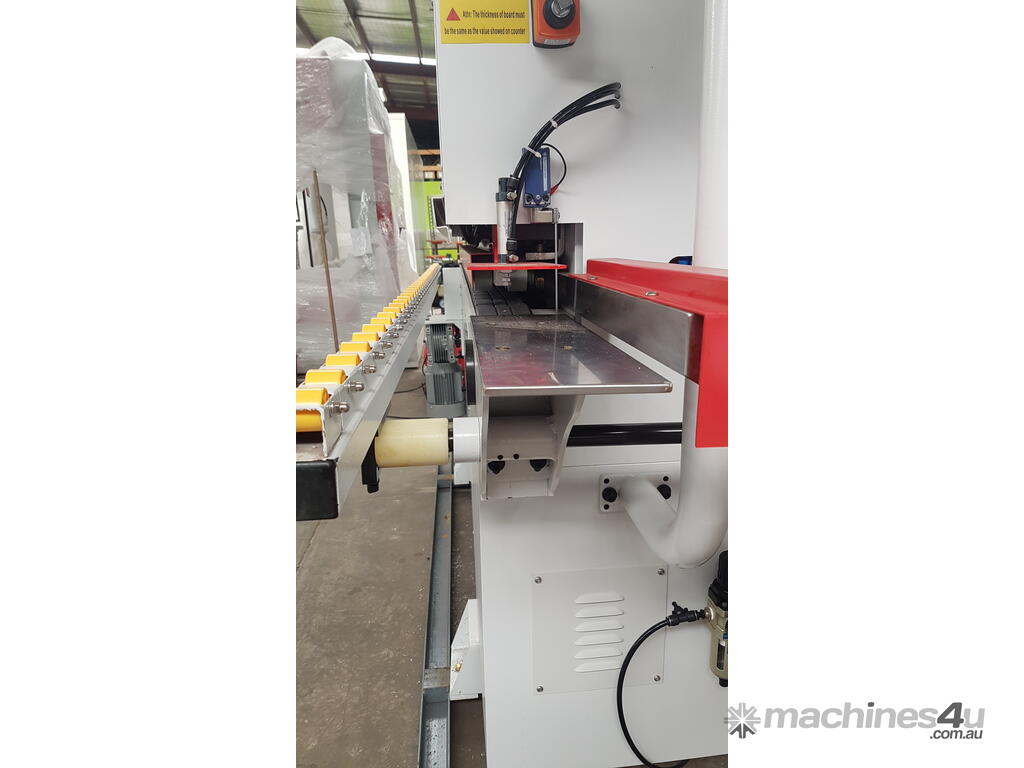

Pre heated infeed fence
Electric rise and fall of beam height controlled via touchscreen
Teflon coated hot melt glue pot
2 x End cut off saws
Top and Bottom Trimming
Top and Bottom Radius Scrapers
Buffing

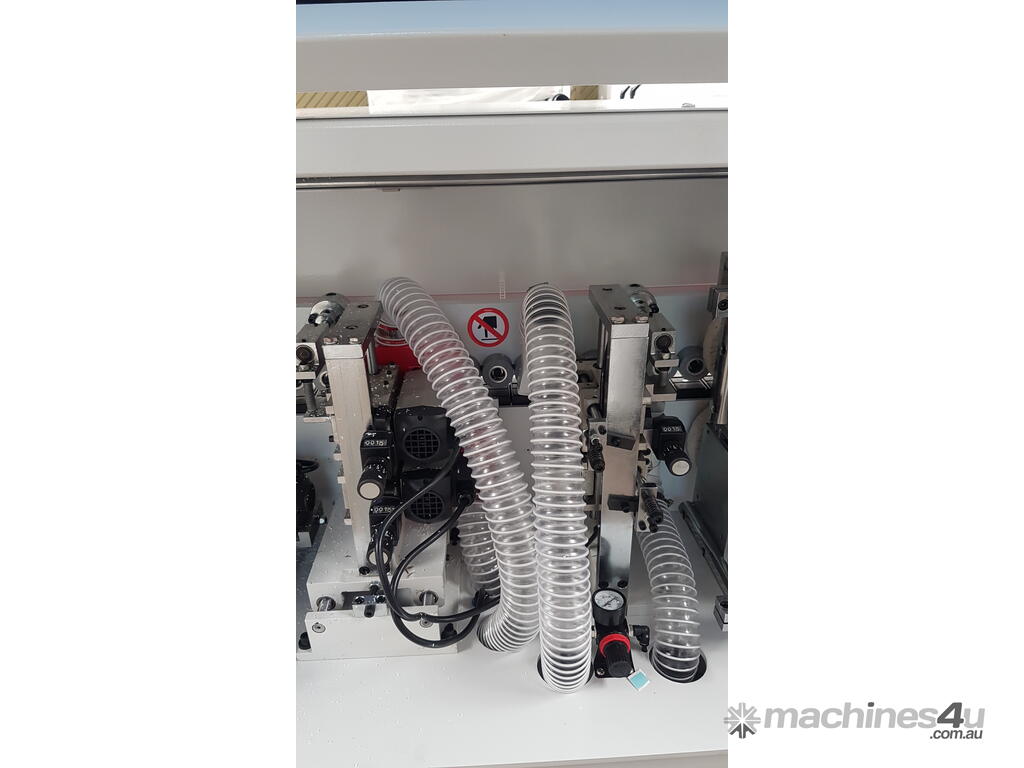

Dust Extraction on cut off saws, trimmers and scrapers, all collected to one common 150mm dia. outlet
Built in dust extraction electrics
User friendly DELTA touch screen controller
New streamlined design insulated hood with cabin light
Automatic temperature standby
Safety feed gate to prevent boards being feed too close
12mt/min Feed Speed
WORKING UNITS:

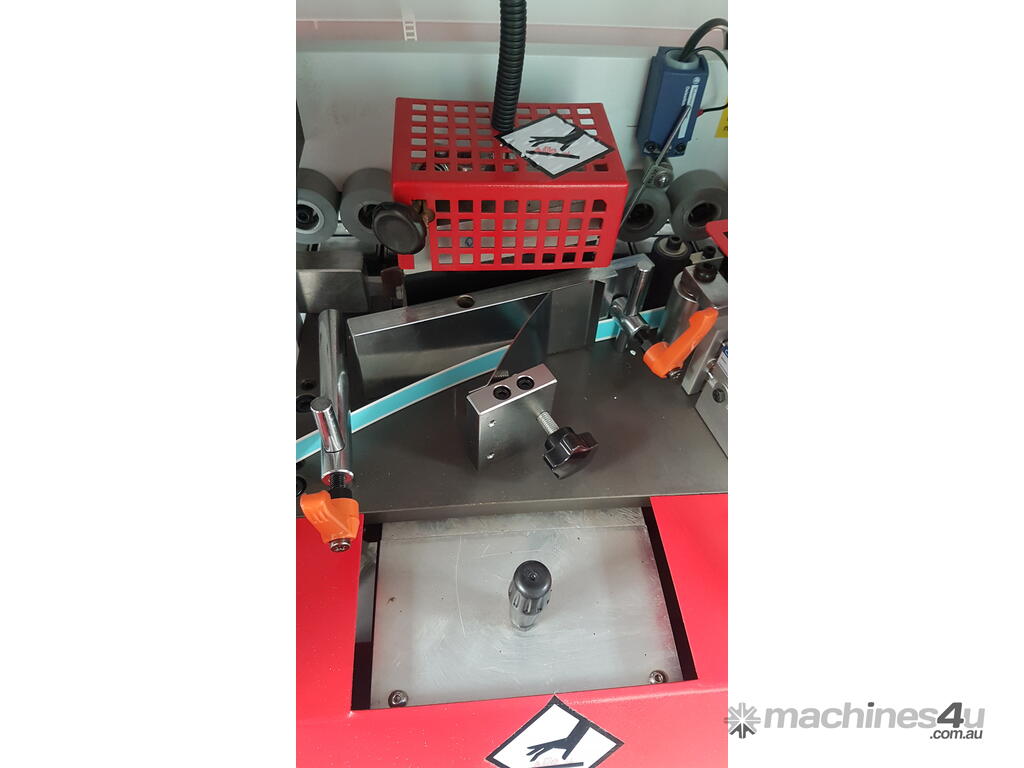

Hot melt Teflon coated glue pot plus press roll system for tape
End trimming via 2 motor end saw unit plus high frequency motor
Top plus bottom edge trimming
Top plus bottom radius scrapers
Top plus bottom buffing
All working units fitted with HF motors plus inverters

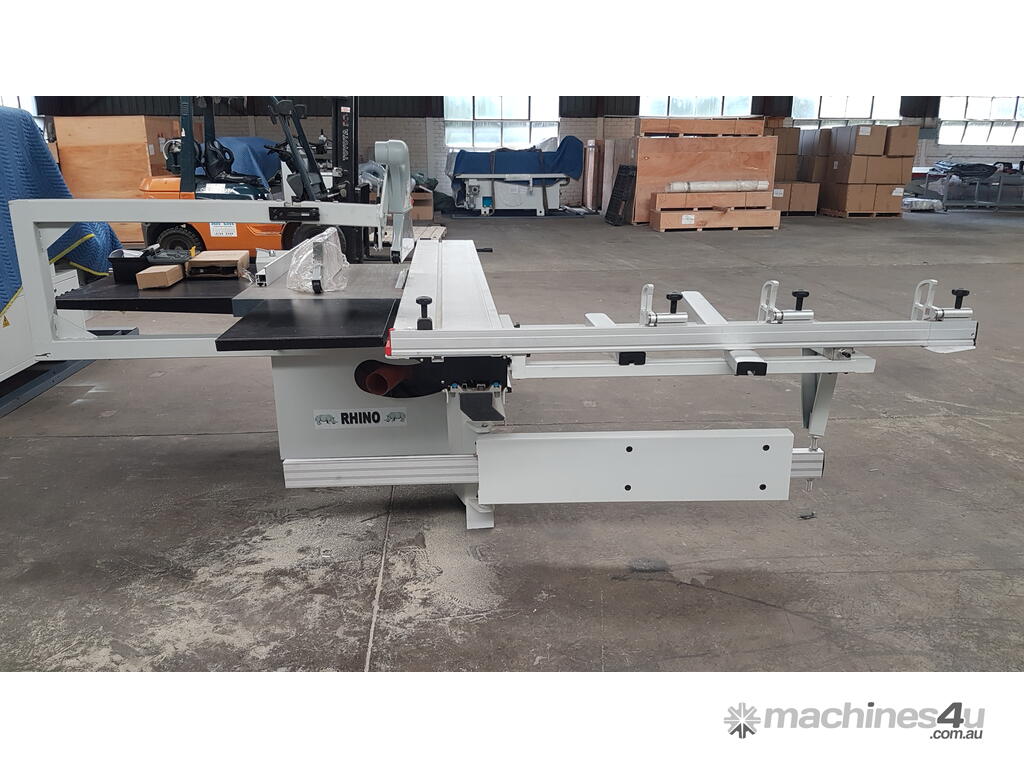

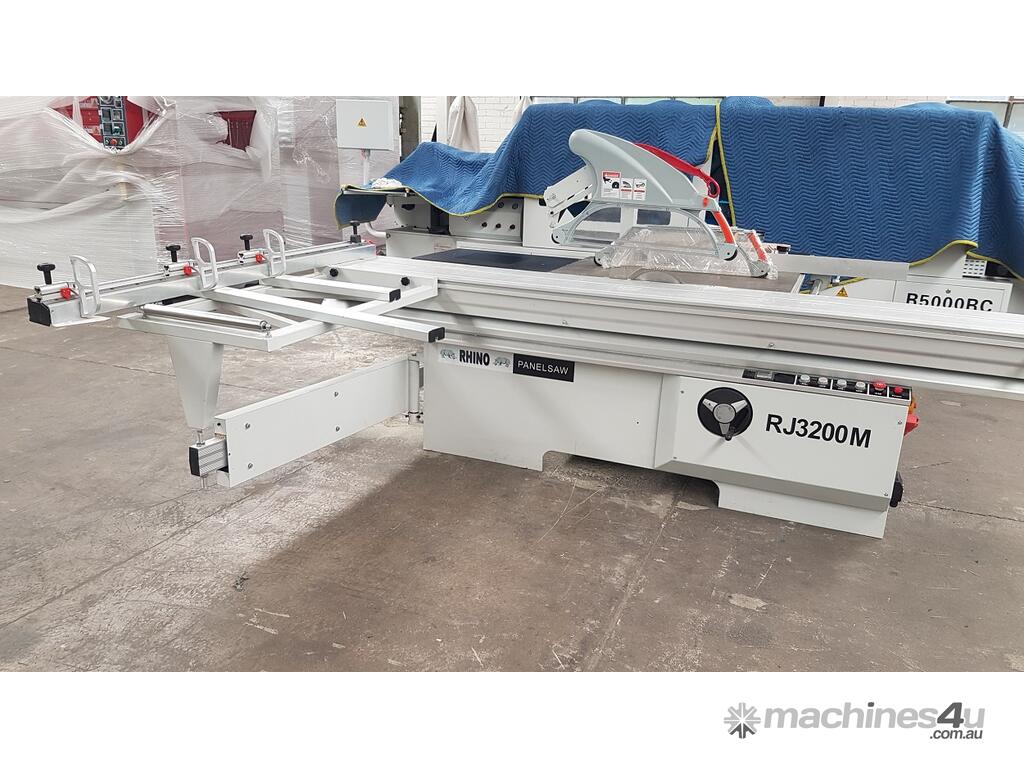

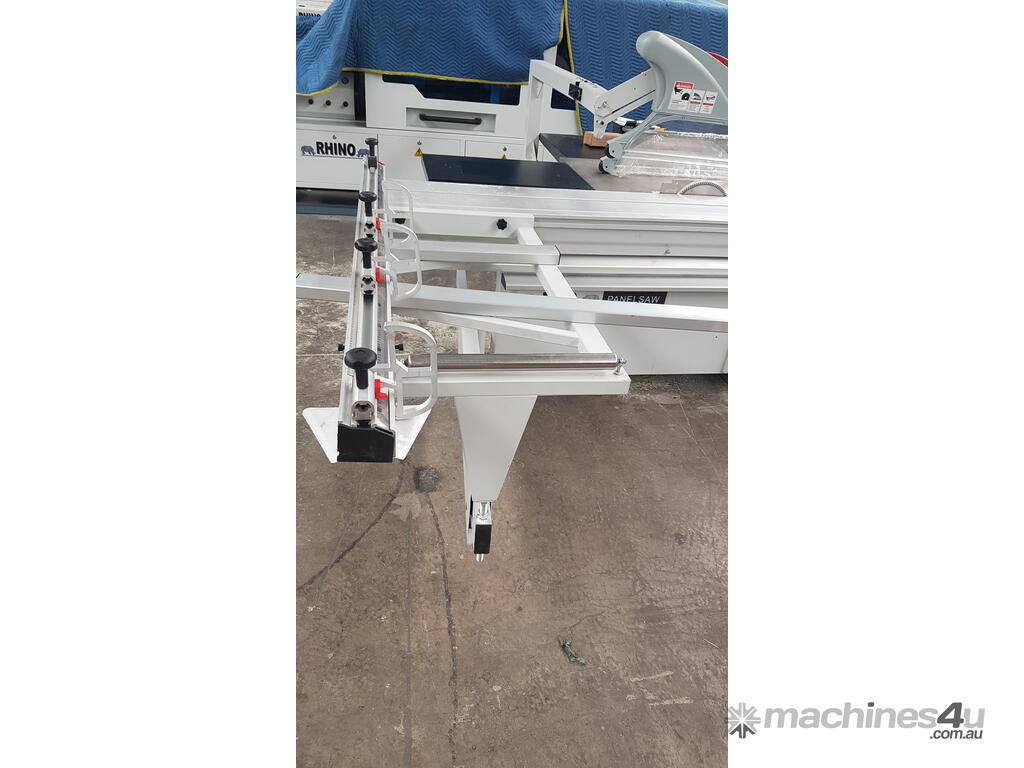

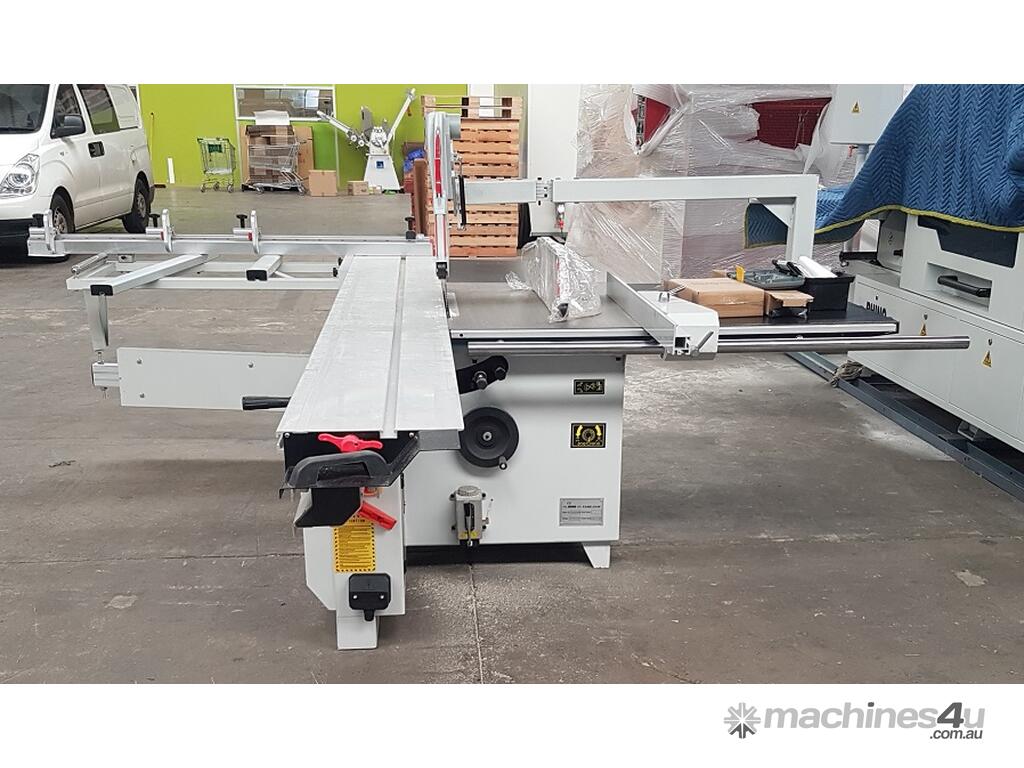

1 x RHINO RJ3200M MANUAL PANEL SAW with;
Manual tilt cutting from 0 to 45 Degrees
Manual rise and fall of saw blade and scribe
Manual setting fence
3200mm length x 375mm width sliding table
300x30mm dia. Saw Blade (included)
120x20mm dia. Scribe Saw (included)
5.5 kW Main drive motor
0.75 kW Scribe saw motor
New German Style dust hood with pivoting arm (incl bubble guard for angle cutting)
Pressure device on the sliding table
Two end stops

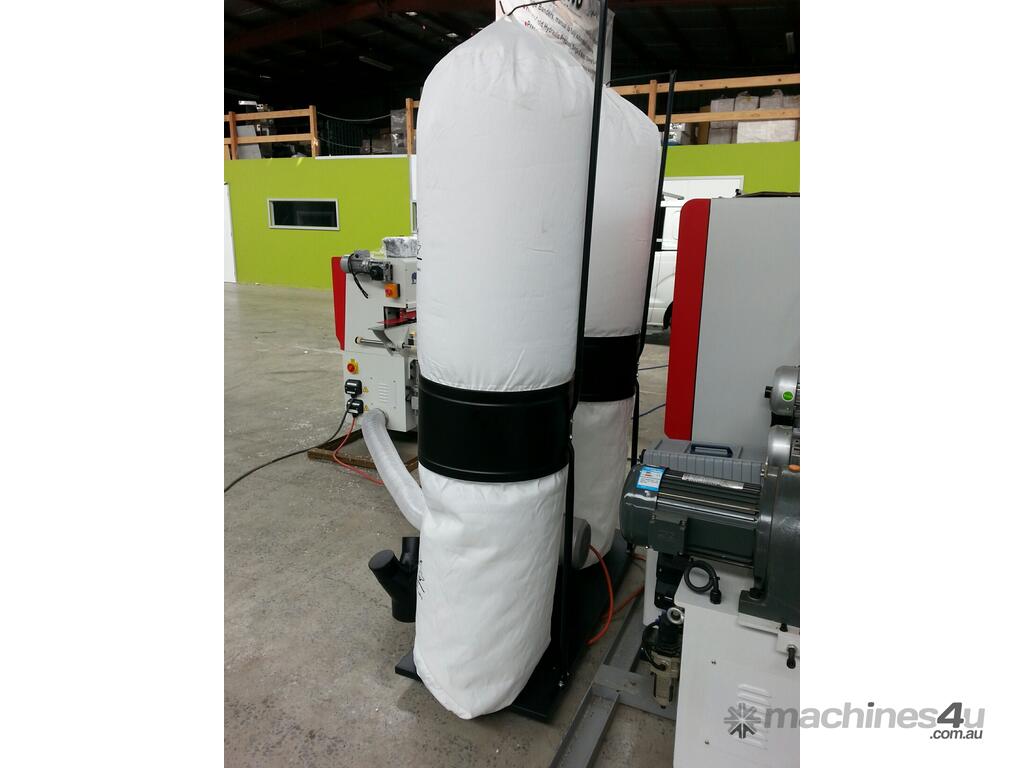

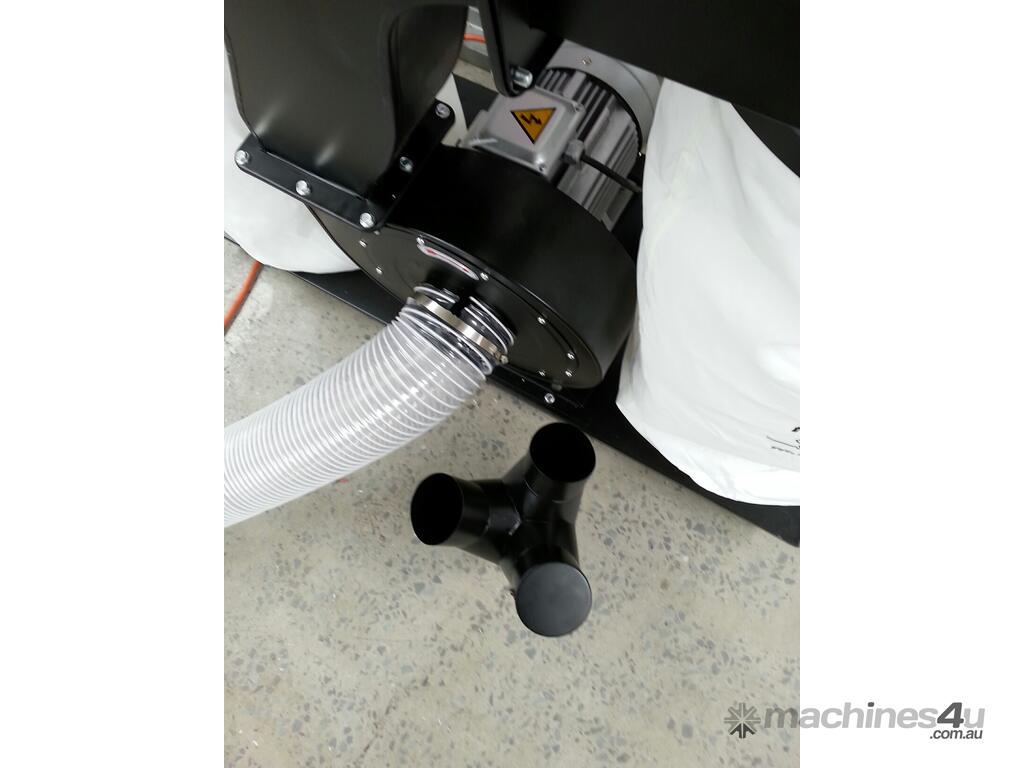

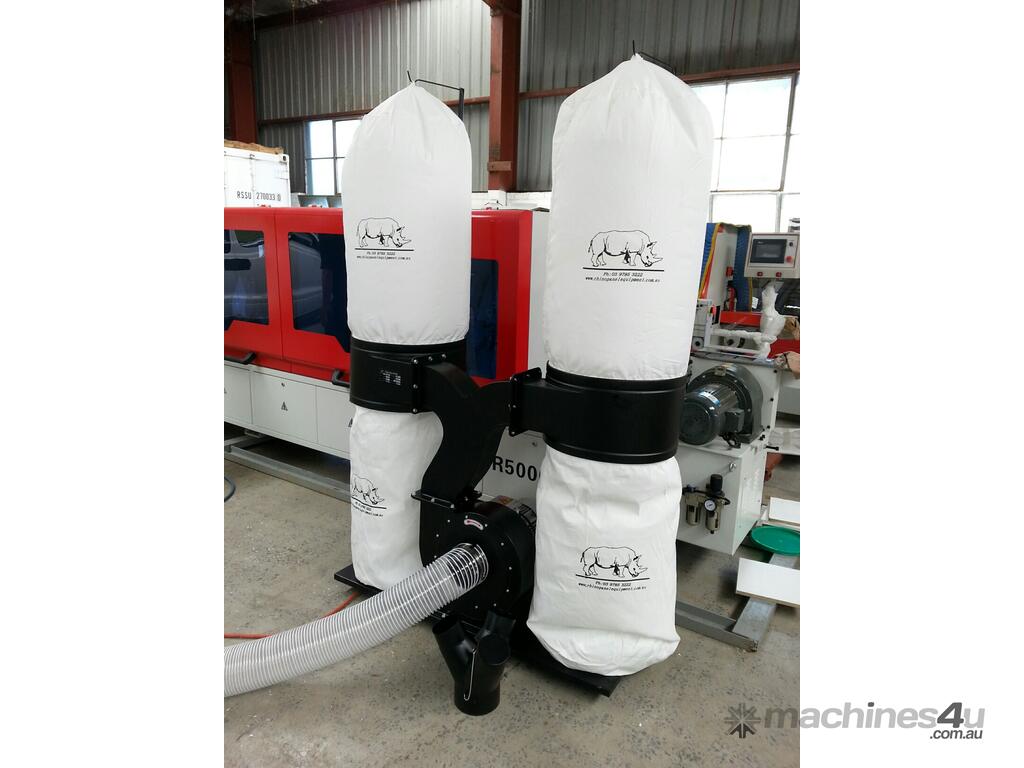

2 x NEW RHINO 9030 Twin Bag Dust Collector's featuring;
Air Delivery 3000m3/hr (1765 cfm)
Qty of Dust Mouth 3x4” or 1x6” (3x100mm or 1x150mm) Diameter of inlet 4” (100mm)
Power 3.0kW (4hp) 3 Phase 415 Volt
Dia. of frame 470mm
Also available with RJ3800M Manual Setting Panel Saw.
