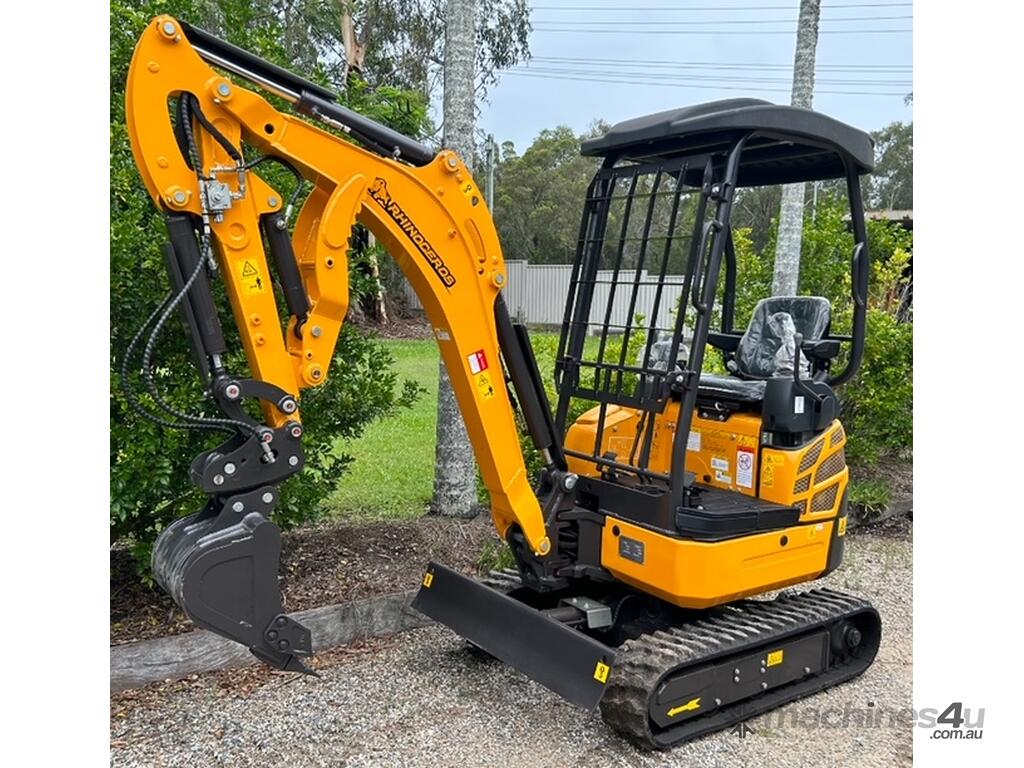

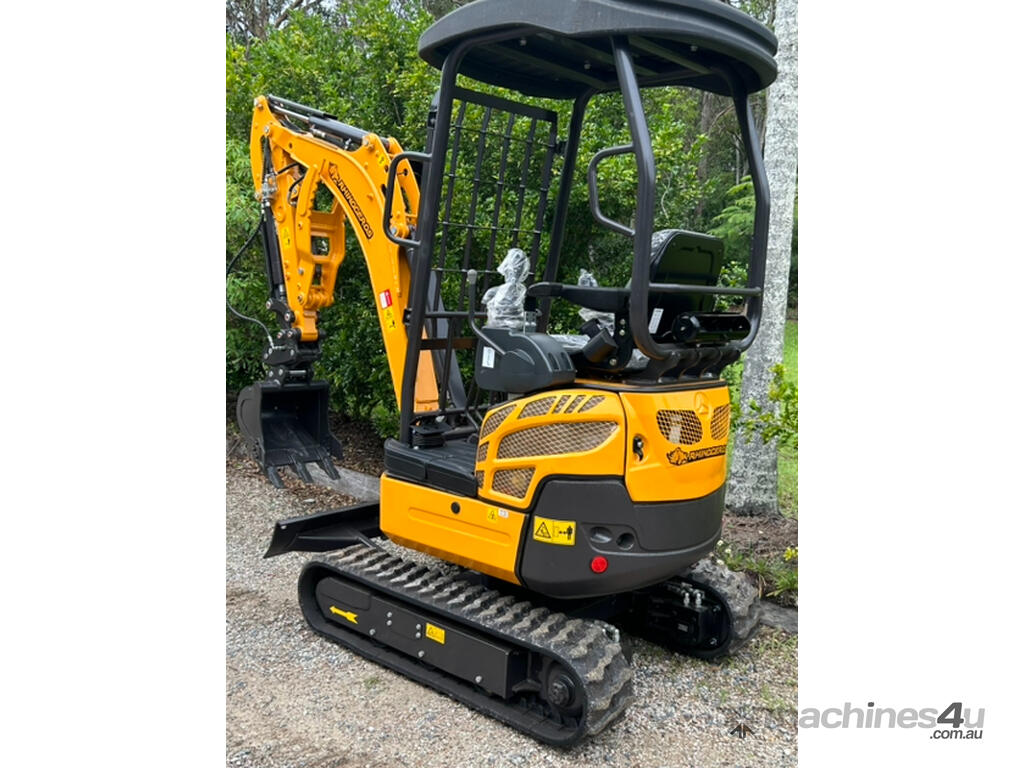

New Upgrade RHINOCEROS MINI EXCAVATOR XN18L JUST ARRIVED , EQUIPED WITH A MOST POPULAR Kubota D902 ,3 CYLINDER WATER COOL engine. WITH HYDRAULIC OIL COOLING SYSTEM . 23HP AT 3600 RPM. SWING BOOM FUNCTION AS STANDARD . AND IT IS A GENUINE RHINOCEROS.

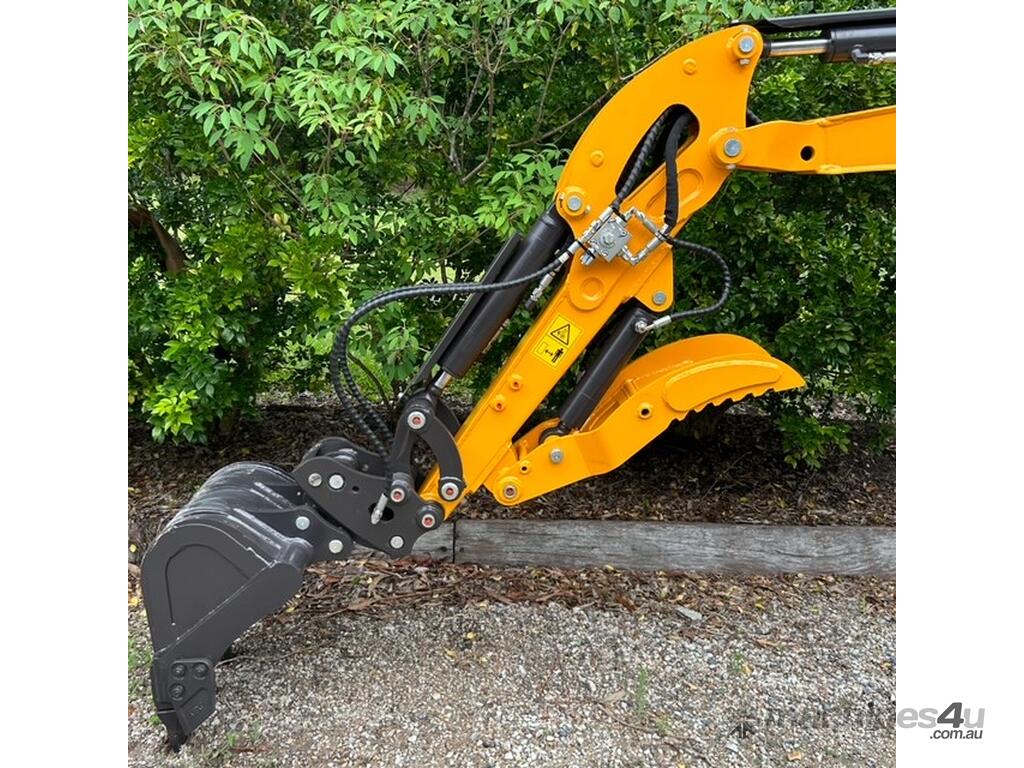

THE PRICE IS FOR ONE XN18L MACHINE AND ONE 400MM DIGGING BUCKET ONLY
IF YOU WANT THE COMBO PACKAGE WITH 200MM ,400MM ,1000MM BUCKETS ,RAKE,RIPPER ,ESPECIALLY HYDRO QUICK HITCH AND HYDRO THUMB GRAB . WILL BE $26990. GST INCL
SPECIFICATION:
Operating Weight : 1900kg Incl 75kg operator
Engine : Japan KUBOTA D902 same as KUBOTA U17-3
Max Rated power : 23hp/3600rpm
Displacement : 0.898L
Main pump : Variable plunger pump
Working Pump flow : 39.6L/Min
Valve : BEIFANG
Displacement : 12ml/r
Swing motor : USA EATON 245
Traveling motor : USA EATON 310
Fuel tank capacity : 19L
Overall dimension( LxWxH) : 2360x1150x2320mm
Total length of track : 1450mm
Platform ground clearance : 440mm
Platform back turning radius : 790mm
Rubber Track width : 230mm
Max. Digging depth : 2180mm
Max. Vertical digging depth : 1740mm
Max. Digging height : 3275mm
Max. Dumping height : 2310mm
Max. Digging radius on ground : 3470 mm
Min. Rotation radius : 1440mm

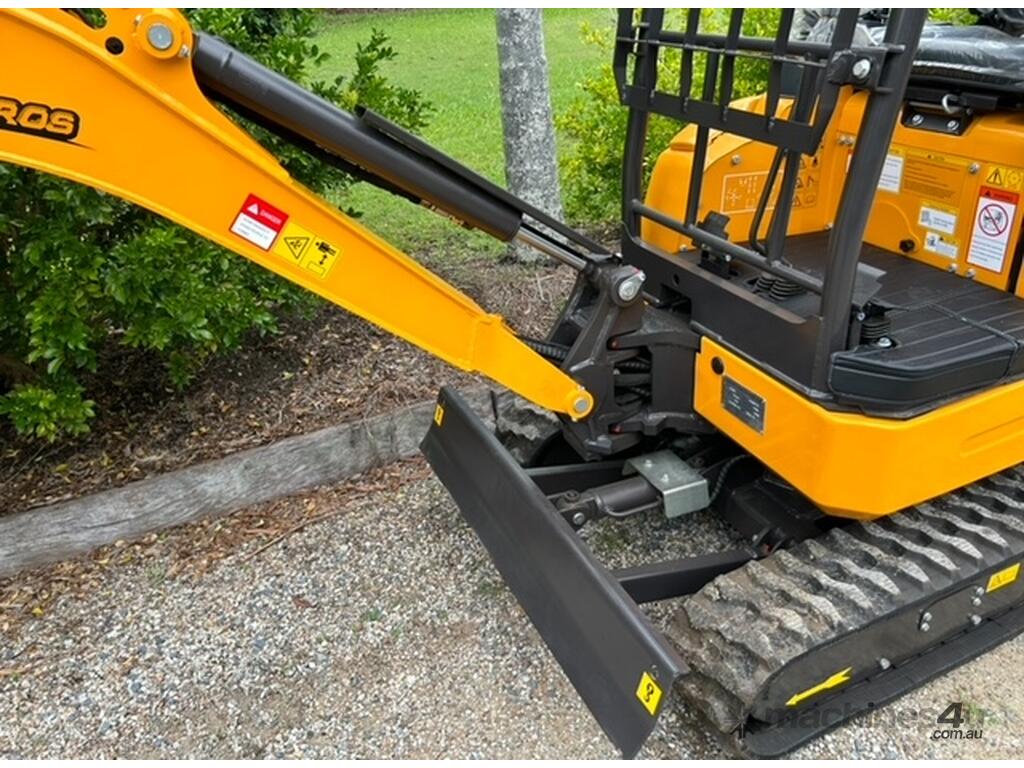

Max. Upgrade height of bulldozer blade : 262mm
Max. Digging depth of bulldozer blade : 192mm
Bucket Digging Force : 13.5kN
