2024 Tristar Side Tippers and Dolly Double Set
2024 2 x Trailers 1 X Dolly

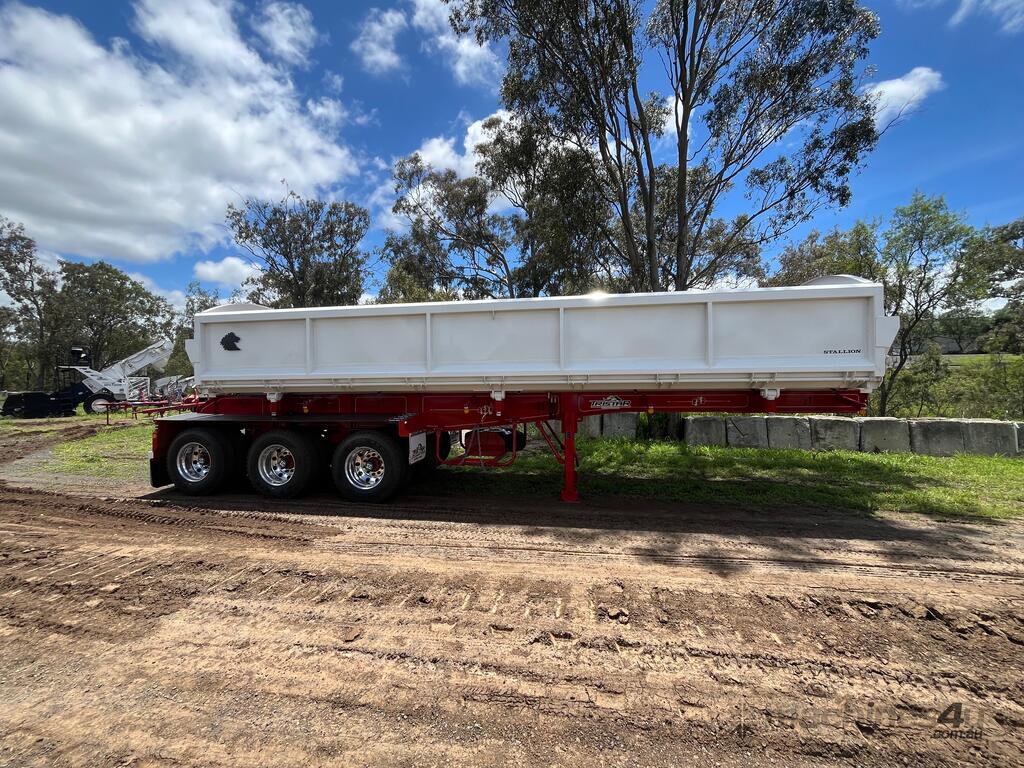

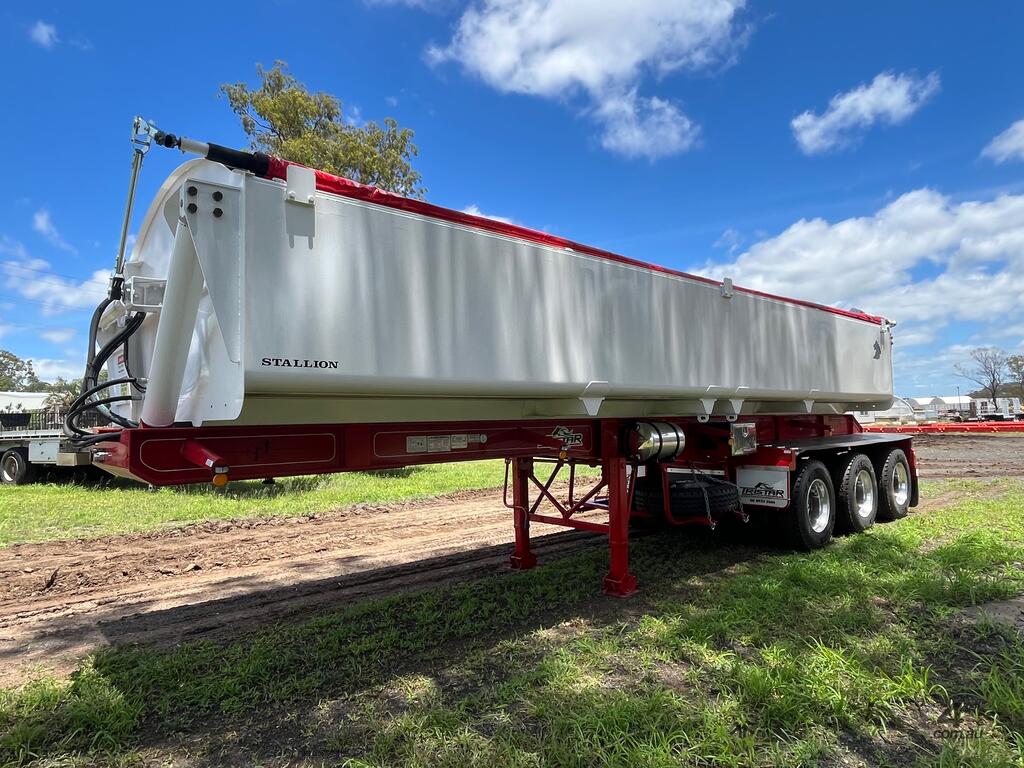

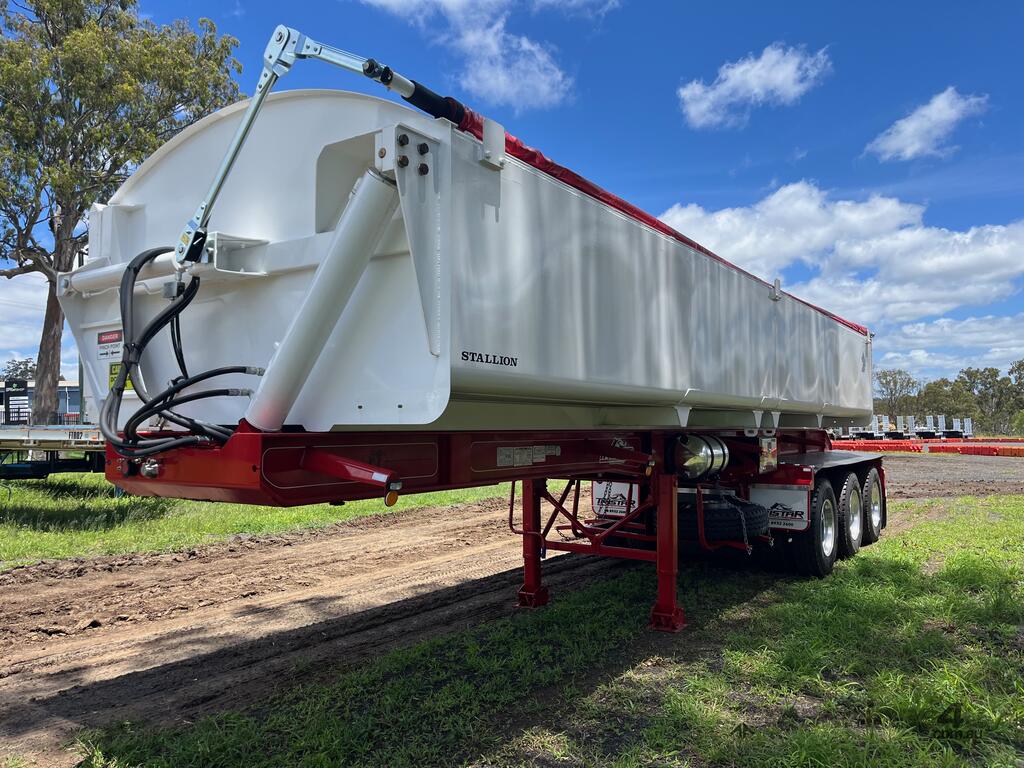

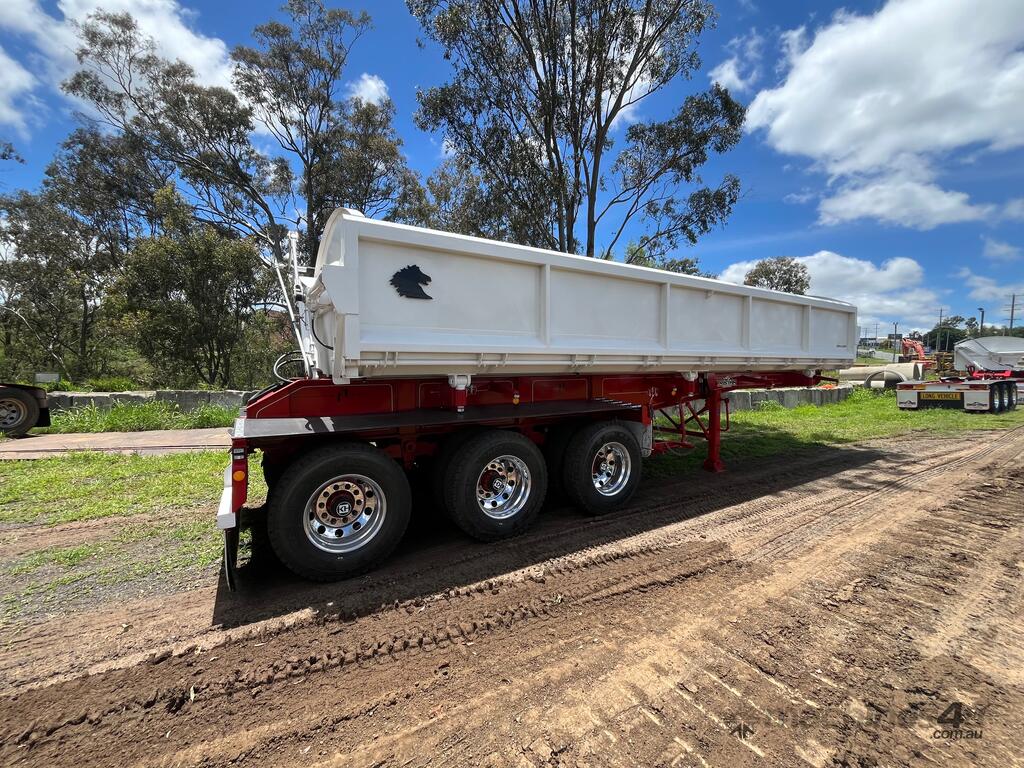

Tristar Industries Side Tipping B Trailer
MODEL - 23m3 Side Tipping B Trailer
CAPACITY - ATM 47 Tonne evenly distributed
TIPPER CONFIGURATION - Door Trailer
LOAD COVER - Manual operated roll tarp with spring assisted arms
BODY - 5mm 450 Grade HARDOX floor, 4mm 450 Grade Hardox side, door and ends
DIMENSIONS
Length – 9,000mm
Width - 2,480mm
CHASSIS - 700 Grade high tensile steel chassis webb and cross members
LENGTH - 10,500mm

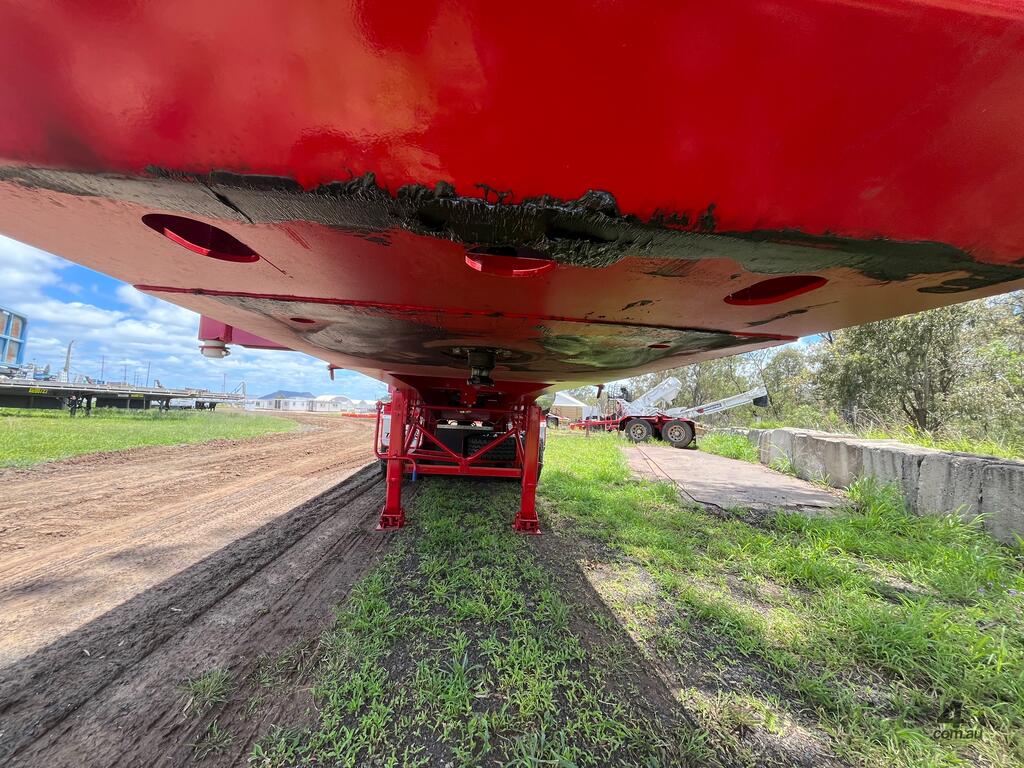

SKID PLATE - 12mm Mild Steel plate with dual king pin position, 50mm King pin
SUSPENSION - 9’1” overslung mechanical suspension

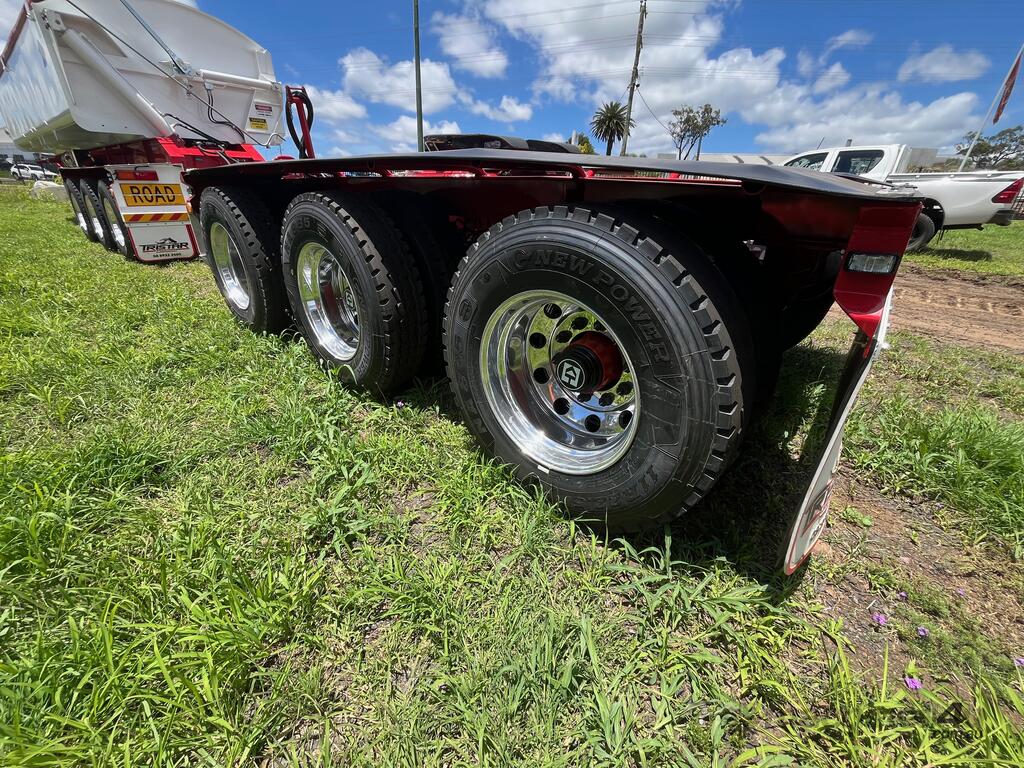

AXLES - 3 x KHITCH 10 stud 285pcd drum brake axles with parallel bearings
HYDRAULICS - Single stage double acting 6 ½” hydraulic lift cylinders and 3 ½” hydraulic door cylinders
BRAKE SYSTEM - EBS Road Train brake control kit

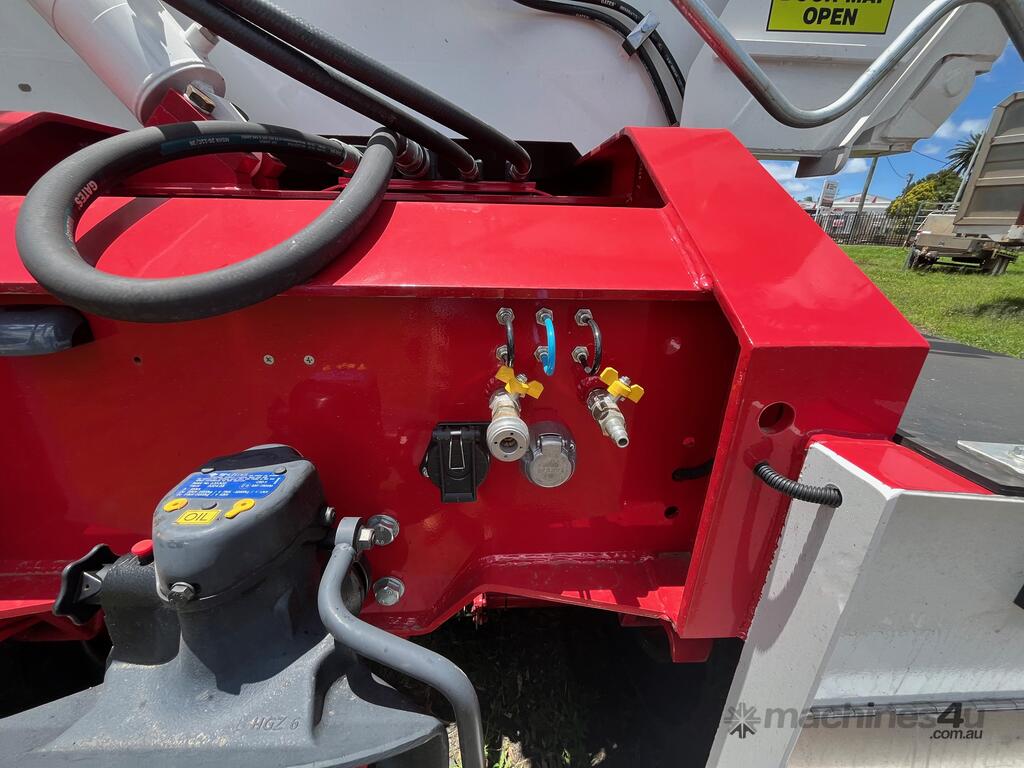

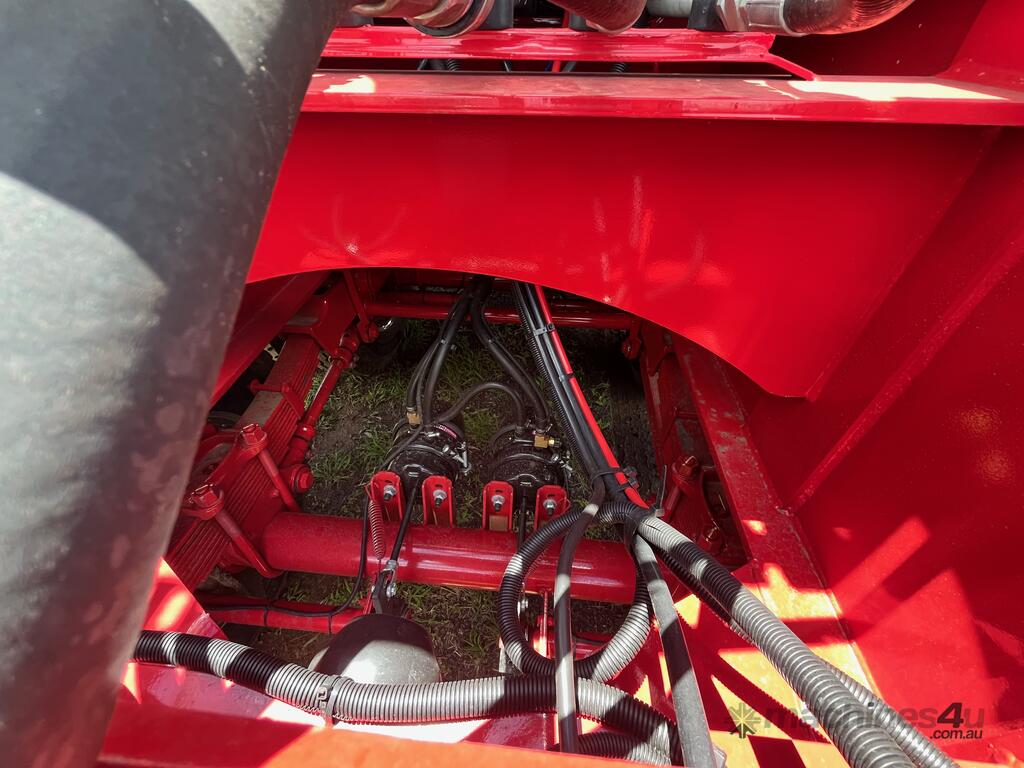

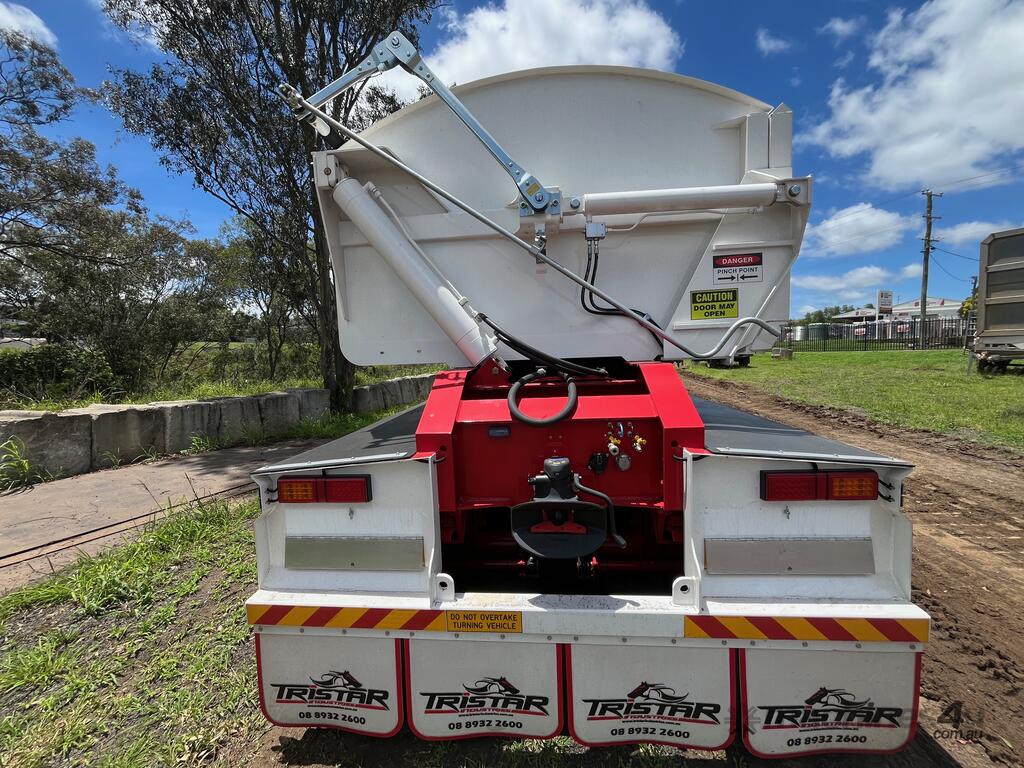

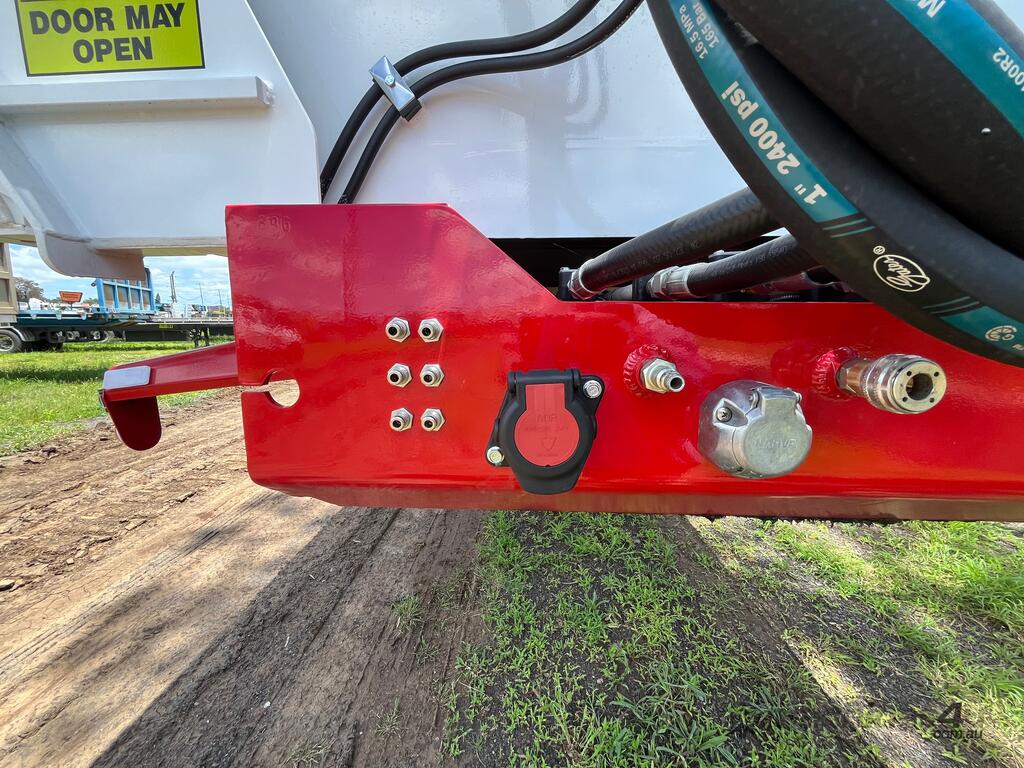

REAR CONNECTIONS - All brake lines, hydraulic lines and electrical wiring are carried through to the Rear, TEMA 10000 Hydraulic couplings.
HOIST CONTROL - Single control valve air operated and locking valves on door rams
WATER TANK - 1 x 60L polished aluminium water tank on passenger side
TYRES - 13 x 11R x 22.5 Tyres

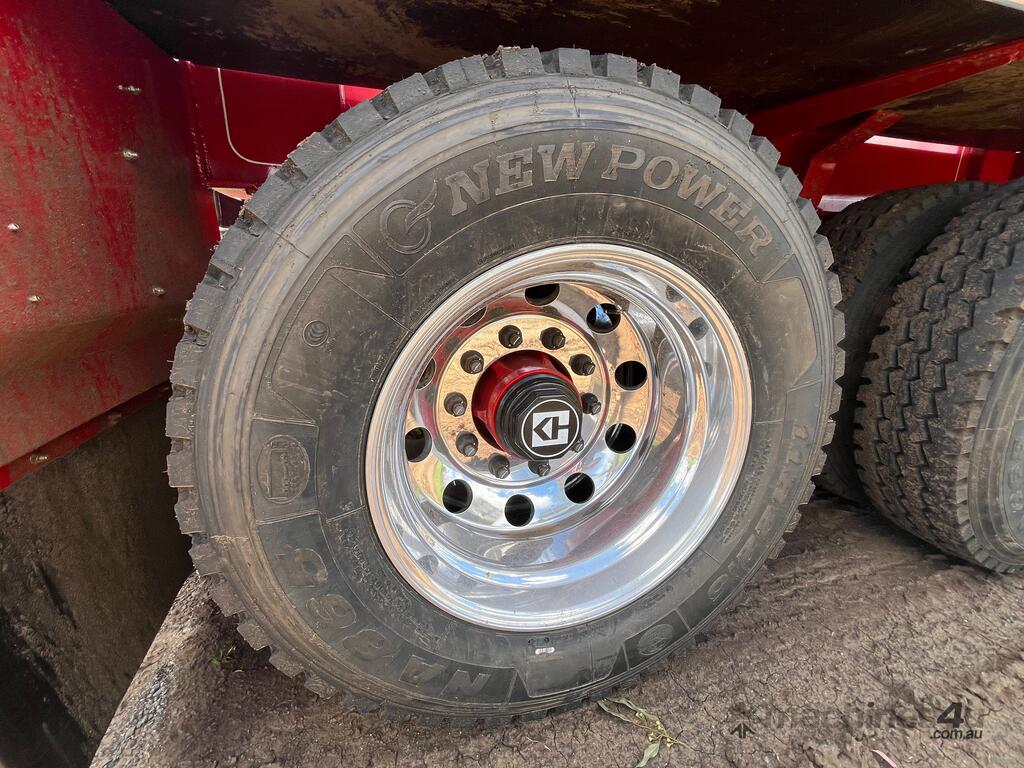

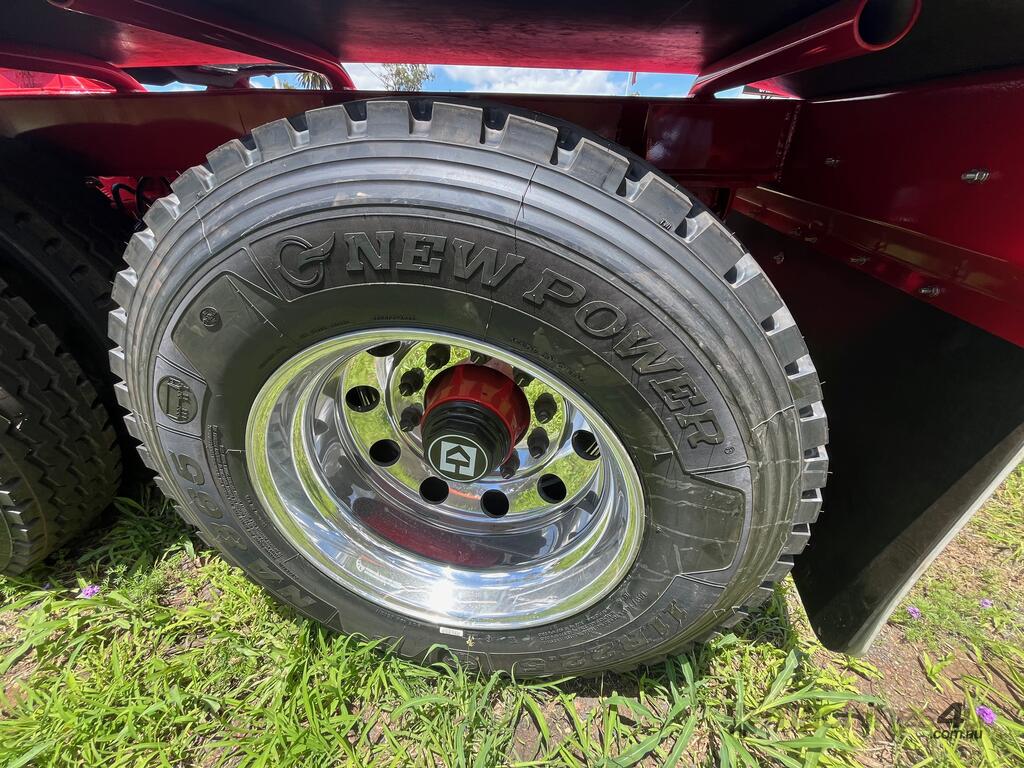

WHEELS - 13 x 8.25 x 22.5 10 Stud 285PCD machined alloy wheels
ELECTRICAL - LED lights with HD 6mm cable
TYRE CARRIER - Dual type, double hinged
TOOLBOXES - 1 x 500 x 400 x 350. Black powder coated with polished stainless steel lid
LEGS - Landing legs, 2 speed wind up type

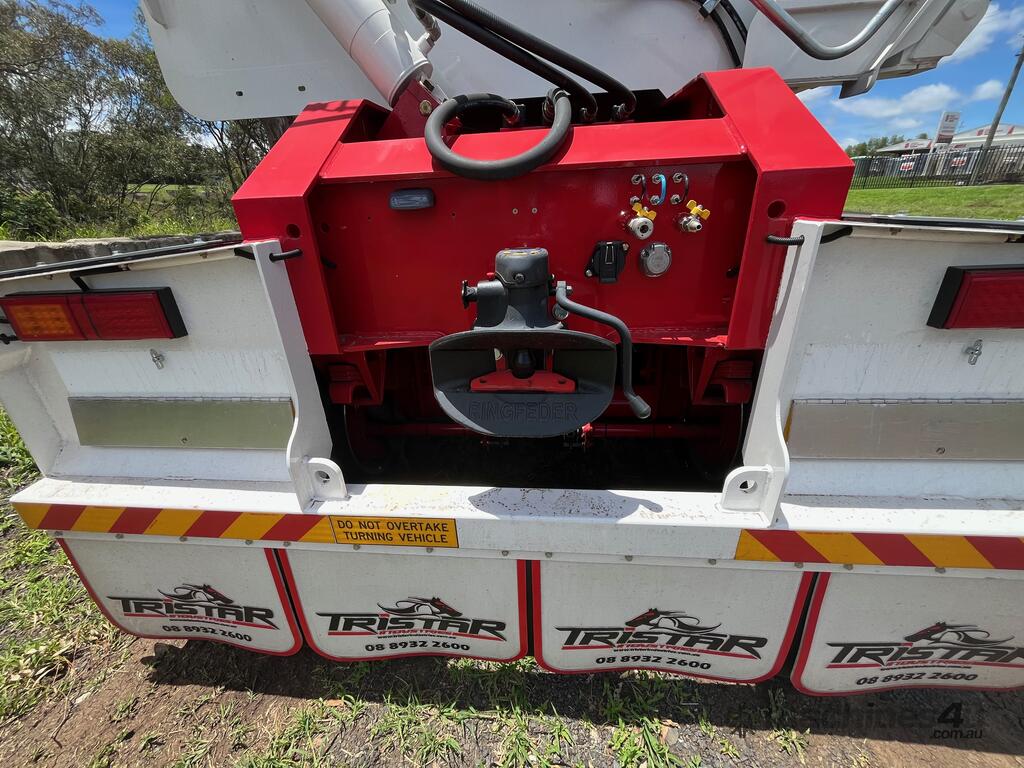

TOW COUPLING - 50mm Ringfeder AUS 303
MUDGUARDS - Heavy duty rubber belting with white mudflaps at rear

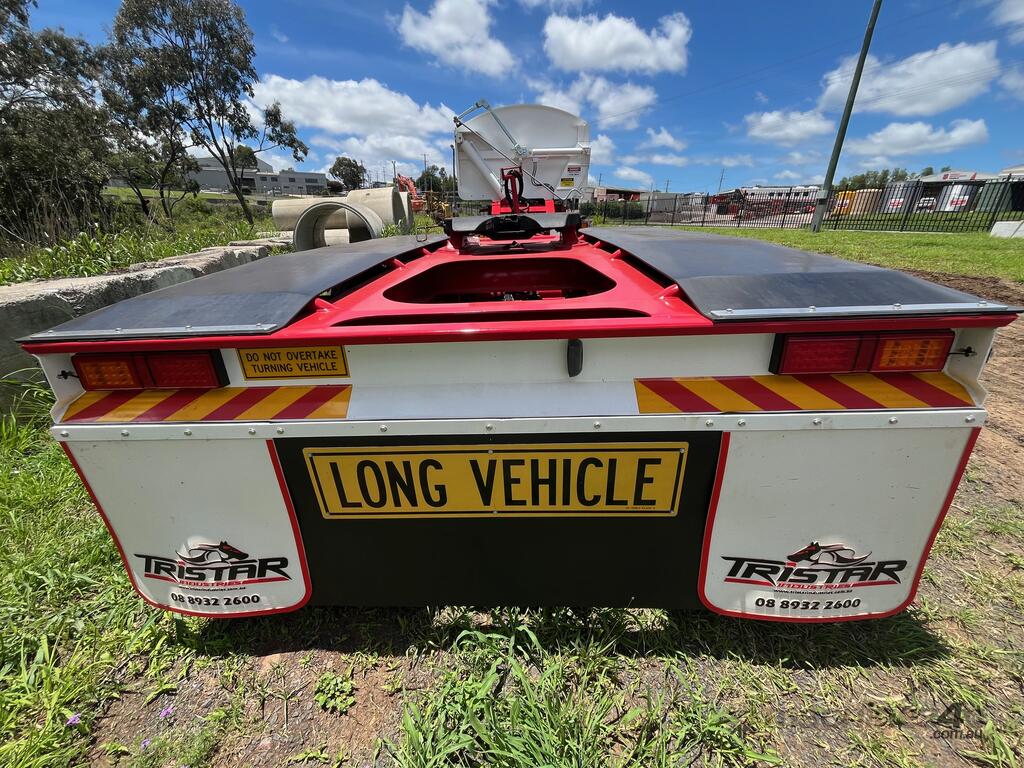

SIGNAGE - Road train flip signs in rear mudguard brackets

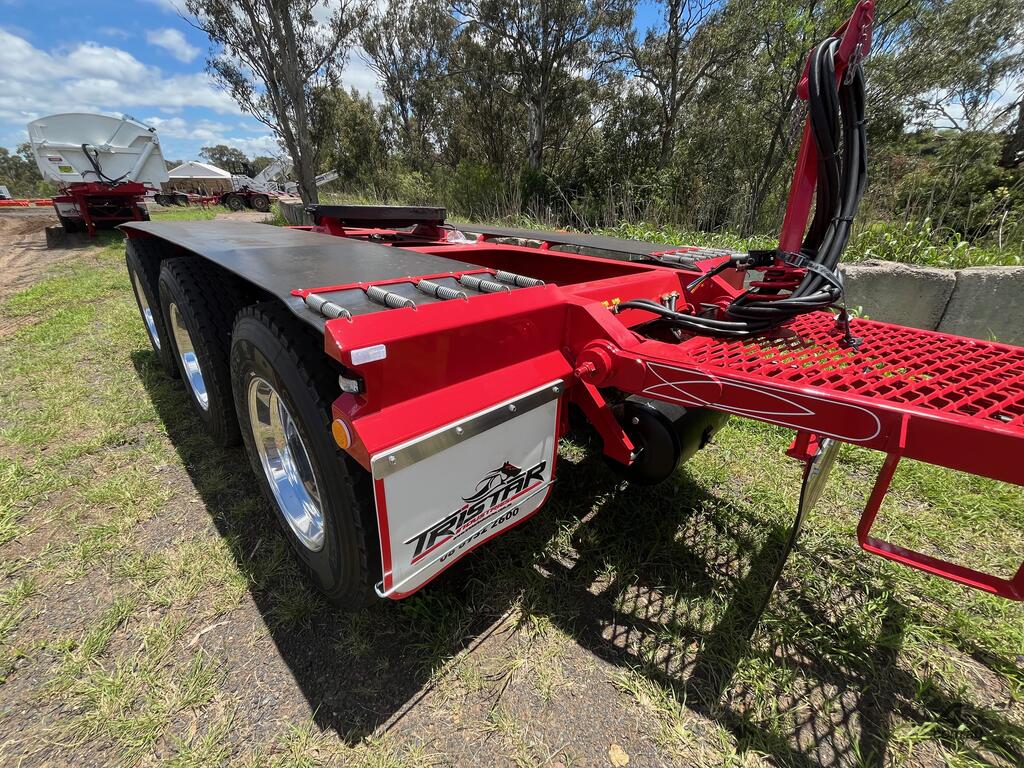

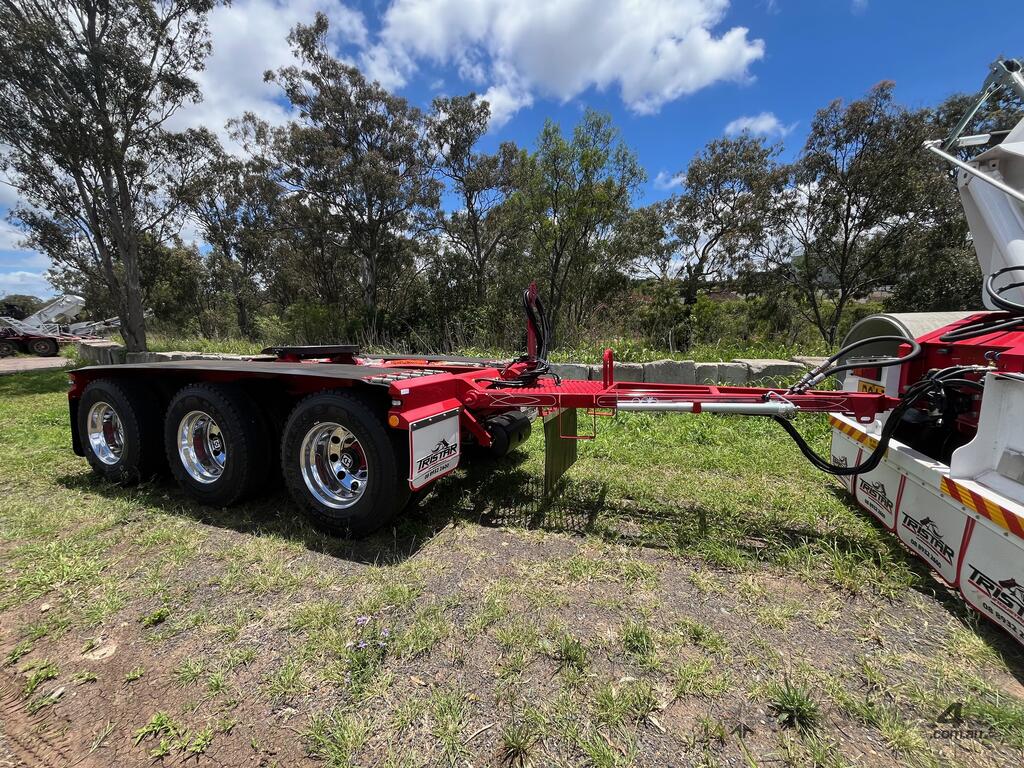

Tristar Industries Triaxle Dolly

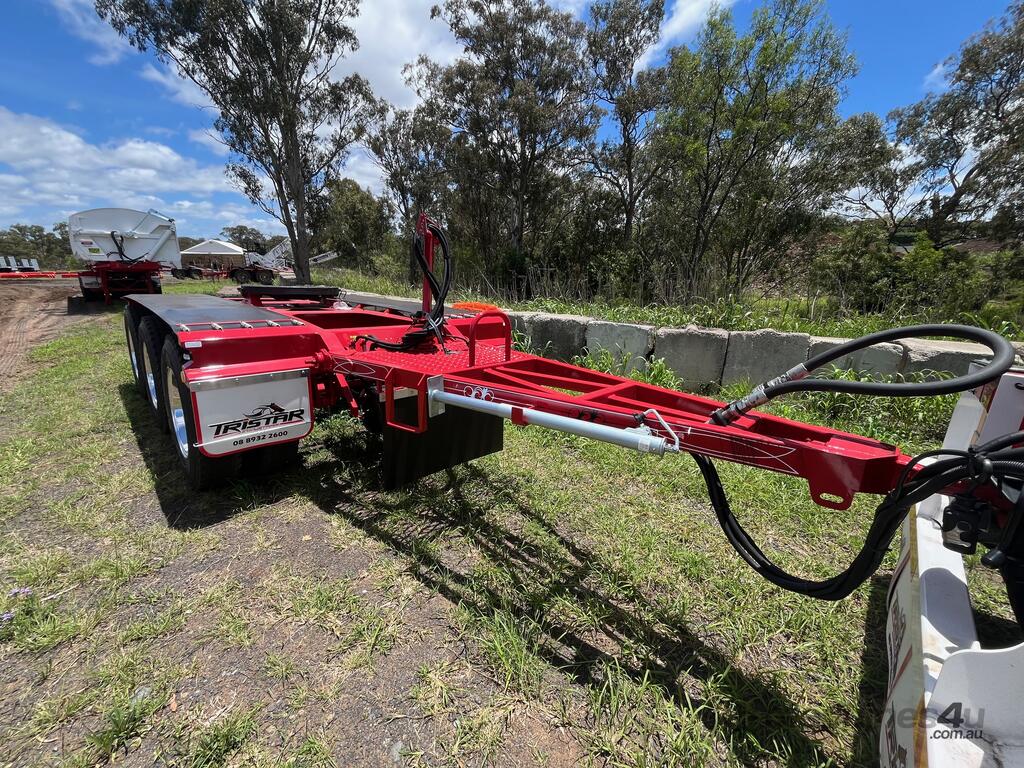

FRAME CONSTRUCTION - fully fabricated from Bis 80 grade plate A-frame from 100 x 50 x 5mm RHS
AXLES - 3 x KHITCH 10 stud 285pcd drum brake axles with parallel bearings
SUSPENSION - 9’1” overslung mechanical suspension
BRAKES - Air Brake Corporation road train brake control kit
RIMS & TYRES -12 X 8.25 x 22.5 10 stud 285pcd Machined alloy wheels 12 x 11R22.5 Tyres

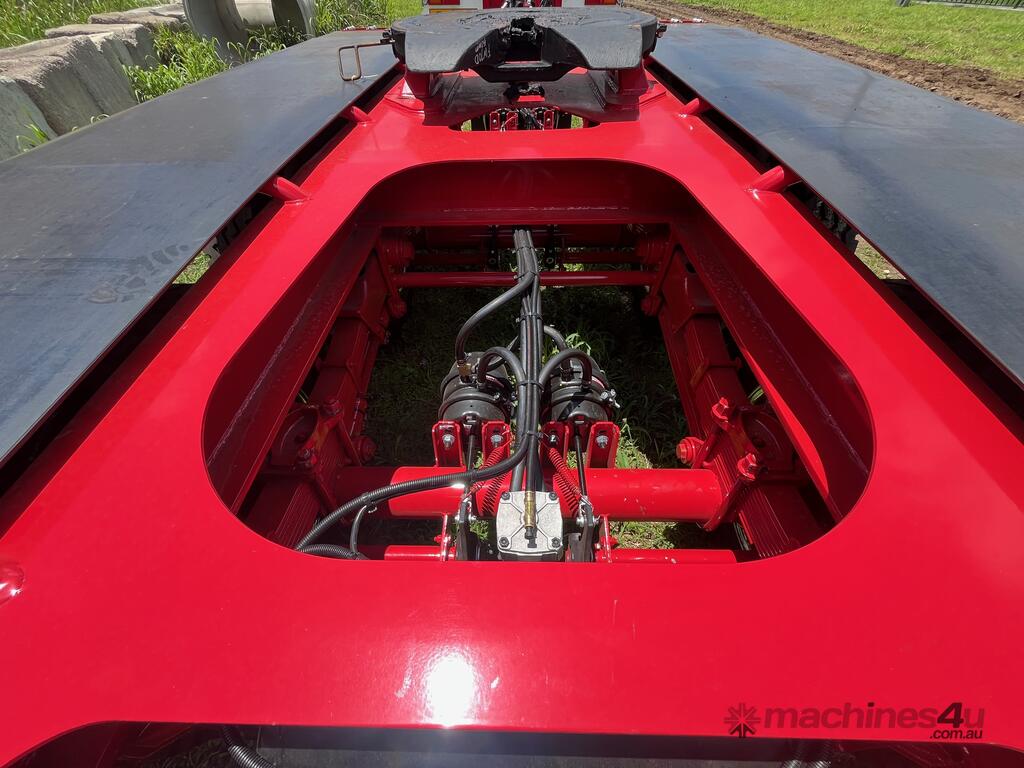

TURNTABLE - Holland FW70 50mm
DRAW BAR EYE - Khitch 50mm bolt in type
LIGHTS & WIRING - LED lights with HD 6mm cable
MUD GUARDS - Full length rubber belting with white mud flaps front and rear.
**Note: Price excludes GST. Shipping not included. Collection only from Excavation Equipment, 77 Carrington Road, Toowoomba, QLD, 4350 Call or salesexeq for more information.
