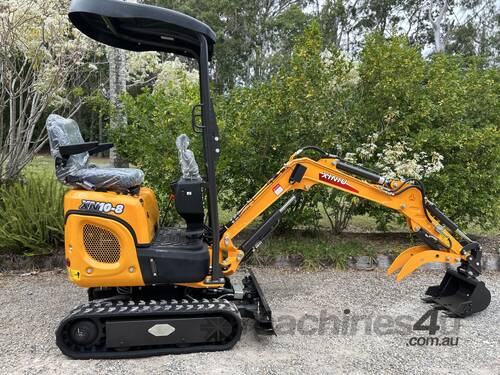

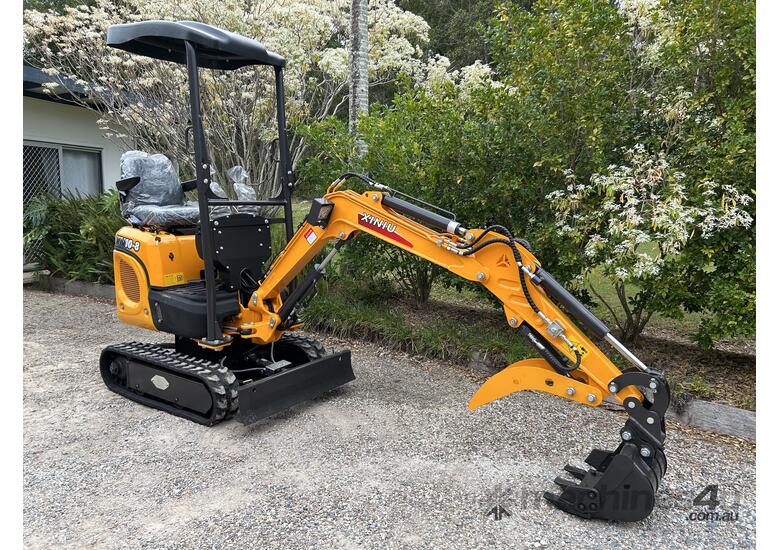

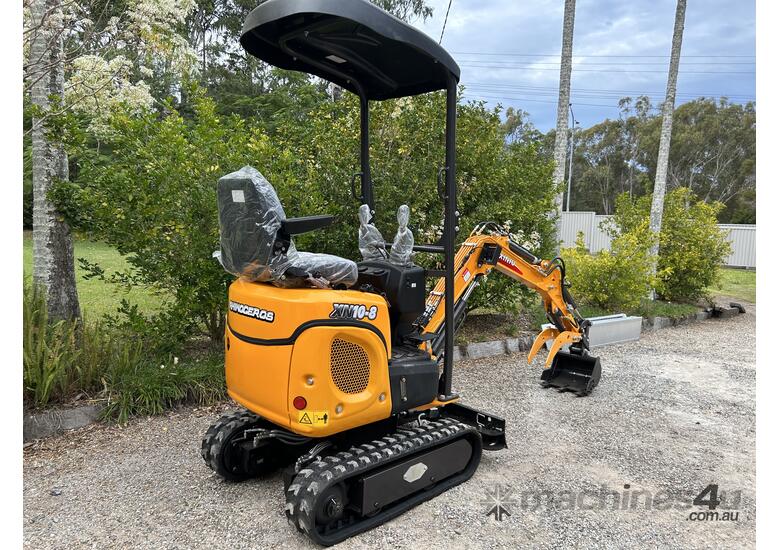

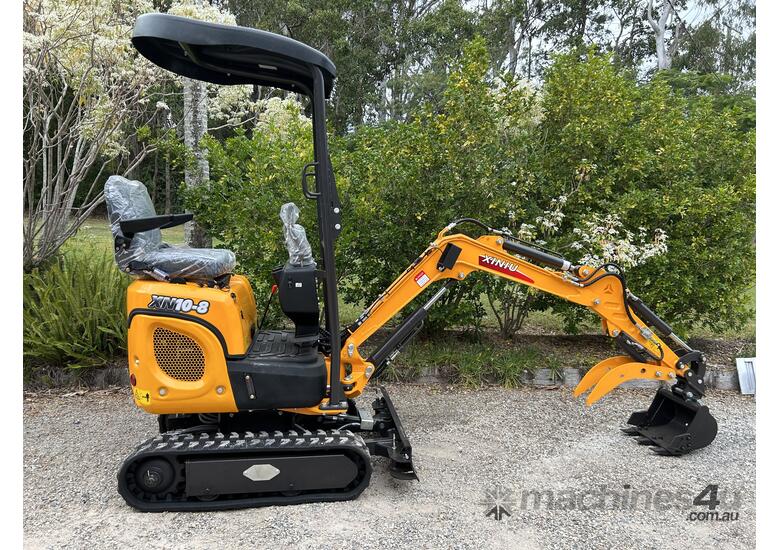

NEW XN10-8SE (THE 3RD GEN) RHINOCEROS DIESEL MINI EXCAVATOR

NEW XN10-8SE (THE 3RD GEN) RHINOCEROS diesel 1T mini excavator , EQUIPE NEW GEN KOOP AIR COOL DIESEL ENGINE,MORE QUITE ,RELIABLE AND ECONOMIC TO RUN , EXPANDABLE TRACK (770MM-950MM) , SWING BOOM ,

THIS listing is WITH ONE 400MM STANDARD BUCKET ONLY ,


IF WITH FULL PACKAGE ,(200MM,400MM BUCKETS AND 800MM TILTING BUCKET,HYDRO THUMB GRAB, RAKE,RIPPER,QUICK HITCH ,200MM AND 300MM AUGERS , ALL $12990.

Buy from a long-term seller who is committed to serving your technology needs


FOR SPARTS, SERVICE , AND TECHNICAL SUPPORT JERRY

Have more different models, please check my other listings.


Specification
Operating Weight 1000kg
Digging bucket capacity 0.025 M3
Engine KOOP 192F diesel
Rated power 12HP/3600r/min
Displacement 0.499 L
Bore stroke 70x55
Main pump CBK-F7.2
Displacement 7.2ml/r
Swing motor EATON (USA)
Traveling motor EATON (USA)
Travel speed 2.5km/h

MAIN DEMENSIONS
Overall dimension( LxWxH) 2770x896x1490 mm
Wheelbase 910 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 780-950 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm

OPERATING RANGE
Max. Digging depth 1650 mm
Max. Vertical digging depth 1375 mm
Max. Digging height 2610 mm
Max. Dumping height 1850 mm
Max. Digging radius on ground 2850 mm
Min. Rotation radius 1330 mm
Max. Upgrade height of bulldozer blade 345 mm
Max. Digging depth of bulldozer blade 255 mm
