NEW Yawei CNC Pressbrake / PBA 35-1250 CNC4 Delem DA-58T

One of our most popular small machines for high precision, high volume work.

NEW Yawei CNC Synchronised Hydraulic Pressbrake. Model: PBA 35-1250 CNC4

Features include:

- 35 ton bending force
- 1250mm maximum bending length with 950mm between frames
- 300mm throat
- 120mm ram stroke
- 450mm open height
- 4 axis CNC: Y1, Y2, X and R
- 2 backgauge fingers
- 2 front sheet supports

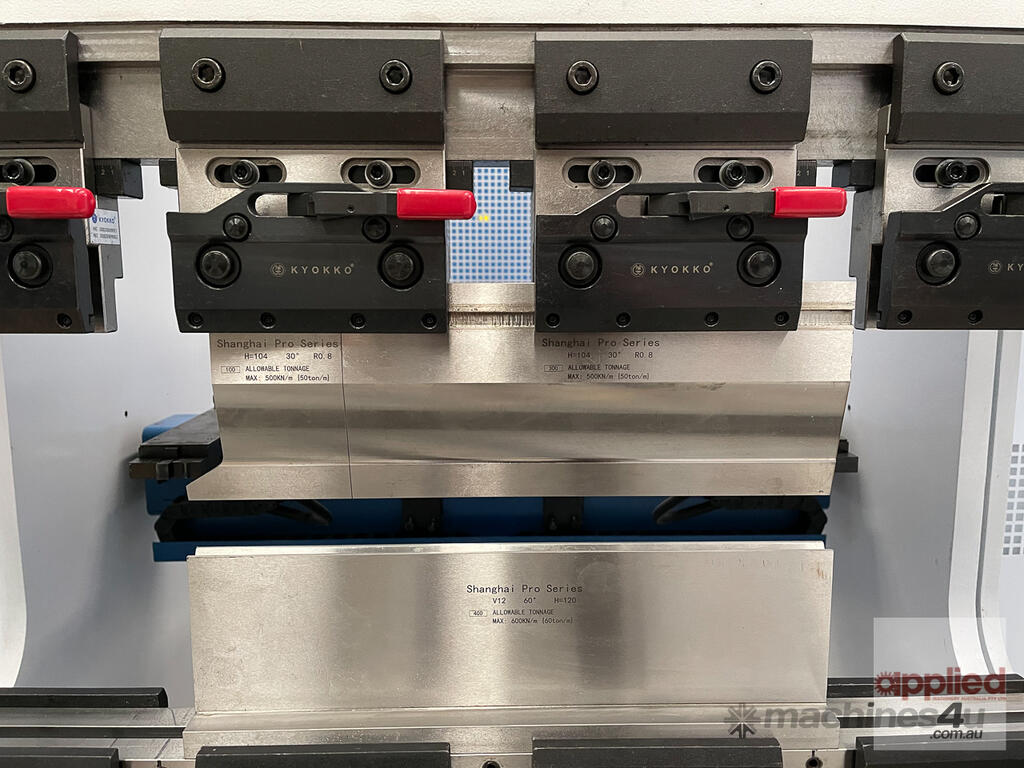

Tooling:

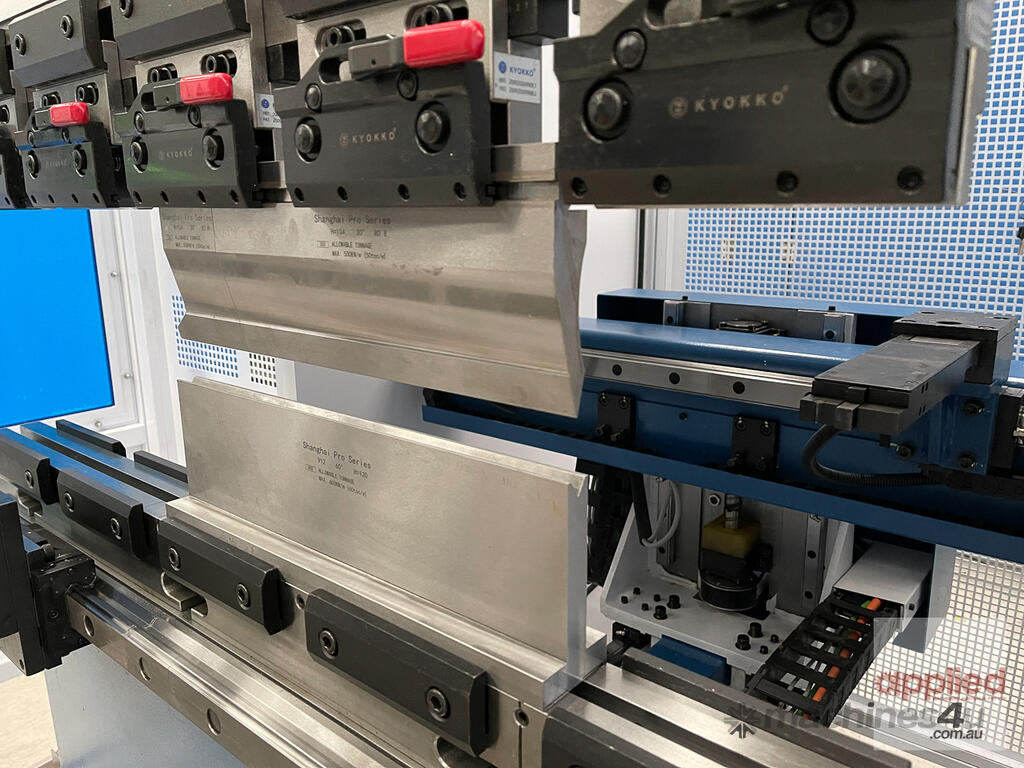

- Rolleri (Italy) P.120.85.R1 punches (835mm+415mm)
- Rolleri (Italy) 60x60 multi-vee die blocks (835mm+415) sitting on a 60mm Eurotable

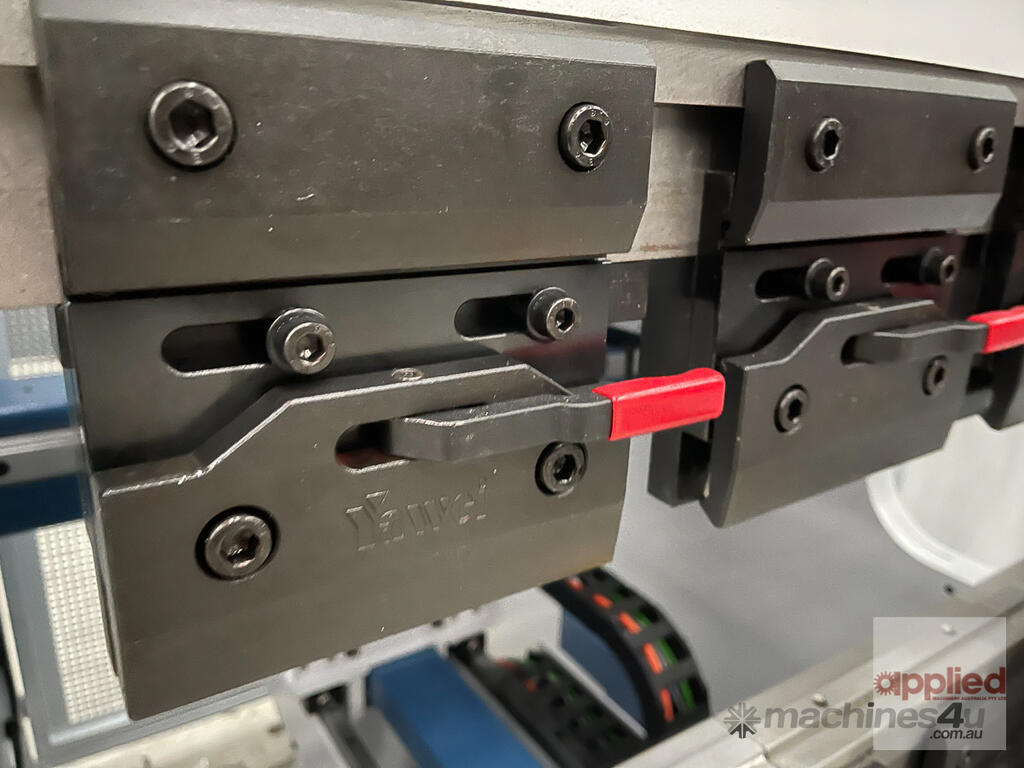

- quick clamps

Controller:

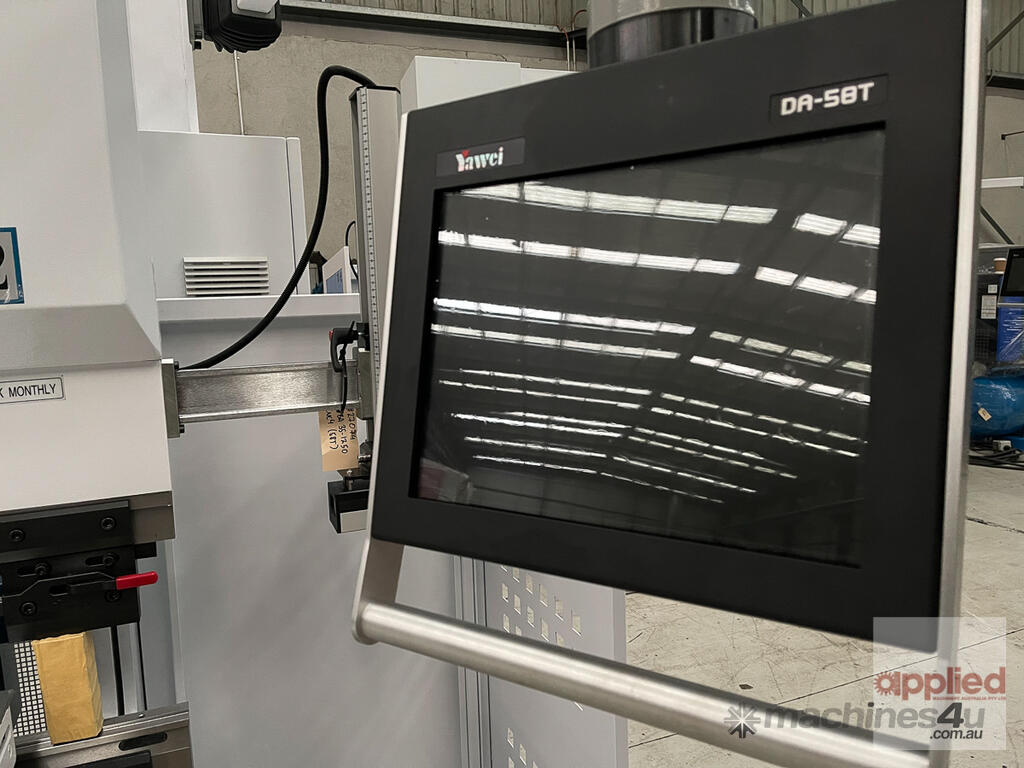

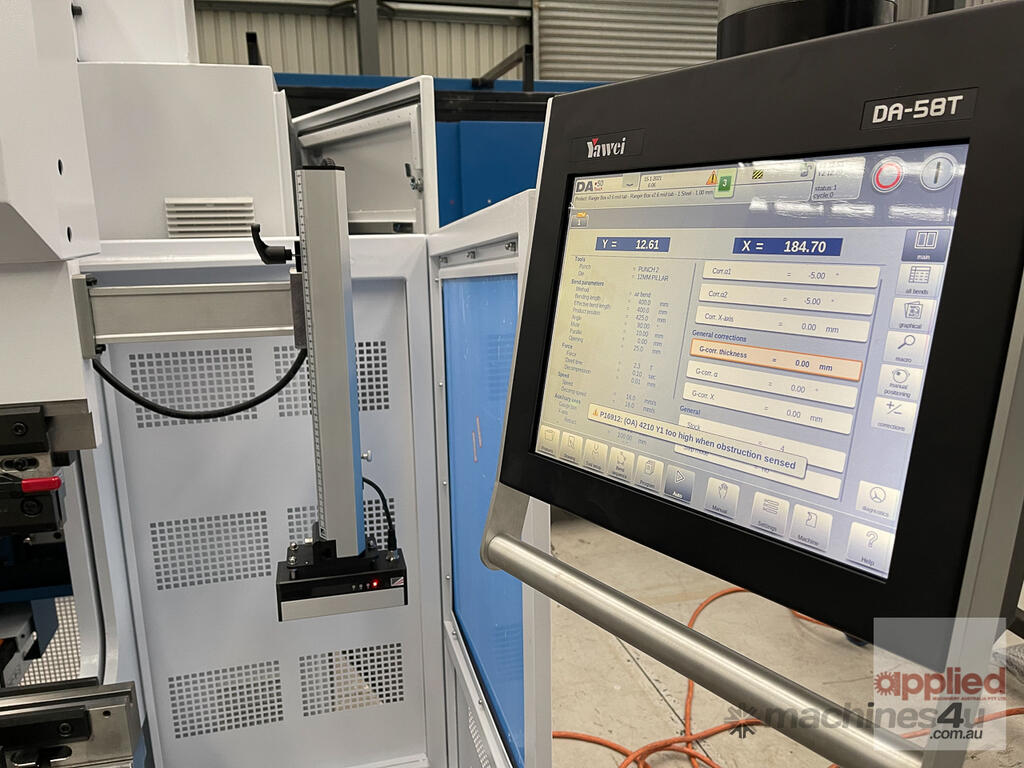

- Delem DA-58T touch screen graphical CNC control
- 2D graphical touch screen programming
- 15" high resolution colour TFT
- Bend sequence calculation
- Crowning control
- Servo and frequency inverter control
- Advanced Y-axis control algorithms
- USB, peripheral interfacing

Guards:

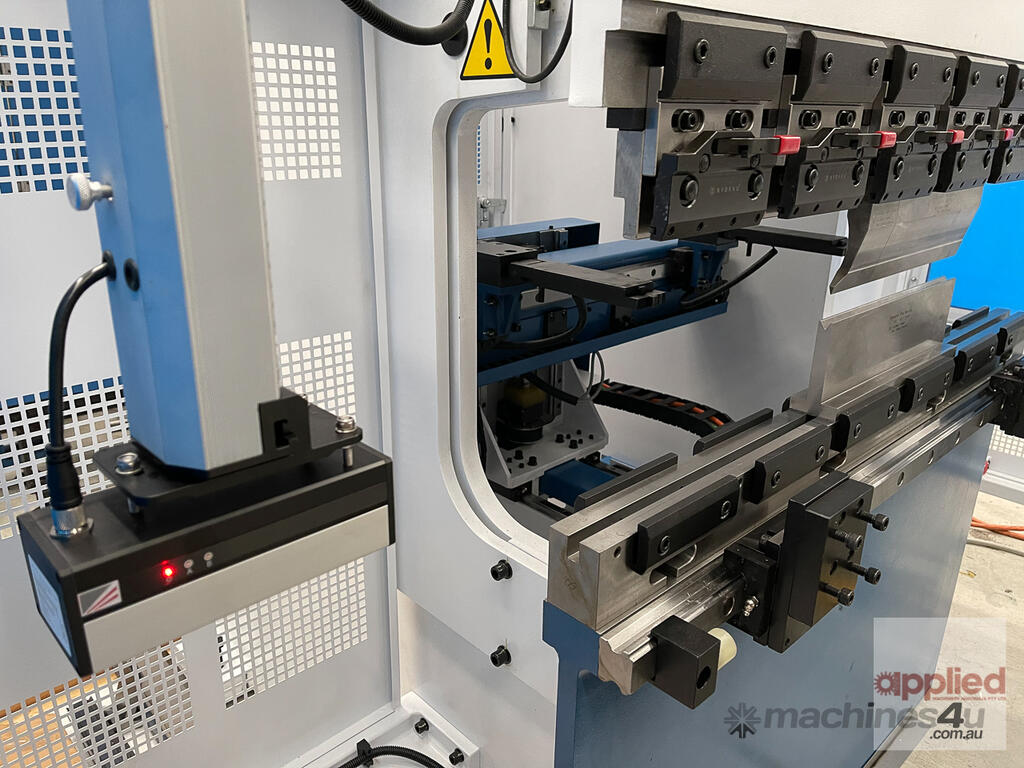

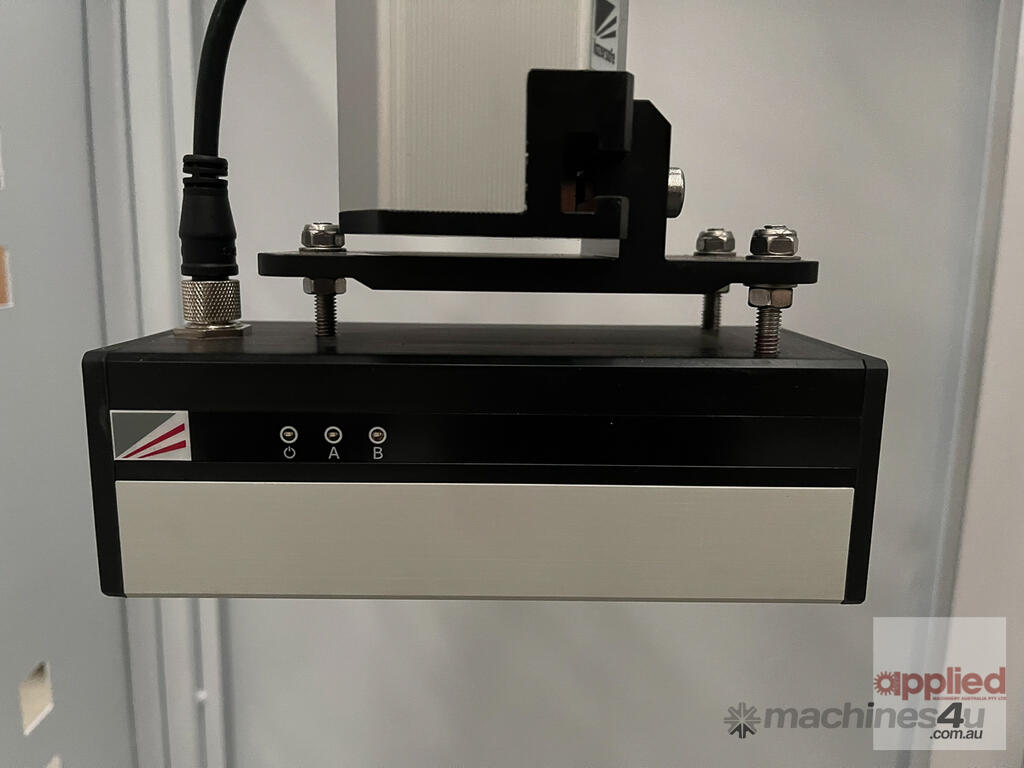

- Lazersafe light guarding system for maximum protection whilst maintained maximum speed (Australia)

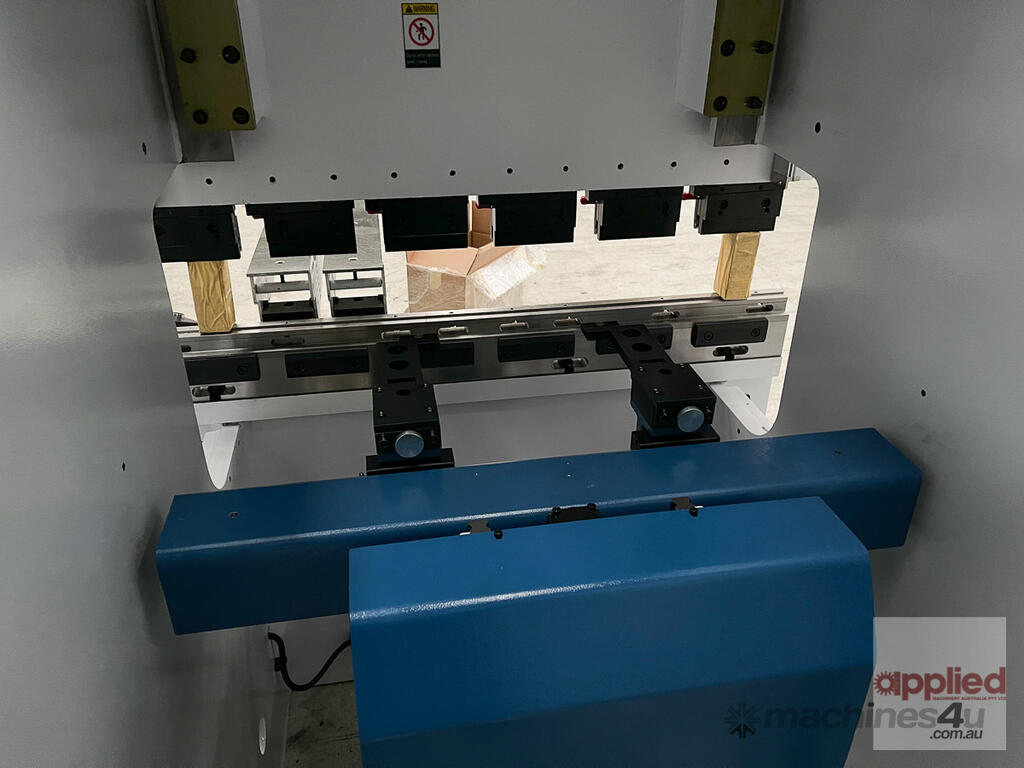

- rear and side physical guards with safety interlock

General:

- Heidenhain linear scales
- Rexroth/Hoerbiger hydraulic system (Germany)
- Sumitomo oil pump

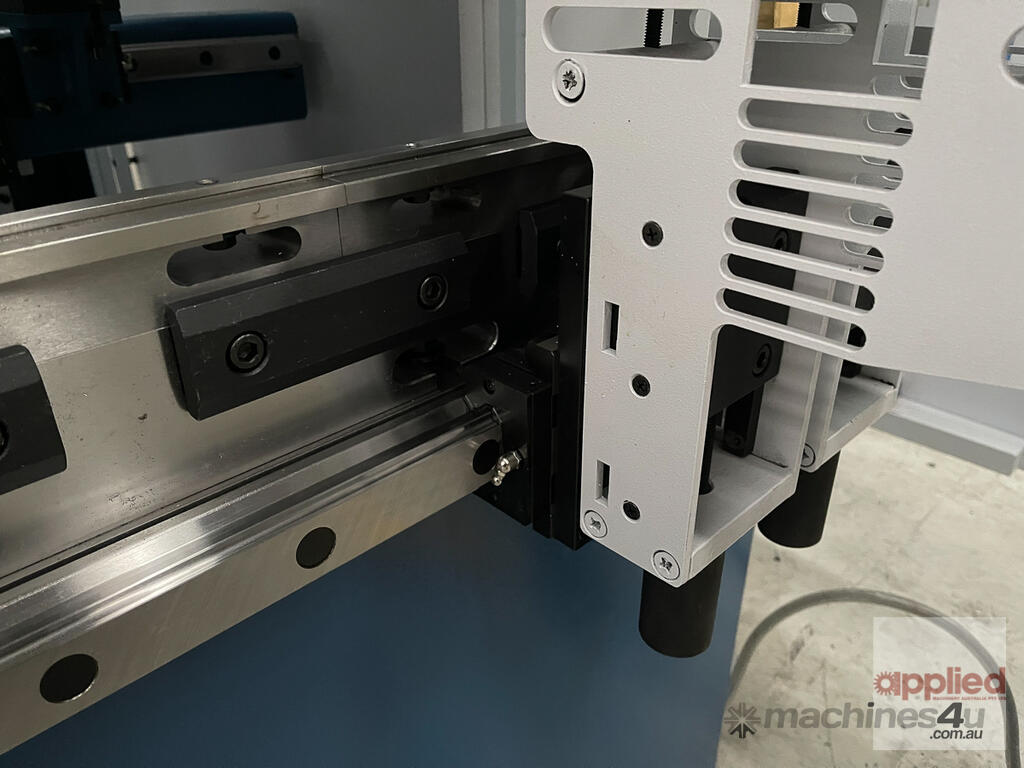

- ballscrew backgauge, AC servo motor driven and running on a linear guide.
- machine size: 1720 x 1390 x 2340mm
- machine weight: 3000kg
