NLB Corp SRT10-W UHP Water Jet Robotic Crawler

For Hire or Sale NLB Corp SRT10-W UHP Water Jet Robotic Crawler

10 inch (255 mm) Cleaning Path, Variable Pressure up to 40,000psi 38lpm max flow

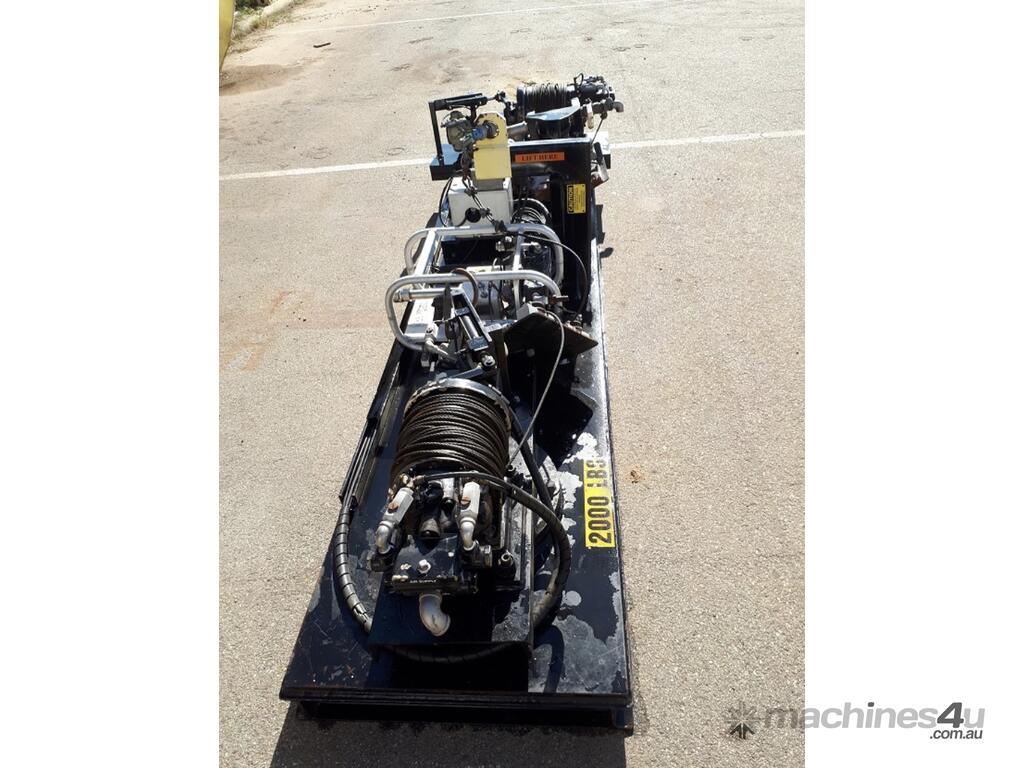

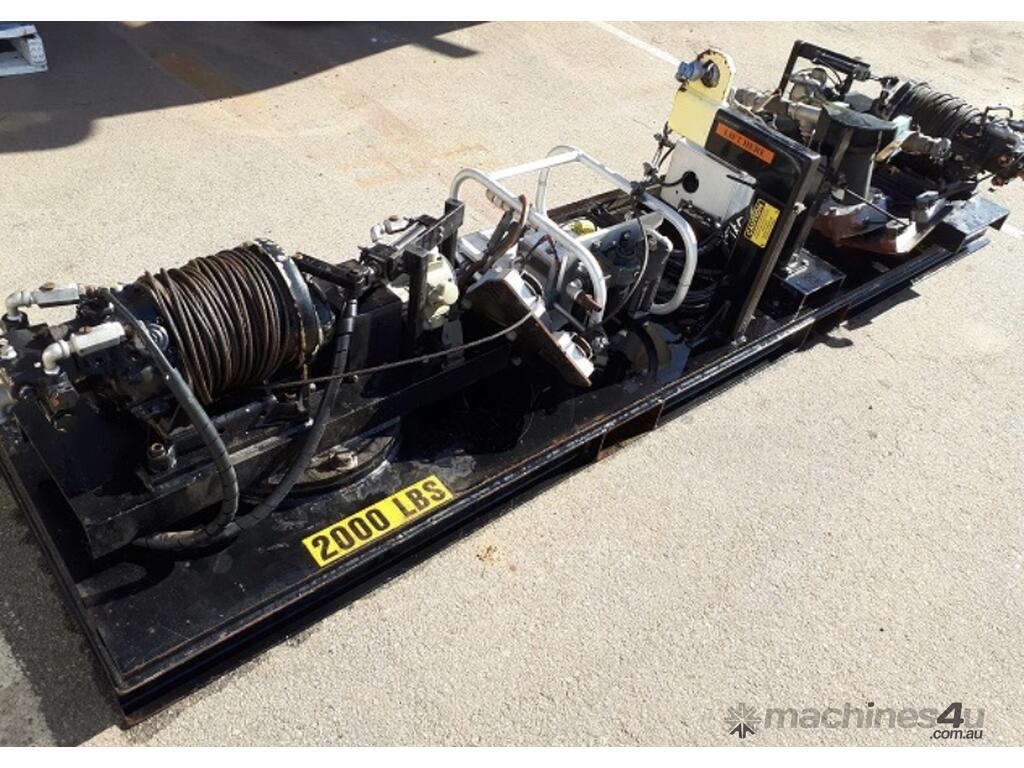

Common skid with forklift slots and one point lifting bail houses the winches, hose rack and lockable storage box for the SRT-10-W.
Dual pivoting air powered winches with auto tensioning and fail-safe stopping.

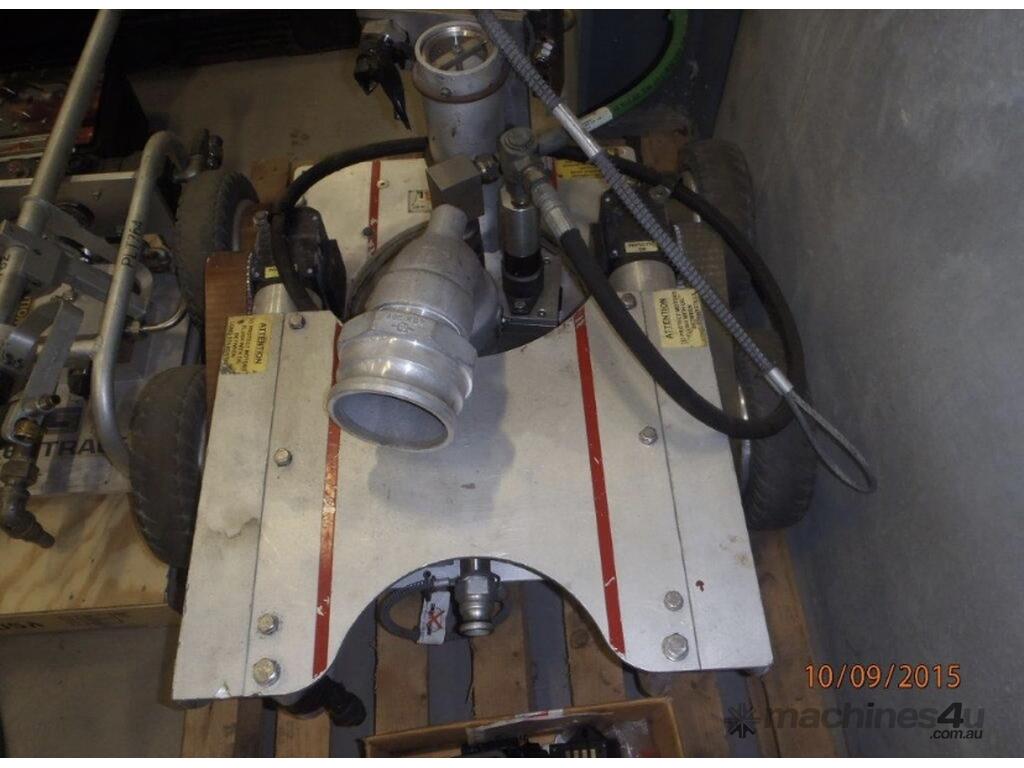

The crawler control pendant is wireless and includes speed control (zero to 13? (3.9M) per minute) controls for rotating and high pressure water on/off.

System includes 60 M of 1/4? (6.5 mm) galvanized winch cable, 30mtr of 4”(100 mm) vacuum hose, 45.7mtr of air hose and electric cable.

Vacuum requirements: 20hg of Mercury at 500 cfm (600 M3 per hour) Cane be supplied

Air Requirements: 90 psi (6.2 bar), 70 cfm (120 M3 per hour)
