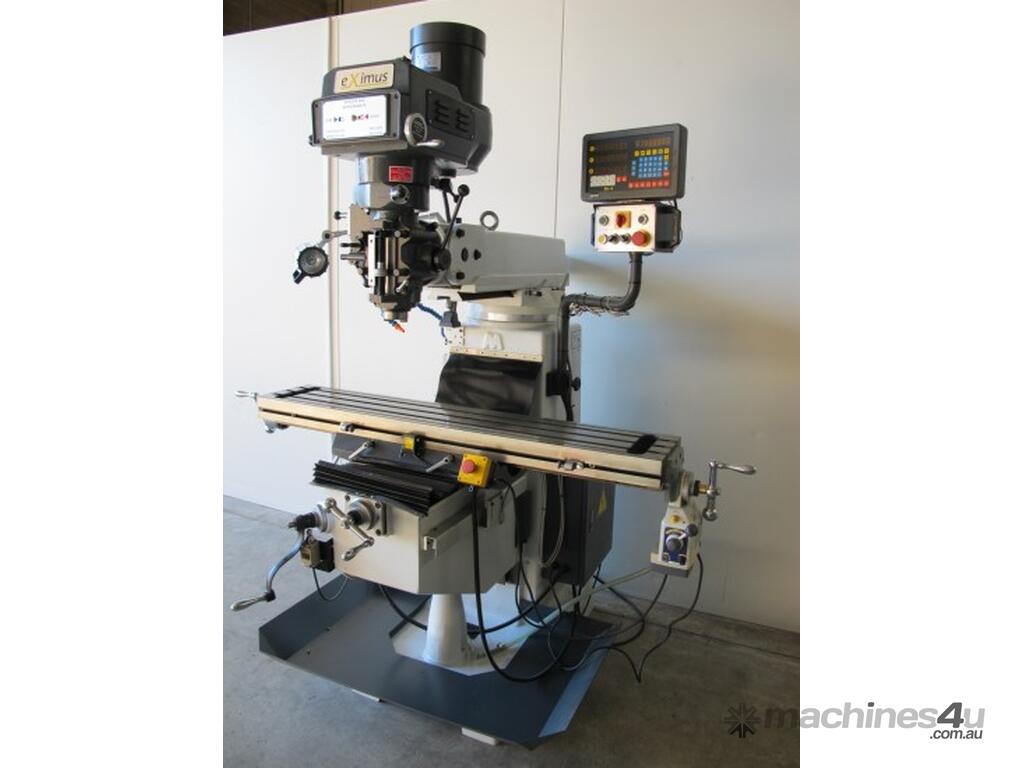

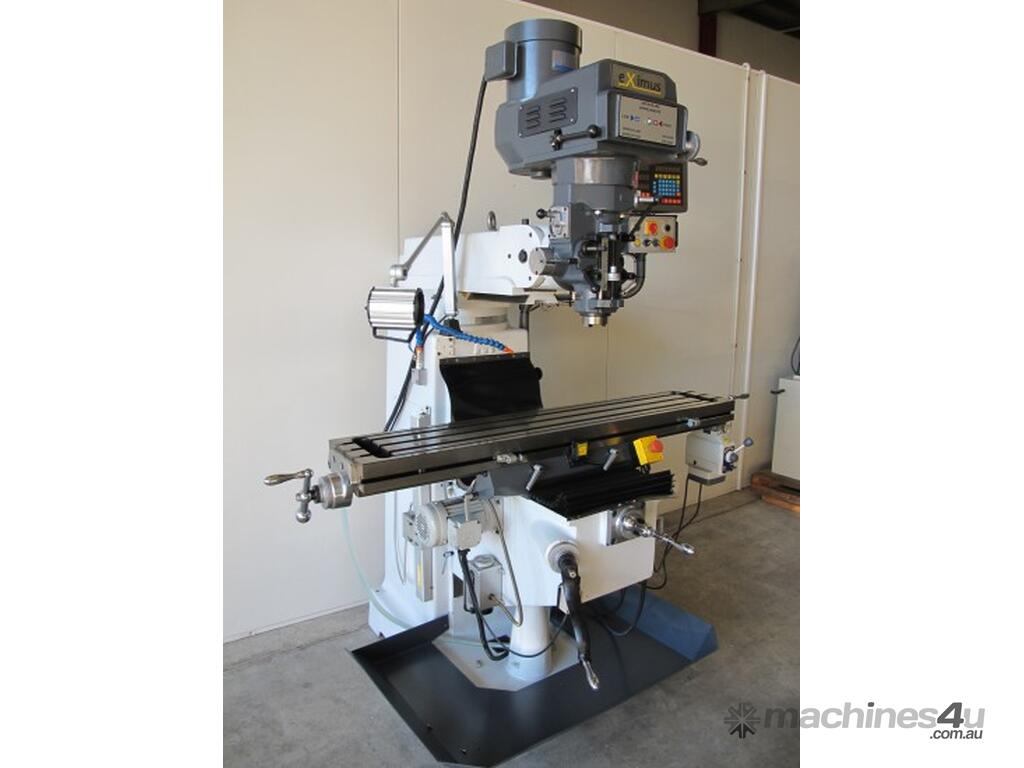

NT30 Turret Milling Machine, (X/Y/Z), 875/320/802mm, Made in Taiwan

Our range of milling machines feature infinitely variable speed heads allowing the operator to easily achieve a range of speeds for a wide variety of milling applications.

Eximus milling machines are 100% manufactured in Taiwan using high quality Meehanite cast iron sourced from Taiwan, each machine is built to ISO standards ensuring a high precision finish for each and every work piece.

KEY FEATURES:

- Infinitely variable speed spindle (High and Low)
- Meehanite casting provides maximum rigidity ensuring minimal deformation

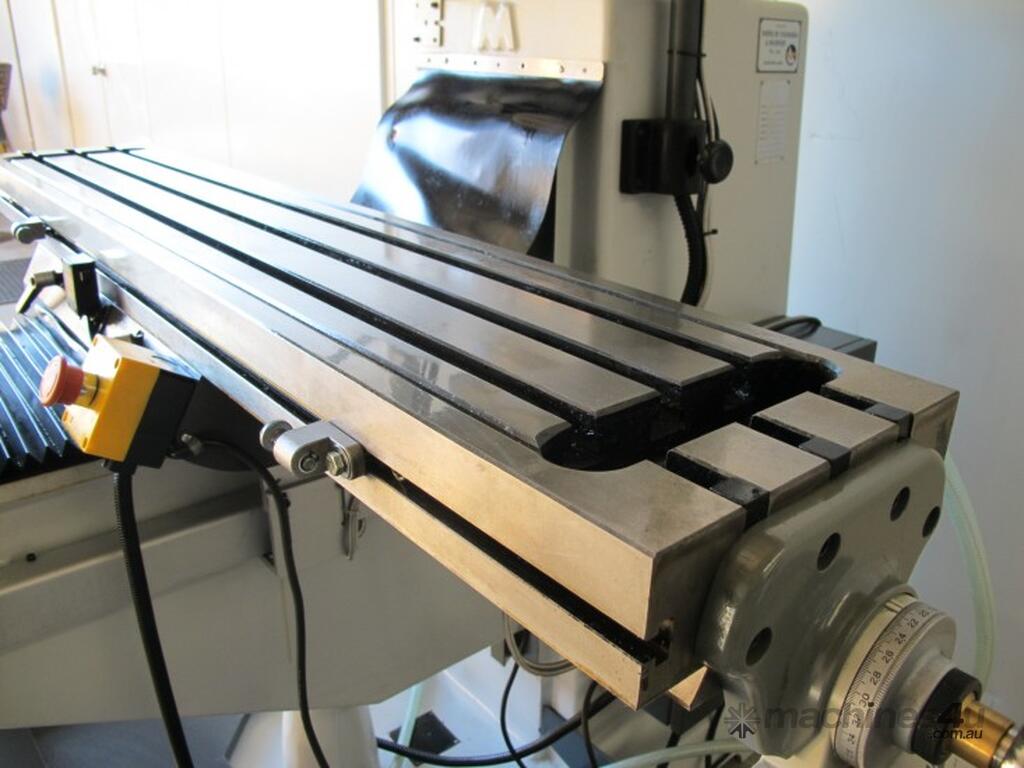

- Large work table 10” x 50”

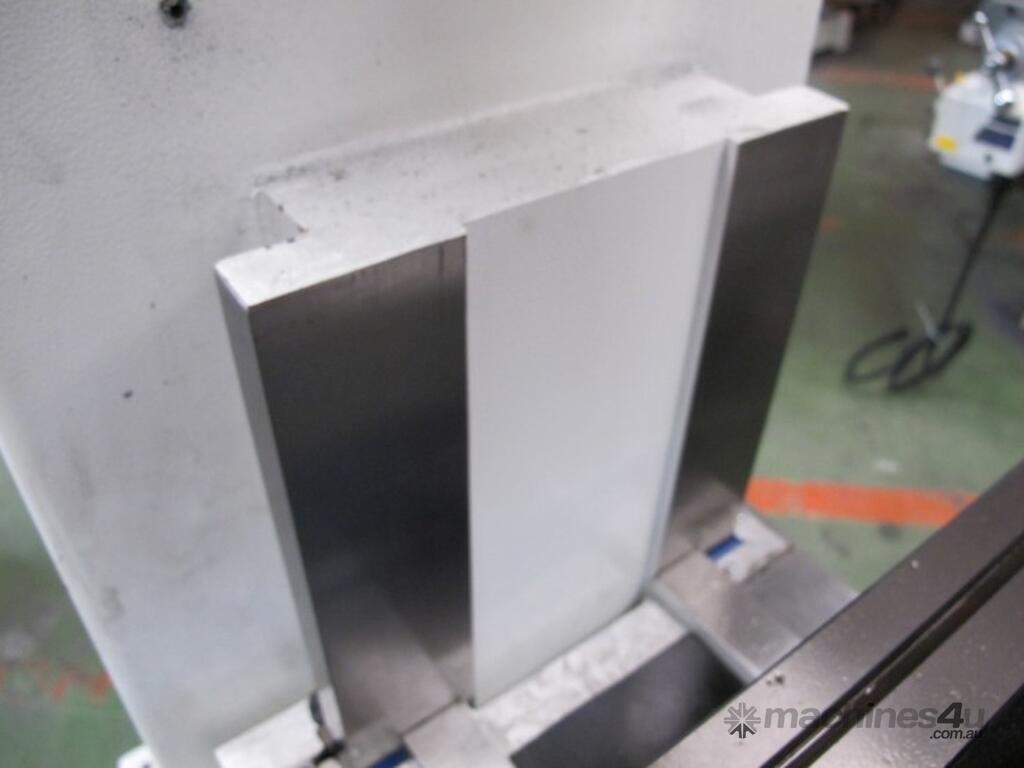

- Dovetail slides ensure rigidity while machining
- Hardened and ground worktable and slide ways
- Turcite "B" coated X & Y Axis slide-ways with slide way covers

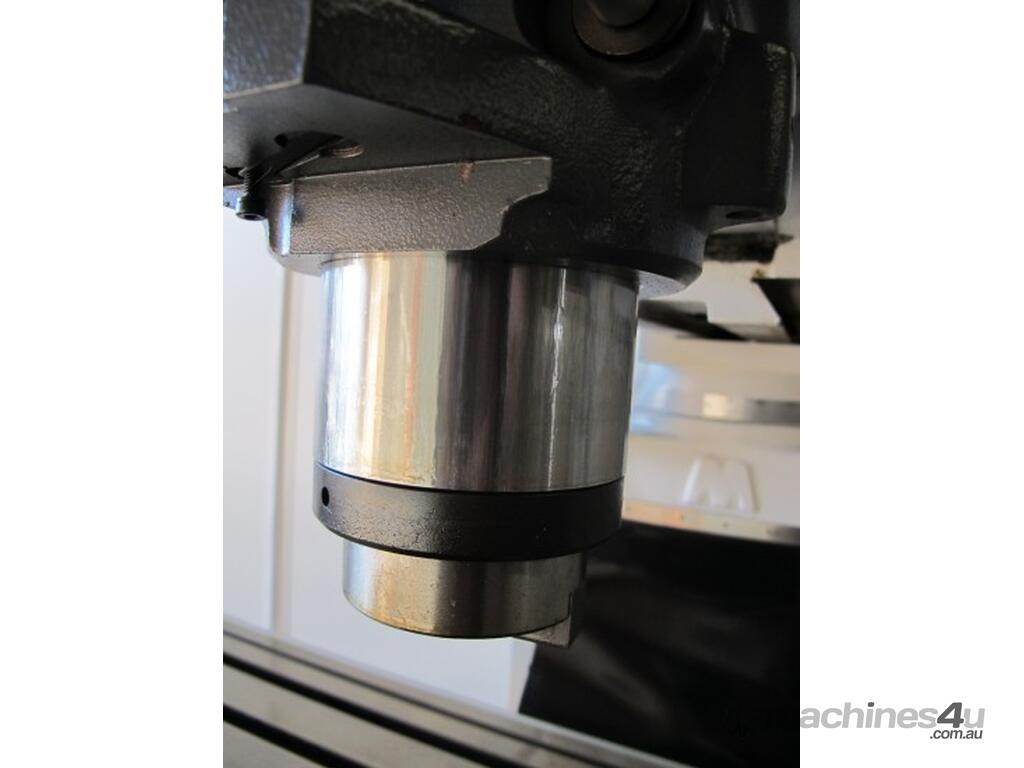

- NT 30 spindle taper with hardened chrome quill
- Spindle guard with micro switch

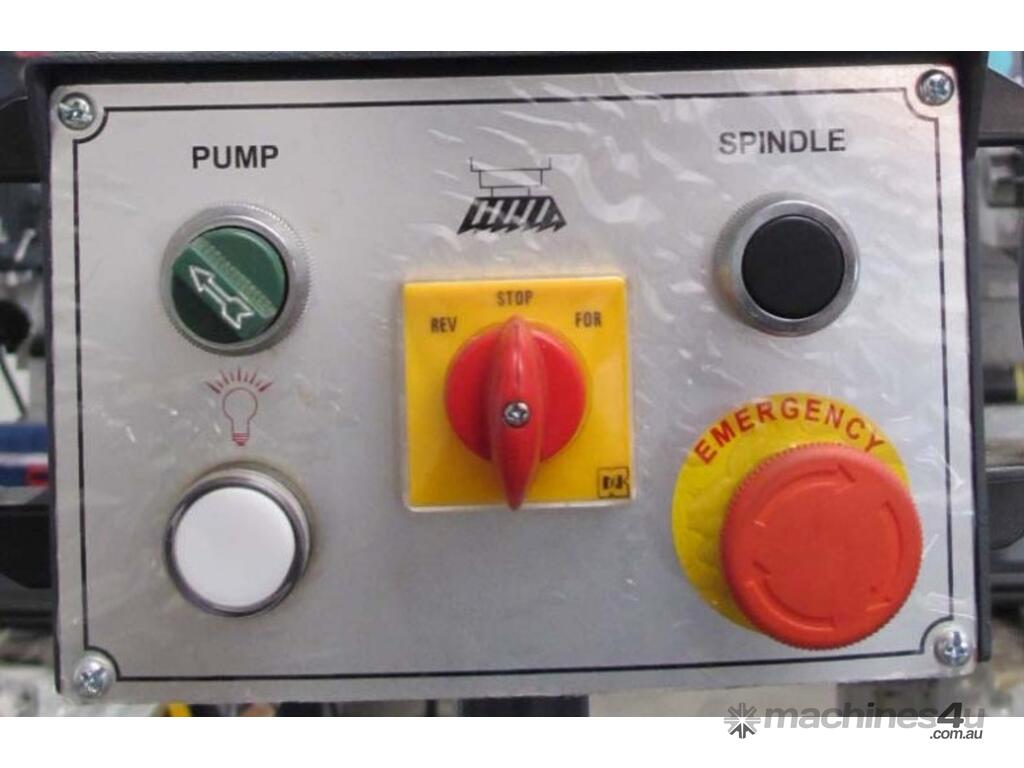

- Pendant for convenient location of controls

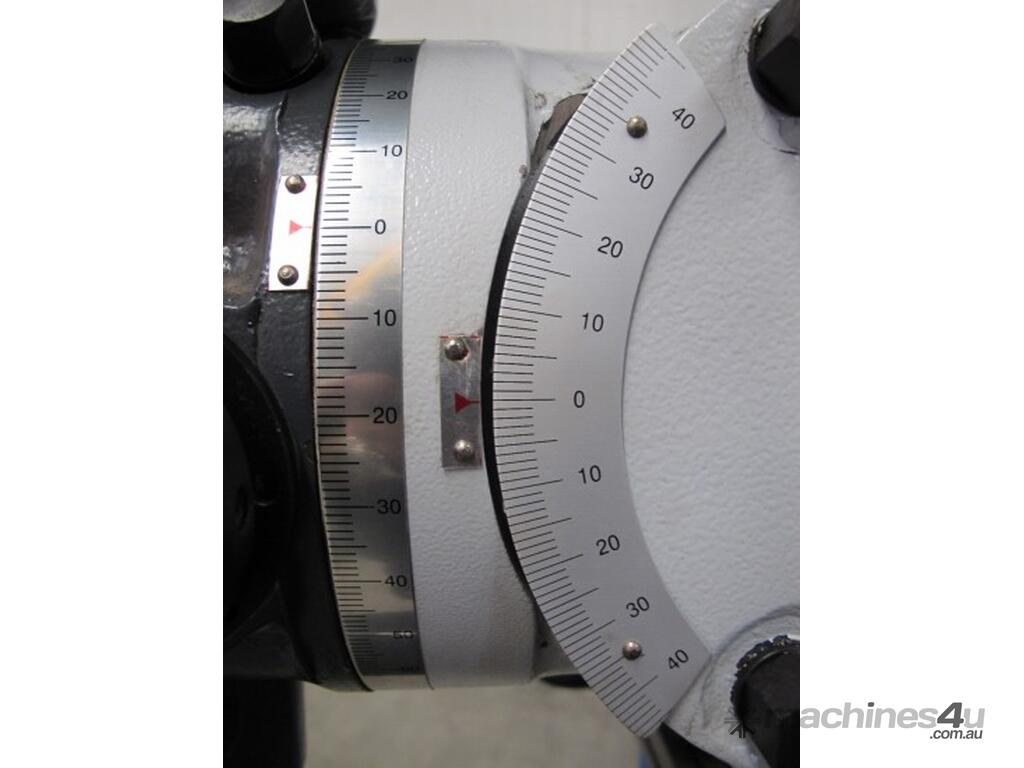

- Head tilts ±45º forward to back
- Head swivels ±90º left and right
- Manual quick action quill lever
- Mechanical spindle brake
- Ram travels 400mm and can rotate 360°
- Quality electrics & overload protection in an easy access enclosure
- High / neutral and low gear selection lever to maximise torque

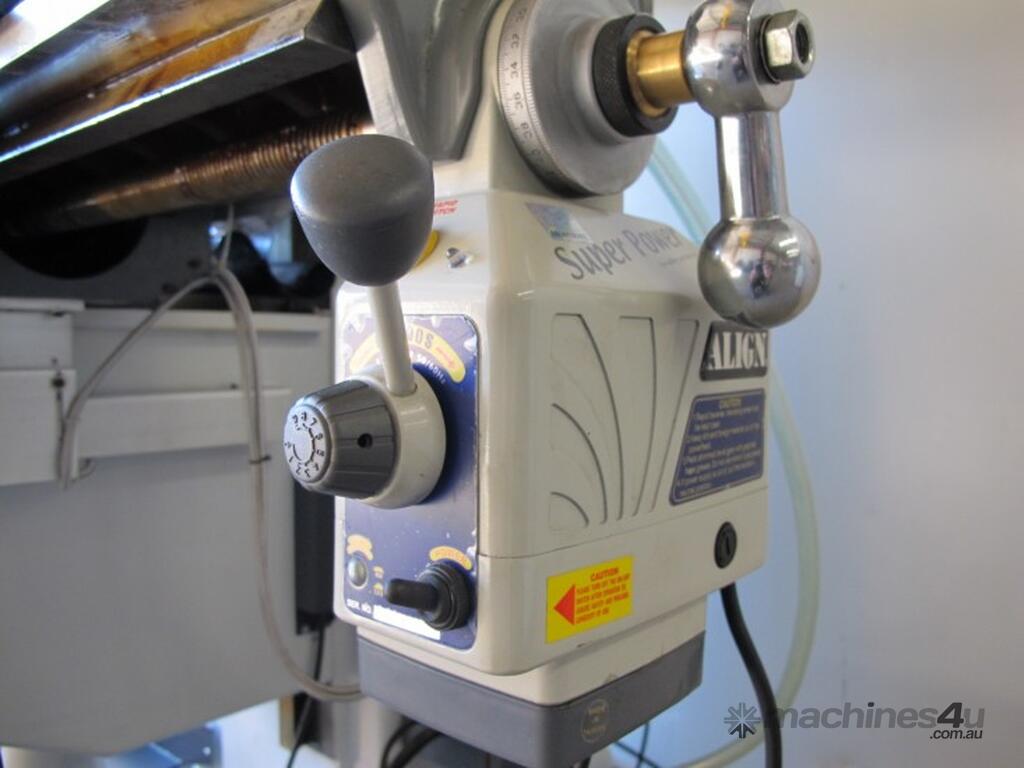

- Align AL-500S X-Axis power-feed with adjustable micro switch feed stops
- Metric dial graduations 0.02mm for X , Y & Z axis

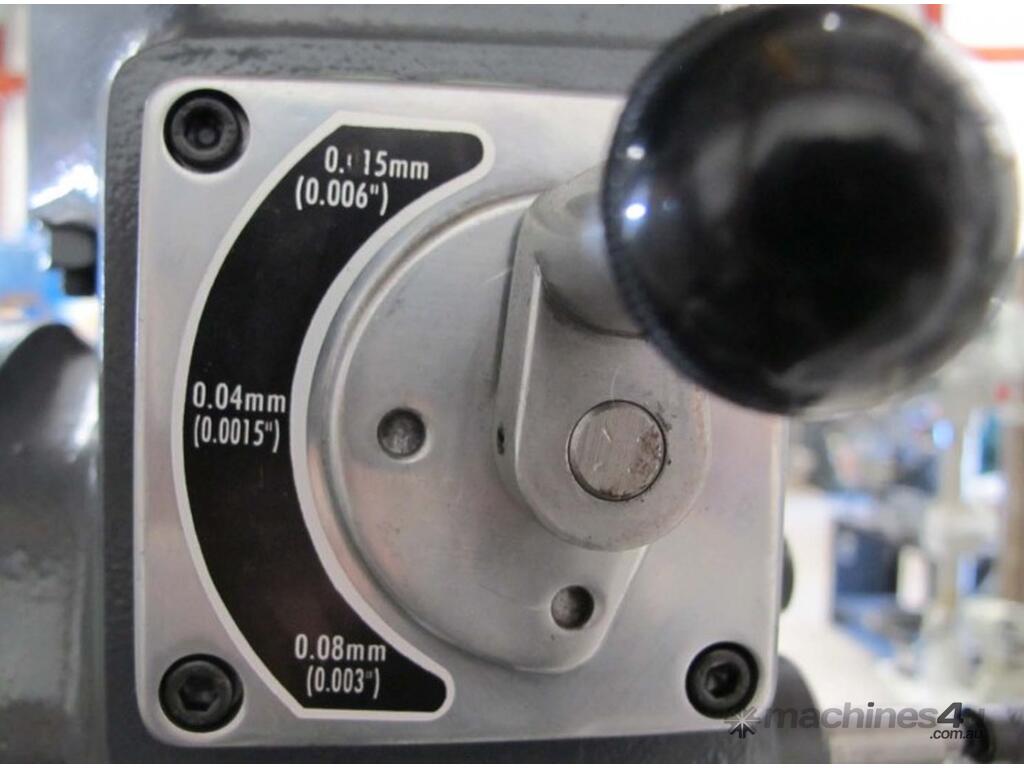

- Automatic quill feed 0.015, 0.04, 0.08mm/rev
- Automatic cut off depth stop on quill
- One shot lubrication via hand pump
- OH&S features installed
- Available in both 415v and 240v

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
'Australia Wide Shipping and Service' Call today for a no obligation quote.
--------------------------------------------------------------------------------
* Specifications subject to change without notice.
