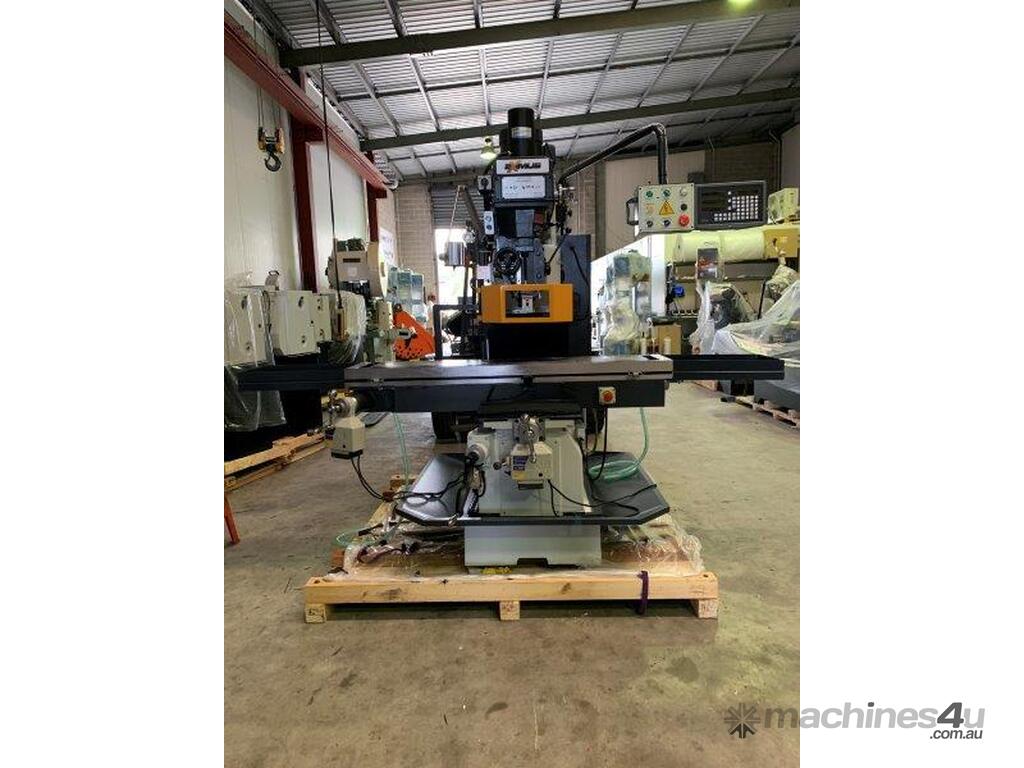

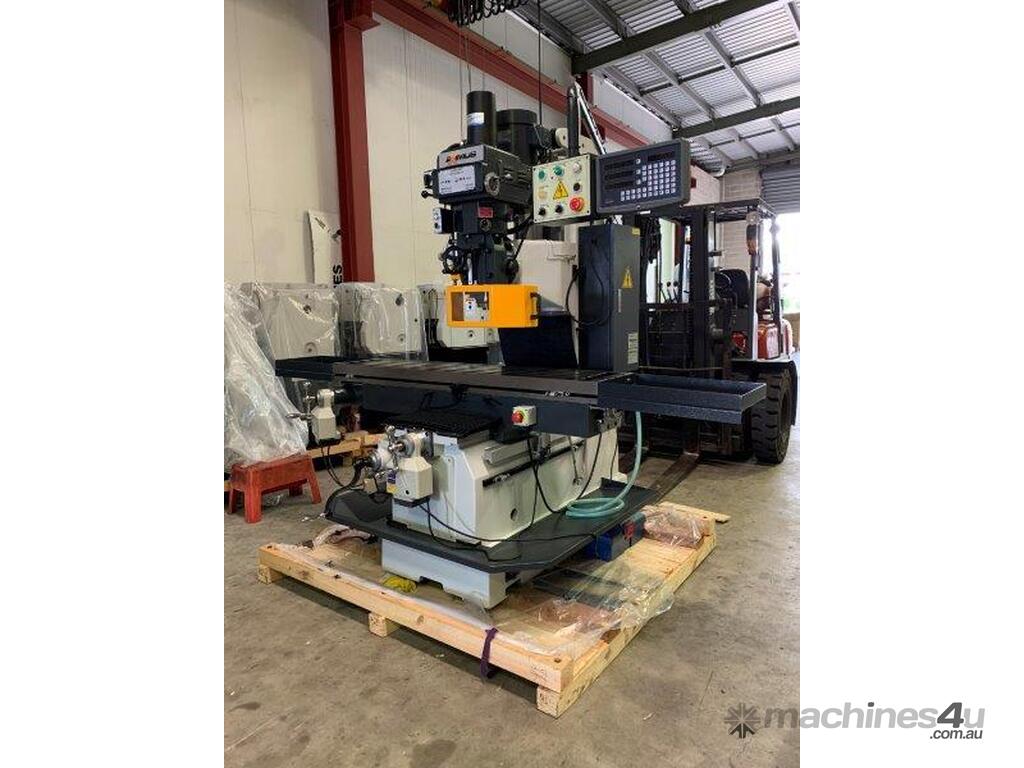

NT40 Bed Mill, (X/Y/Z) 1050/500/700 mm

Our range of milling machines feature infinitely variable speed heads allowing the operator to easily achieve a range of speeds for a wide variety of milling applications.

Eximus milling machines are 100% manufactured in Taiwan using high quality Meehanite cast iron sourced from Taiwan, each machine is built to ISO standards ensuring a high precision finish for each and every work piece.

KEY FEATURES:

- Manufactured in Taiwan

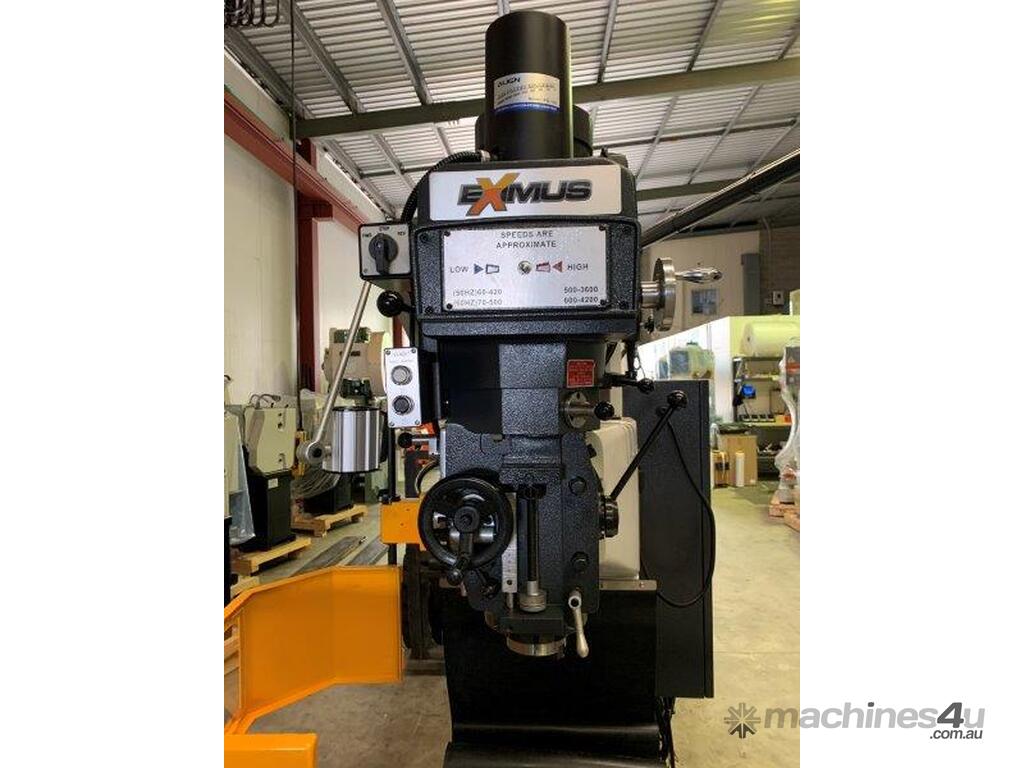

- Infinitely variable speed spindle (High and Low)
- Meehanite casting provides high strength ensuring minimal deformation

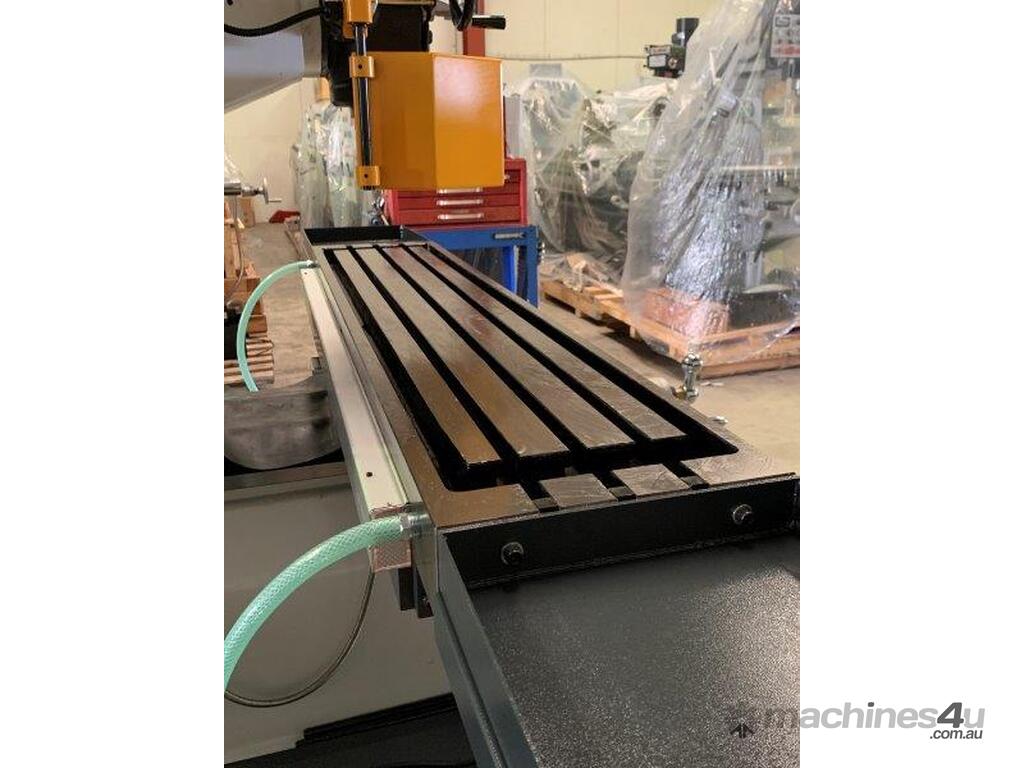

- Large table 1470x300mm with over 1000mm X travel
- Square ways for increased rigidity
- Hardened and ground worktable and slide ways
- Turcite "B" coated X & Y Axis slide-ways with slide way covers
- Ballscrew fitted to the X axis

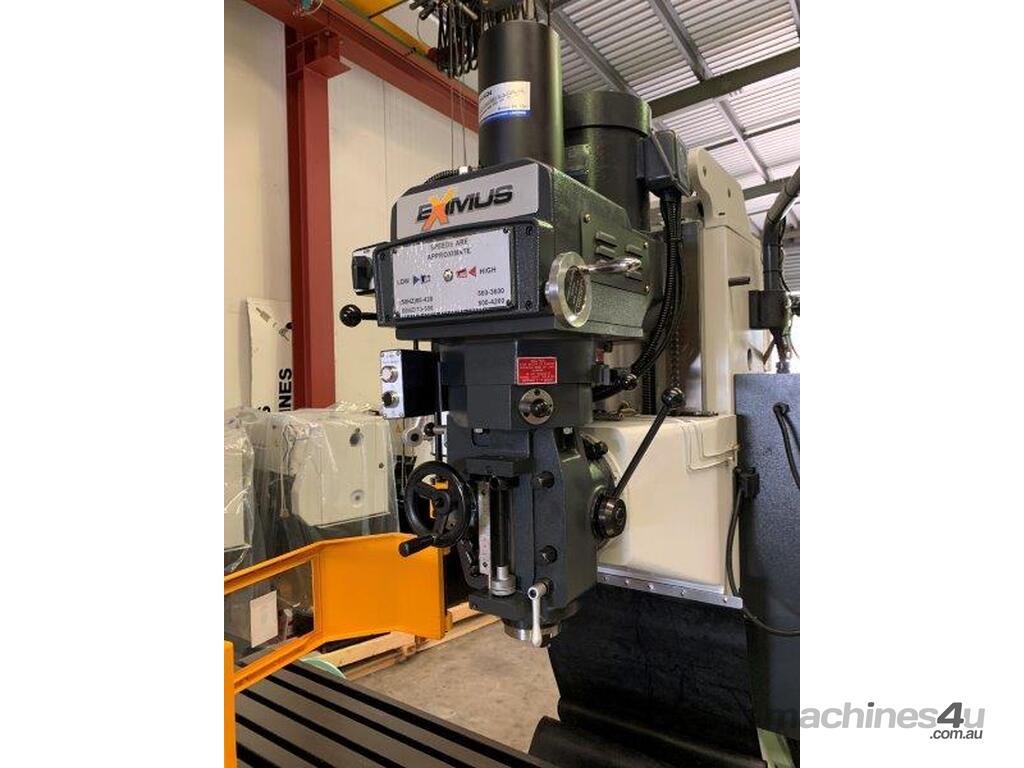

- NT 40 spindle taper with hardened chrome 100mm quill

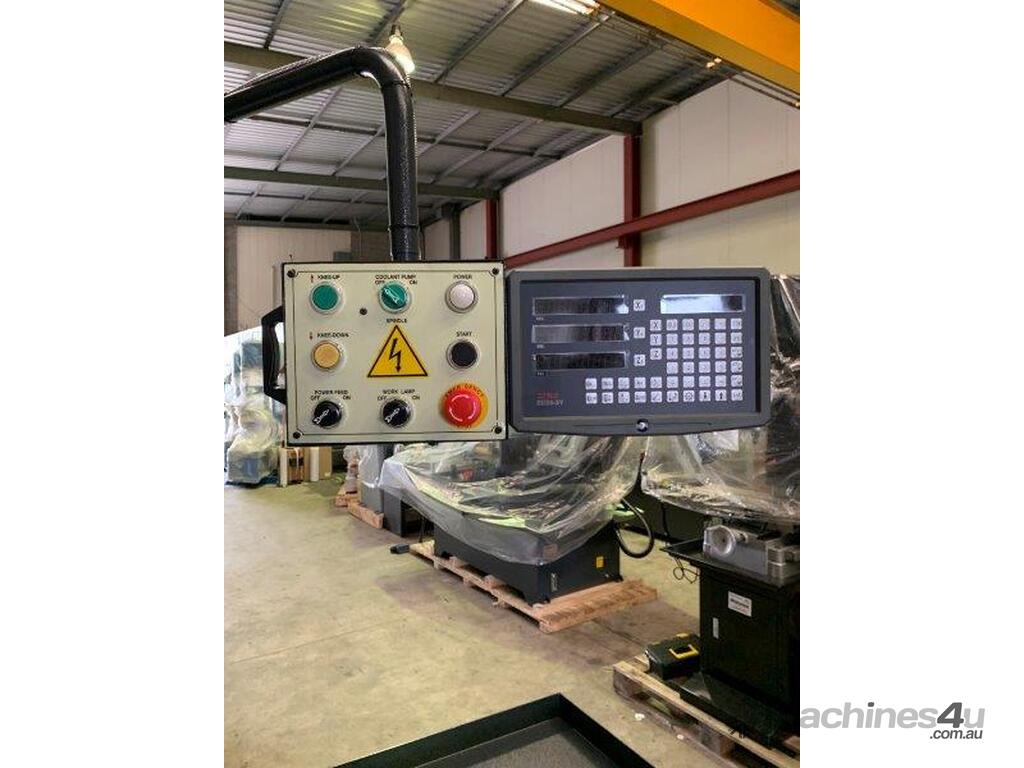

- Pendant for convenient location of controls

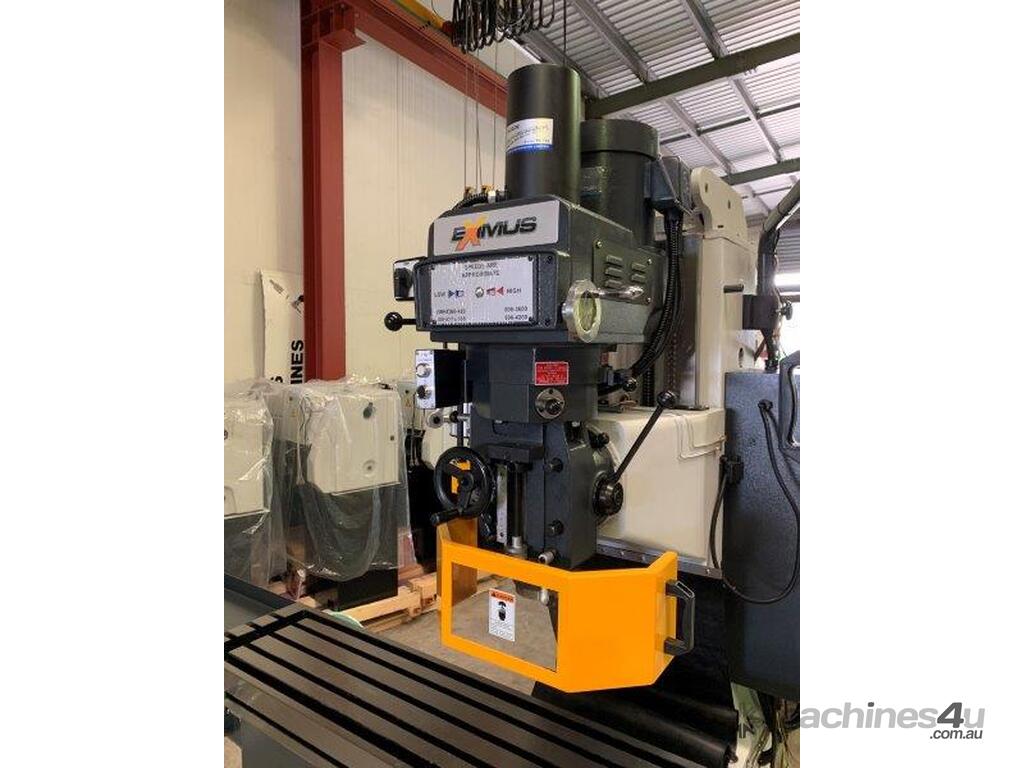

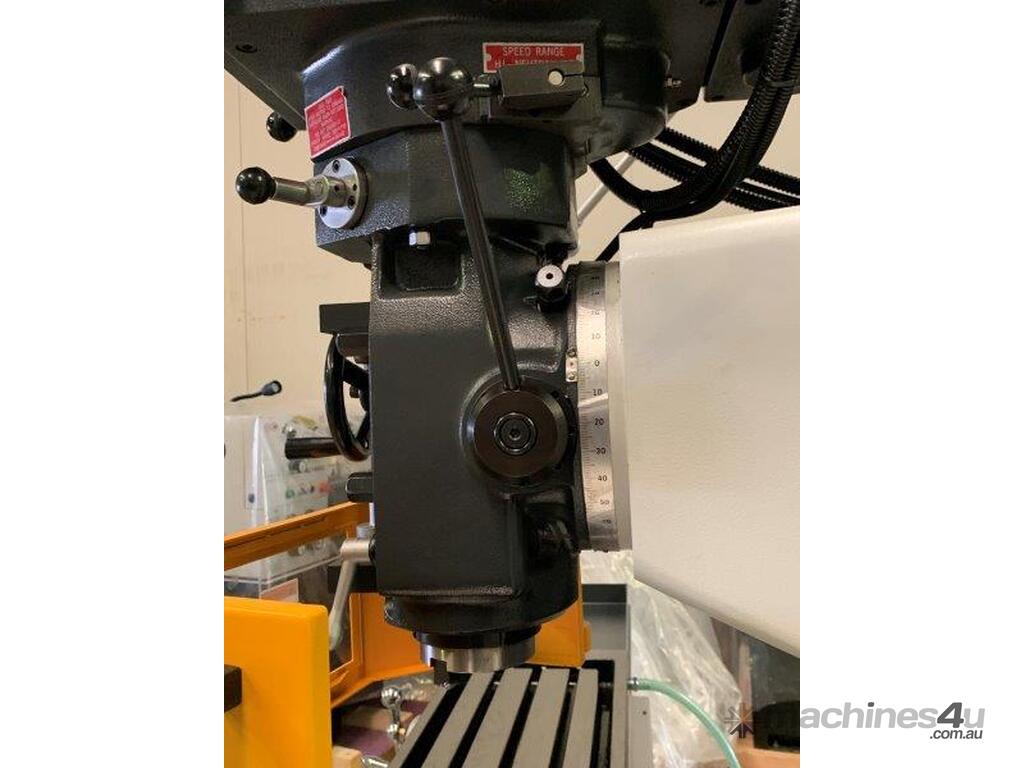

- Head swivels ±90º left and right
- Manual quick action quill lever
- Mechanical spindle brake

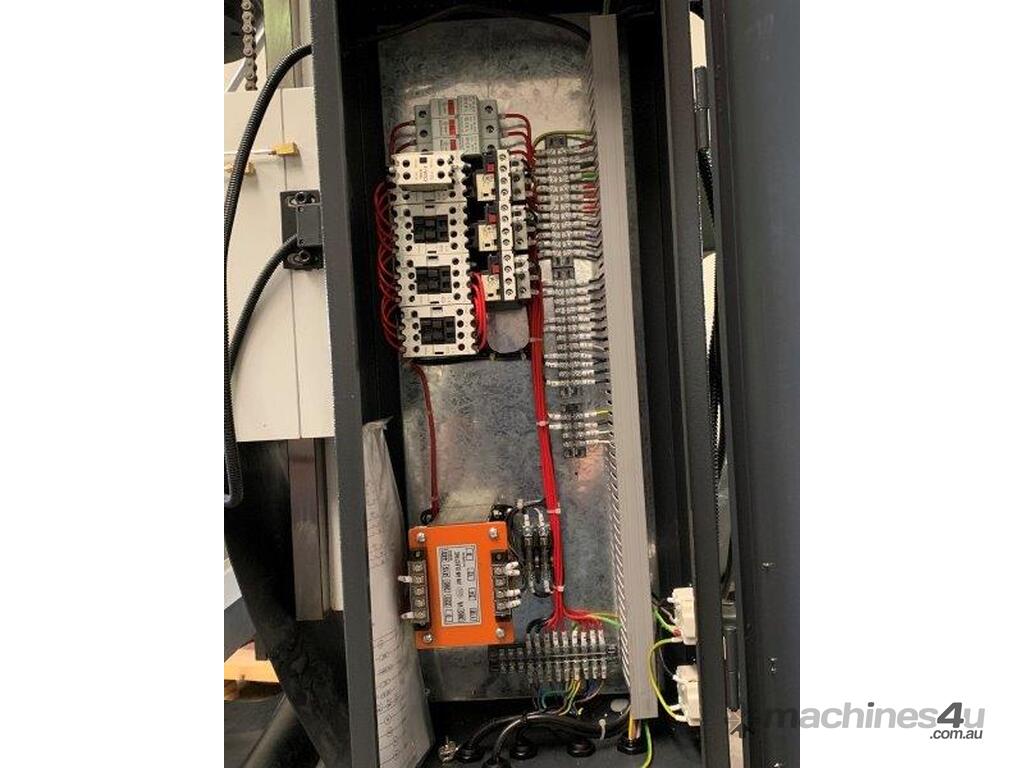

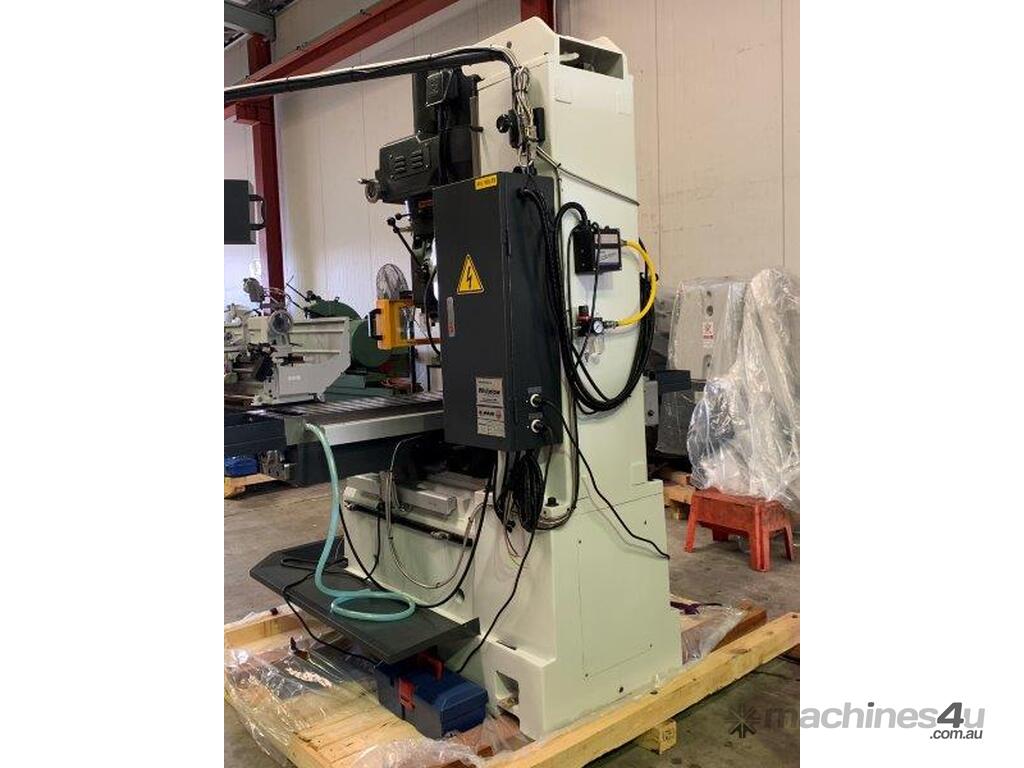

- Quality electrics & overload protection in an easy access enclosure
- High / neutral and low gear selection lever to maximise torque

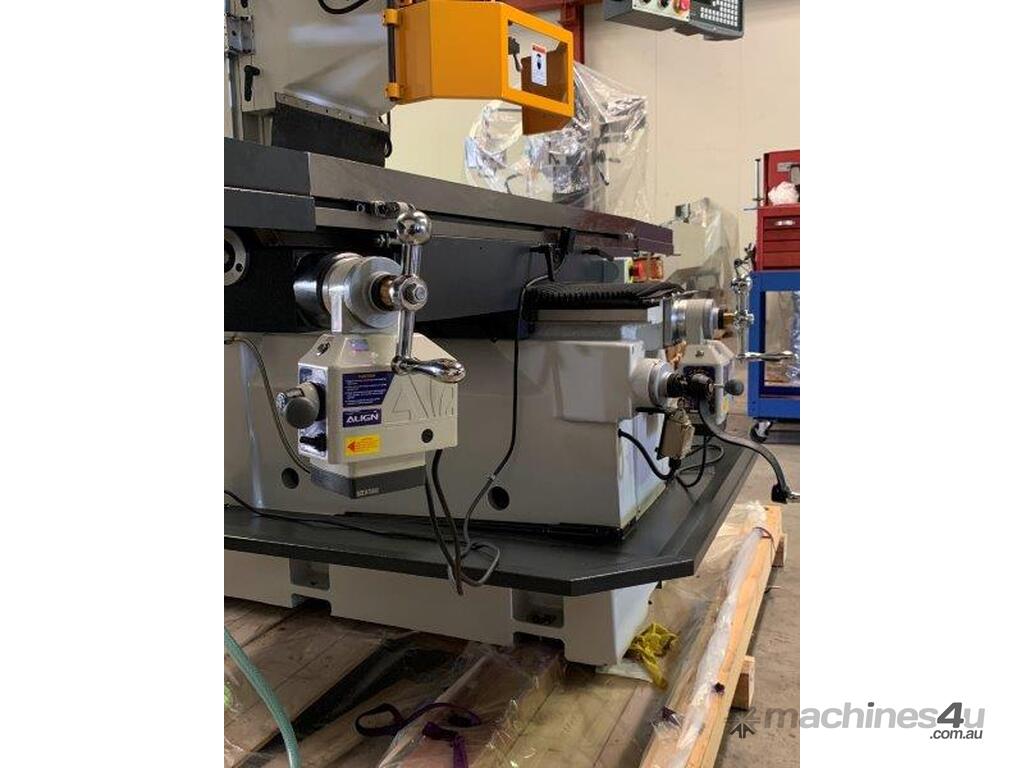

- Infinitely variable X & Y axis feed with micro switch feed stops
- Variable feed to Z axis with feed stops
- Metric dial graduations 0.02mm for X,Y & Z axis
- Automatic quill feed 0.015, 0.04, 0.08mm/rev
- Automatic cut off depth stop on quill

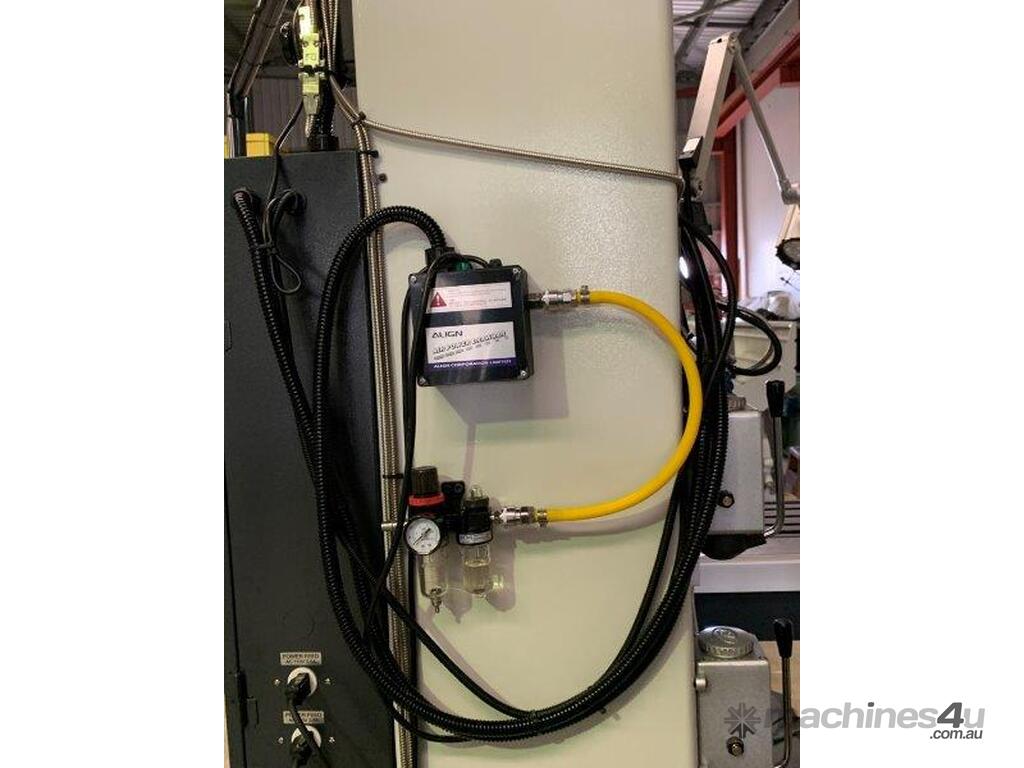

- Air power draw bar for quick release of tooling

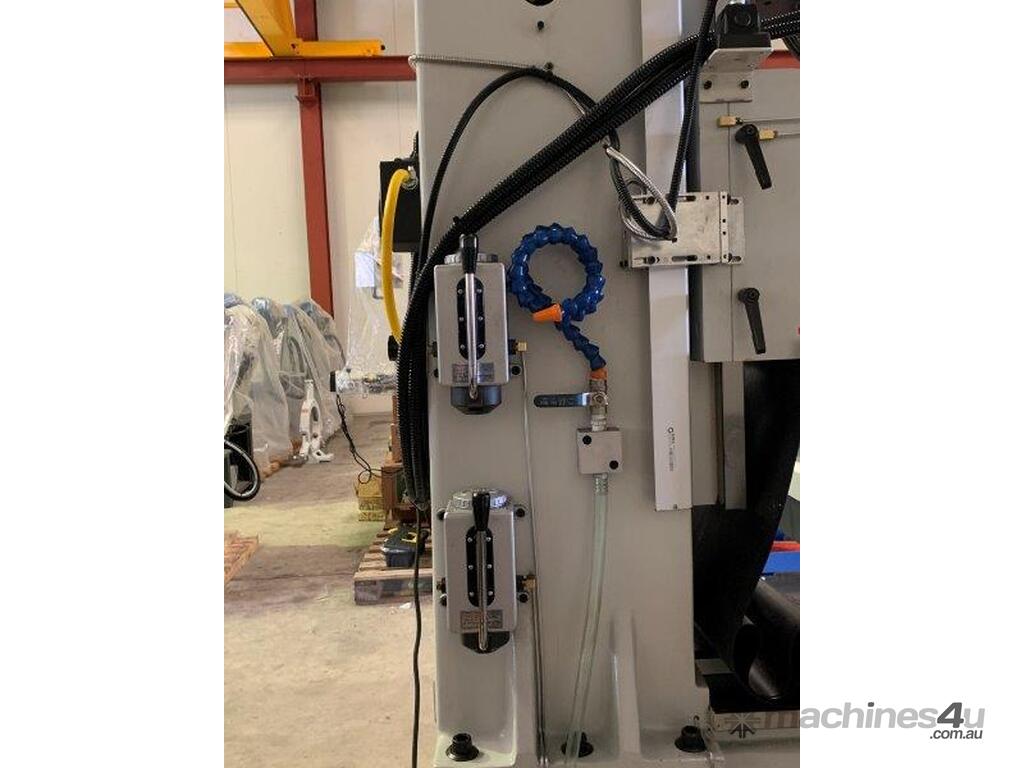

- Automatic lubrication system
- OH&S features installed

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
'Australia Wide Shipping and Service' Call today for a no obligation quote.
--------------------------------------------------------------------------------
* Specifications subject to change without notice.
