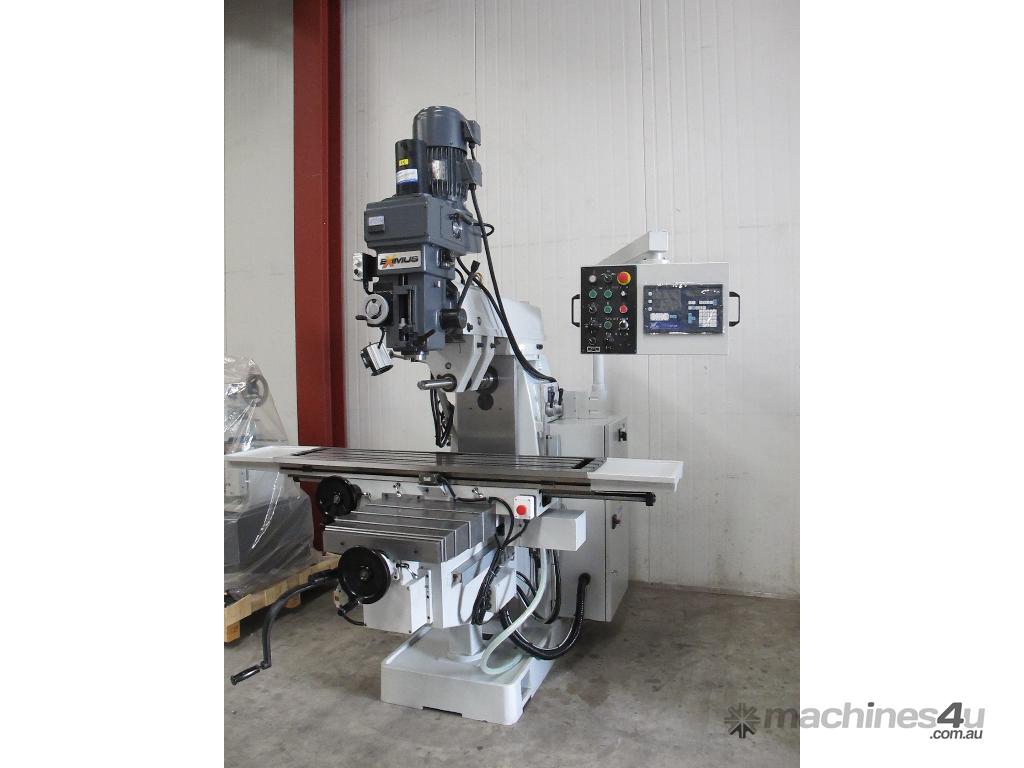

GEVS-500A VERTICAL TURRET MILLING MACHINE - MADE IN TAIWAN
'Australia Wide Shipping & Service' Call today for a no obligation quote!
KEY FEATURES:
* 100% Taiwanese

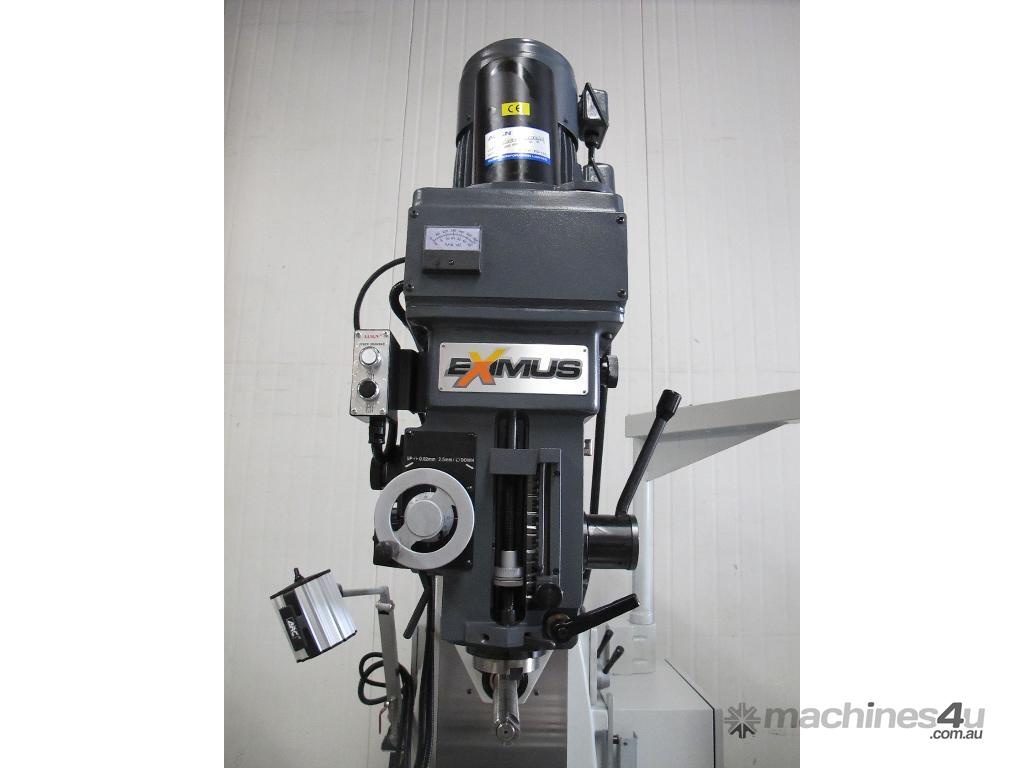

* Oversize heavy duty head for increased rigidity
* Square way for column and knee ensuring maximum rigidity
* Extended heavy duty saddle support under table
* Meehanite casting (Taiwanese)
* Turcite-B applied to cross and long slide ways

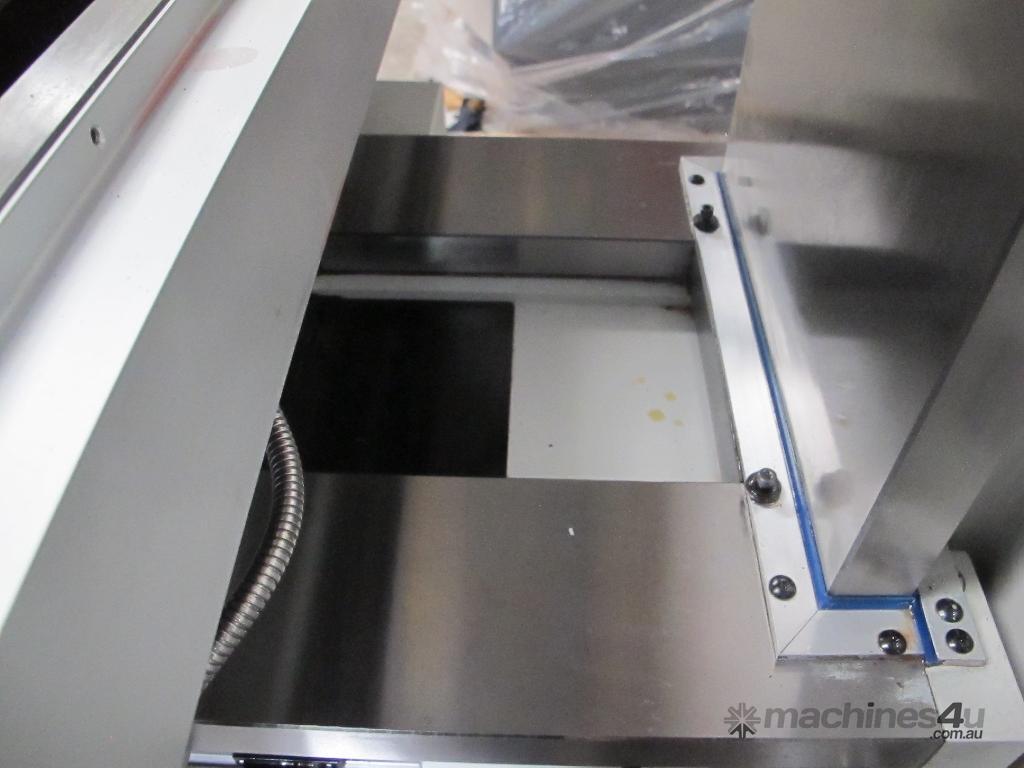

* Hardened and ground X & Y axes slide ways

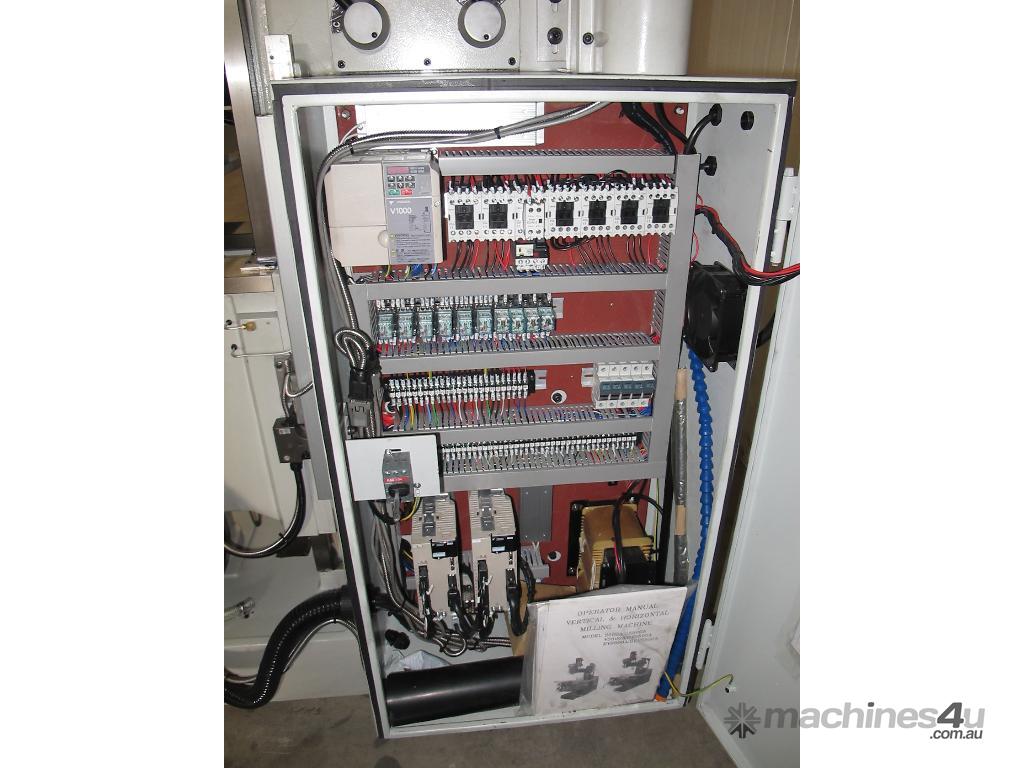

* X, Y axis with AC servo motor
* X & Y axis fitted with C5 ball screws
SPECIFICATIONS:
Table Size: ...1470 x 300 mm with over 1000 mm travel
Travel X/Y/Z axis: ...1120/820/440 mm
Horizontal & Vertical Taper...NT 40
Spindle nose to table: ...85-505 mm

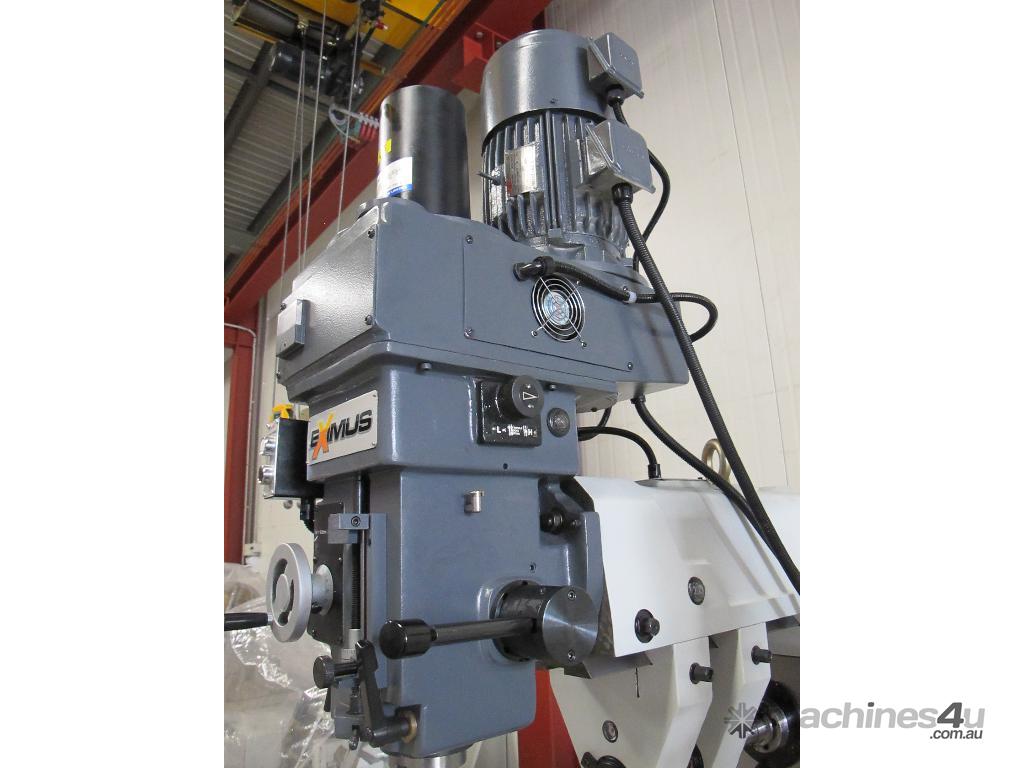

Vertical spindle motor:... Infinitely variable 5 HP

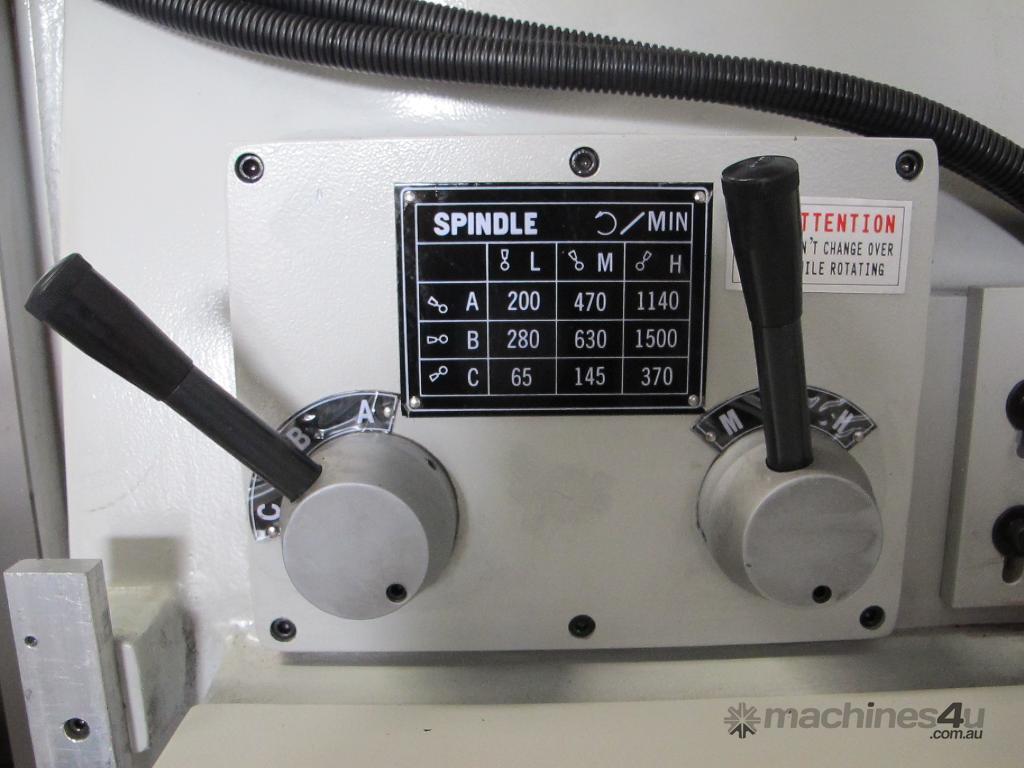

Horizontal spindle motor:... 5 HP
STANDARD EQUIPMENT:
- Coolant and chip tray

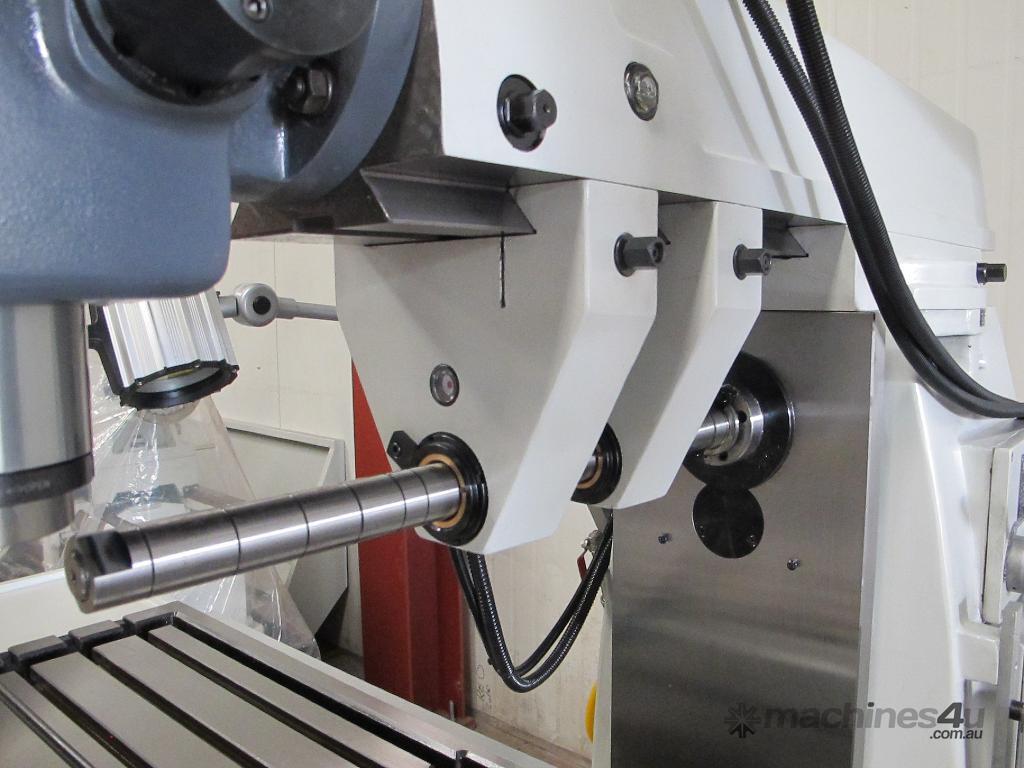

- 2 Arbor supports and 1 arbor

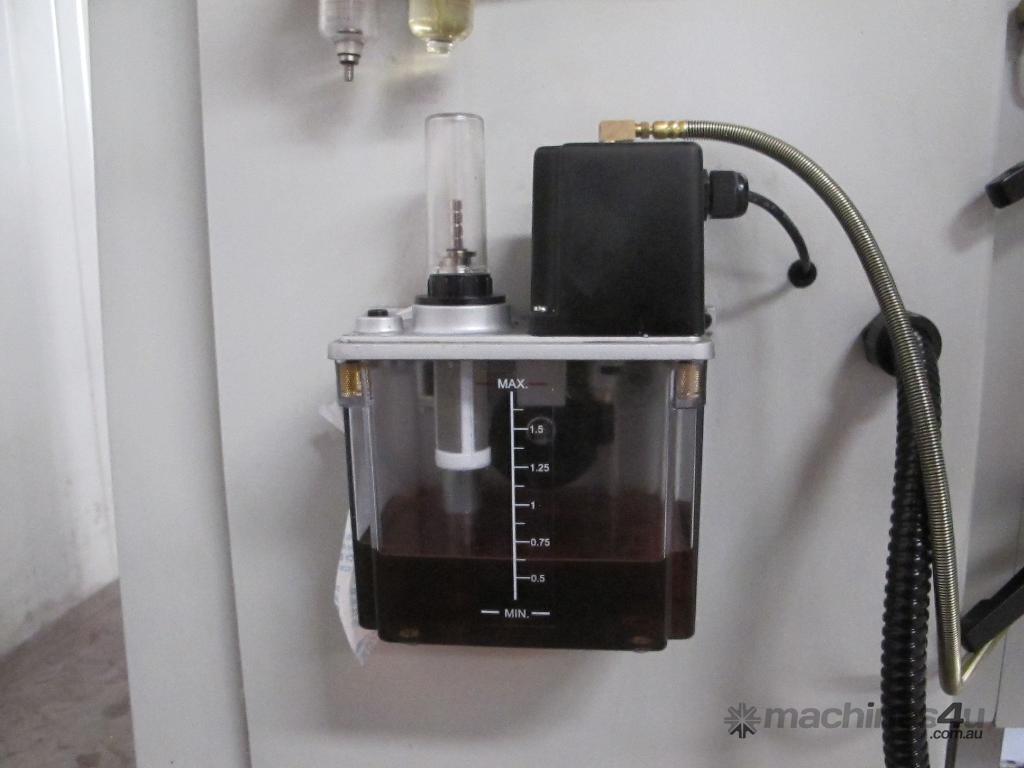

- Automatic lubrication
- Quartz halogen work lamp

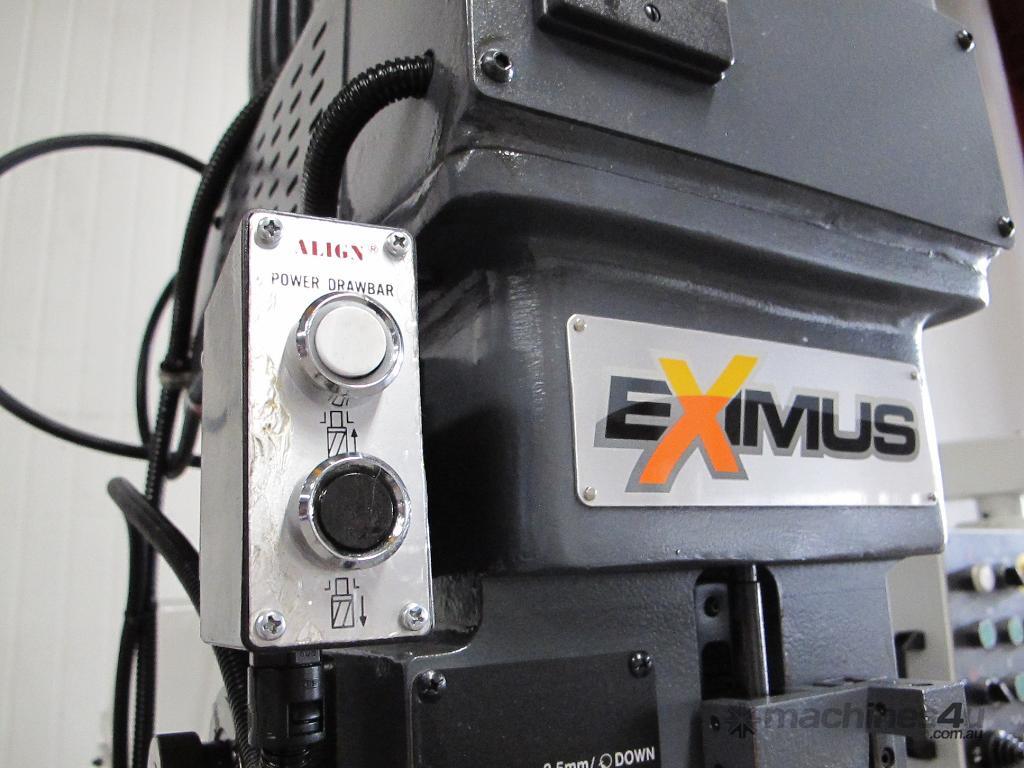

- Air power draw bar
- Servo motors to X & Y axis
- Ballscrews to X & Y axis
- Rapid feed motor to Z axis
"Build to order Ex Factory"
'Huge range of Optional Equipment and Tooling'
--------------------------------------------------------------------------------
* Specifications subject to change without notice
