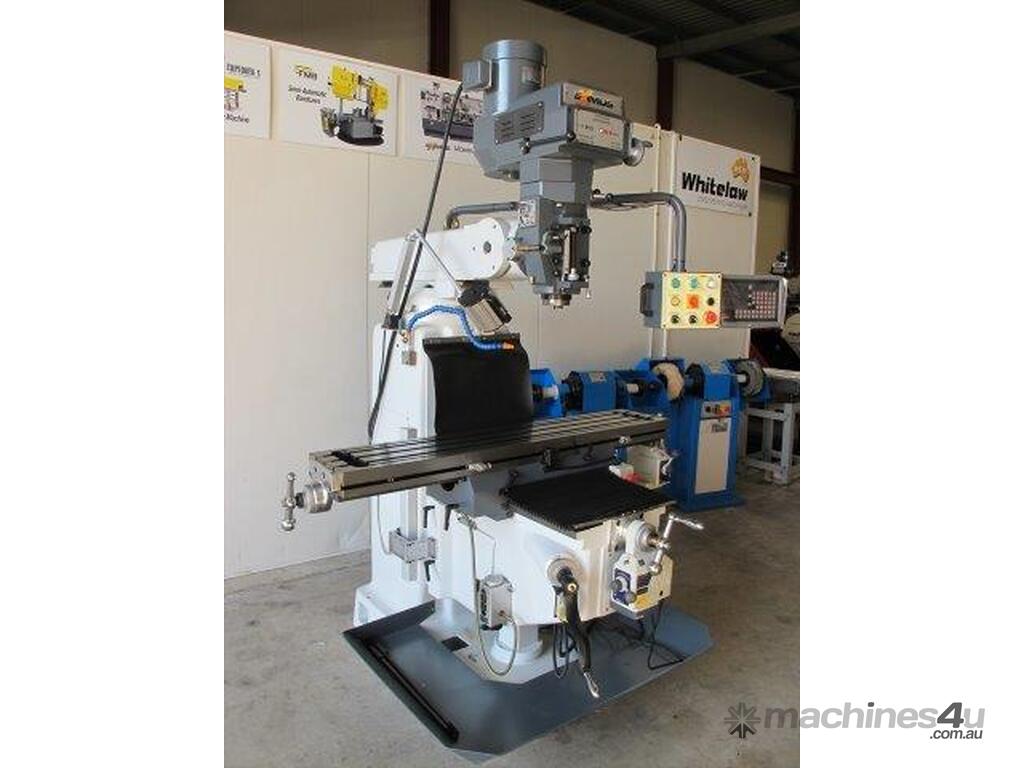

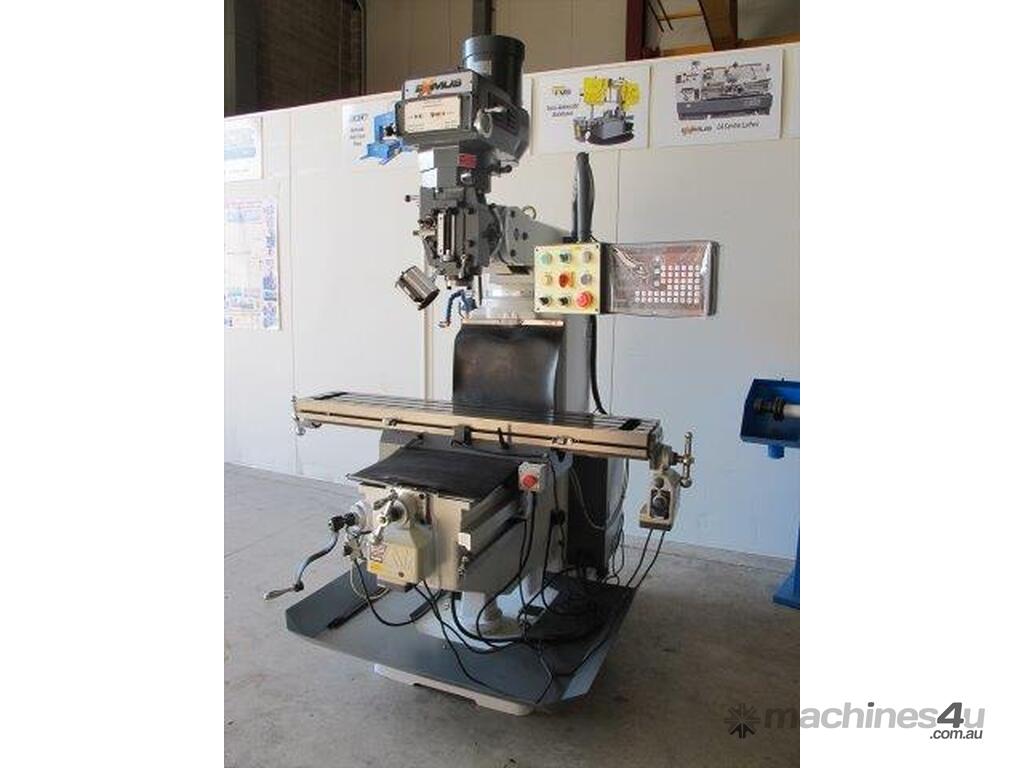

NT40 Turret Milling Machine, (X/Y/Z), 900/400/500mm

'CURRENTLY ON SALE, CALL FOR PRICING'

Our range of milling machines feature infinitely variable speed heads allowing the operator to easily achieve a range of speeds for a wide variety of milling applications.

Eximus milling machines are 100% manufactured in Taiwan using high quality Meehanite cast iron sourced from Taiwan, each machine is built to ISO standards ensuring a high precision finish for each and every work piece.

KEY FEATURES:

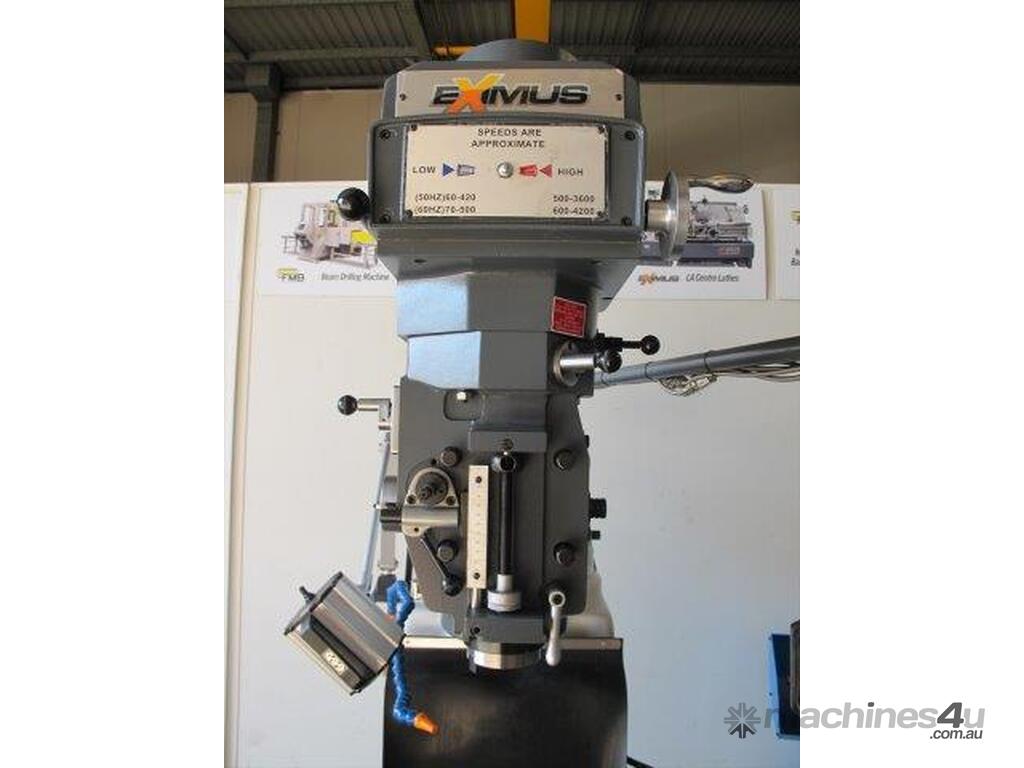

- Infinitely variable speed spindle (High and Low)
- Meehanite casting provides maximum rigidity ensuring minimal deformation

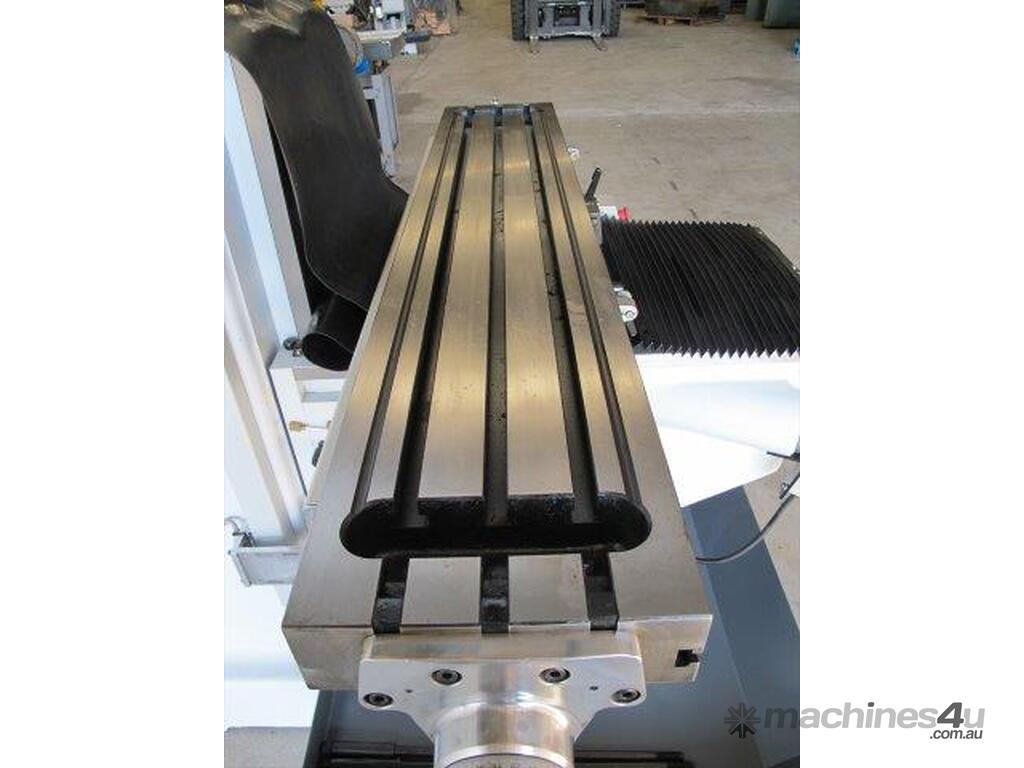

- Large worktable 1350x250mm
- Dovetail slides ensure rigidity while machining
- Hardened and ground worktable and slide ways
- Turcite "B" coated X & Y Axis slide-ways with slide way covers

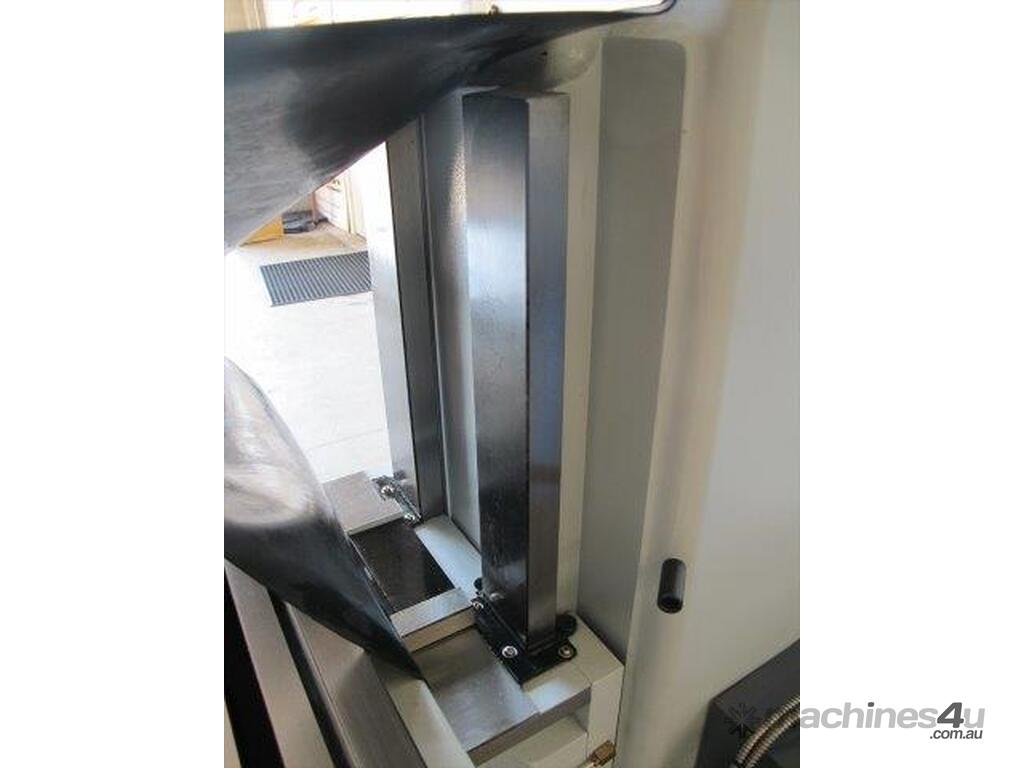

- Y & Z axis square ways for additional rigidity

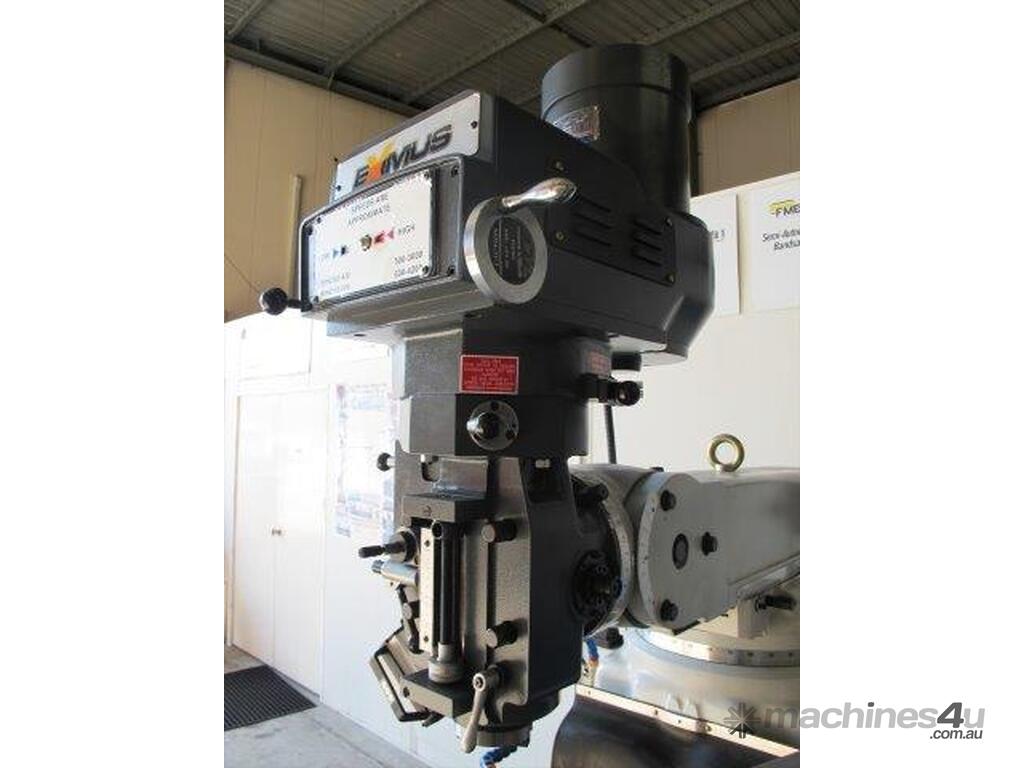

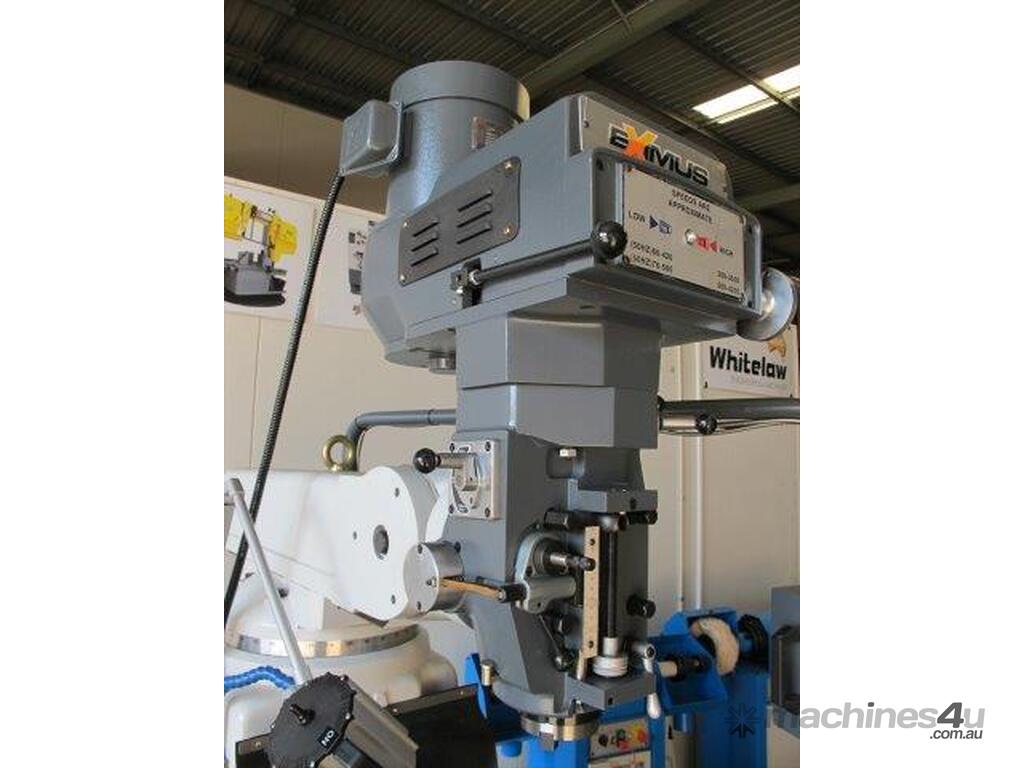

- Ø 100mm Dia spindle with NT 40 taper & hardened chrome quill

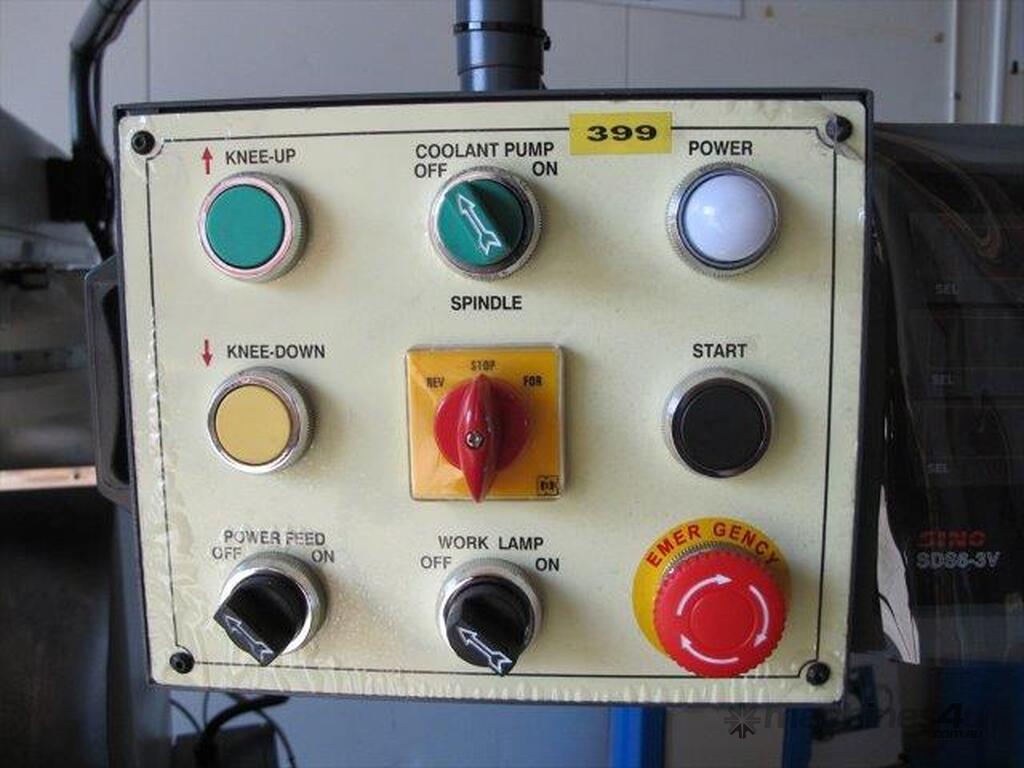

- Pendant for convenient location of controls

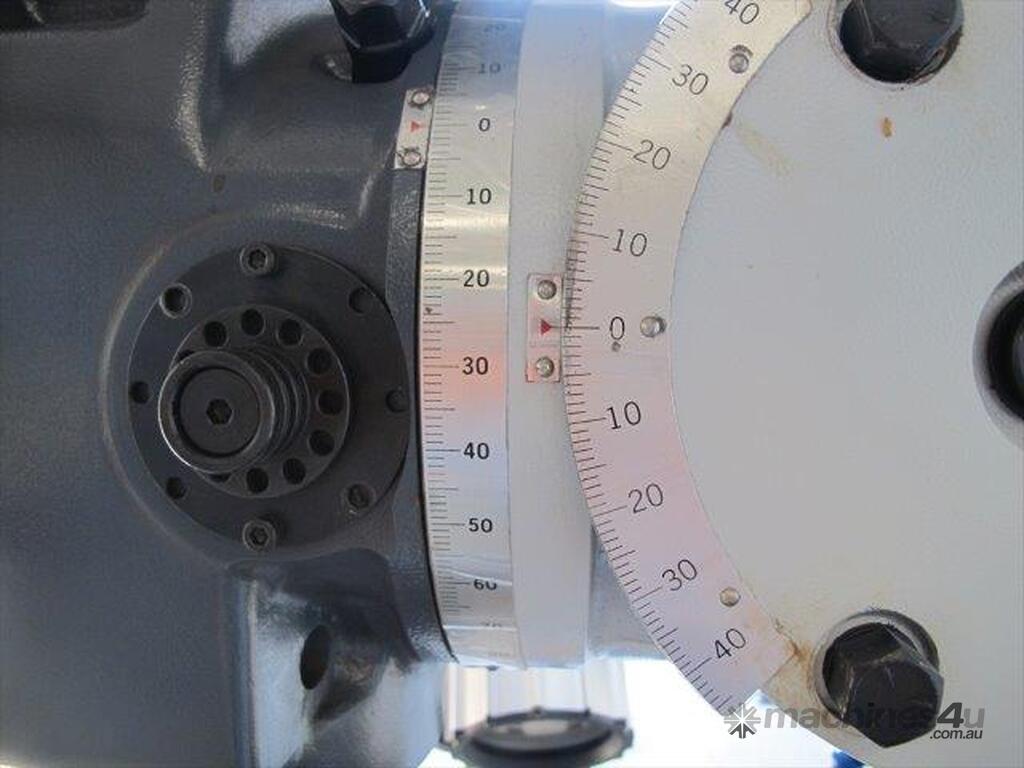

- Head tilts ±45º forward to back
- Head swivels ±90º left and right
- Manual quick action quill lever
- Mechanical spindle brake

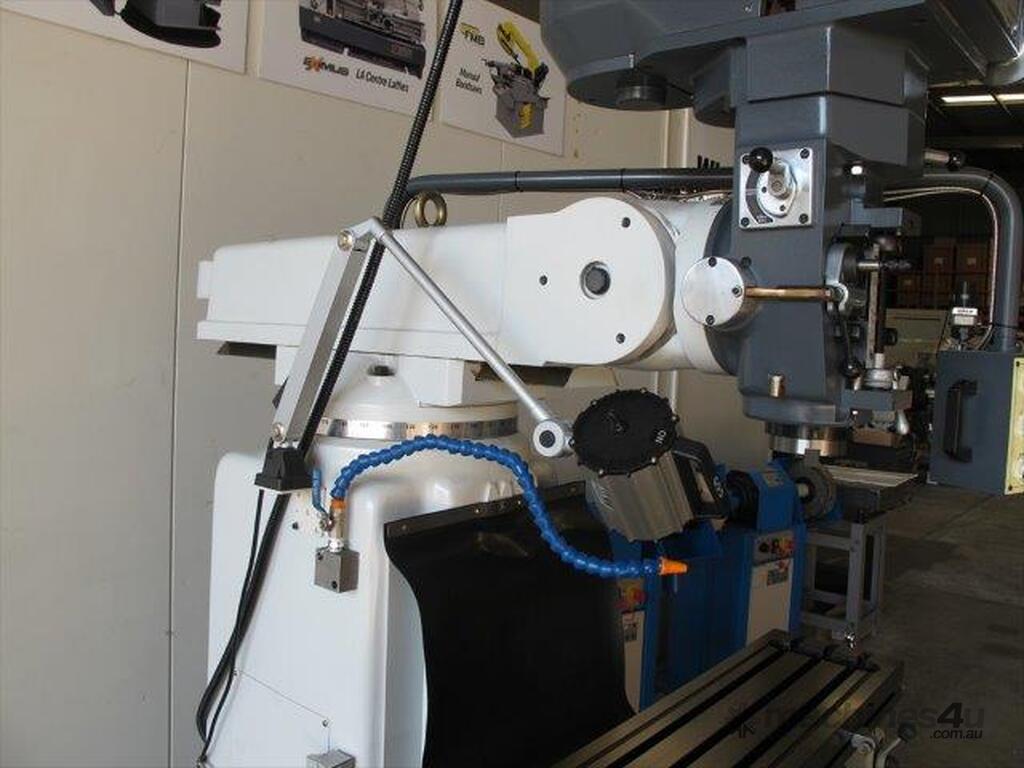

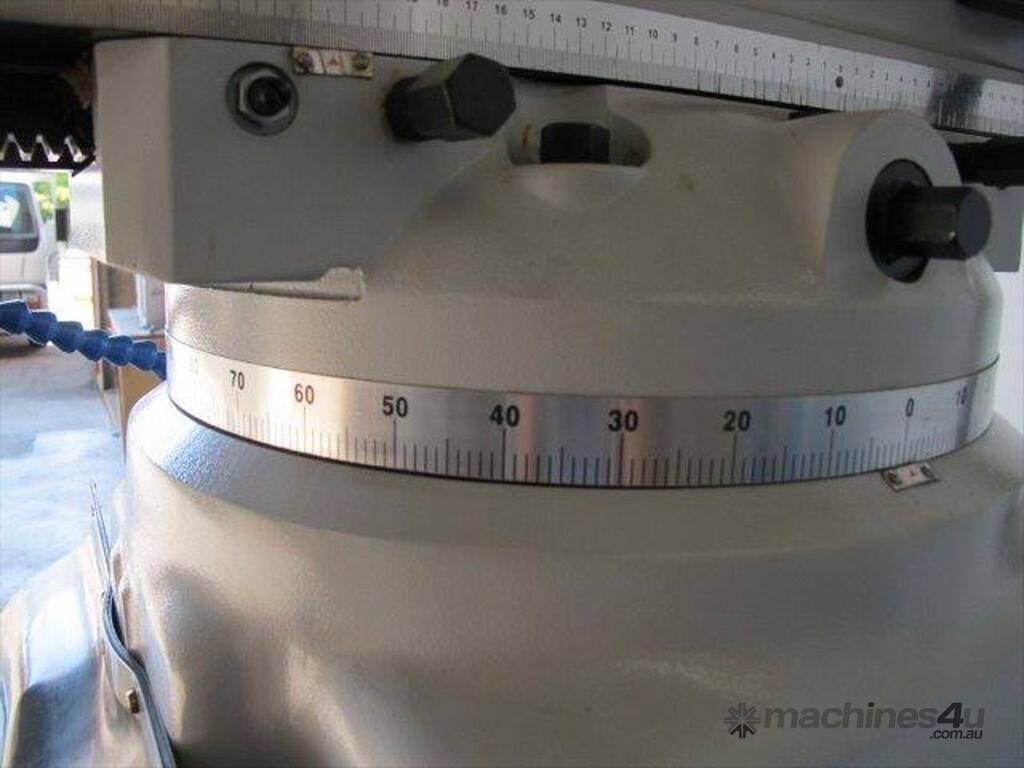

- Ram travels 530mm and can rotate 360°

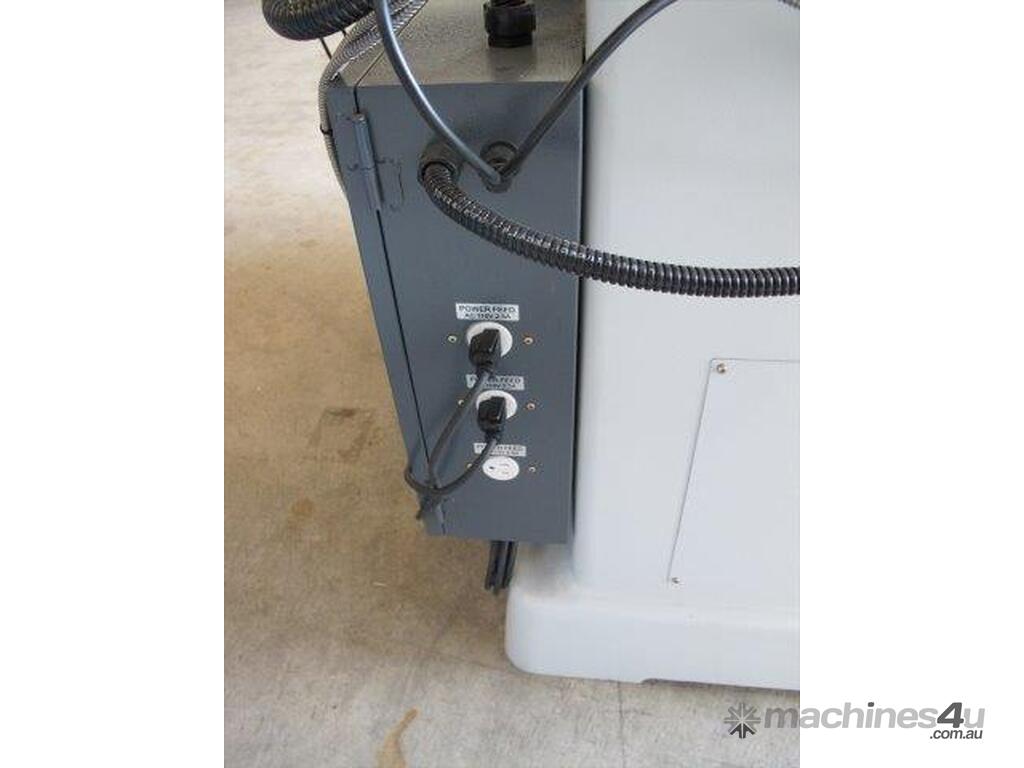

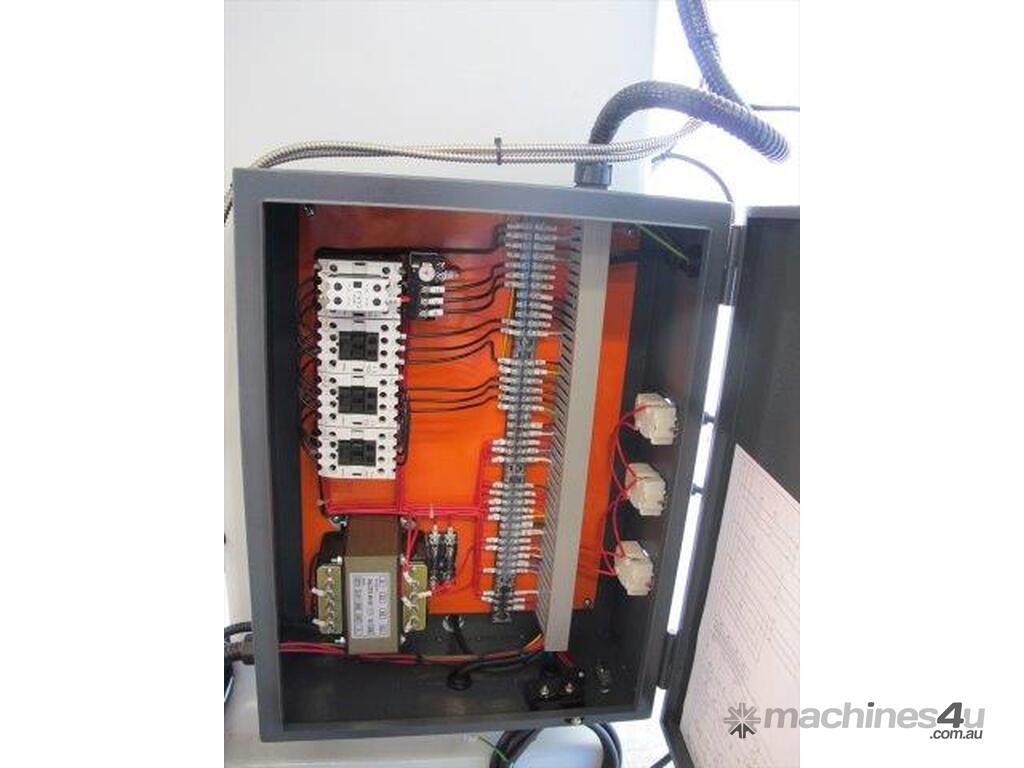

- Quality electrics & overload protection in an easy access enclosure
- High / neutral and low gear selection lever to maximise torque

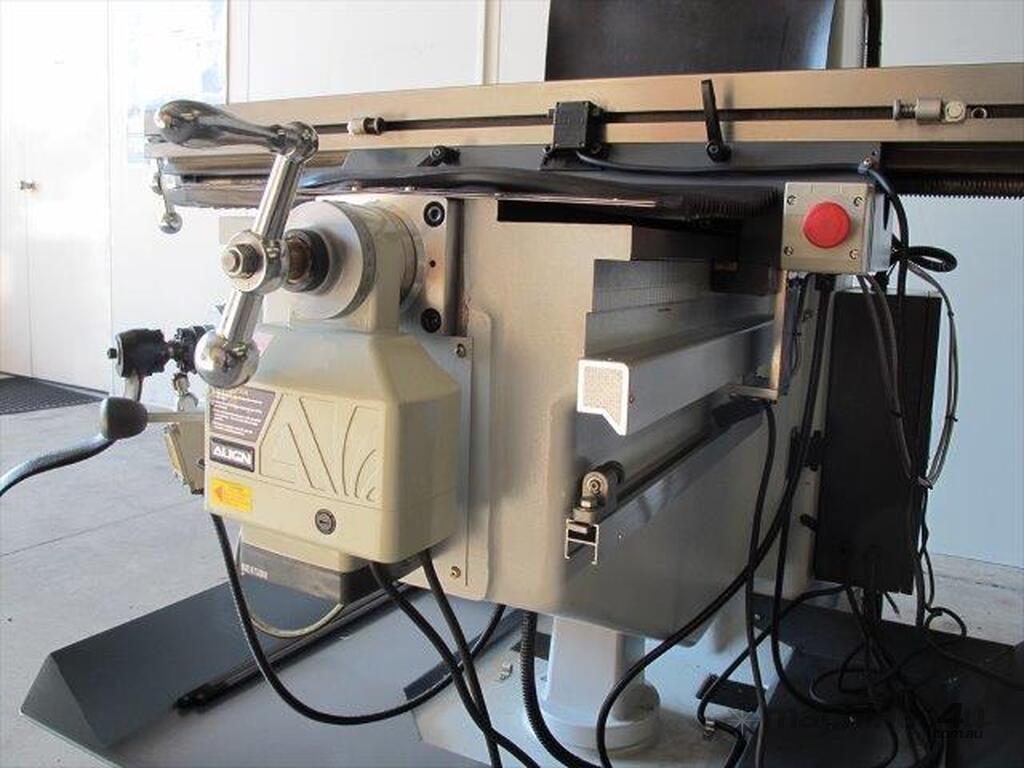

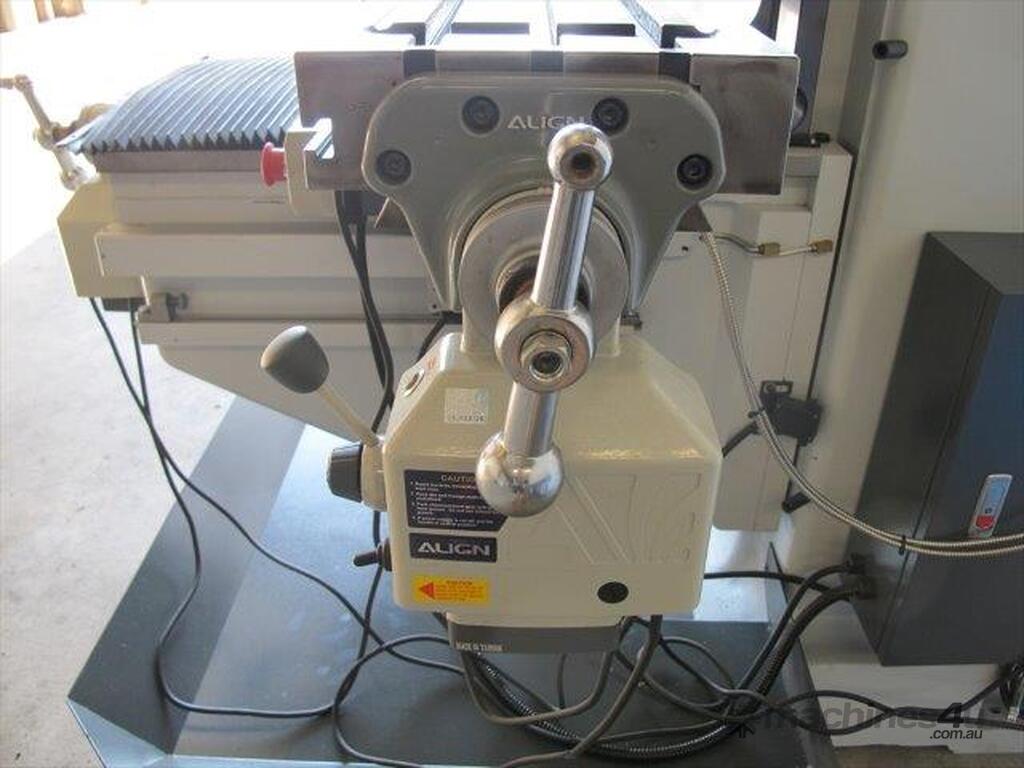

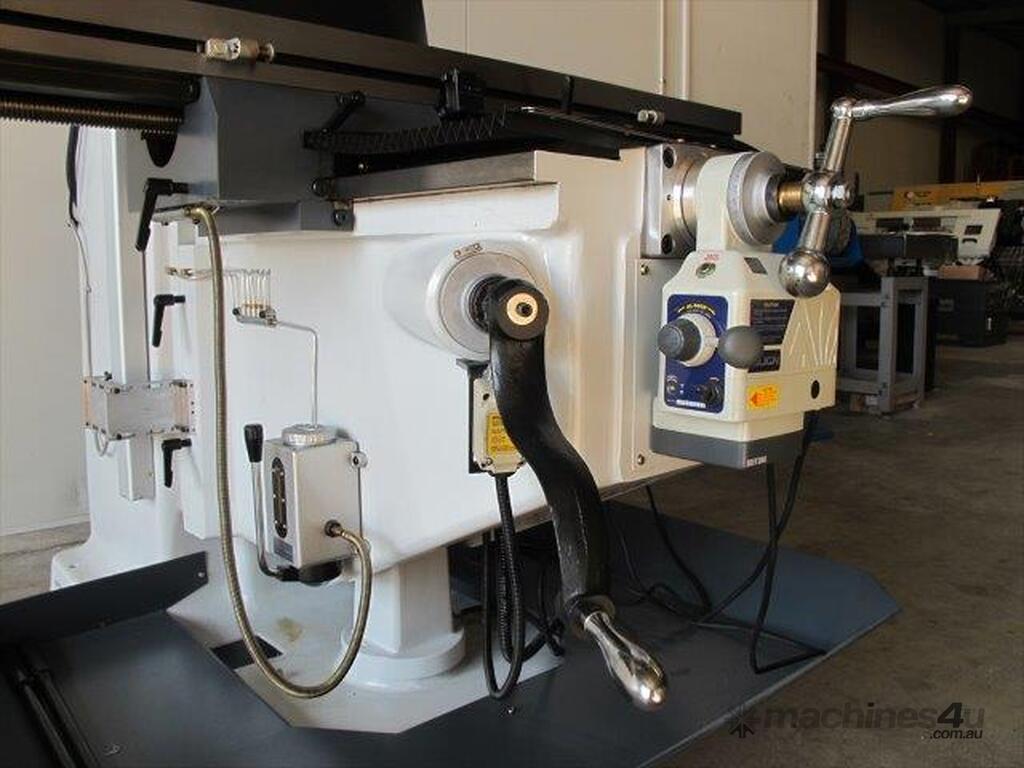

- Align AL-500S X & Y-Axis power-feed with adjustable micro switch feed stops
- Rapid feed motor for fast traverse of the table up and down
- Metric dial graduations 0.02mm for X, Y & Z axis
- Automatic quill feed 0.015, 0.04, 0.08mm/rev
- Automatic cut off depth stop on quill

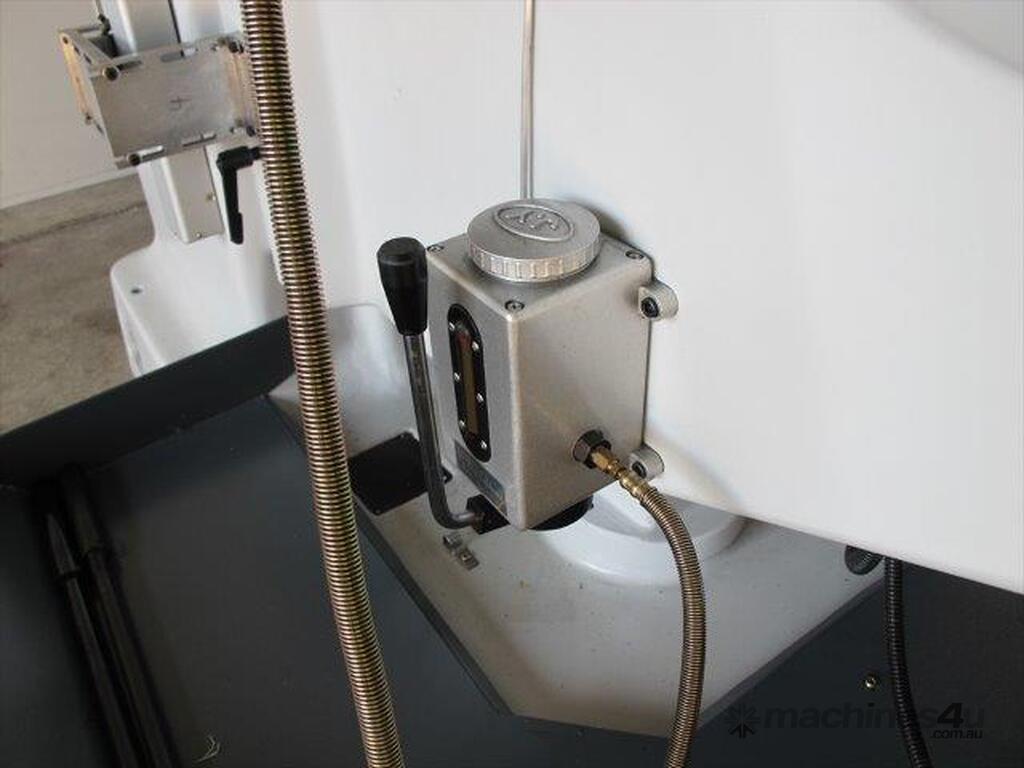

- One shot lubrication via hand pump
- OH&S features installed

OPTIONAL EQUIPMENT:

- Air power draw bar
- Riser Block
- Slotting attachment
- Complete range of tooling available

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
'Australia Wide Shipping and Service' Call today for a no obligation quote.
--------------------------------------------------------------------------------
* Specifications subject to change without notice.
