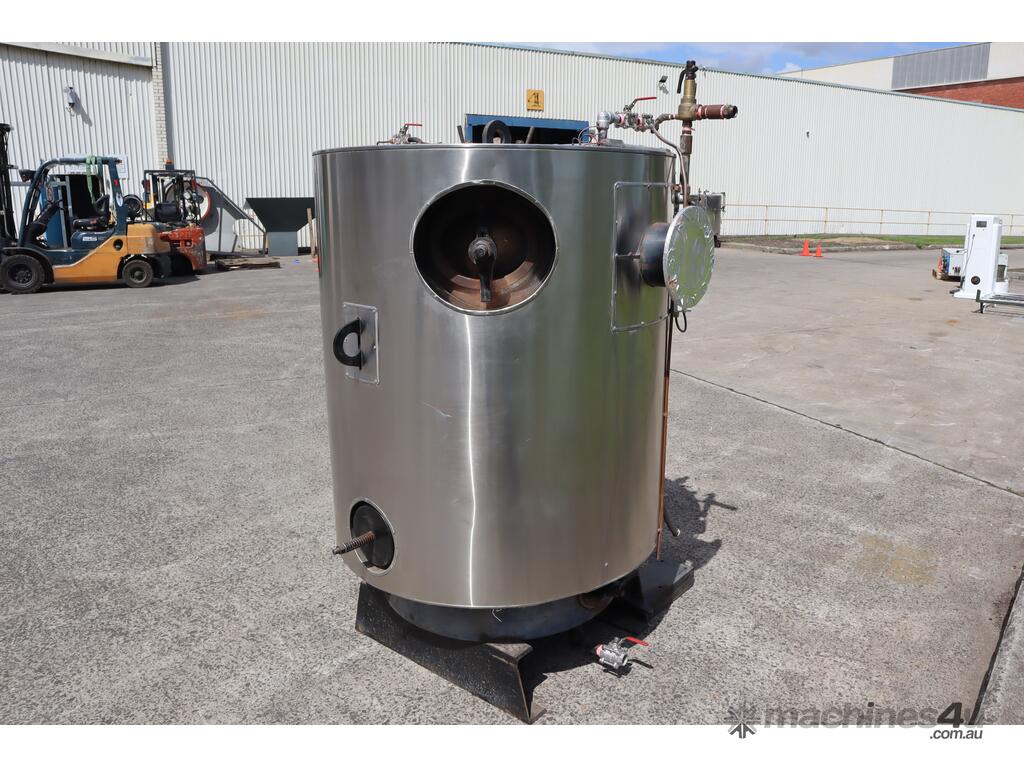

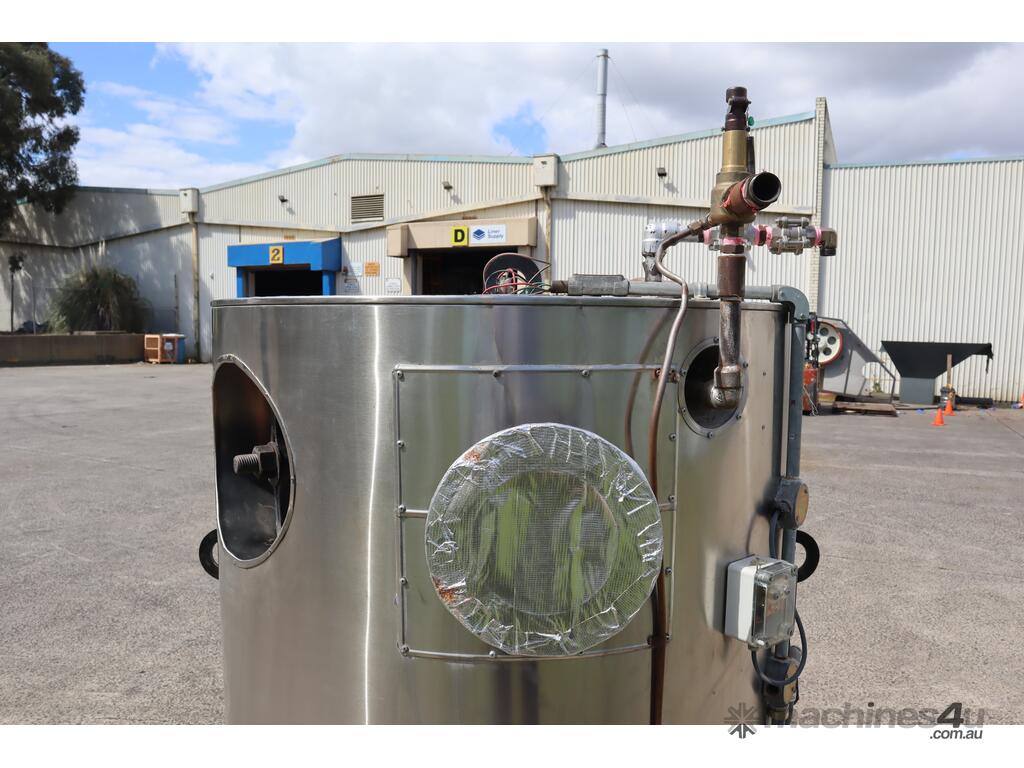

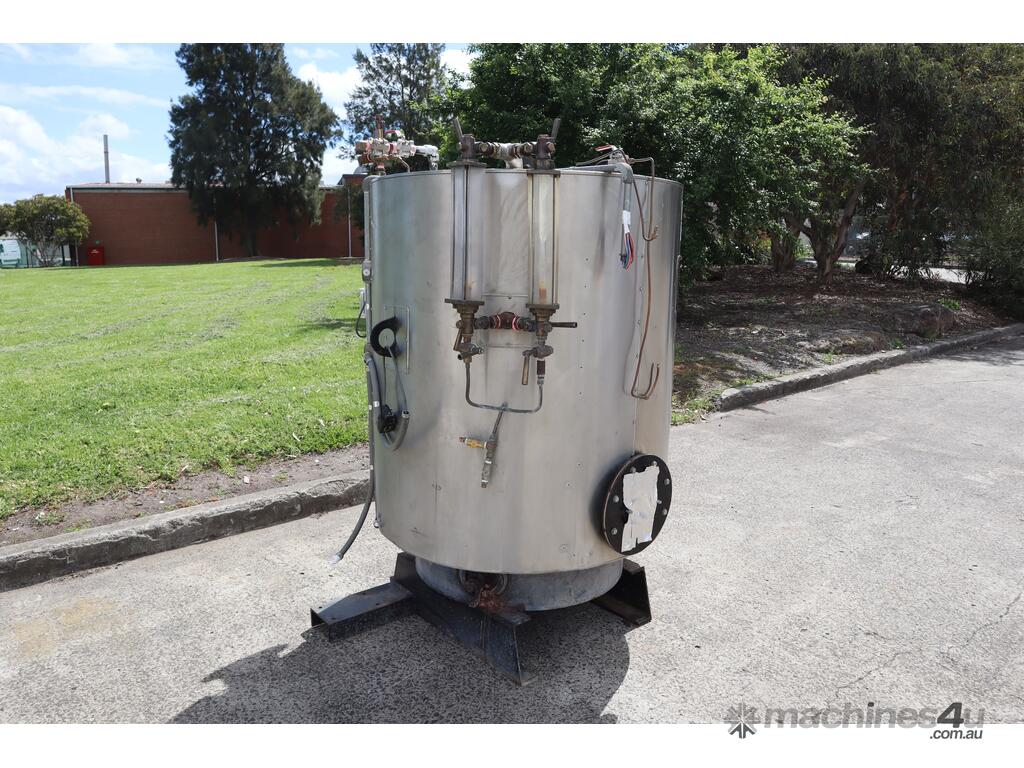

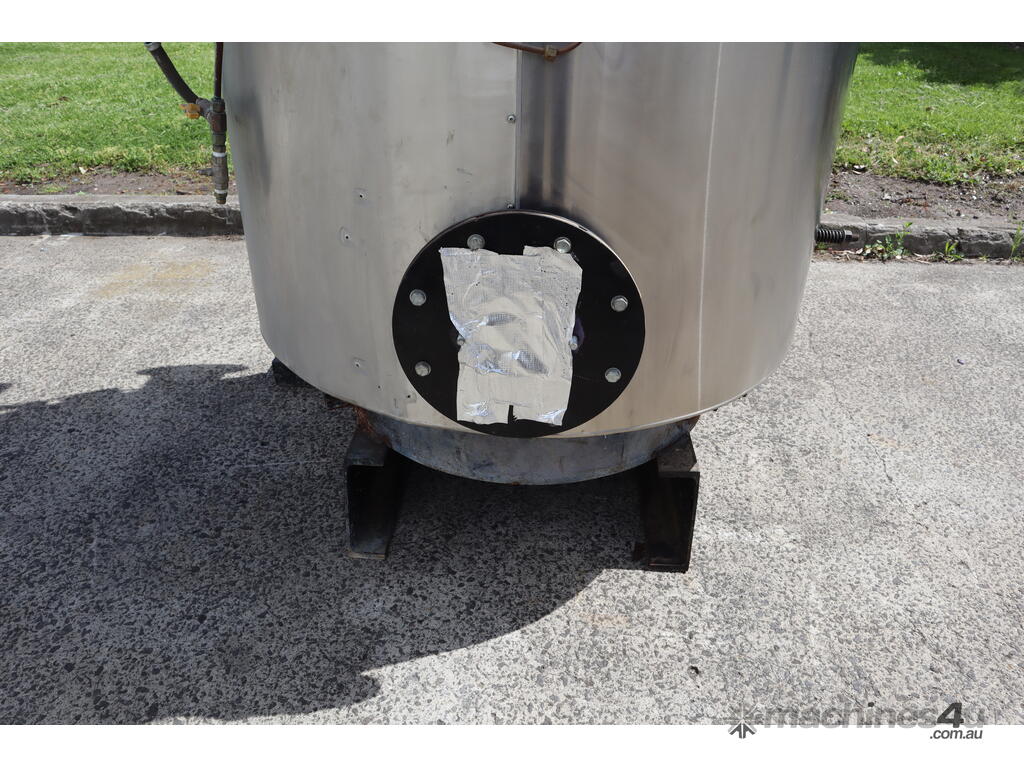

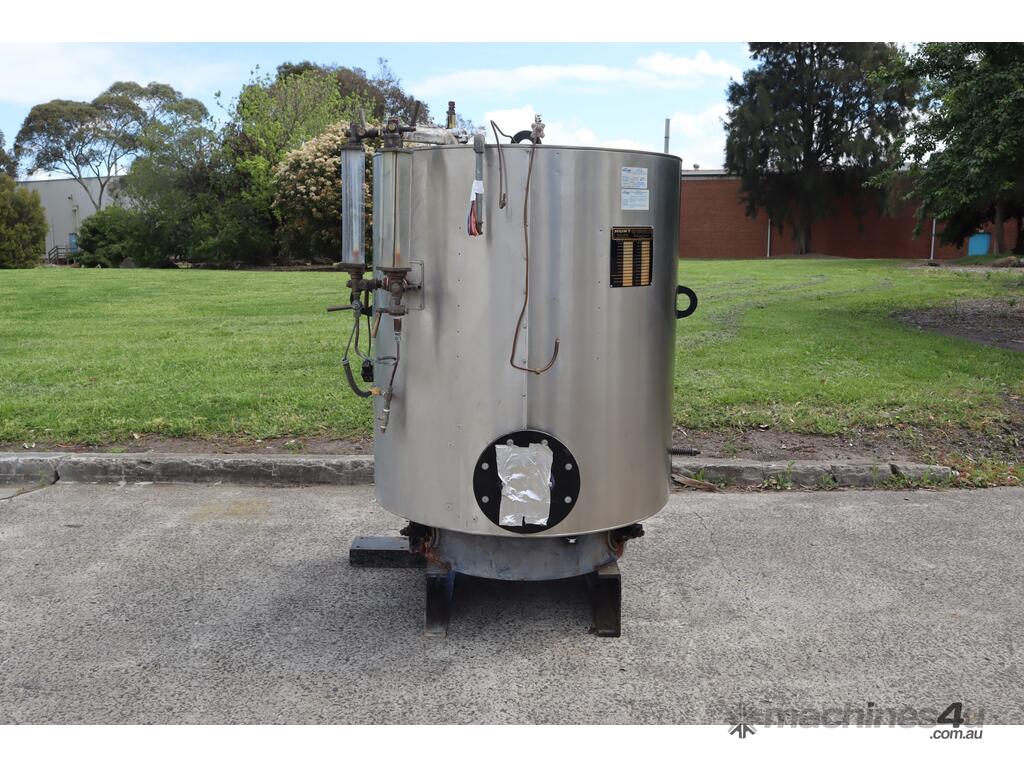

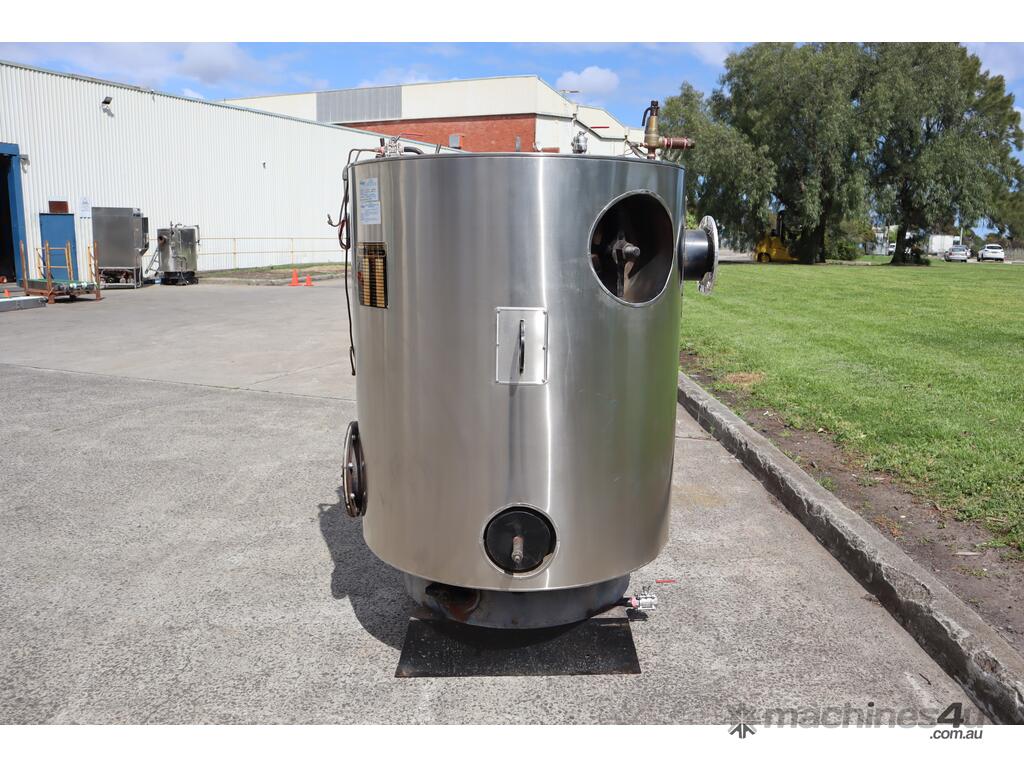

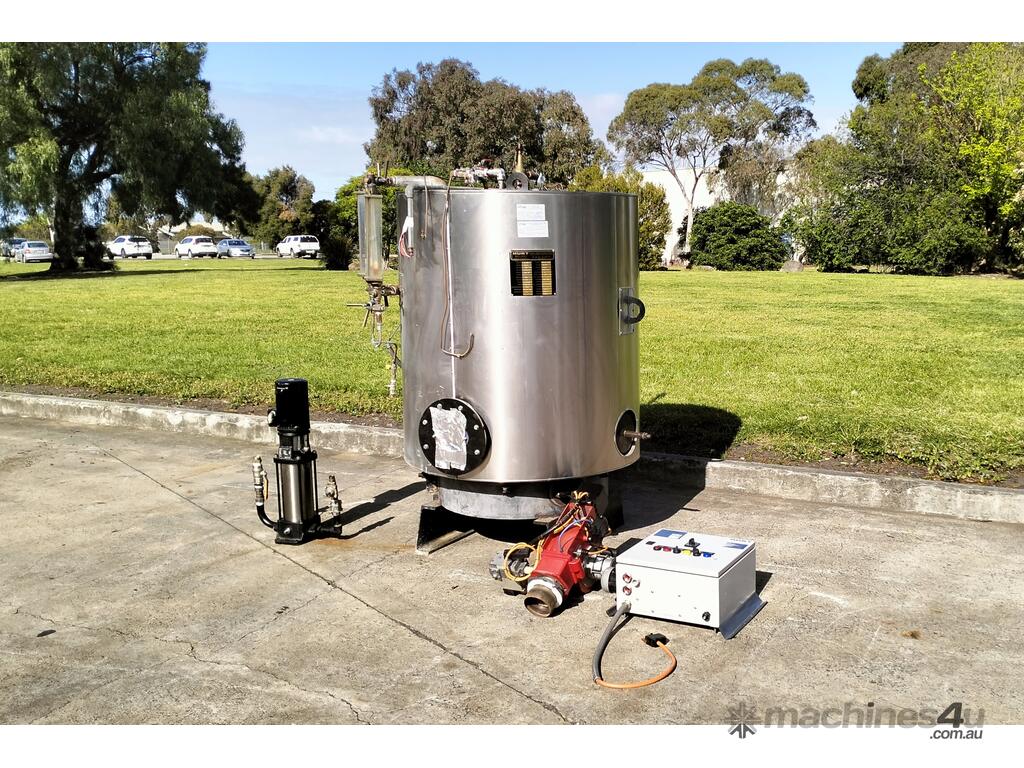

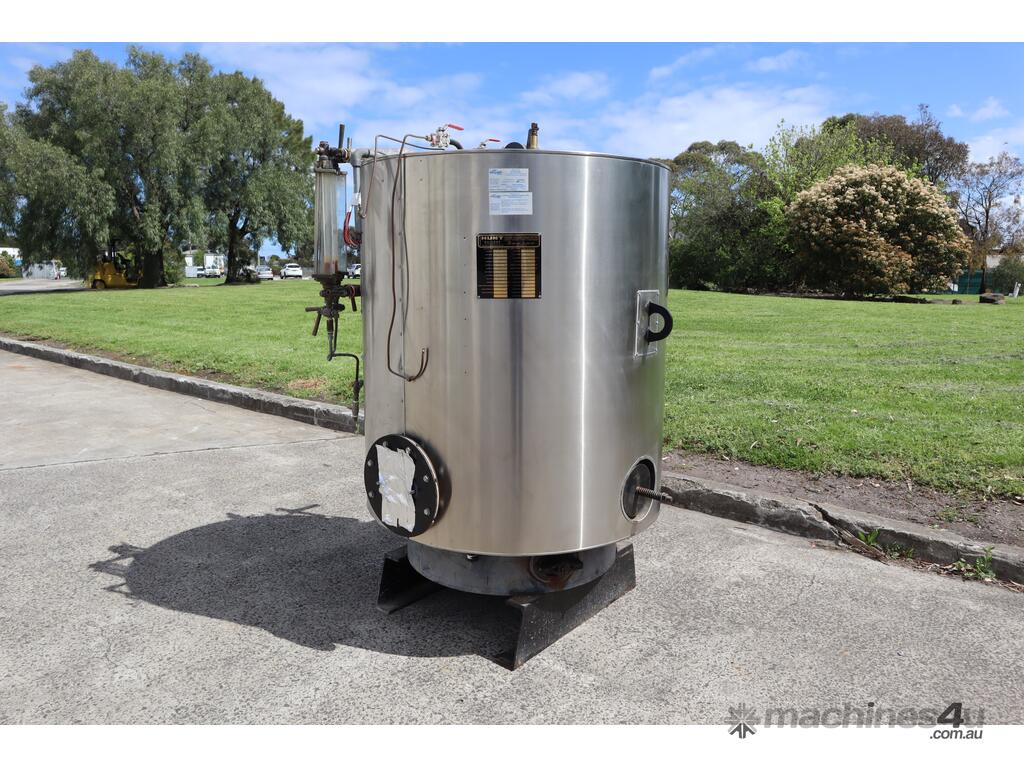

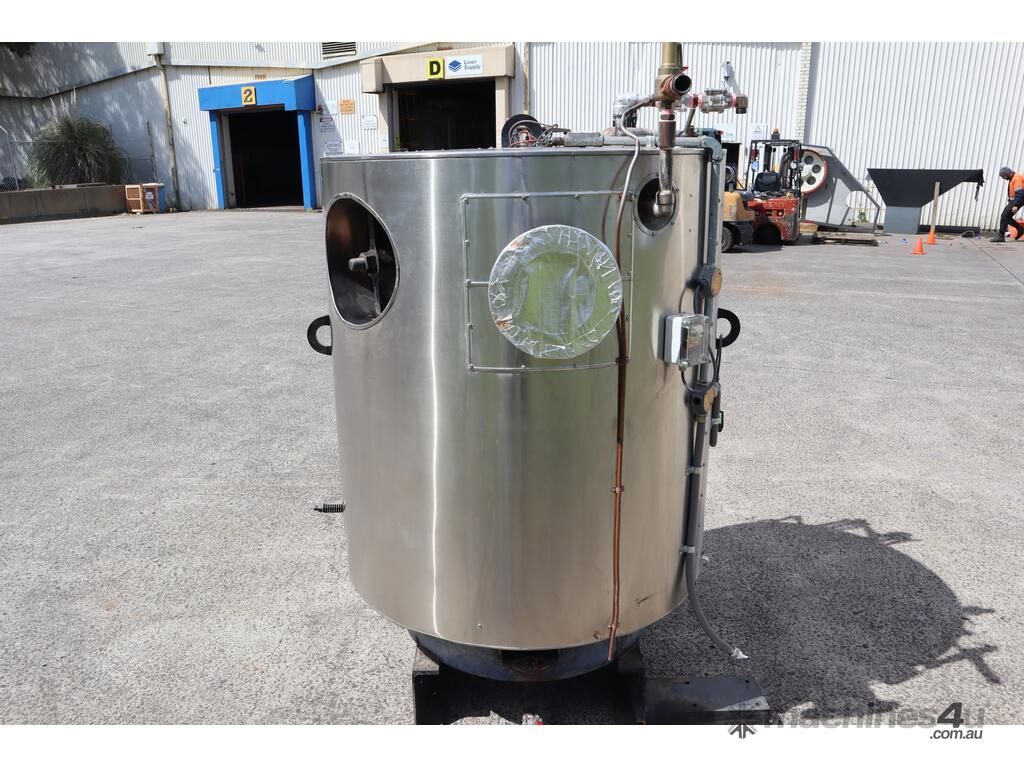

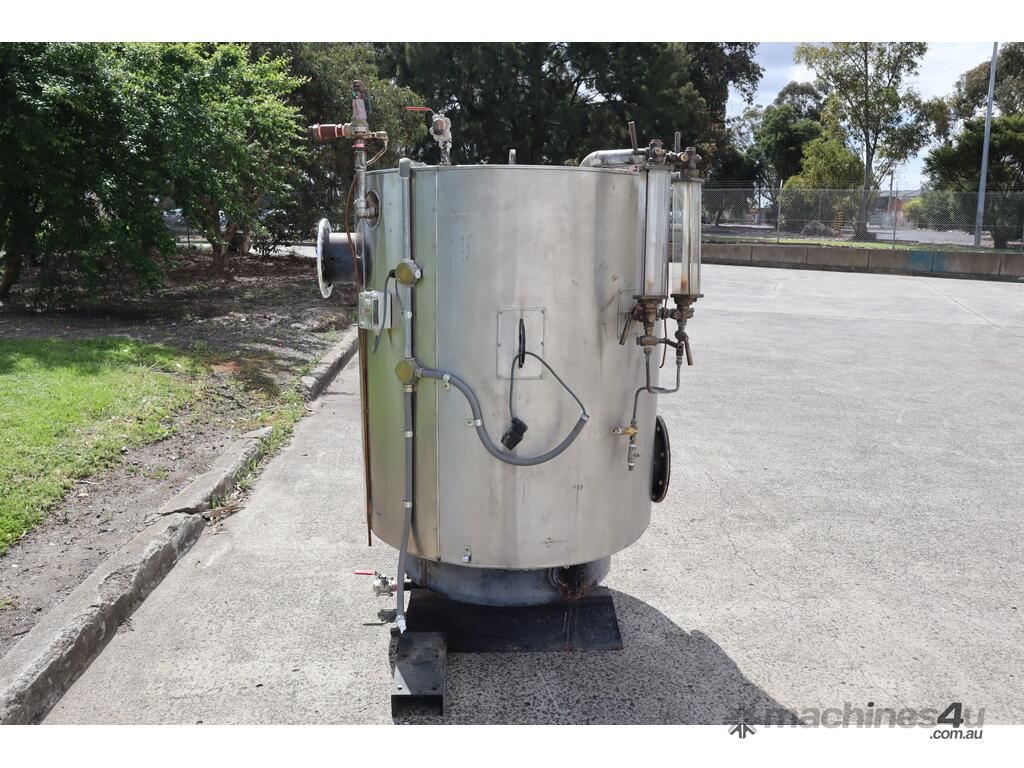

Natural Gas Steam Boiler 150kW - Hunt Boilers VS150 *

FOR A STRICTLY LIMITED TIME, MERCURI TRADING IS ACCEPTING ALL REASONABLE OFFERS!


PRODUCT INFORMATION:

- Description: Natural Gas Steam Boiler
- Model: VS 150
- Manufacturer: Hunt Boilers
- Origin: Australia

APPLICATION:

"This Hunt Boilers VS 150 natural gas steam boiler is designed for heating applications in industries such as food processing, manufacturing, and large-scale commercial operations. It serves businesses requiring consistent and reliable steam production for various thermal processes, offering efficiency in energy consumption. With a power rating of 150 kW, this boiler can maintain stable temperatures and provide steam for industrial heating systems or direct steam applications."

FEATURES:

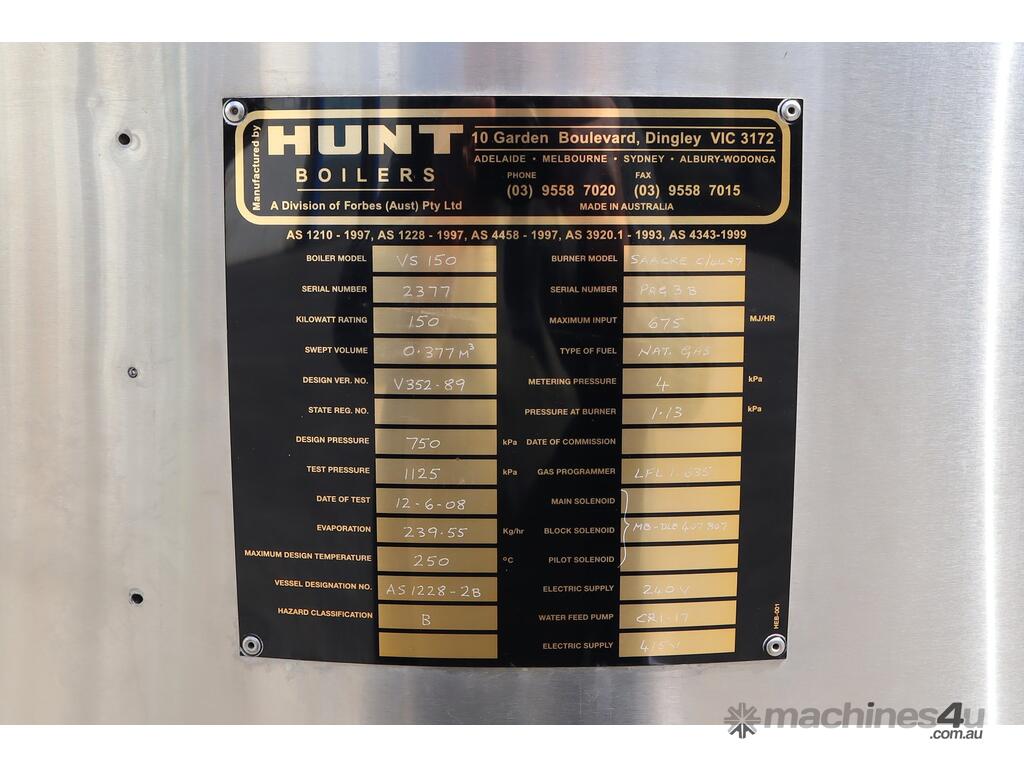

- 150 kW heating capacity
- Natural gas-fired burner system (Saacke C/4497)
- Swept volume: 0.377 m³
- Design pressure: 750 kPa
- Test pressure: 1125 kPa
- Maximum input: 675 MJ/h
- Evaporation rate: 239.55 kg/h
- Maximum temperature: 250°C

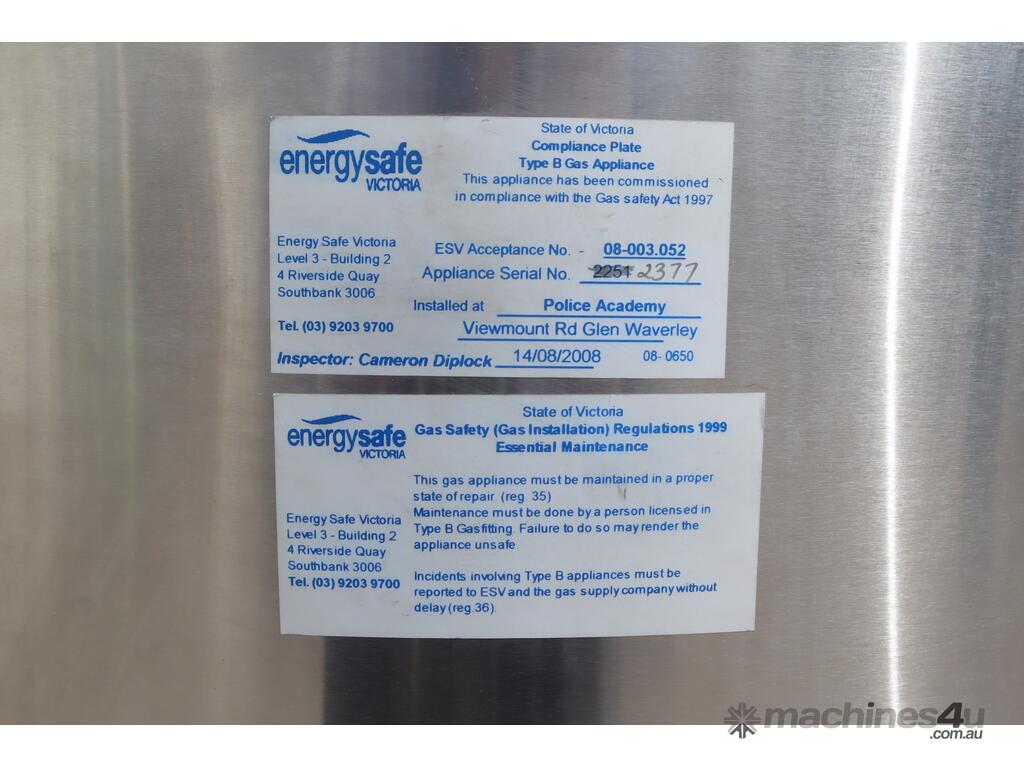

- Built-in compliance with Australian safety standards (AS 1210, AS 1228)
- Stainless steel exterior for durability

MOTOR:

- Type: Induction motor (for burner system)
- Make: Saacke
- Model: PAG 3B
- Current: 240 V / 415 V (Dual supply for various components)
- Voltage: 240 V (Burner motor) / 415 V (General system)

MEASUREMENTS:

- External Dimensions (mm): 1350 L x 1350 W x 1850 H
- Inlet/Outlet Specifications: 150 mm gas inlet, multiple steam outlets

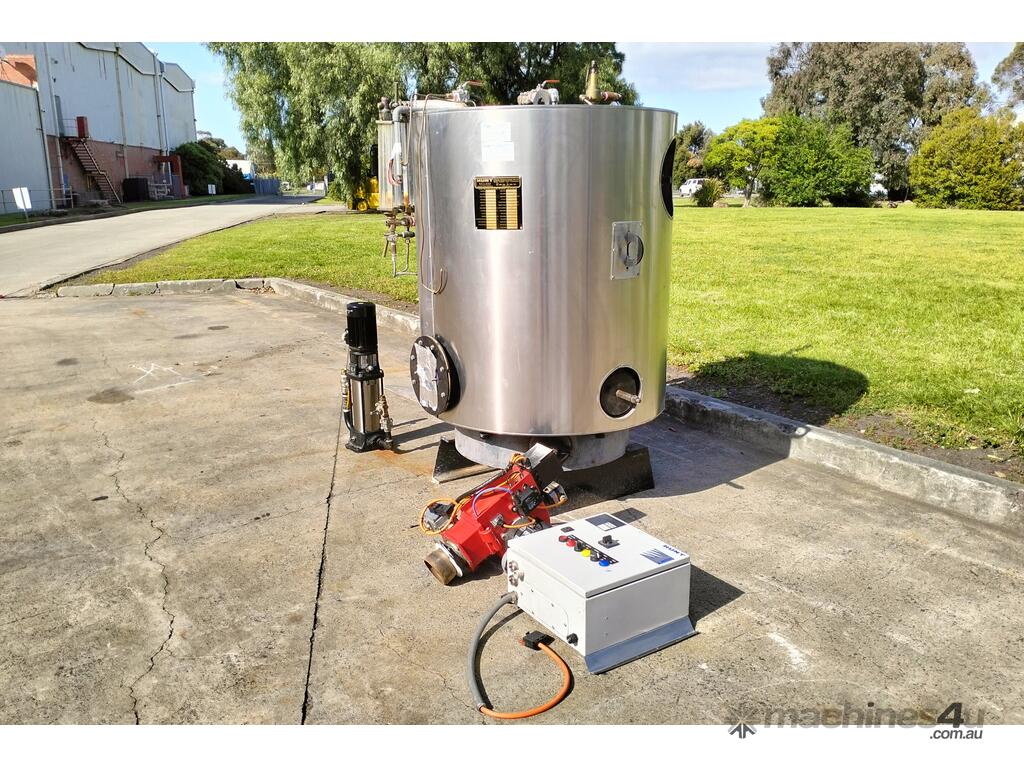

INCLUSIONS:

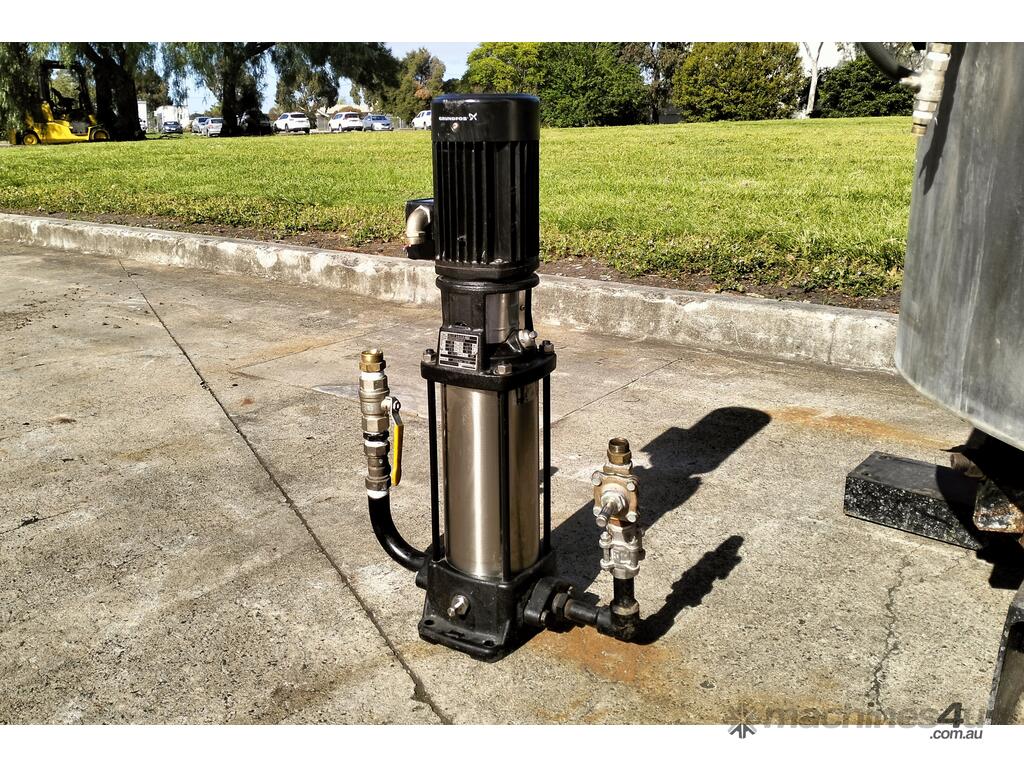

1. MULTISTAGE CENTRIGUGAL PUMP:

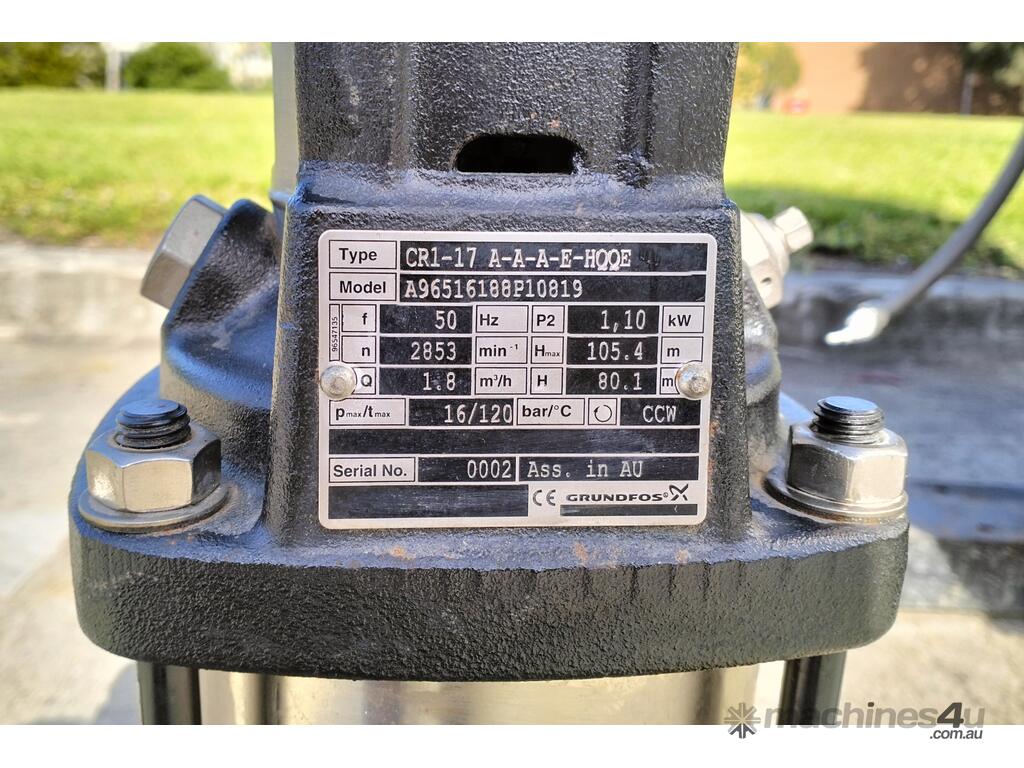

- Grundfos CR1-17 vertical multistage centrifugal pump:

- Type: Vertical multistage pump
- Model: CR1-17 A-A-A-E-HQQE
- Motor Power: 1.1 kW
- Flow Rate: 1.8 cubic meters per hour
- Maximum Head: 105.4 meters
- Pressure: 16/120 bar
- Motor Speed: 2853 RPM
- Voltage: 240/415 V
- Assembly Location: Australia

This pump is a high-pressure pump typically used for transferring liquids in industrial applications such as water supply systems, pressure boosting, and irrigation systems. This pump is efficient for applications requiring reliable pressure and high efficiency, often used in water treatment, cooling, heating, and similar setups.

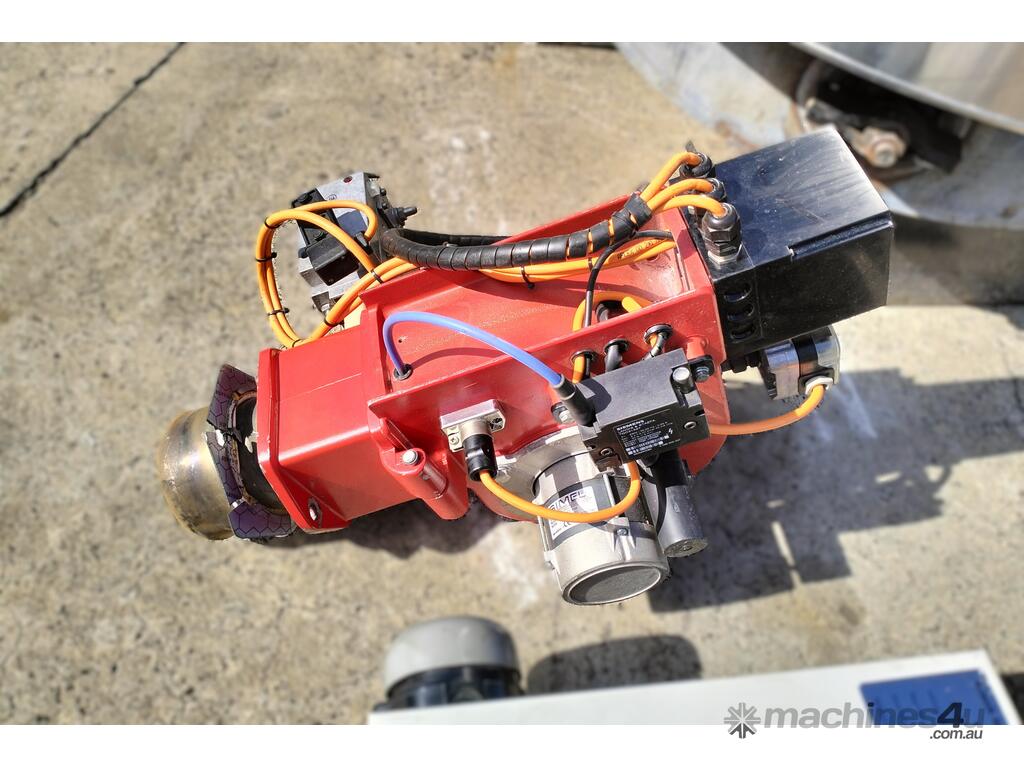

2. GAS BURNER ASSEMBLY:

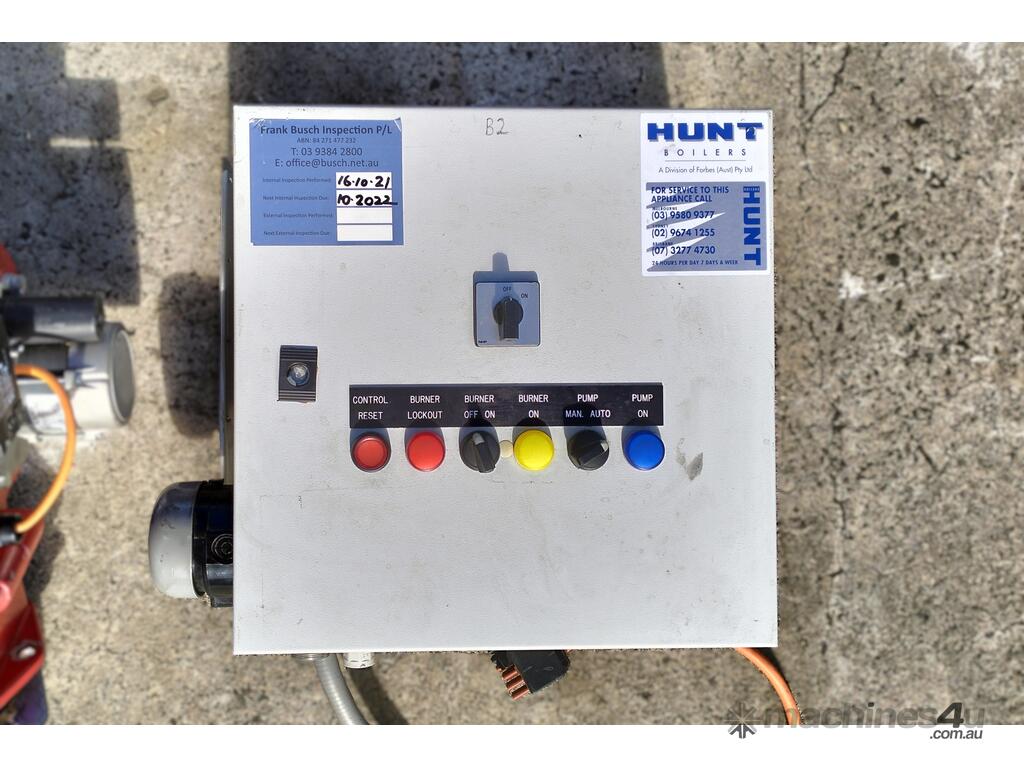

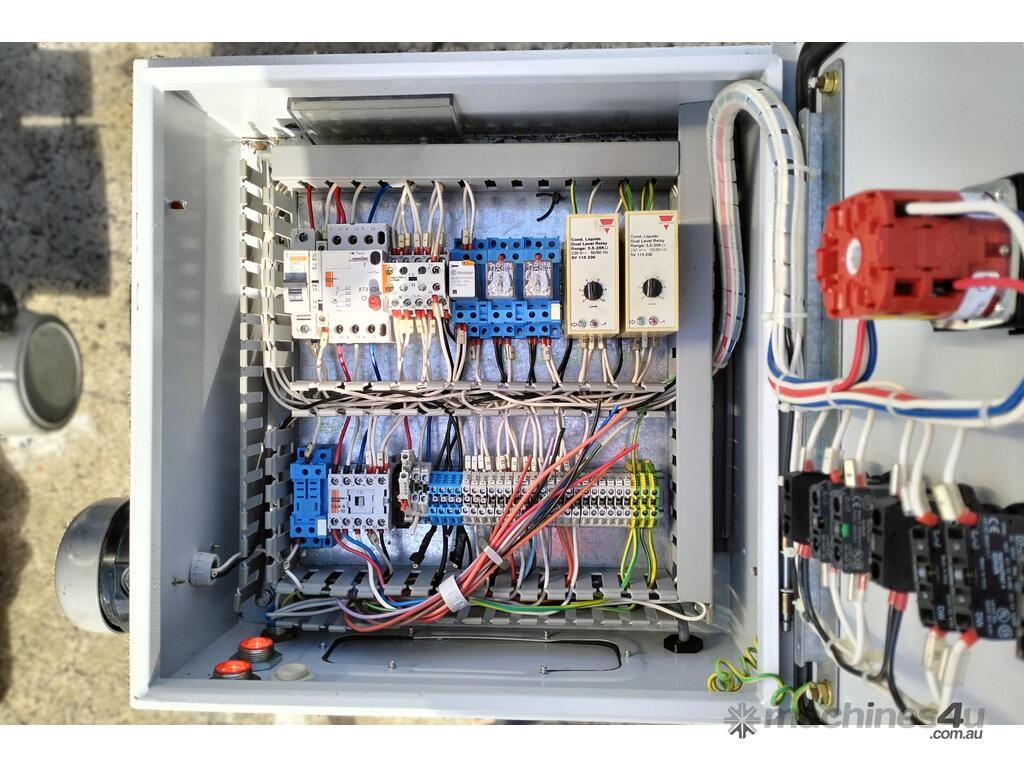

- Burner Control Unit: Siemens LFL1.635
This control unit manages ignition and burner operation, with built-in safety features for flame monitoring and secure operation.

- Blower Motor: SIMEL motor
This motor powers the air blower, providing combustion air for the burner, essential for efficient fuel combustion.

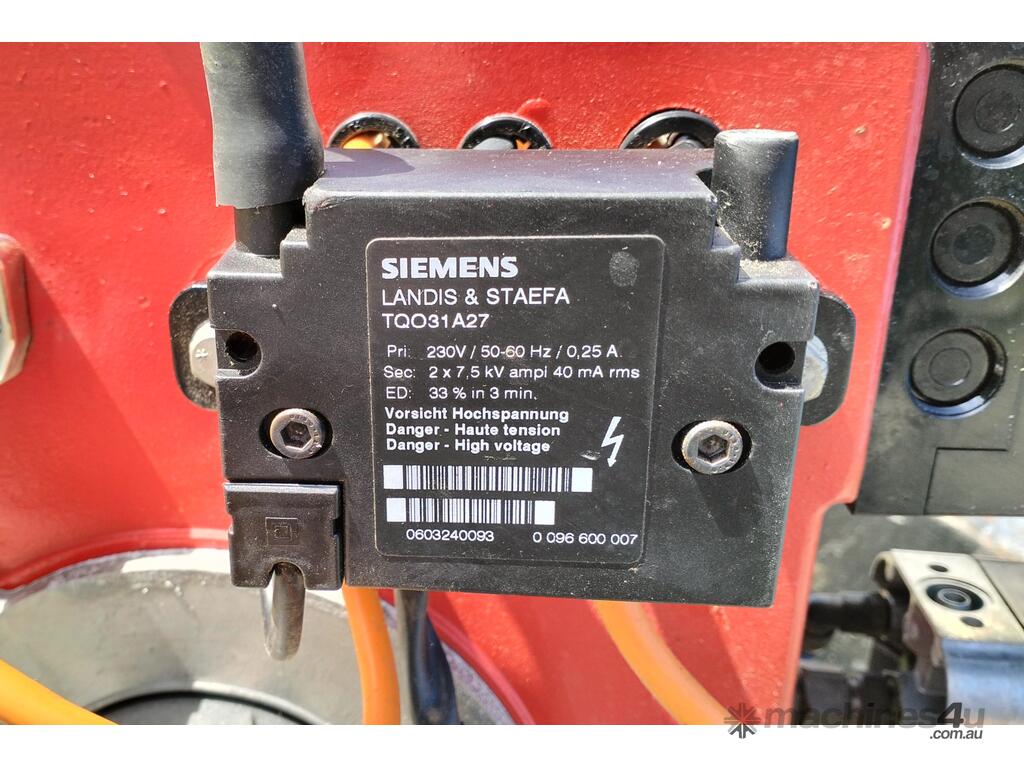

- Ignition Transformer: Siemens Landis & Staefa TOQ31A27
High-voltage ignition transformer ensuring reliable burner ignition.

- Gas Control Valve: DUNGS MB-DLE 407 B07 S22
A precision gas valve responsible for regulating gas flow and ensuring optimal fuel combustion.

This highly efficient gas burner system, powered by natural gas, is ideal for industrial heat generation applications. The integrated components work together to deliver precise fuel-to-air ratios for stable and safe combustion.


NEED TO KNOW:

This item was removed from a functional environment and is backed by our guarantee to be in good working order.
