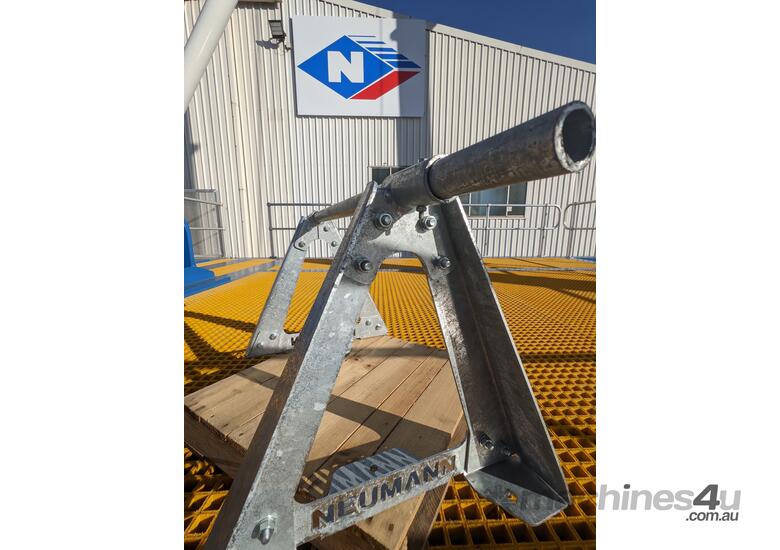

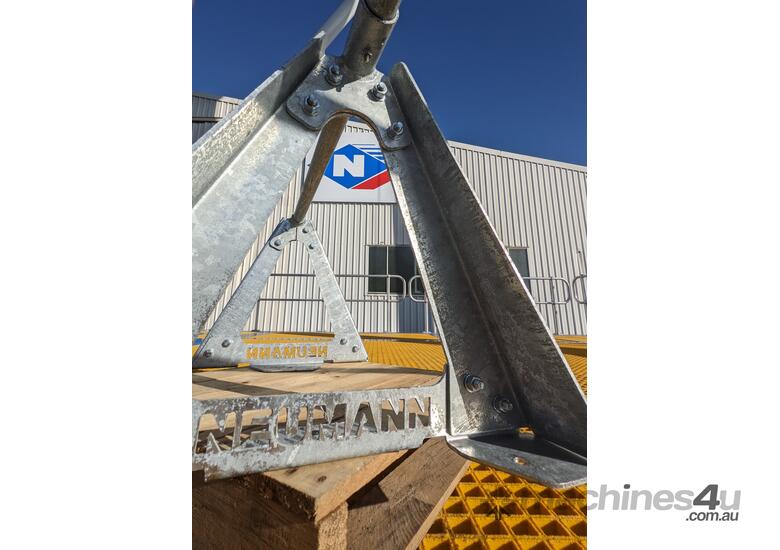

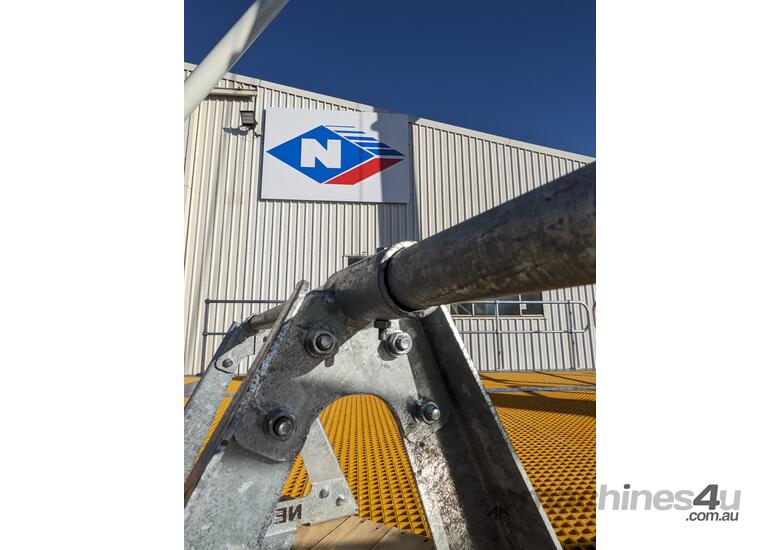

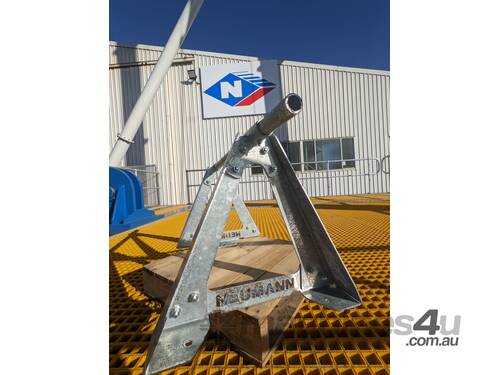

Neumann Equipment - 500kg Neumann Cable Drum Stand - Bolt Together

This is our smallest cable drum stand, with a maximum spindle capacity of 500kg. These have been developed for commercial electrical installations and are light and easy to move around. It has a 34mm spindle and accommodates a maximum drum width of 800mm and a maximum drum diameter of 850mm.

The 500kg cable drum stand can be fully disassembled for storage or ease of transportation. It is available both assembled or as a flat pack.

All our cable drum stand designs are verified using Finite Element Analysis (FEA). They are Built Tough and Designed to Last!

Available assembled or flat-pack.
A light bolt together design, light, easy to assembly, store and transport.
Carbon duty steel construction.
All components are galvanised.

Type (Bolted or Fabricated): Bolted
Maximum Capacity: 500 kg
Suits Drum Widths: 350-800 mm
Maximum Drum Diameter: 850 mm
Spindle Shaft Diameter: 34mm
Suits Drum Core Sizes: 34 mm+
Frame Width: 564-1044 mm
Frame Length: 500 mm
Height to Centre Line of Shaft: 450 mm
Weight: 24 kg
