New 0.7-2 ton (25mm or 30mm Pin) Silenced Excavator Hydraulic Hammer Rock Breaker

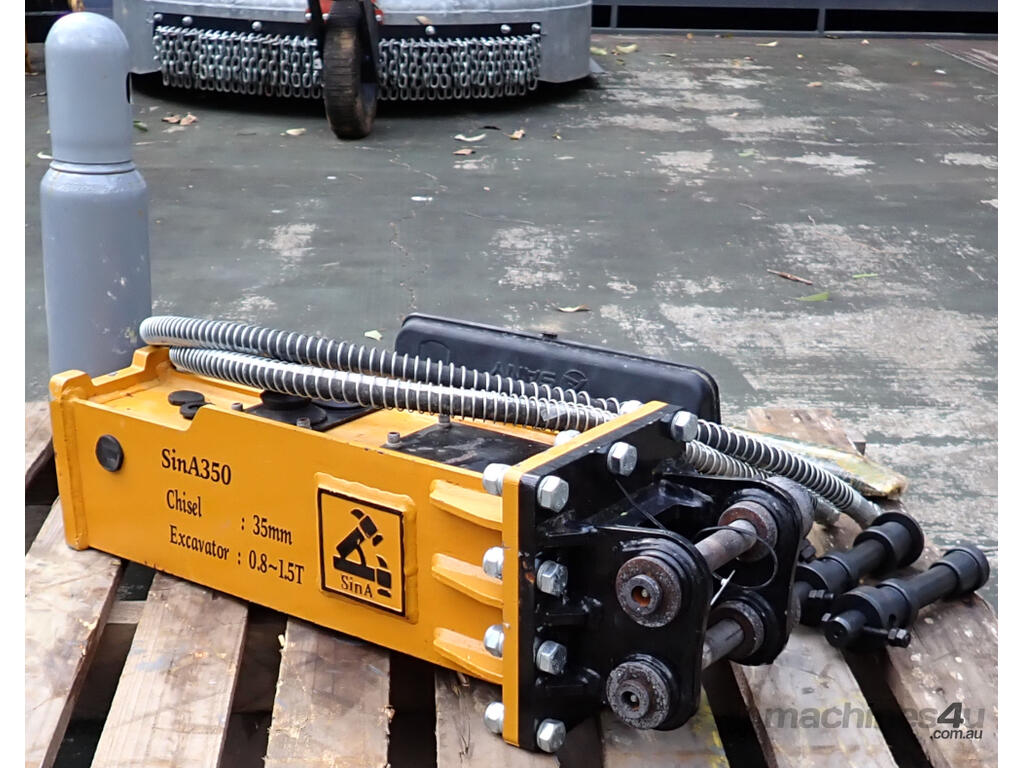

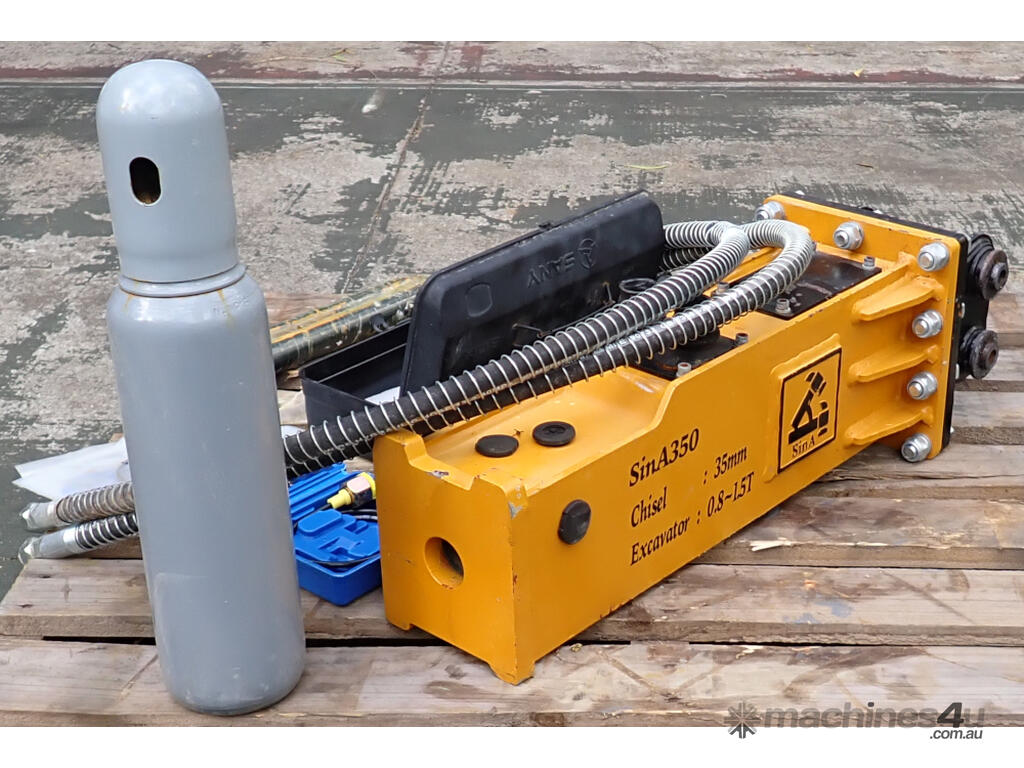

New SinA / Jea Wen SinA350 Silenced Excavator Hydraulic Hammer Rock Breaker to suit: 0.7-2 ton machine.
Great for loosening and breaking up rock, rocky ground, concrete, tarmac, paved areas, demolition etc.

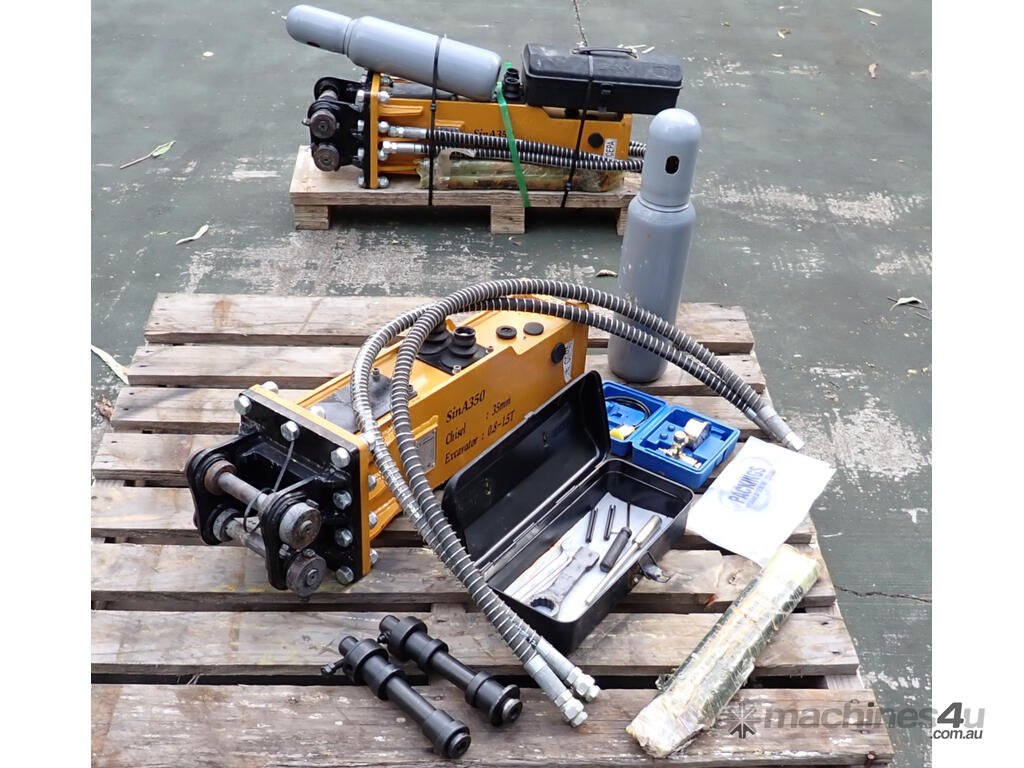

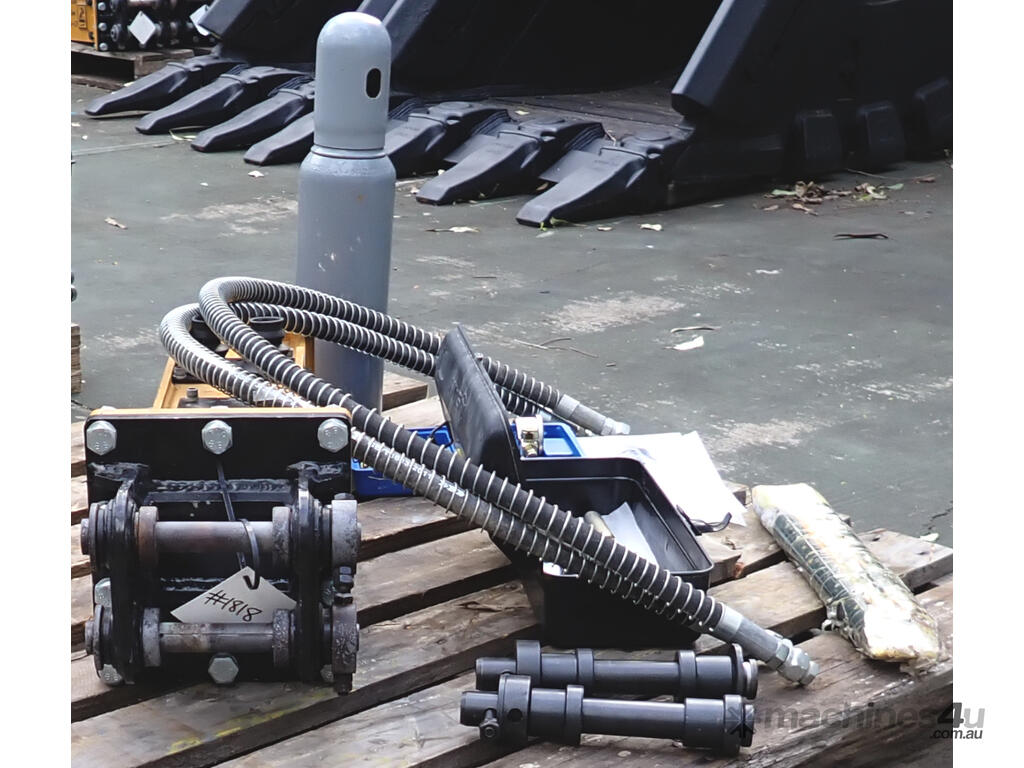

Comes with 2x 36.5mm diameter Moils (1 Point tip, 1 Chisel tip), Hoses, Toolbox with various Spanners & Tools etc. and a Nitrogen Gas Bottle & Pressure Gauge Kit for regassing the breaker.
It also includes a complete Reseal Kit if you should ever need to have the breaker fitted with fresh internal seals.

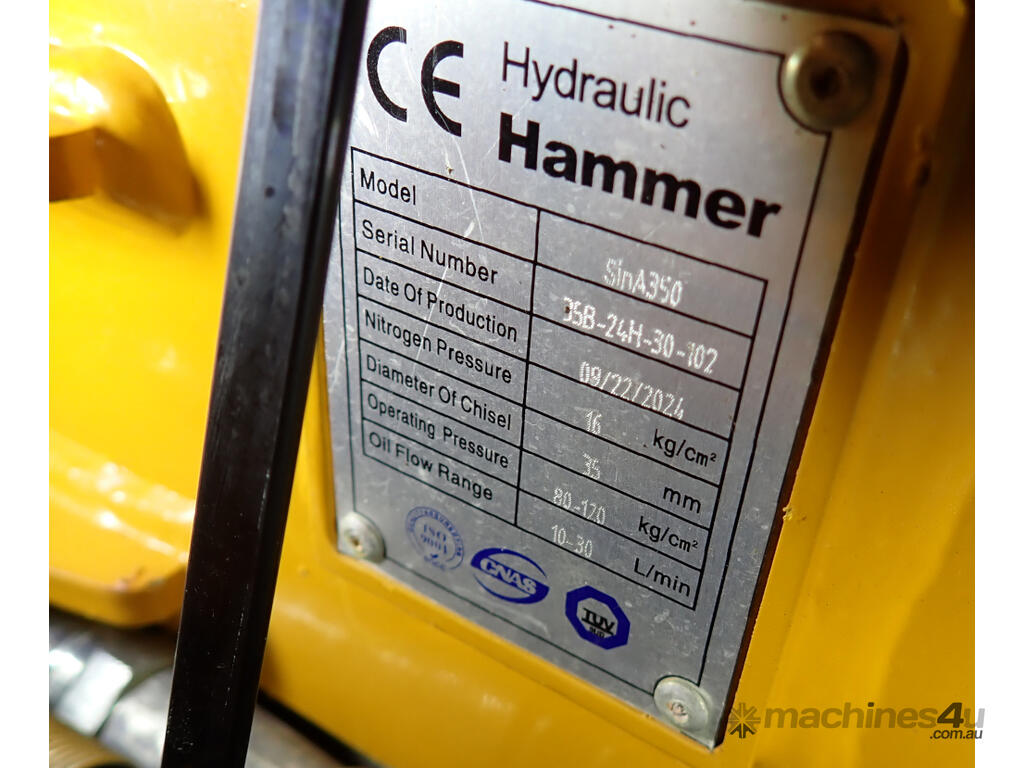

Required Oil Flow: 10-30 L/min.
Working Pressure: 80-120 Kg/cm² (78-118 Bar).

*** Current Headstock Configuration:
* Pins: The Hitch Headstock currently has 25mm Pins or 30mm Pins (you choose a set) fitted into collar bosses that fit into 40mm diameter Pin holes, so pins up to 40mm diameter can be fitted without needing to bore out the holes in the headstock.
* CtoC: The Pin Center to Pin Center is 90mm.
* BTE: The distance between the collar bosses is 97mm. Removing the collar bosses, the distance between the headstock bosses is 125mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 135mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.

** Using 25mm Pins:
Should fit: Case CK 15, Daewoo Solar 007 / 010 / 015, JCB 801 / 801.4 / 8018, Kobelco SK 07, Kubota KH 05 / KH 12 / KH 35 / KH 36 / KH 41 / KX 30 / KX 36 / KX 41 / KX 41-2 / KX 41-3 / U17-3, Takeuchi TB 07 / TB 108.
Maybe fit: Airman AX08, Hitachi EX08, Komatsu PC 02, Wacker Neuson 803 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

** Using 30mm Pins:
Should fit: ??? Unknown.
Maybe fit: ??? Unknown.


Breaker Dimensions (without moil or hoses): 760mm(L) x 230mm(W) x 240mm(H), Weight: 90kgs.

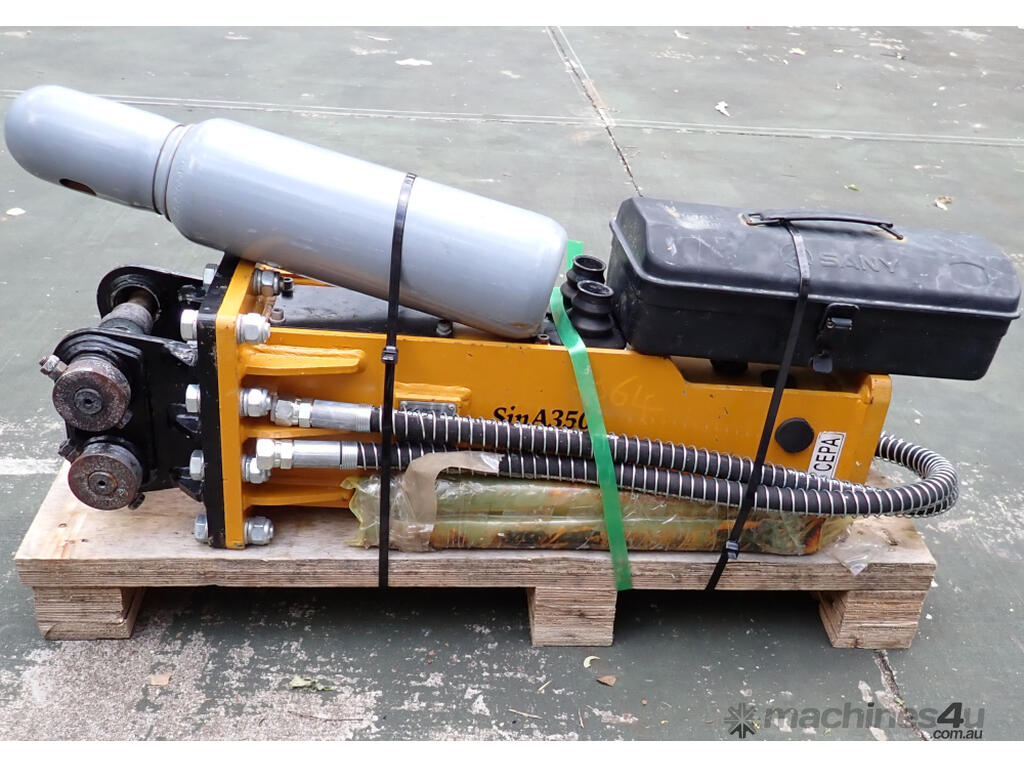

Shipping Dimensions (everything strapped to skid): 970mm(L) x 260mm(W) x 480mm(H), Weight: 114kgs.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
