New full Attachment Kit for 0.8-1.7 ton Mini Excavator Diggers using 25mm pins. $5,420 of value.
Headstock Setup for All Attachments:
* Pin Diameter: 25mm.
* Pin Center to Pin Center: 90-92mm (except Ripper = 85mm).
* Between the Ear Plates: 91-92mm.
Should fit: Airman AX08, Agrotk Industrial AGT QS12R / QS-12R / QS12K / QS-12K / HQ12 / HQ-12 / H12 / H-12 / L12 / L-12, DLK Industrial DK12 / DK-12, FF Industrial FF12 / FF-12 / FF13 / FF-13, Hitachi EX 08, Lanty LAT13 / LAT-13, Komatsu PC 02, Machpro MP15 / MP-15, Vicsec VC13 / VC-13 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
Comes with 2 pins in the Quick Hitch and 6 available Pins.
Additional Pins if required: $30 each.
We will sell items individually for the below prices (if we have availability).

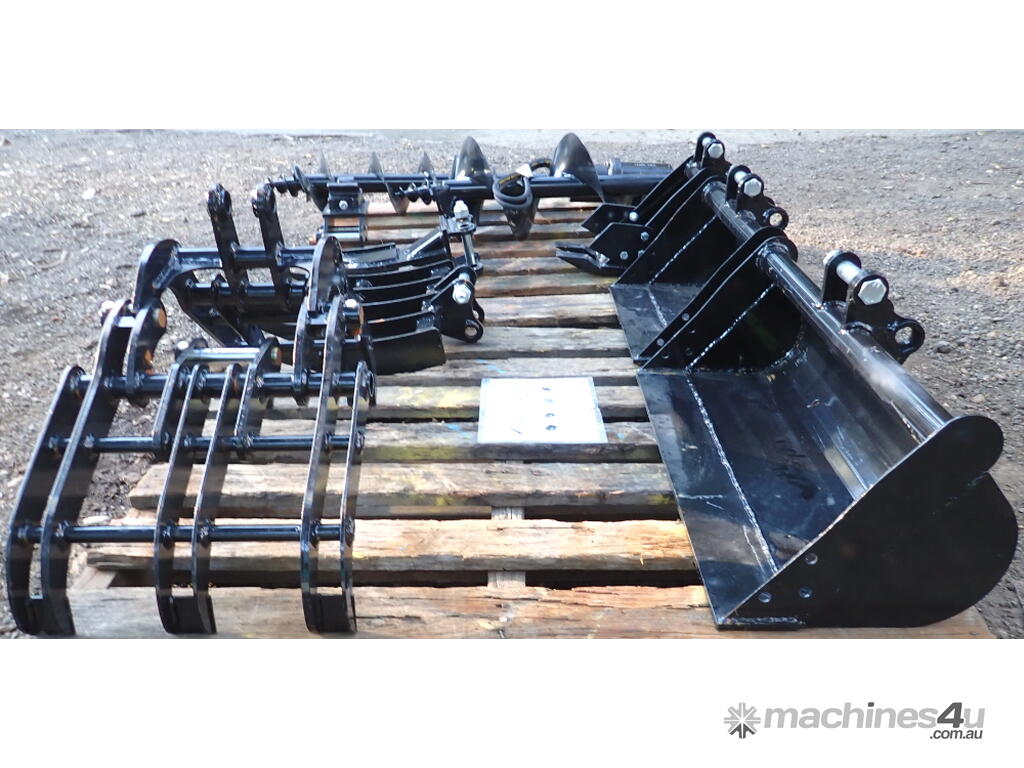

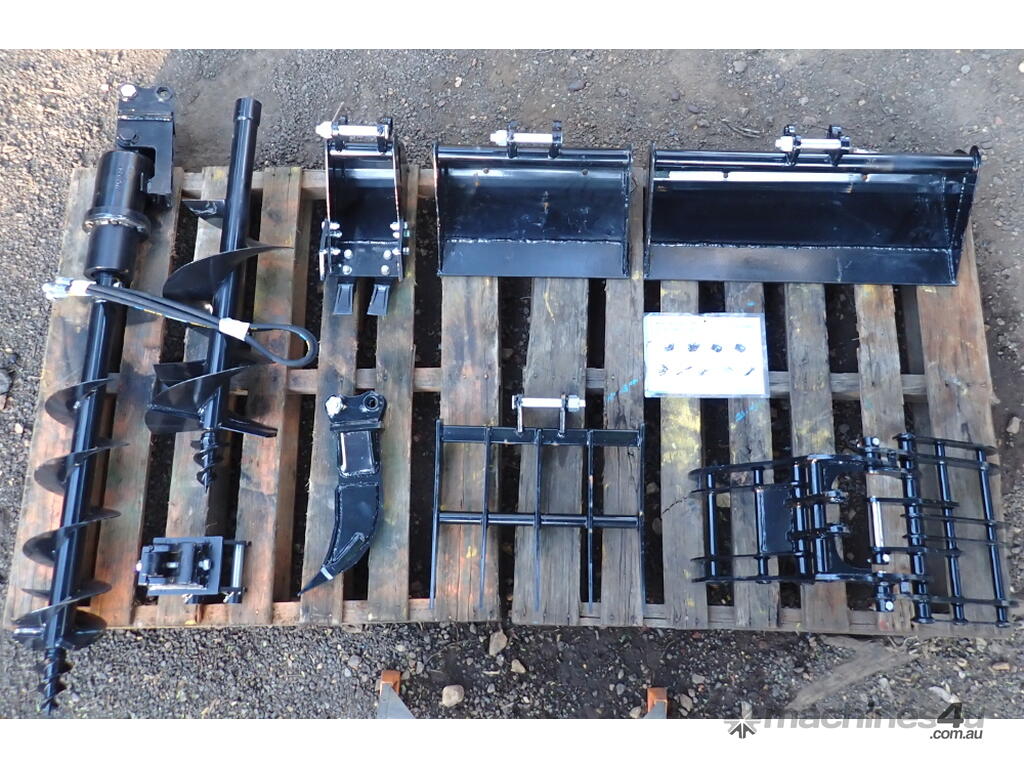

Kit Contains:
*** Mechanical Quick Hitch:
Makes changing attachments much quicker & easier without the need for additional Hydraulic Lines to run a Hydraulic Hitch.
* Grabs and releases attachments by tightening and loosening rear Nut.
* Will pick Pin Centers (CtoC) between 82mm-92mm.
WxDxH(mm)xKg: 142 x 230 x 172 x 8kg.
Alone: $580.
*** 200mm Trenching Bucket:
Digging narrow trenches for pipes & cables.
* Teeth for better penetration.
* Bolt-on Side Cutters to minimise wear on bucket.
WxDxH(mm)xKg: 215 x 470 x 335 x 15kg.
Alone: $430.
*** 500mm Bucket:
More broad digging in soft to medium ground. (For harder ground, 1st break up the soil with the Ripper or 200mm Toothed Bucket).
* Has holes ready for optional bolt-on Side Cutters.
WxDxH(mm)xKg: 500 x 350 x 337 x 19kg.
Alone: $550.
*** 800mm Cleanup Mud Bucket:
Moving larger volumes of soft or looser / already dug soil quickly.
* Has holes ready for optional bolt-on Side Cutters.
WxDxH(mm)xKg: 801 x 350 x 335 x 27kg.
Alone: $680.
*** Ripper:
Ripping up tree roots, breaking up rock and loosening hard or rocky ground, tarmac, paved areas etc.
WxDxH(mm)xKg: 173 x 188 x 450 x 12.2kg.
Alone: $390.
*** Rake:
Clearing large weeds, lantana, brush, small trees etc.
WxDxH(mm)xKg: 495 x 145 x 510 x 12kg.
Alone: $470.
*** Auger Drive with 200mm & 300mm Augers:
Drilling holes for posts, retaining walls, fencing etc.
* Drive Motor & Headstock:
WxDxL(mm)xKg: 180 x 210 x 600 x 36.4kg.
* 200mm Auger:
Diam x Length(mm)xKg: 200 x 1000 x 11.4kg.
* 300mm Auger:
Diam x Length(mm)xKg: 300 x 1000 x 13.4kg.
* Includes 2 Hydraulic Hoses, 1.5m Long.
Alone: $1650.
*** Mechanical Grapple Grab:
Picking things up, logs, rubbish etc.
May require an additional mounting bracket to be welded to the underside of your machines Dipper Arm if your machine doesn't already have a Thumb/Grab mount fitted.
WxDxH(mm)xKg: 400 x 490 x 240 (closed/collapsed) x 24kg.
Mouth Opening Width: 662mm.
Alone: $670.

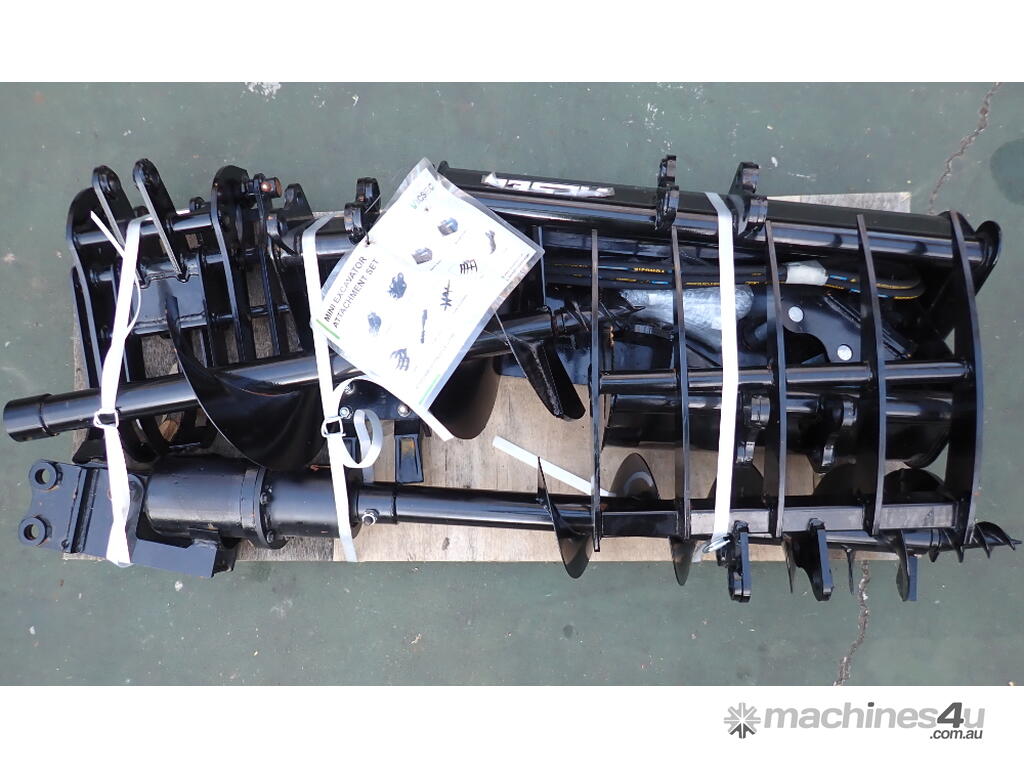

Shipping Dimensions (all strapped to skid, see pics# 9-10): 1600mm Long, 700mm Wide, 470mm High.
Weight: 188kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
