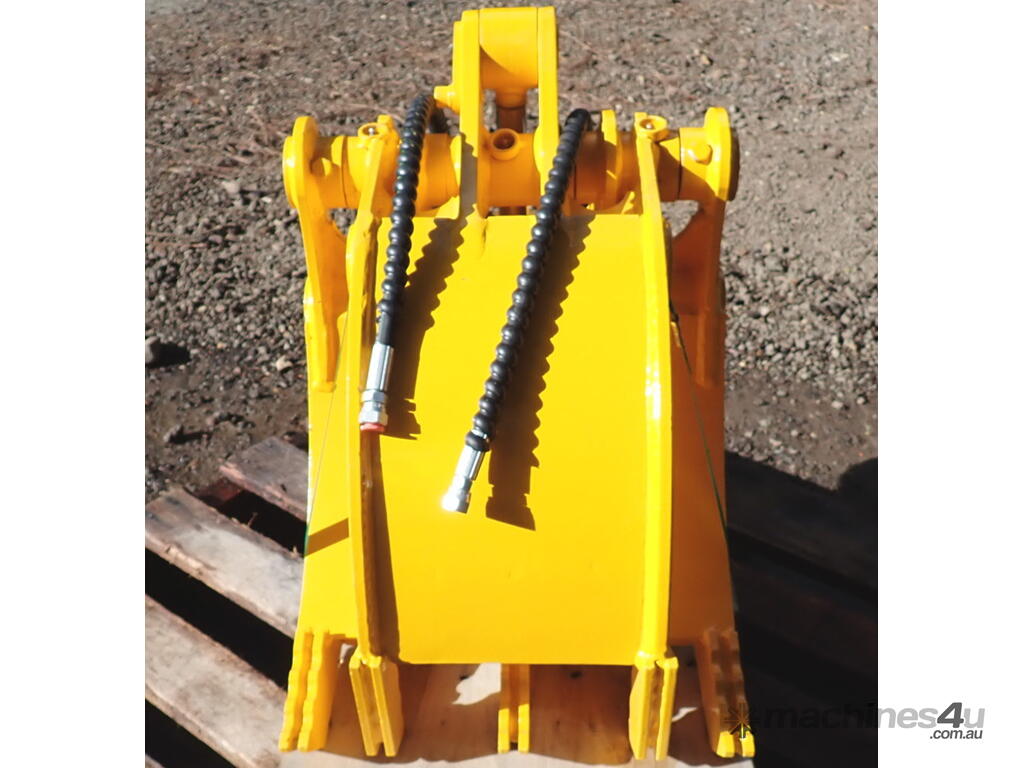

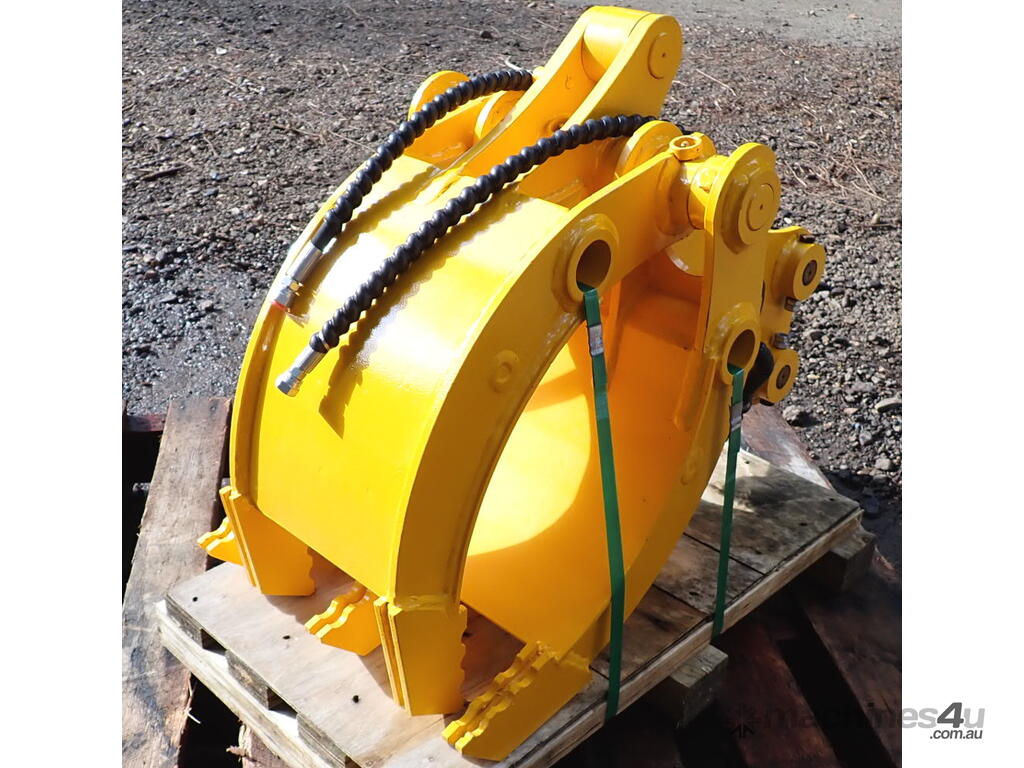

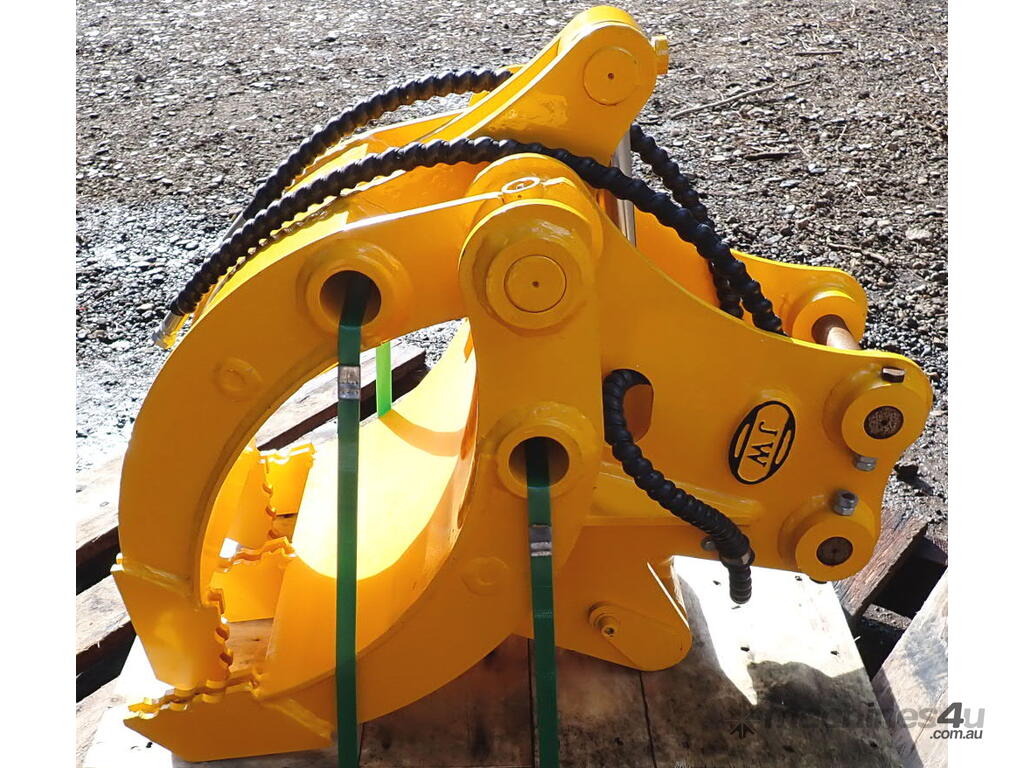

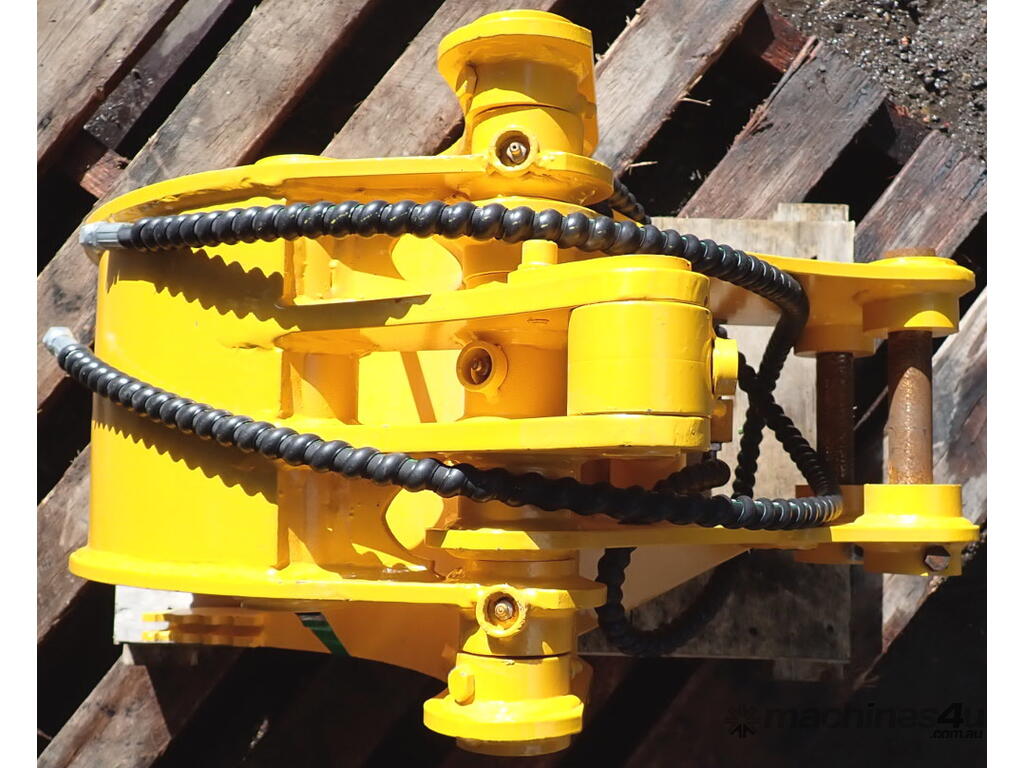

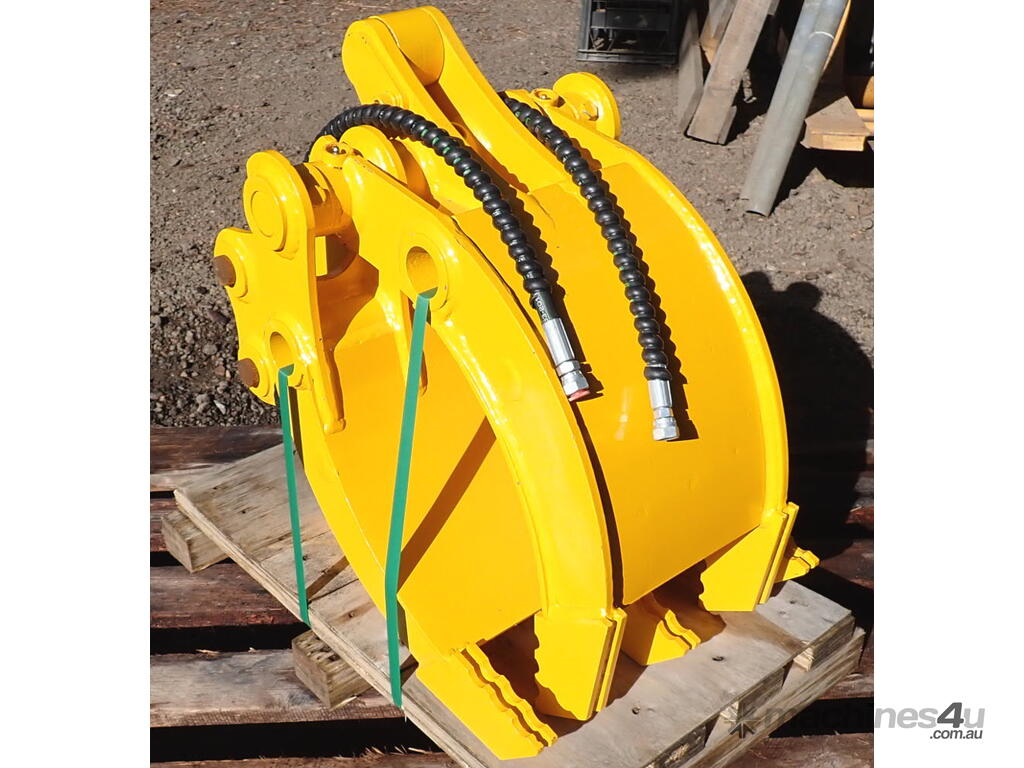

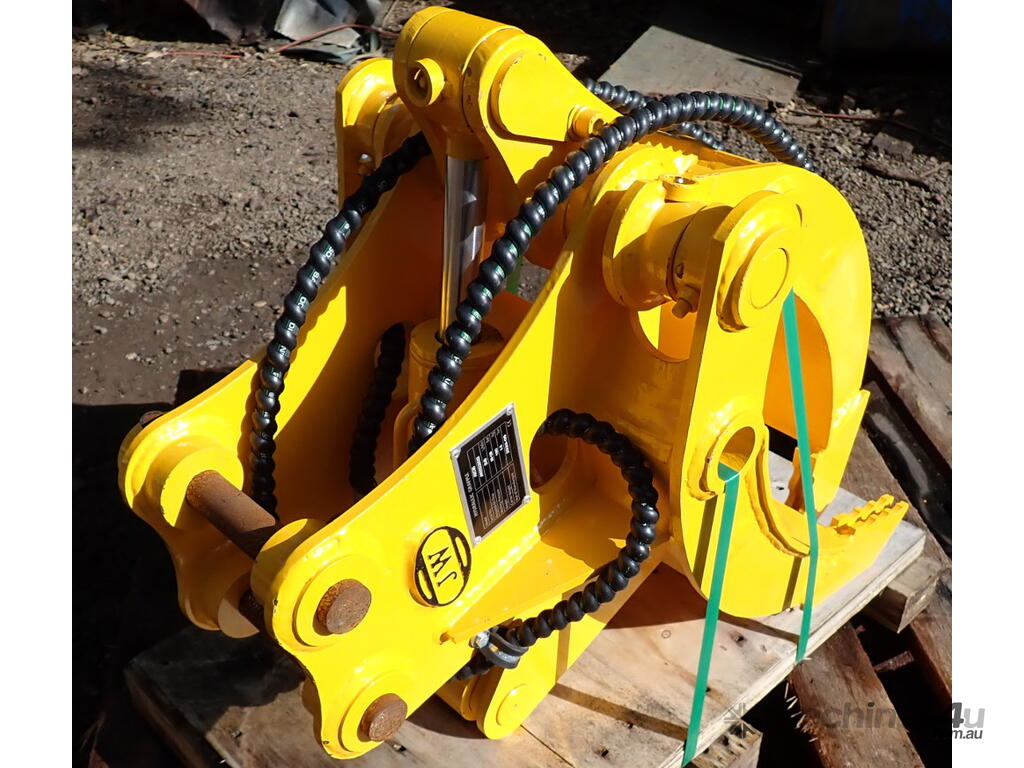

New 1-3 ton (30mm Pin) Excavator Hydraulic Grapple Grab

New Jea Wen ASC30 Excavator Hydraulic Grapple Grab suit 1-3 Ton machine.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

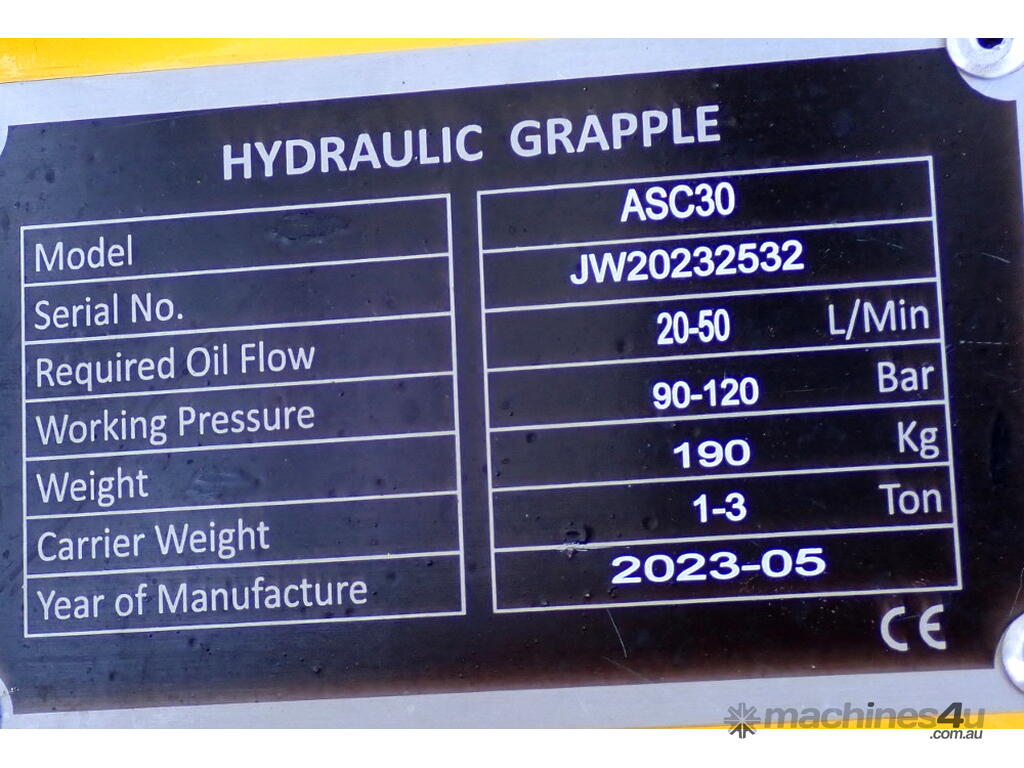

Required Oil Flow: 20-50 L/min.
Working Pressure: 90-120 bar.

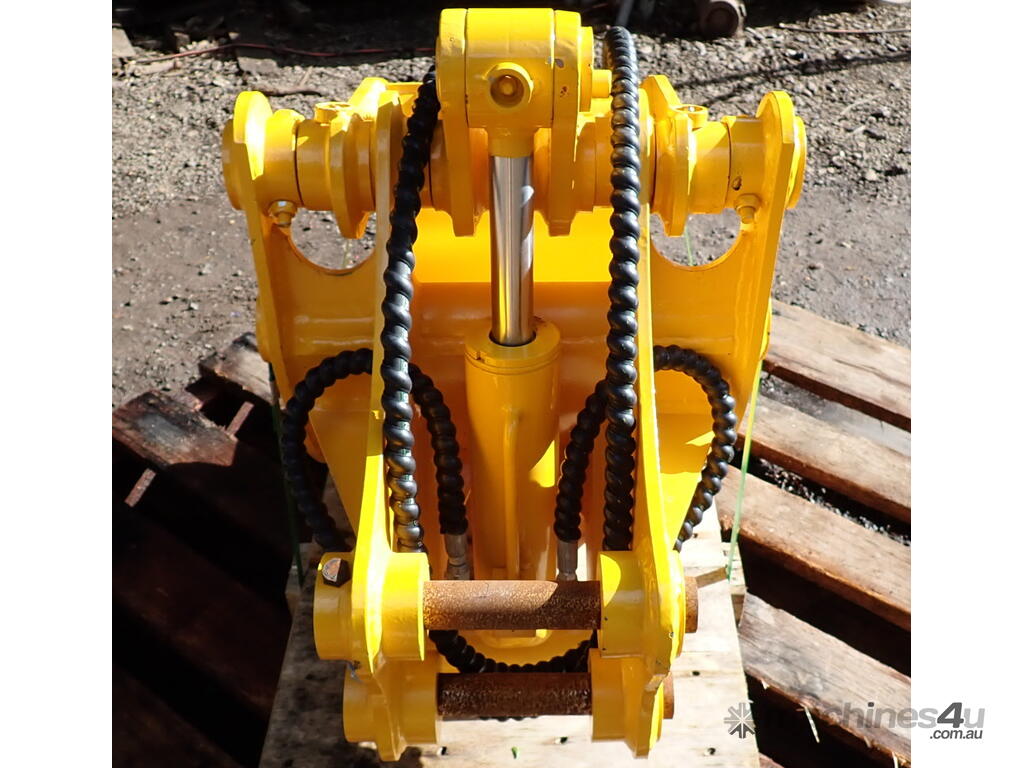

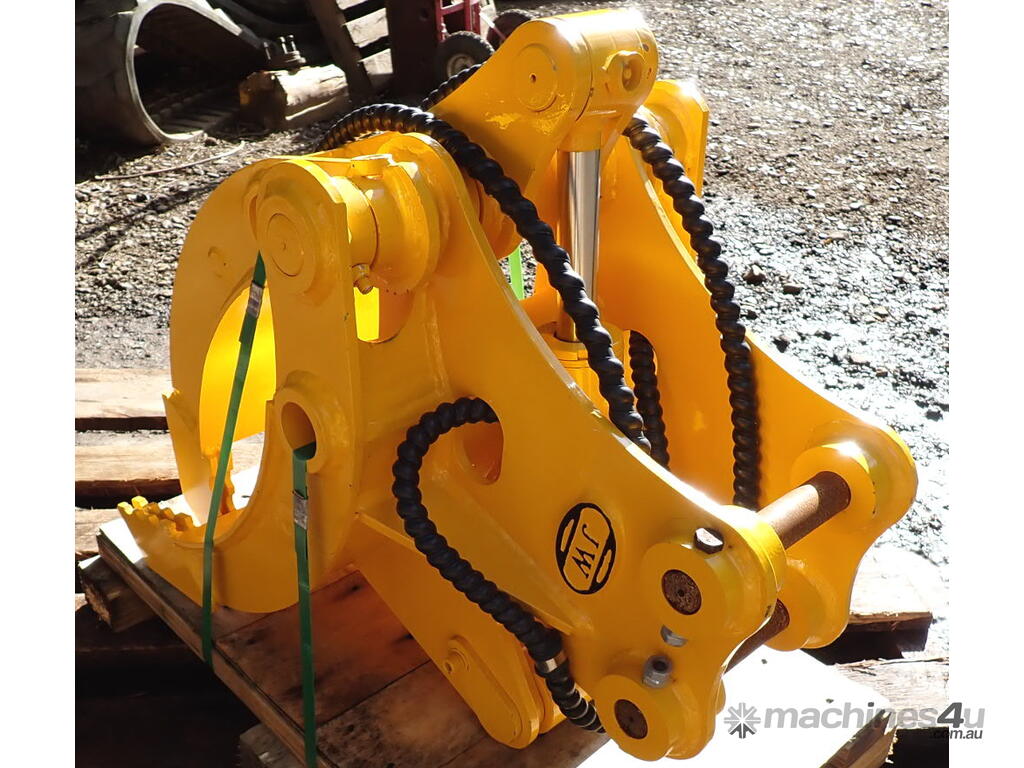

Headstock configuration:
30mm Pin Diameter, 125mm Pin Center to Pin Center (CtoC), 107mm Between the inside Ear Bosses (which can be shaved back up to 165mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Bobcat 322 / 323 / X320 / X322, Case CX 14 / CX 15, Caterpillar 301.5 / 301.8, Daewoo Solar 015, Hanix H15B-2, Hyundai R 16-7, Kobelco SK 13SR / SK 13SR-2 / SK 15 / SK 16 / SK 16E / SK 16MSR / SK 17 / SK 17E, Komatsu PC 05-6 / PC 05-7 / PC 05 New Type / PC 05 Old Type / PC 07 / PC 07-1 / PC 07-2 / PC 07 New Type / PC 12R-8 / PC 12R-8E / PC 12 New Type / PC 15MRX-1 / PC 15R-8 / PC 15 New Type, Libra 116, New Holland EC 15, Pel Job EB 12, SMC MX15, Volvo EC 14 / EC 15, Wacker Neuson 1403 / 1404 / 1503 / 1903 / 2203 / 2503, Yanmar B 10 / B 12 / B 15 / B 17 / B121.

Maybe fit: Airman AX12, Hitachi EX12 / EX15 / EX16 / UE 10, Kubota KH 51 / KX 61 / KX 61-2 / U20, Takeuchi TB 14 / TB 15 / TB 15FR / TB 16 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions (not including skid): 405mm wide, 670mm long, 560mm high. Weight: 116kg.

Shipping Dimensions (with skid): 475mm wide, 700mm long, 655mm high. Weight: 120kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
