New 1-3 ton (30mm Pin) Hydraulic Thumb Bucket Grapple Grab Excavator

Name: New 1-3 ton 30mm Pin Hydraulic Thumb Bucket Grapple Grab Excavator
Brand: Not Specified Unknown
SKU: 917181
Price: 2227 AUD
Availability: InStock

PULLENVALE, QLD

$2,227 AUD($2,450 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Excavator Grab

Make:

NOT SPECIFIED UNKNOWN

Year:

2023

Member Since: Oct 2023

Bronze Member

Listings: 179

Hitch/3PL Pin size(mm):

Description

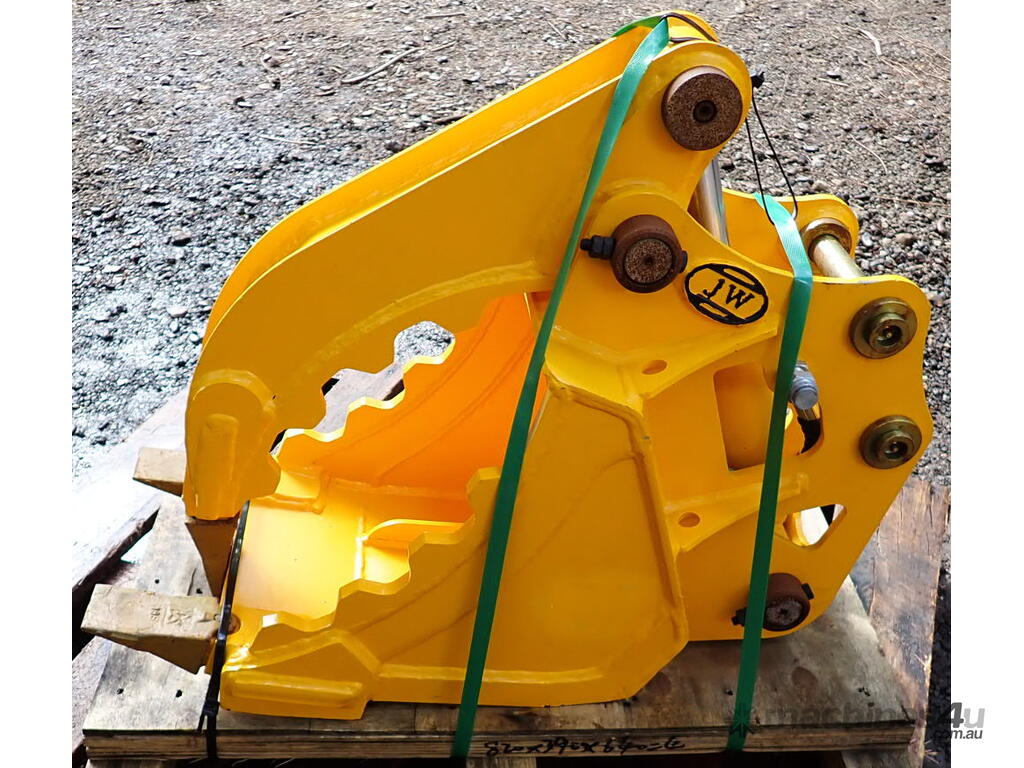

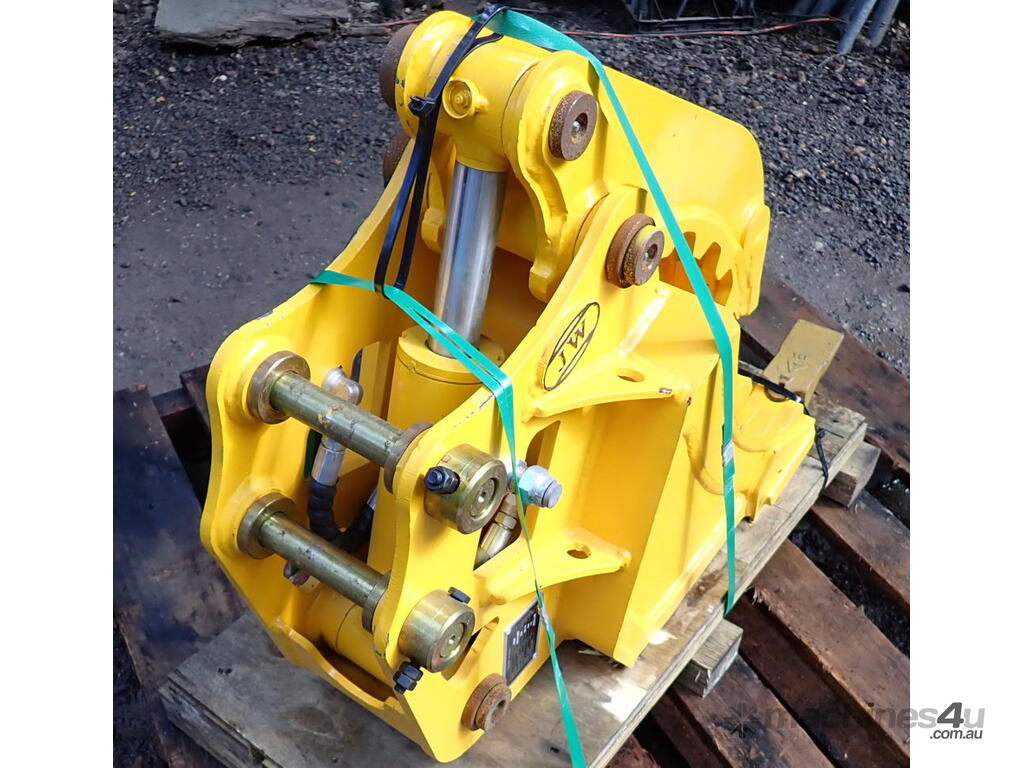

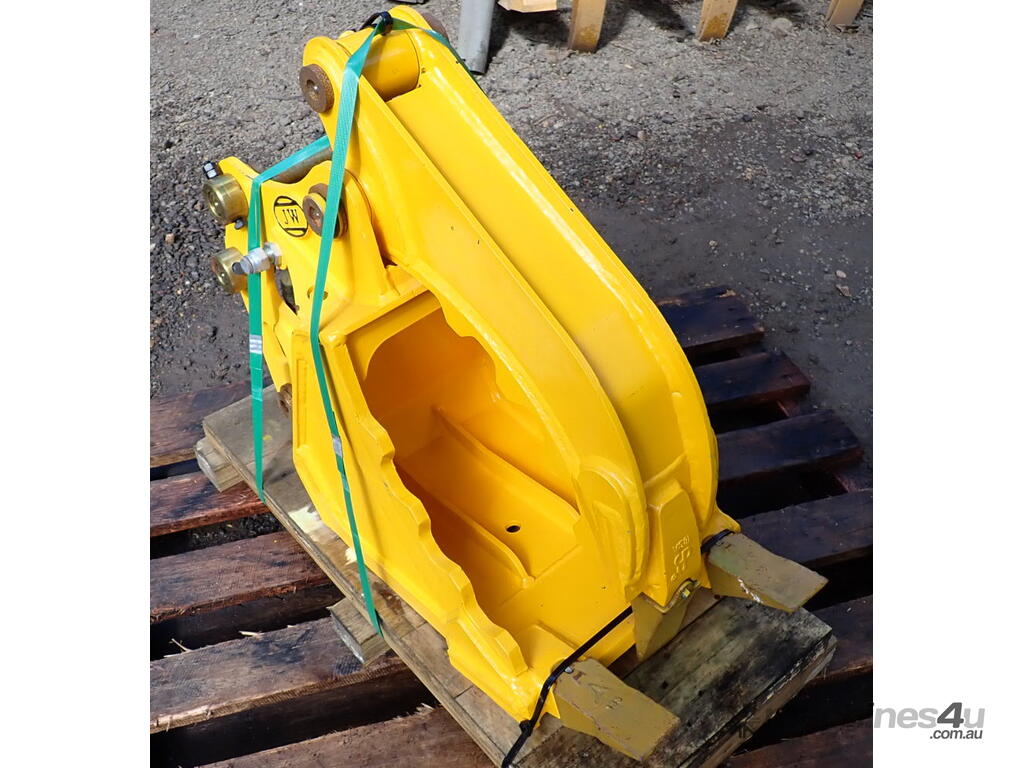

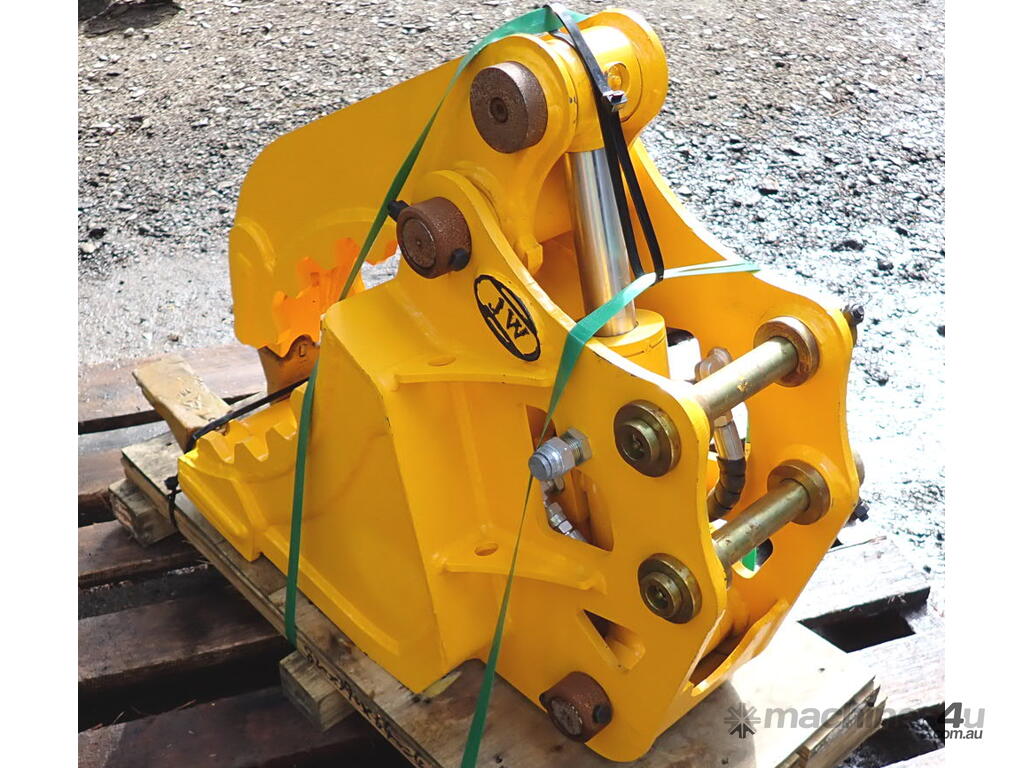

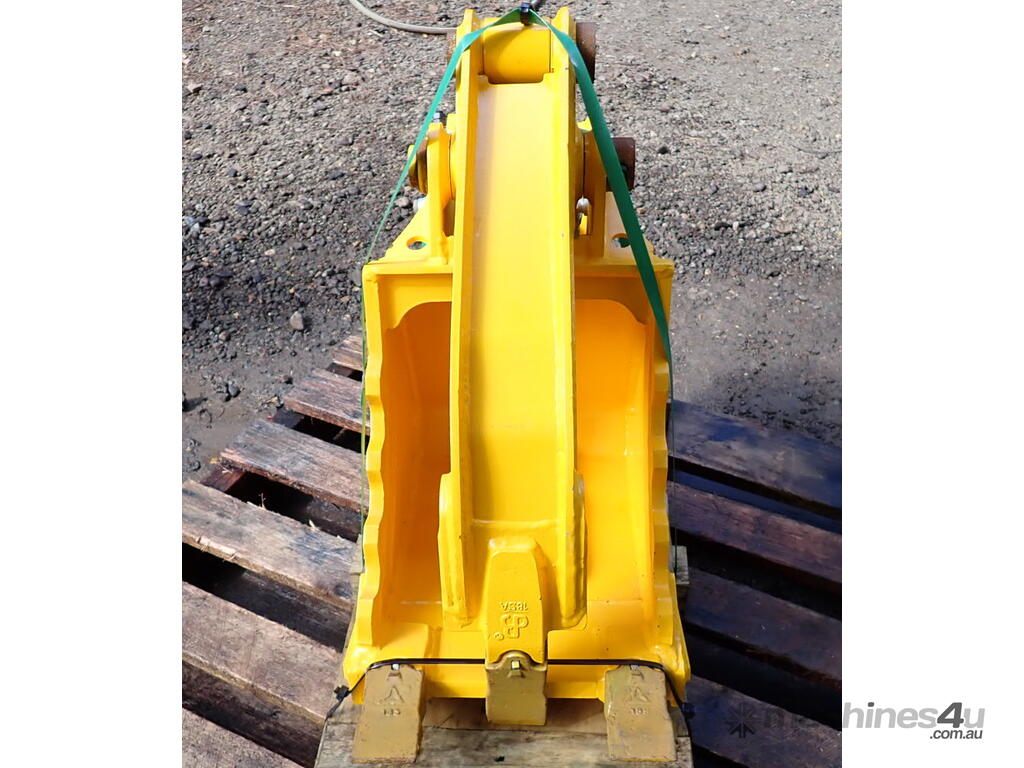

New Excavator Hydraulic Thumb Grapple Grab Bucket suit 1-3 Ton machine. The bucket moves as a normal bucket attached to your hitch or to your dipper arm. The Thumb moves Hydraulically.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

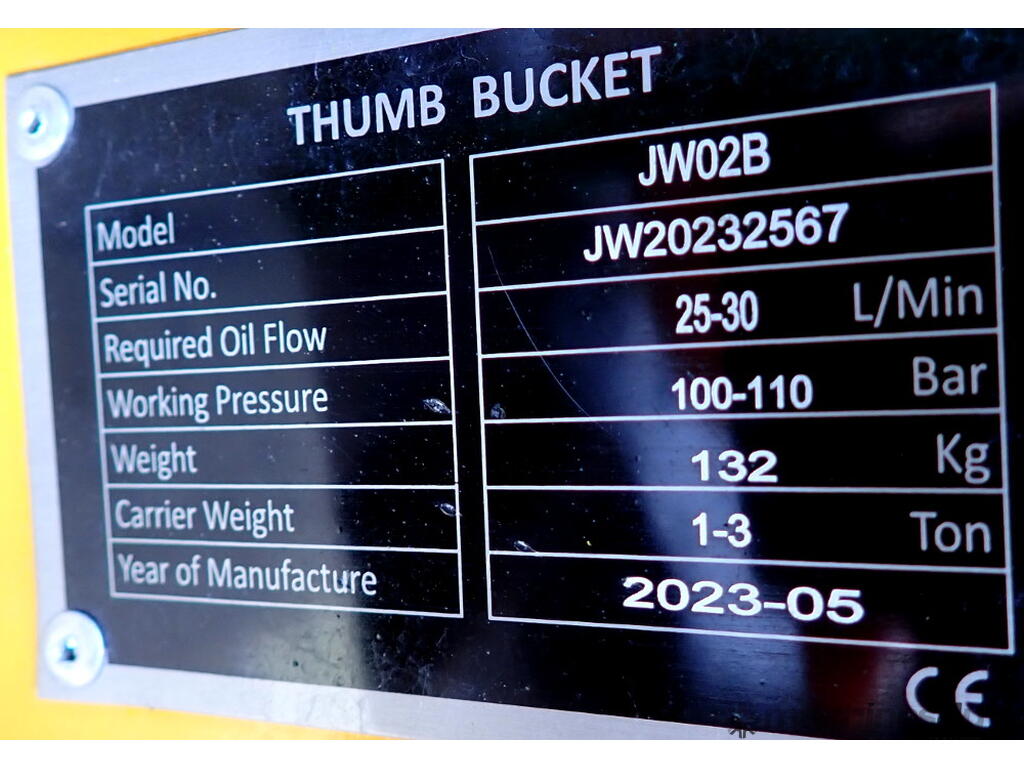

Opening width: 650mm.

Required Oil Flow: 25-30 L/min.
Working Pressure: 100-110 bar.

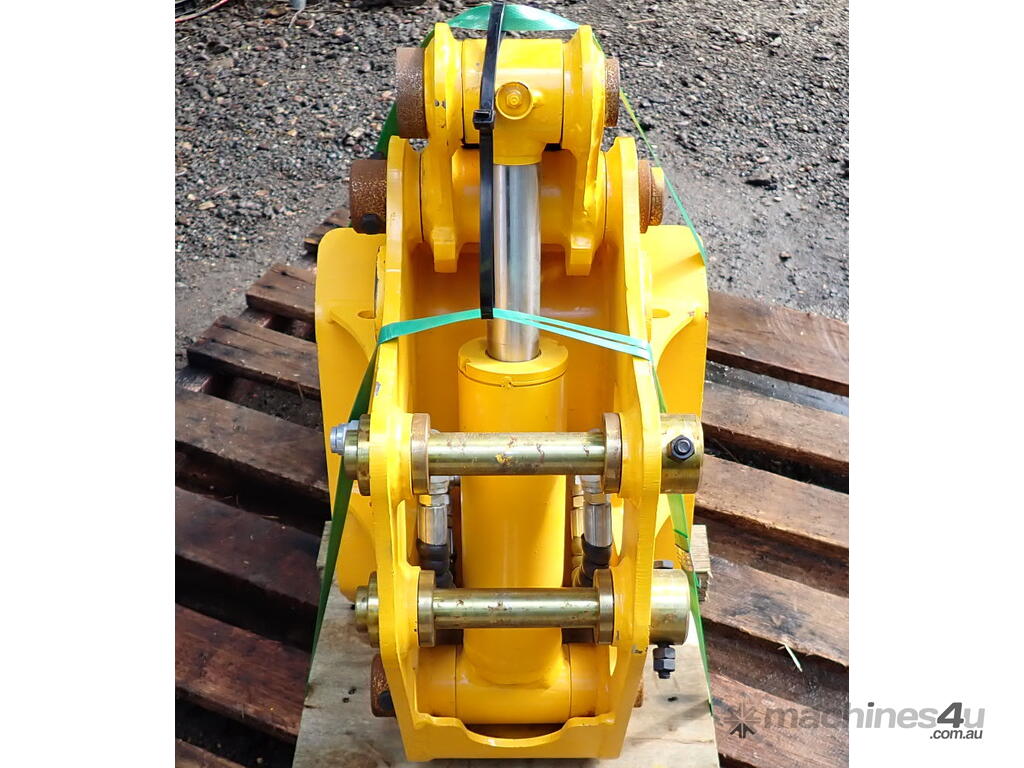

Headstock Dimensions:

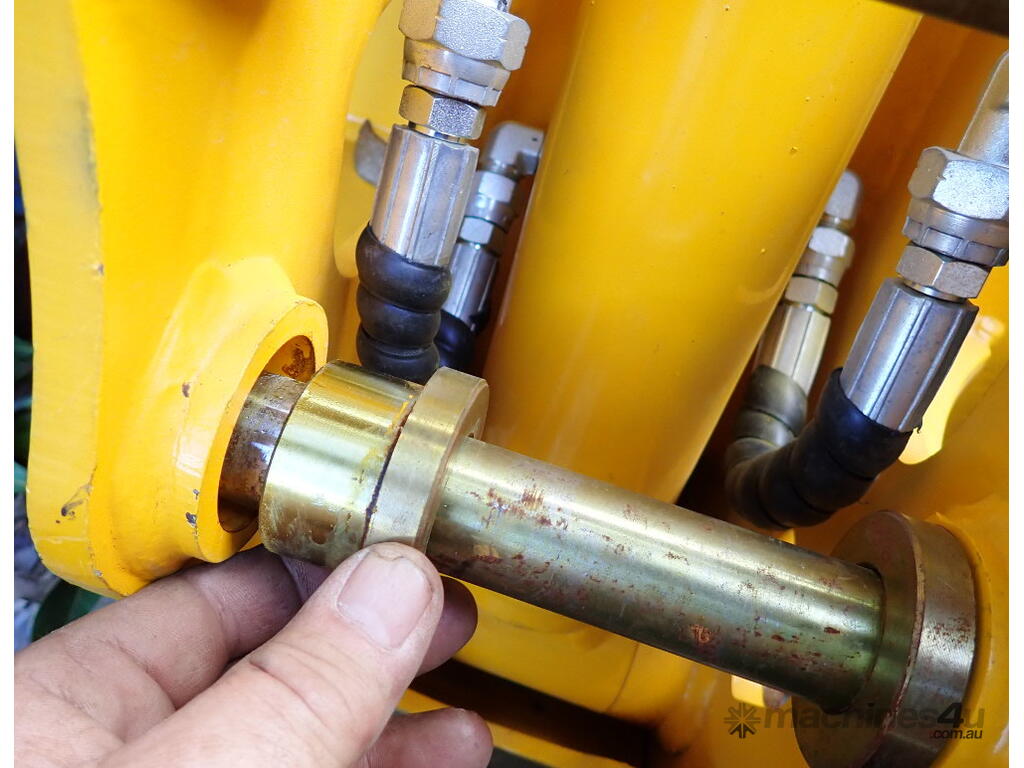

* The Pin Diameter is 30mm but they are fitted into collar bosses that fit into 45mm diameter Pin holes (see pic# 9), so pins up to 45mm diameter can be fitted without needing to bore out the holes in the headstock.
* The Pin Center to Pin Center (CtoC) is 125mm.
* The distance between the collar bosses is 118mm. Removing the collar bosses, the distance between the headstock bosses is 140mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 166mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.

Should fit: Bobcat 322 / 323 / X320 / X322, Case CX 14 / CX 15, Caterpillar 301.5 / 301.8, Daewoo Solar 015, Hanix H15B-2, Hyundai R 16-7, Kobelco SK 13SR / SK 13SR-2 / SK 15 / SK 16 / SK 16E / SK 16MSR / SK 17 / SK 17E, Komatsu PC 05-6 / PC 05-7 / PC 05 New Type / PC 05 Old Type / PC 07 / PC 07-1 / PC 07-2 / PC 07 New Type / PC 12R-8 / PC 12R-8E / PC 12 New Type / PC 15MRX-1 / PC 15R-8 / PC 15 New Type, Libra 116, New Holland EC 15, Pel Job EB 12, SMC MX15, Volvo EC 14 / EC 15, Wacker Neuson 1403 / 1404 / 1503 / 1903 / 2203 / 2503, Yanmar B 10 / B 12 / B 15 / B 17 / B121.

Maybe fit: Airman AX12, Hitachi EX12 / EX15 / EX16 / UE 10, Kubota KH 51 / KX 61 / KX 61-2 / U20, Takeuchi TB 14 / TB 15 / TB 15FR / TB 16 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Dimensions (not including skid): 365mm wide, 800mm long, 615mm high. Weight: 128kg.

Shipping Dimensions (with skid): 440mm wide, 820mm long, 710mm high. Weight: 132kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
