New 1.5-4 ton (35mm Pin) Excavator Hydraulic Hammer Rock Breaker

Name: New 1 5-4 ton 35mm Pin Excavator Hydraulic Hammer Rock Breaker
Brand: Jea Wen
SKU: 977497
Price: 3499 AUD
Availability: InStock

PULLENVALE, QLD

$3,500 AUD($3,850 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$11.93
Per Week

3.18% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Rock Breaker

Make:

JEA WEN

Model:

JW450

Year:

2024

Member Since: Oct 2023

Bronze Member

Listings: 177

Hitch/3PL Pin size(mm):

Description

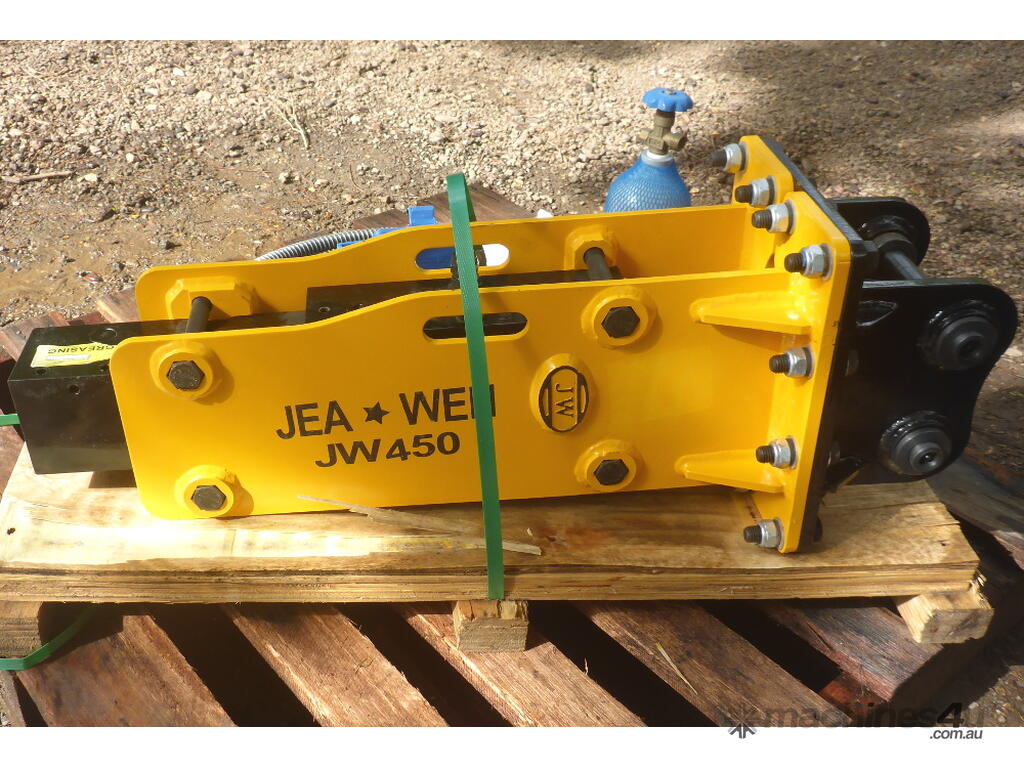

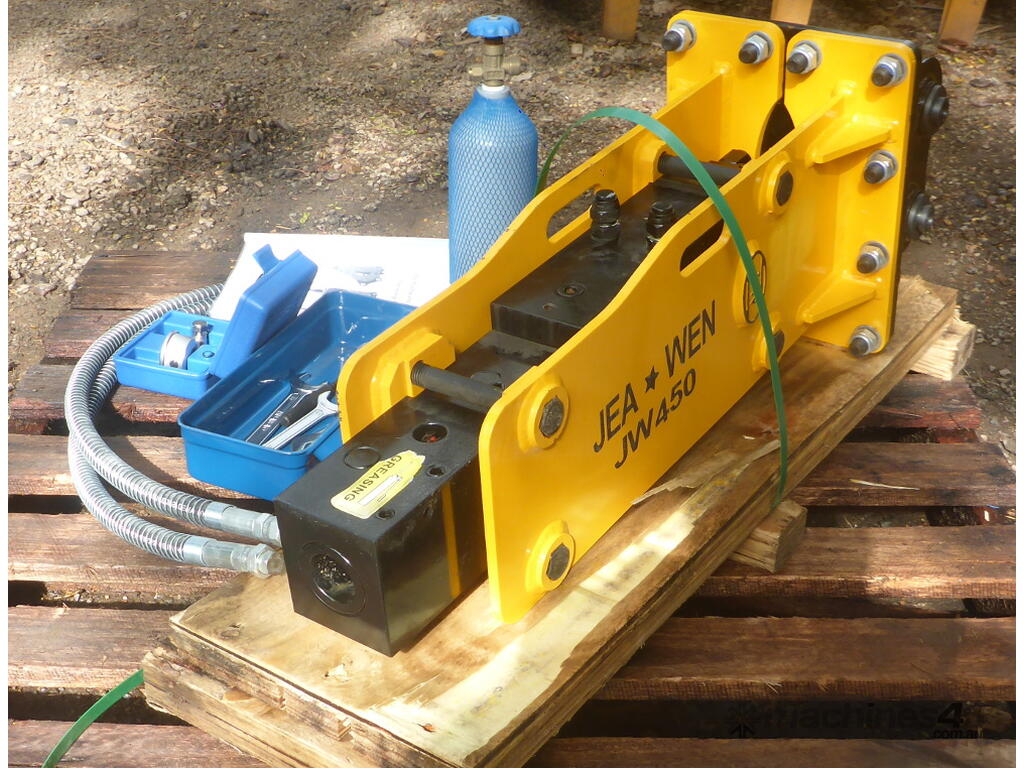

New Jea Wen JW450 Excavator Hydraulic Hammer Rock Breaker to suit: 1.5-4 ton machine. Great for loosening and breaking up rock, rocky ground, concrete, tarmac, paved areas, demolition etc.

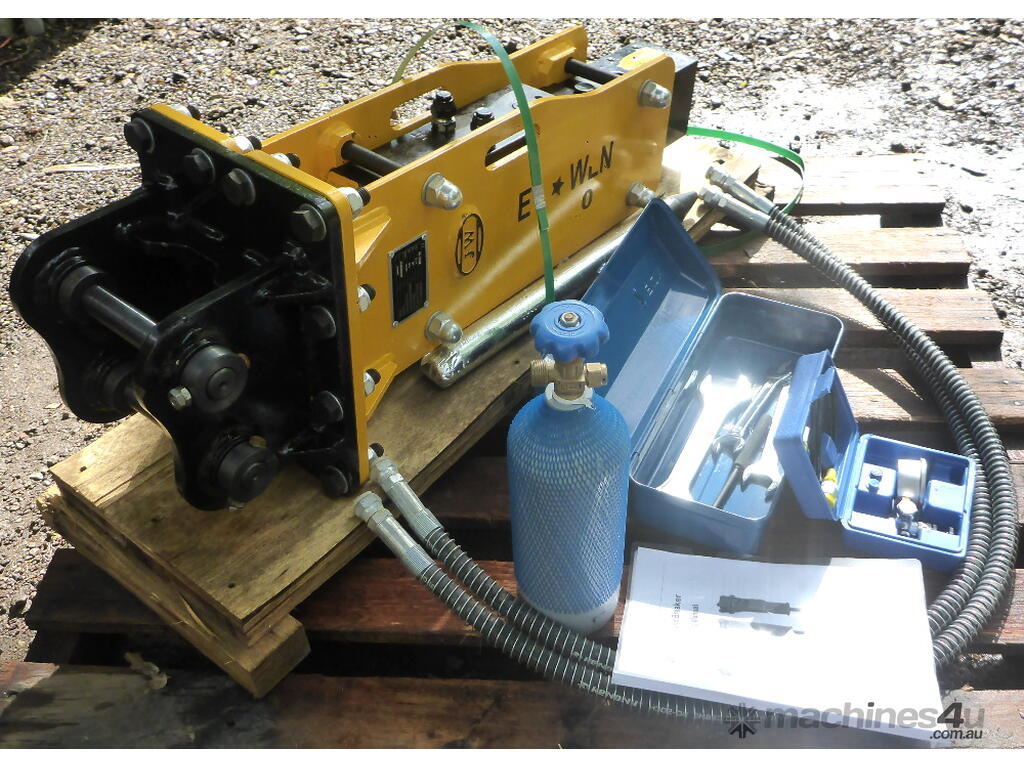

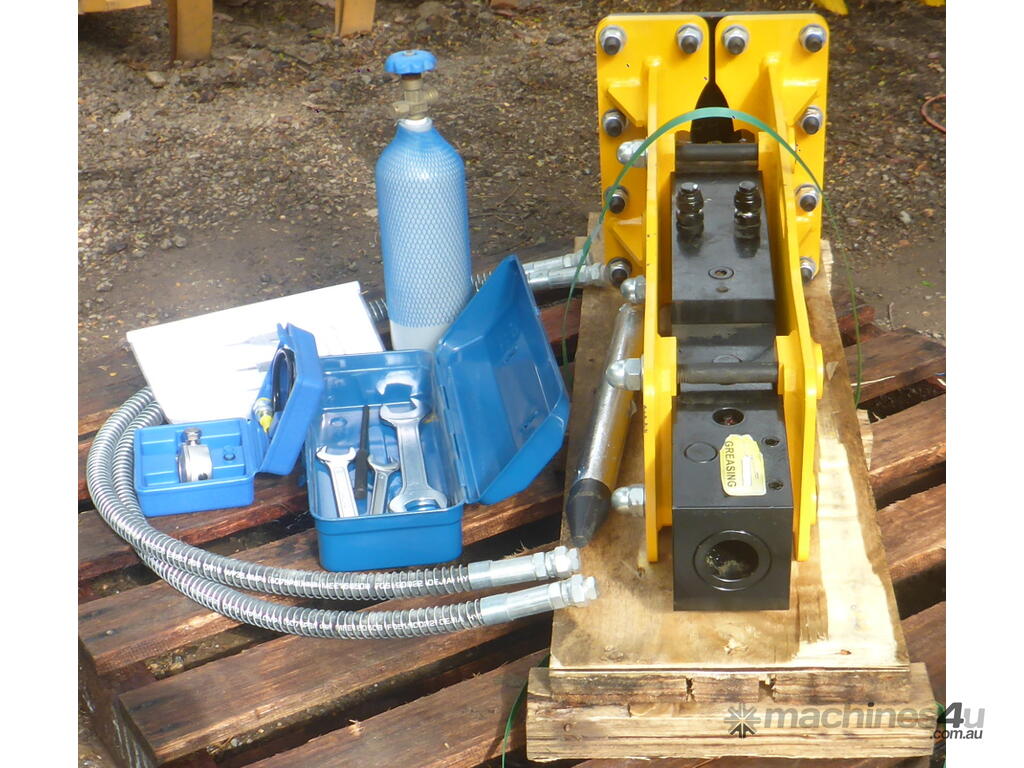

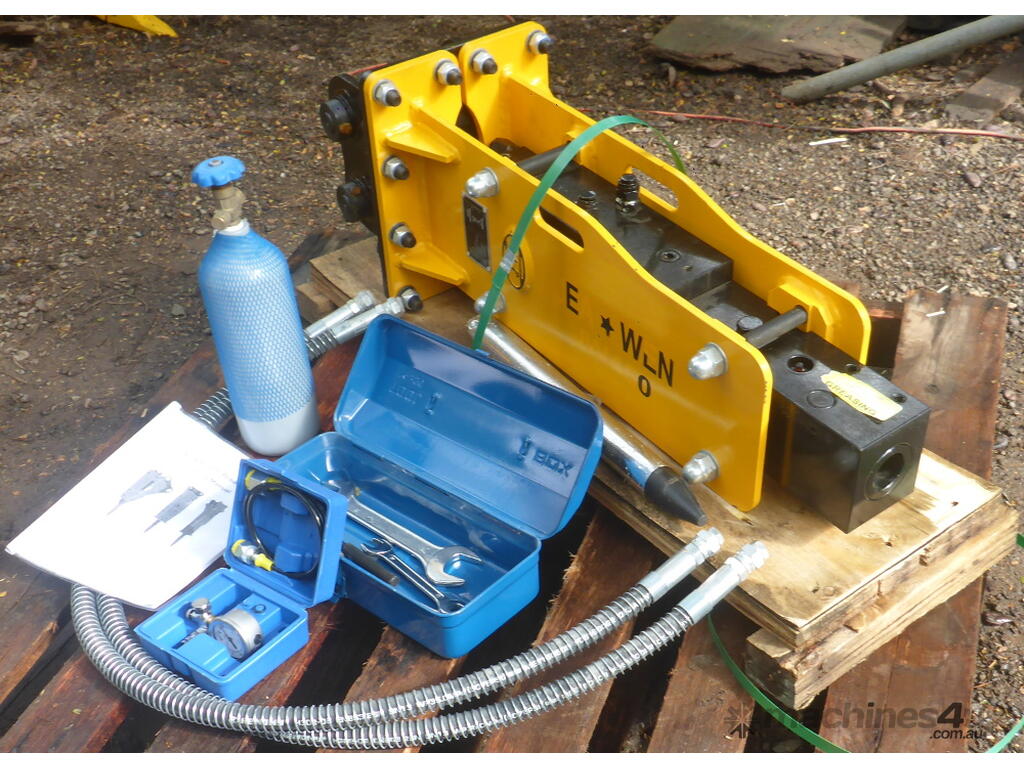

Comes with a 44.3mm Point Moil, Hoses, Toolbox with various Spanners etc. and a Nitrogen Gas Bottle & Pressure Gauge Kit for regassing the breaker.

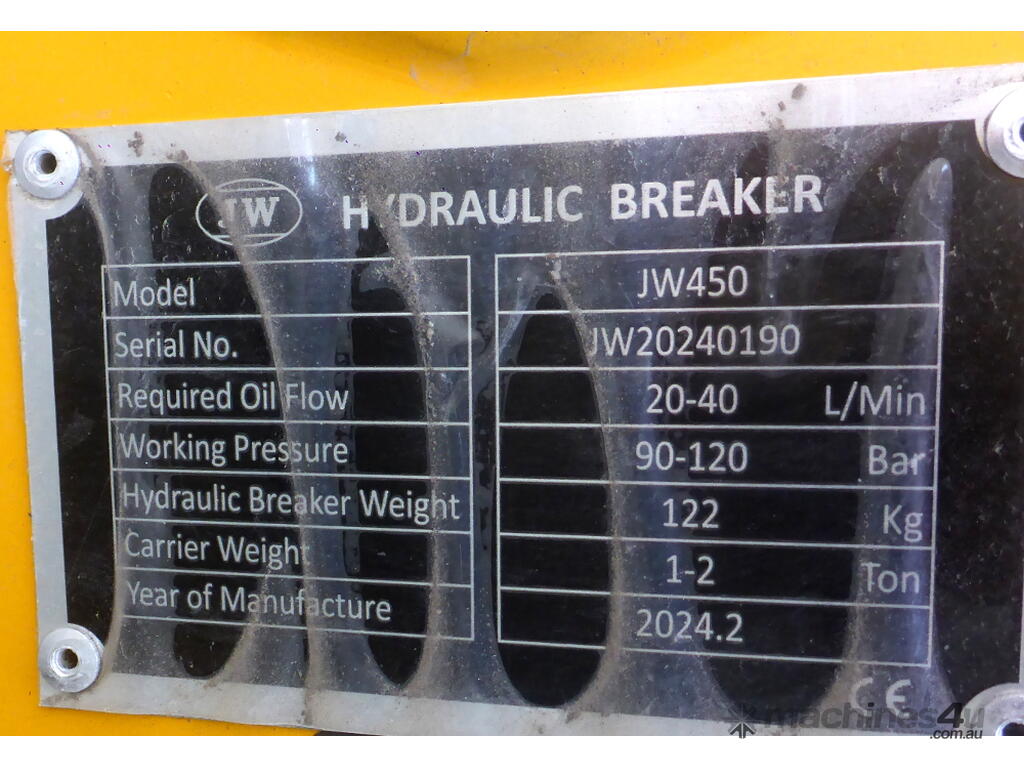

Required Oil Flow: 20-40 L/min.
Working Pressure: 90-120 Bar.

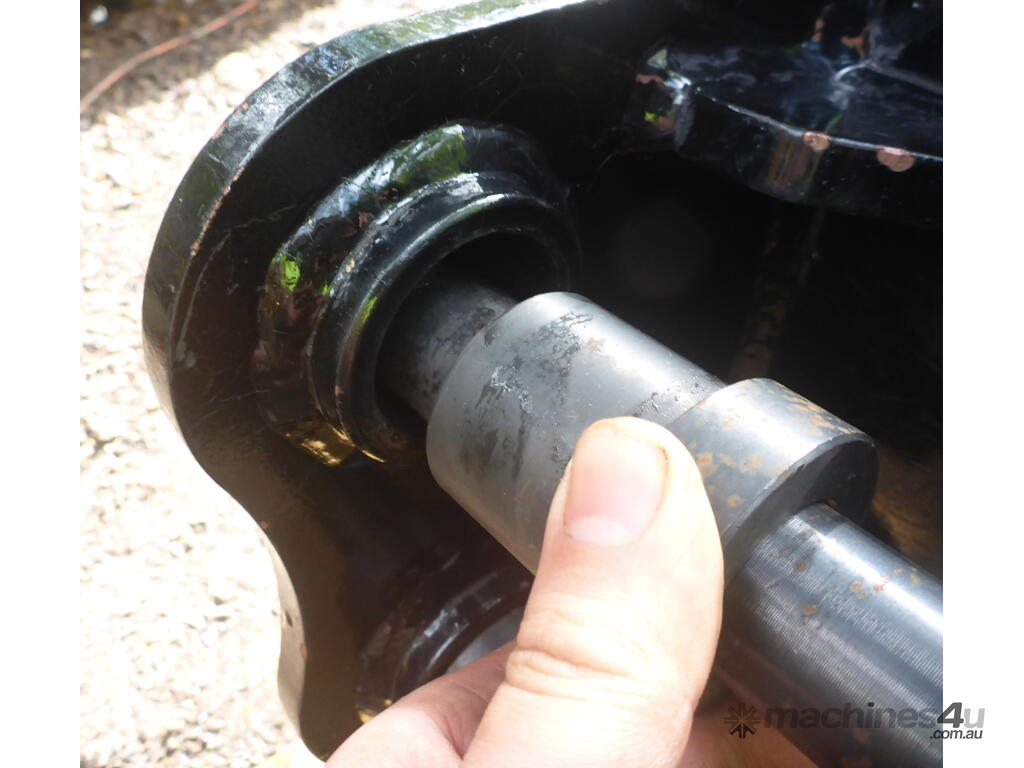

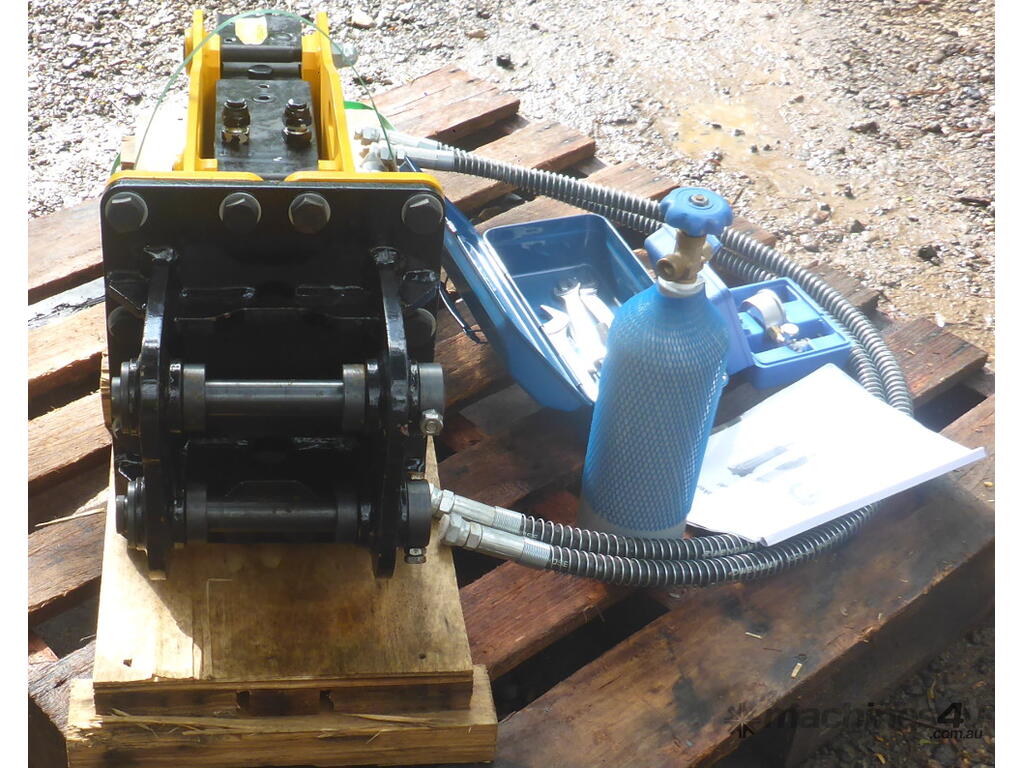

The Hitch Headstock currently has 35mm Pins fitted into collar bosses that fit into 45mm diameter Pin holes, so pins up to 45mm diameter can be fitted without needing to bore out the holes in the headstock. The Pin Center to Pin Center is 165mm. The distance between the collar bosses is 134mm. Removing the collar bosses, the distance between the headstock bosses is 155mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 168mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.

Should fit: Bobcat X325 / X328 / X331, Caterpillar 302.5, Libra 229S / 2345, New Holland EC 25, Pel Job EB 28-4 / EB306, Scat Trak 535, Volvo EC20, Yanmar B 19 / B 22 / B 201.

Maybe fit: Airman AX22 / AX29U / AX30UR, Case CX 23 / CX 25 / CX 28 / CX 30 / CX 31, Daewoo Solar 027 / 030, Hanix H26B-2 / H30B-2, Hitachi EX22 / EX25, Kobelco SK 20 / SK 20SR-3 / SK 24 / SK 25 / SK 25SR / SK 25SR-2 / SK 27 / SK 27SR-2 / SK 27SR-3 / SK 30, Komatsu PC 20 / PC 20-6 / PC 30-6, Libra 225S, Nagano NS 25-3, New Holland EH 27.B, Pel Job EB 22 / EB 22-4 / EB 25-4, SMC MX30, Takeuchi TB 25 / TB 26 / TB 28FR / TB 125, Yanmar VIO20 / VIO20-1 / VIO20-2 / VIO20-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Breaker Dimensions (without moil or hoses): 960mm(L) x 282mm(W) x 355mm(H), Weight: 146kgs.
Shipping Dimensions (everything strapped to skid): 1033mm(L) x 345mm(W) x 470mm(H), Weight: 163kgs.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
