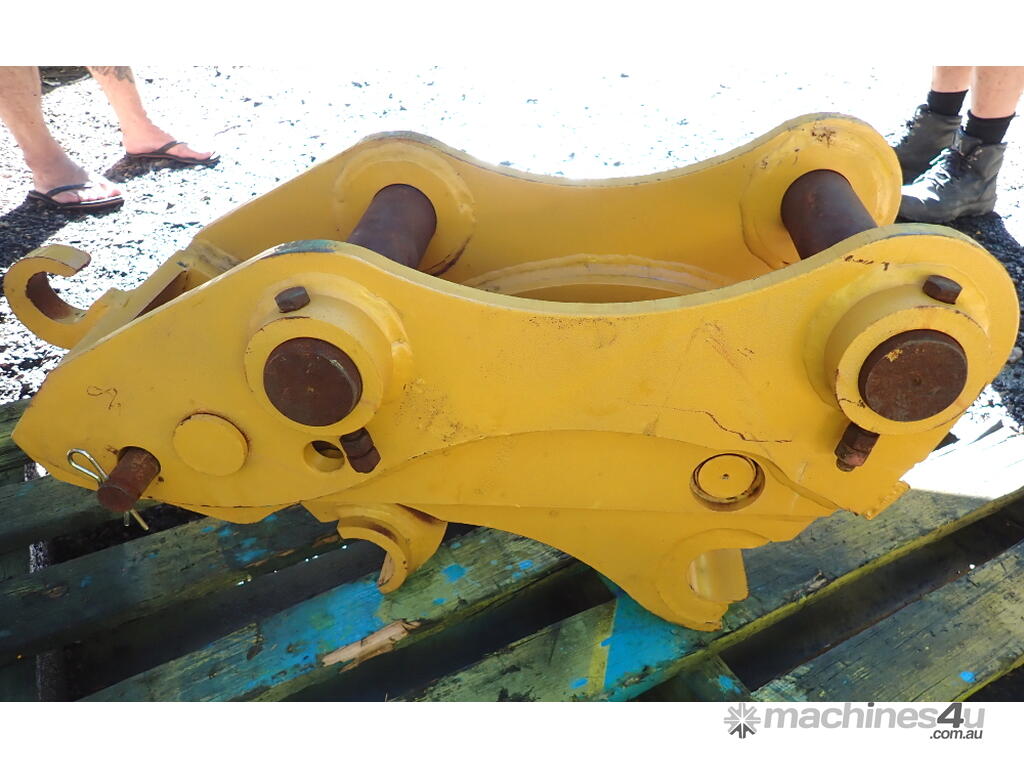

New 10-20 ton (65mm pin) Hydraulic Excavator Quick Hitch Coupling suit Cat

New Excavator Hydraulic Coupler Quick Hitch to suit 10-20 Ton machines.
Designed for: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D etc.

Condition is New, but it has some paint chips & scuffs.

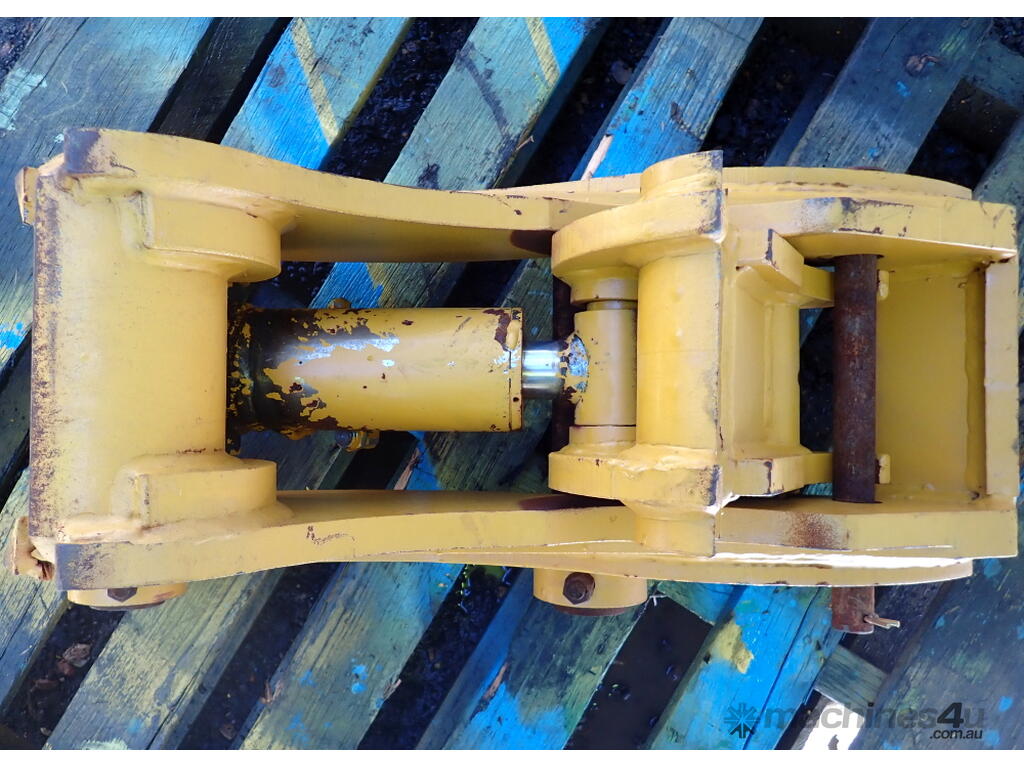

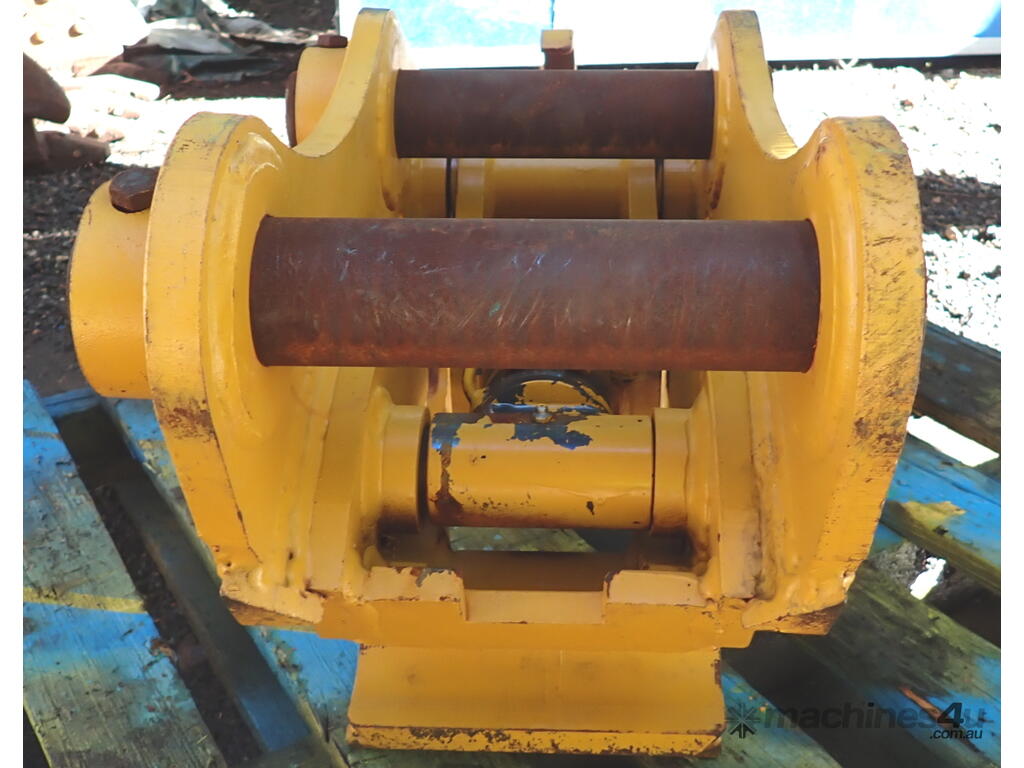

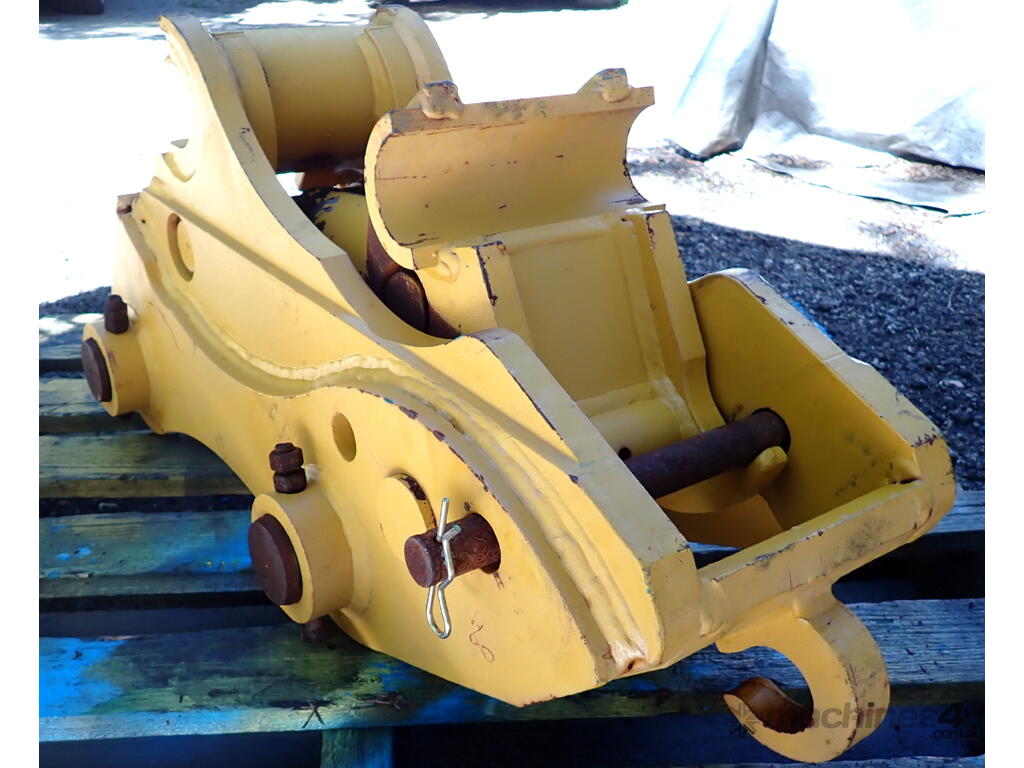

Has Lifting Eye Hook (see pics# 1, 3, 4, 9).

Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 65mm.
* Pin Center to Pin Center (CtoC): 395mm.
* Between The Ears (BTE): 230mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 242mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 65mm.
* Pin Center to Pin Center (CtoC): 395mm, but it looks like the rear hook could still close over a slightly shorter or longer CtoC, maybe +/- 10-15mm or more?
* Between The Ears (BTE): 225mm (your buckets/attachments need to have at least this much width between the ears).

Should fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D.


Hitch dimensions: 800mm long, 355mm wide, 405mm high. Weight: 148kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
