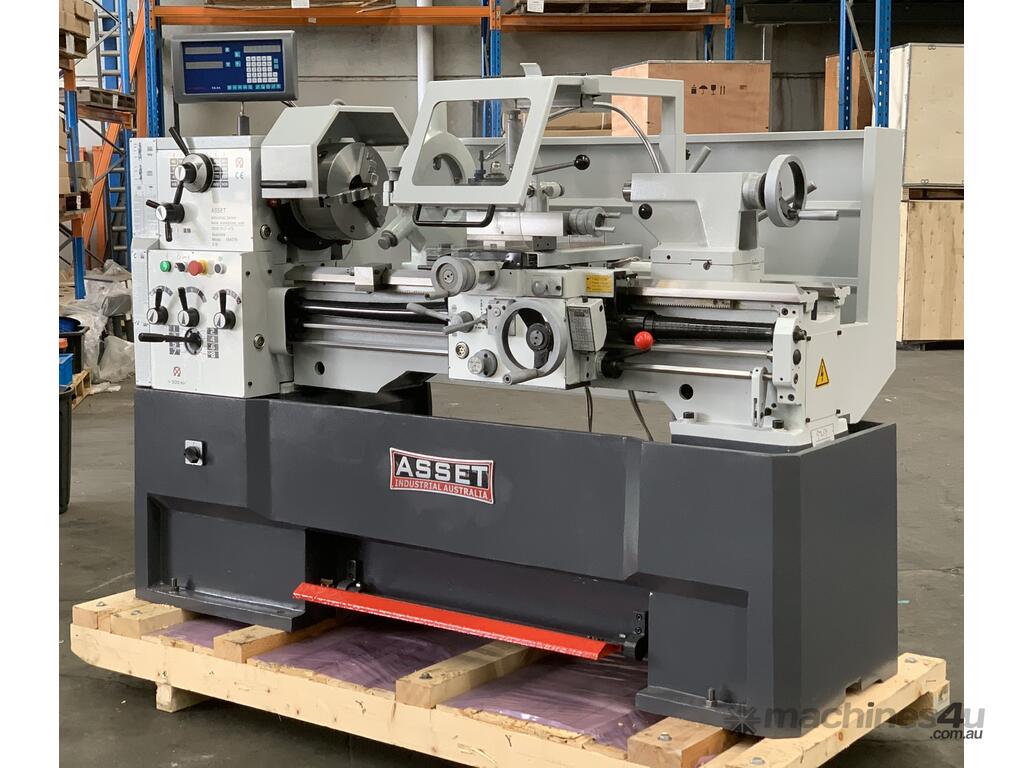

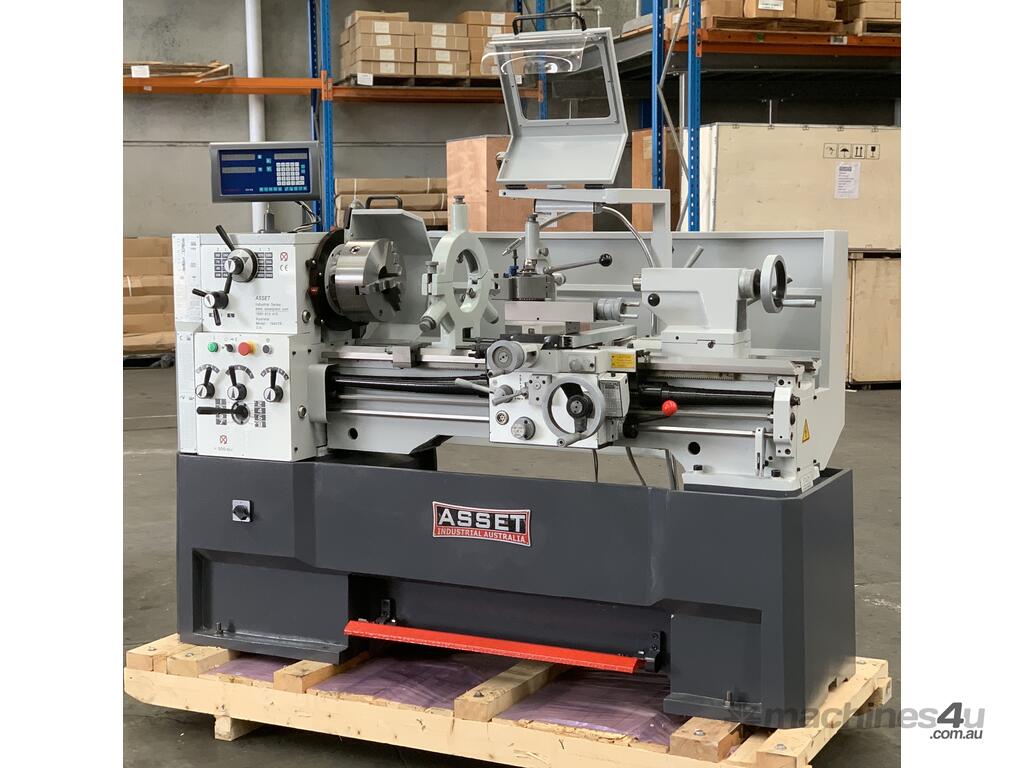

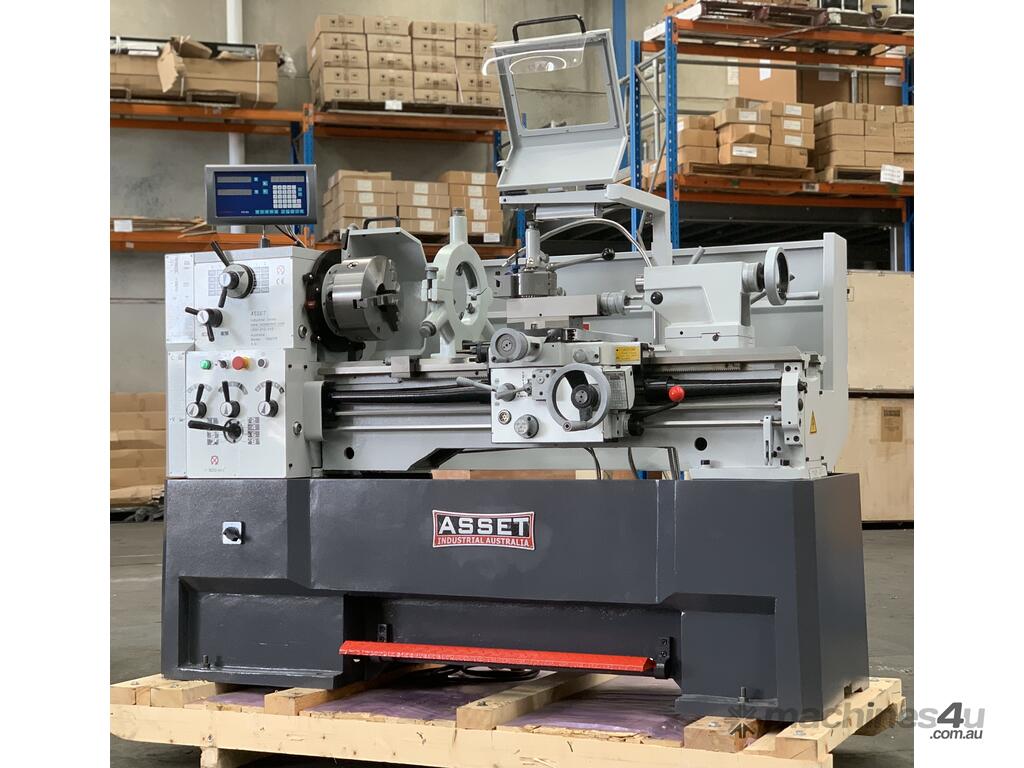

New 1640TR Euro 410mm Swing x 1000mm Bed Fully Optioned Toolroom Precision Lathe

ASSET 1640TR – EURO Toolroom Precision Lathe. 1000mm Centres, 410mm Swing, 52mm Bore, 2 Axis DRO, 3, 4 Jaw Chucks, Faceplate, Steadies, 2 Axis Easson DRO, Quick Change Post & More.V

Description
Our New Euro model offering full length cast body, 410mm swing & 1000mm bed is a favoured size of machine shops around the country!
This fine quality tool room model is an excellent high precision machine that will become an indispensable part of your shop.

Features

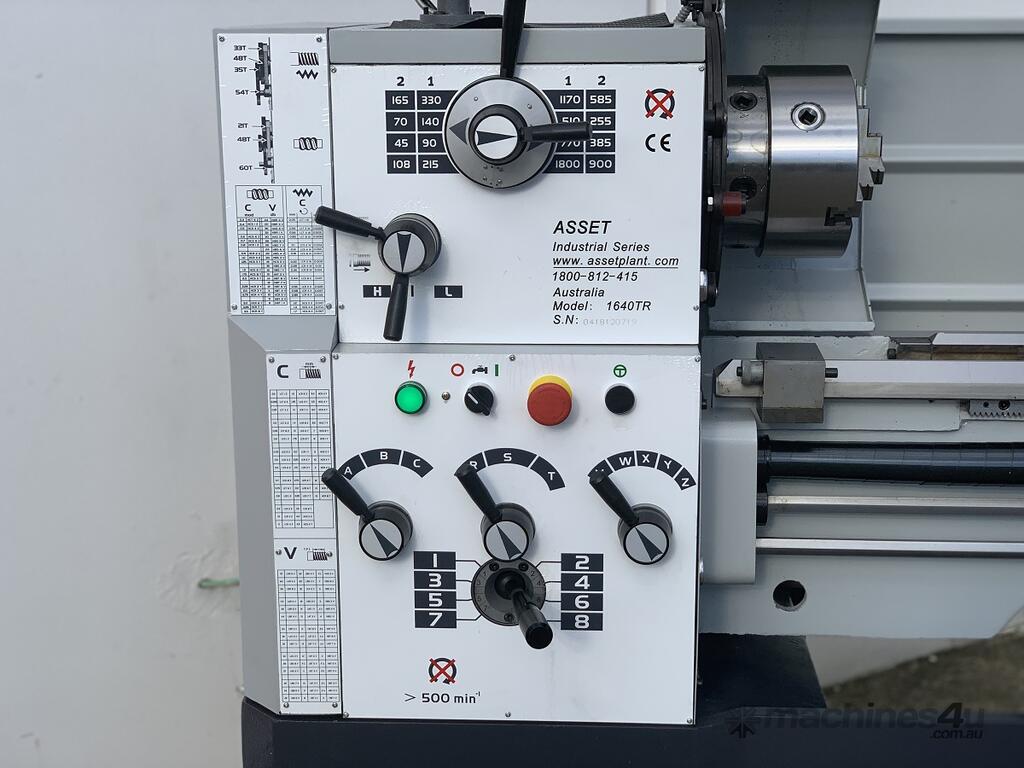

? Practical control panel with ergonomic layout of selection levers
? New Euro Designed Induction-hardened and ground cast iron bed and slide ways

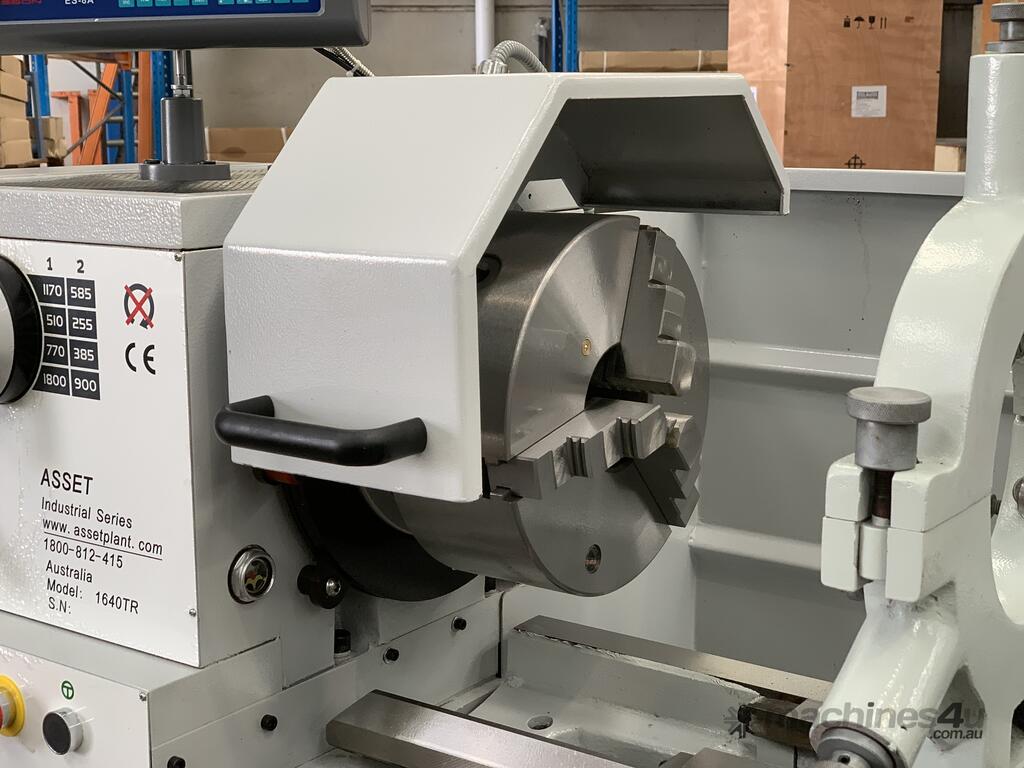

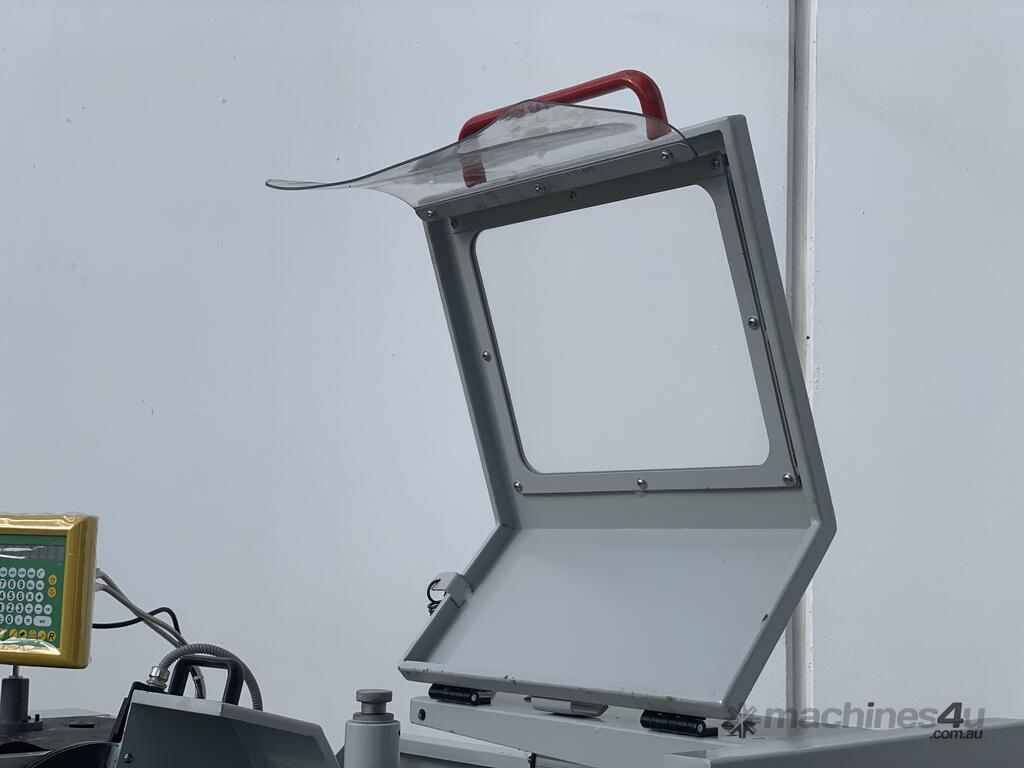

? New Euro type retractable chuck guard cover, tool post cover with LED workshop
? Spindle holding camlock system
? Main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy
? Maximum accuracy and quiet operation, even at high speeds

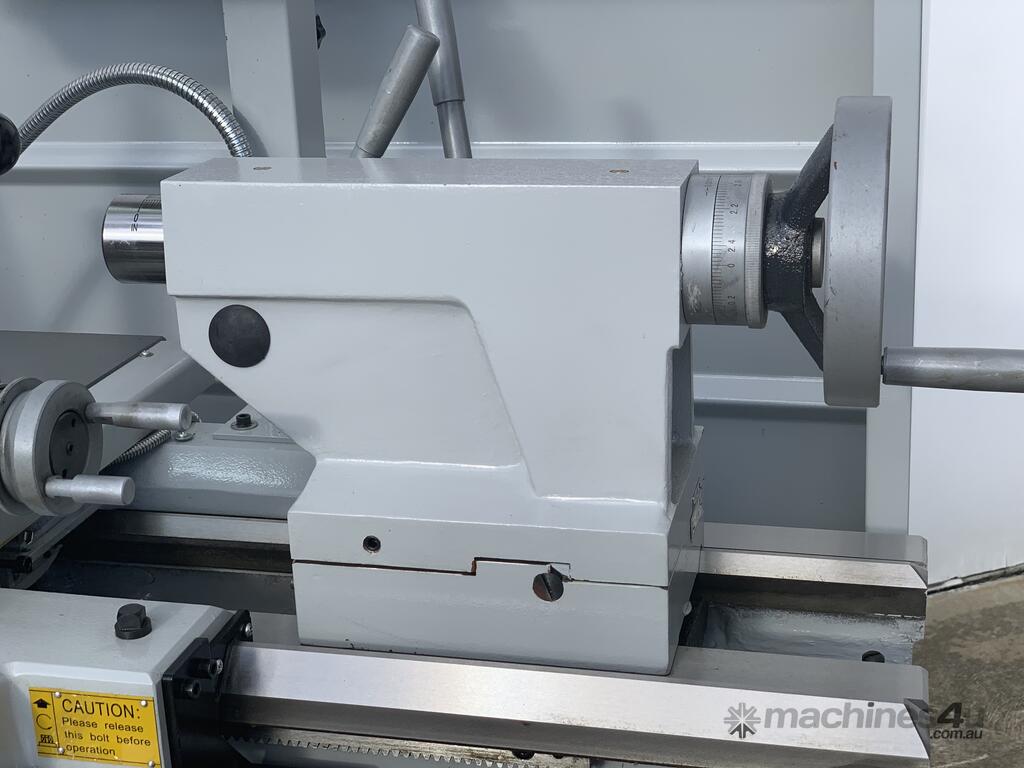

? Transversal adjustment of tailstock for taper cutting applications

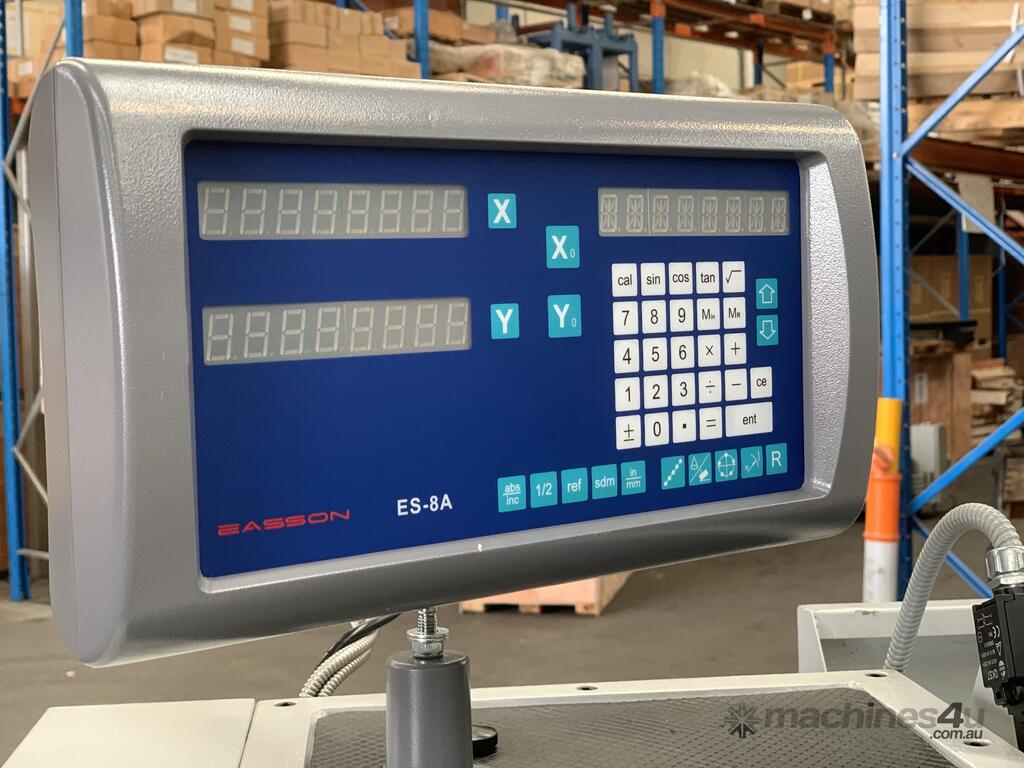

? 2 axis dro fitted as standard

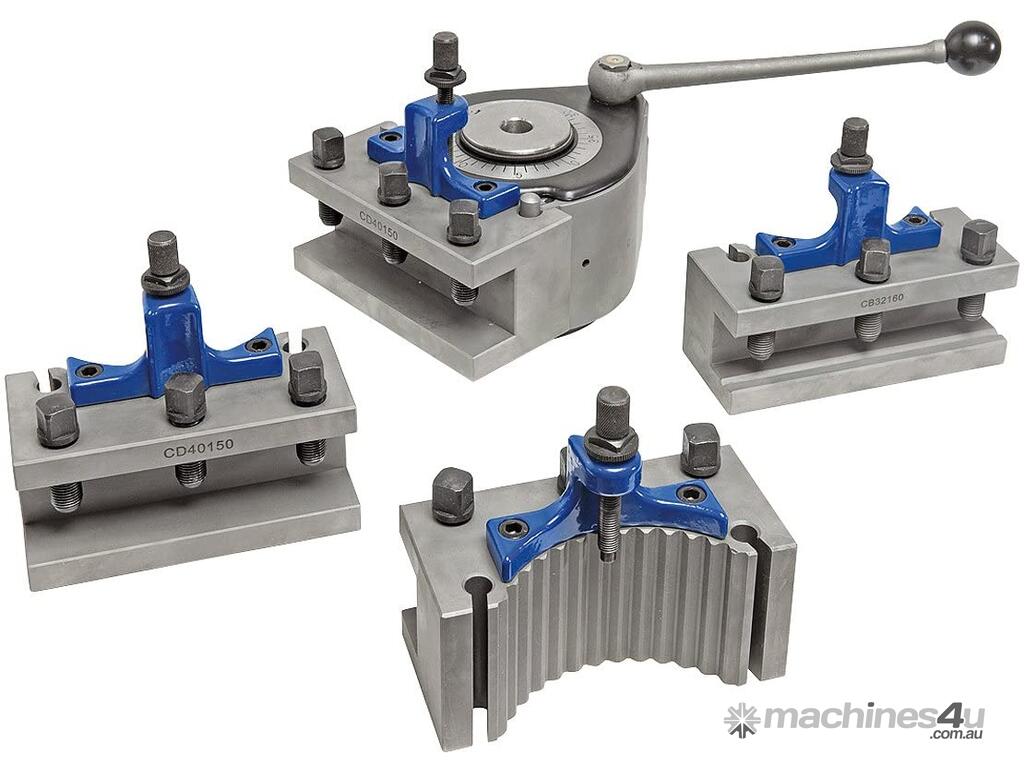

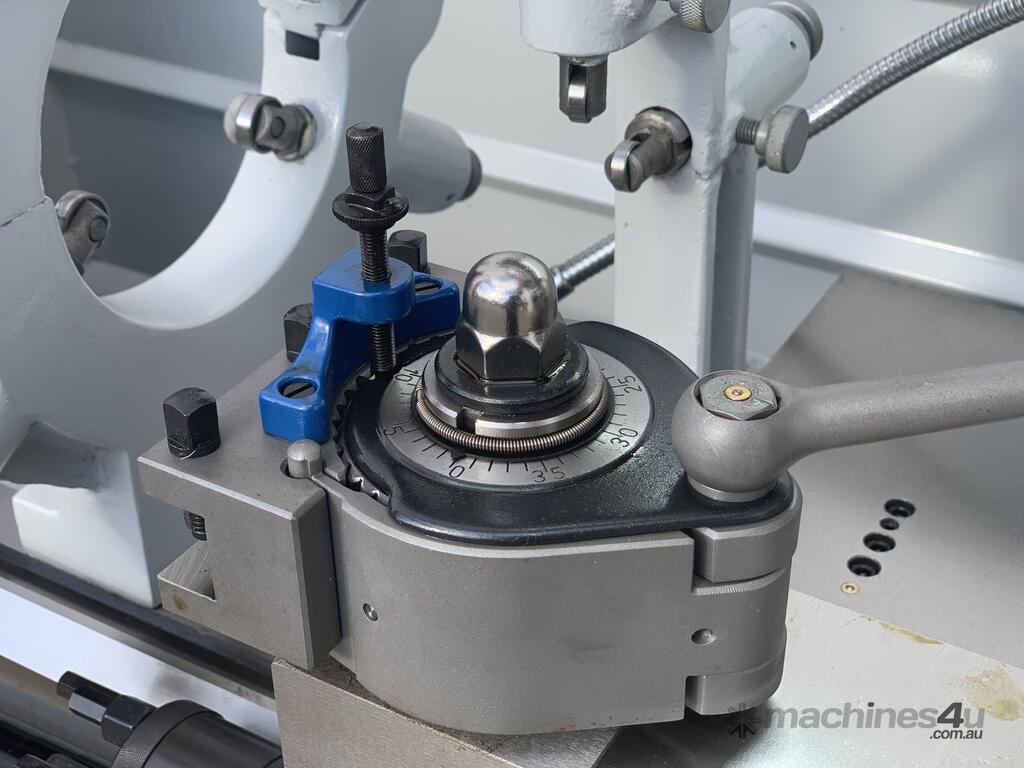

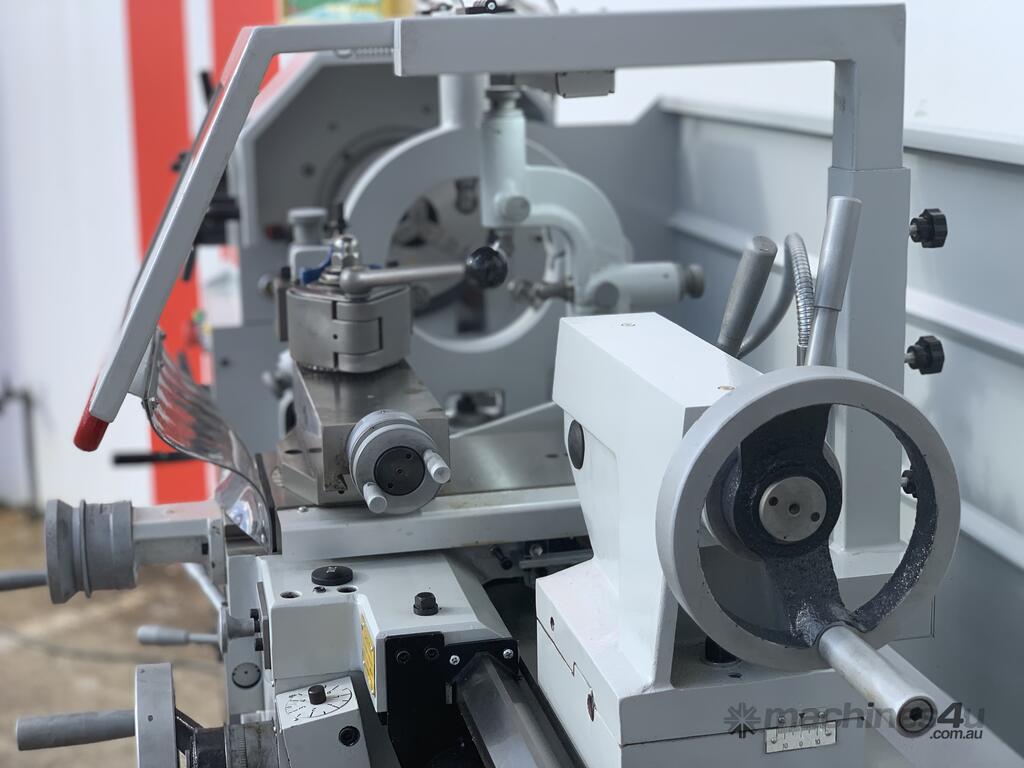

? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning

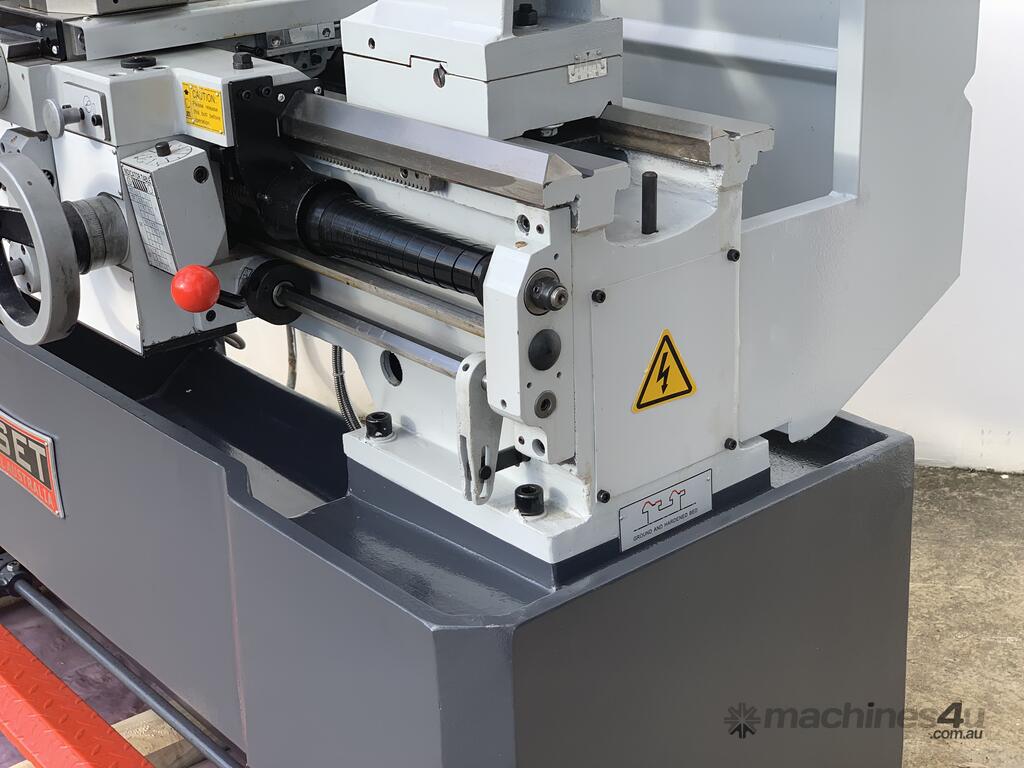

? Safety covered lead screw
? Safety interlocks on chuck guard, gear box and foot brake
? v 3ph
? CE compliant

Technical Data Snap-Shot
?410mm swing over bed
?580mm swing in gap
?255mm swing over cross-slide
?1000mm between centres
?52mm spindle bore
?speeds(16)-45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/
?210mm - cross slide travel
?140mm - top slide travel
?120mm - tailstock travel
?55mm - tailstock diameter
?250mm - bed width

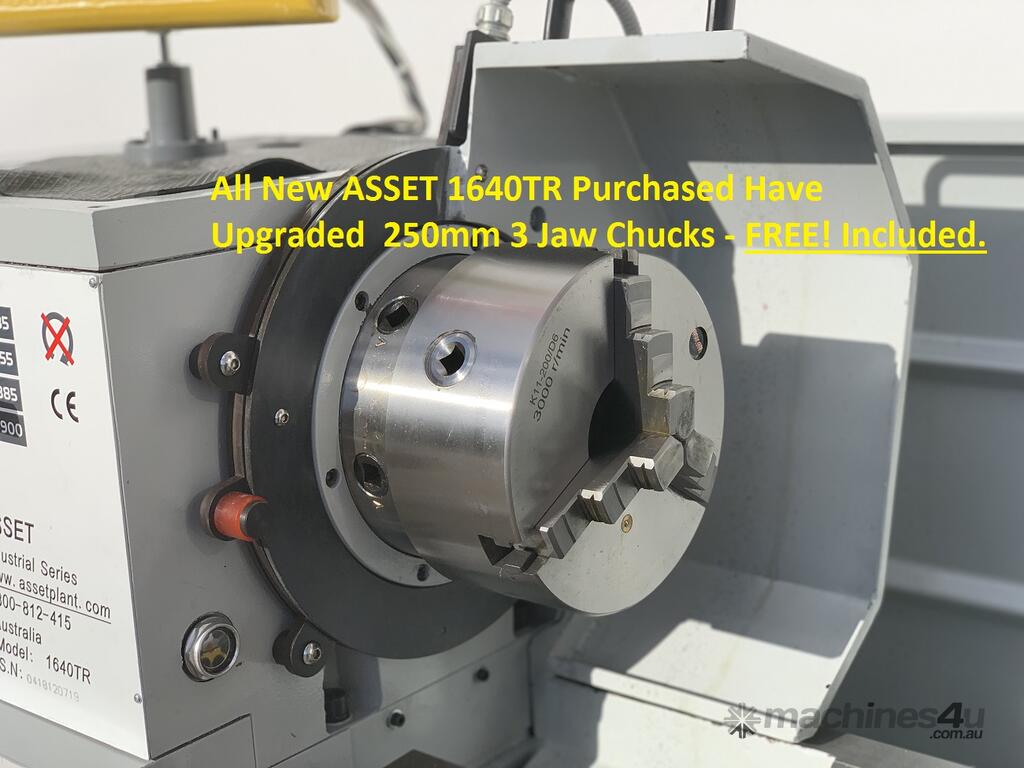

?250mm 3 jaw chuck
?250mm 4 jaw chuck
20/25mm Tools to suit
B Series Tool Holders
?faceplate supplied

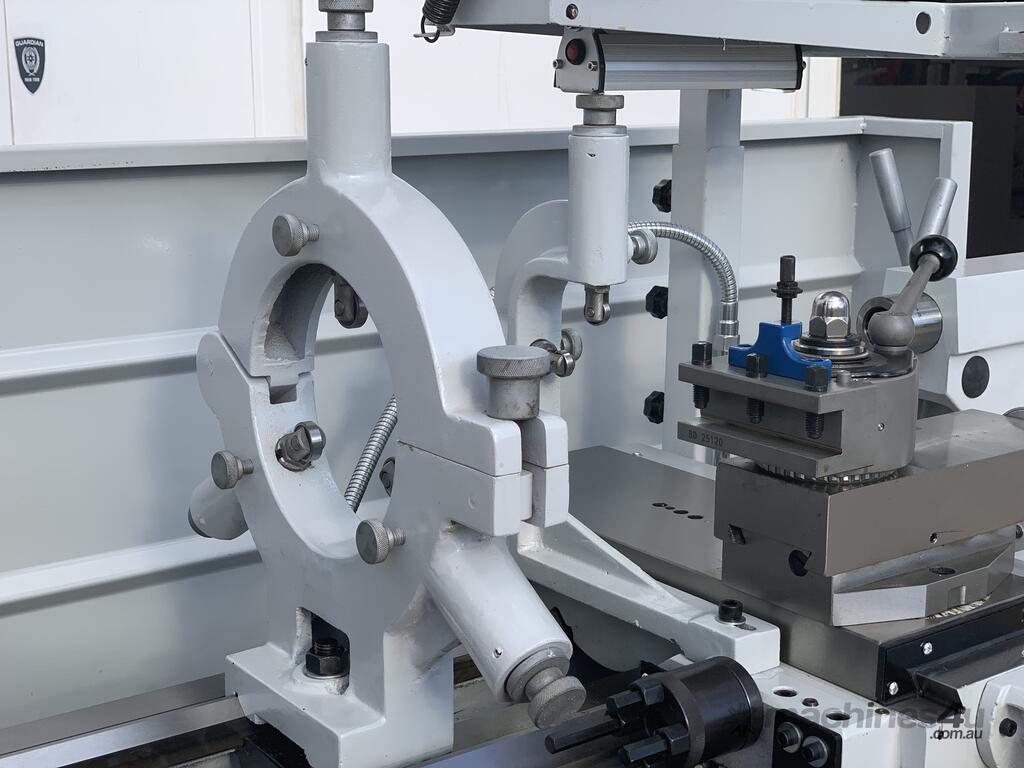

?fixed & travelling steadies
? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning
?2 axis digital read out fitted
?shipping dimensions - 1950mm x 830mm x 1400mm
?crate dimensions - 2050mm x 830mm x 1650mm
?power - 2 speed V 3.0Kw
?approx weight: 1650kg

EQUIPMENT & ACCESSORIES SUPPLIED
2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steady &
1 x travelling steady, full length splash guard up to 1000mm,
covered leadscrew, interlocked chuck guard, headstock cover.

Shipping Dims: 2050mmx 830mm x 1650mm 1600kg
