New 2-5 ton (40mm Pin) Excavator Hydraulic Hammer Rock Breaker

Name: New 2-5 ton 40mm Pin Excavator Hydraulic Hammer Rock Breaker
Brand: Jea Wen
SKU: 1334AR2308230761
Price: 3863 AUD
Availability: InStock

PULLENVALE, QLD

$3,864 AUD($4,250 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$13.17
Per Week

3.18% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Rock Breaker

Make:

JEA WEN

Model:

JW530

Year:

2023

Member Since: Oct 2023

Bronze Member

Listings: 177

Hitch/3PL Pin size(mm):

Sellers stock ID:

1334AR2308230761

Description

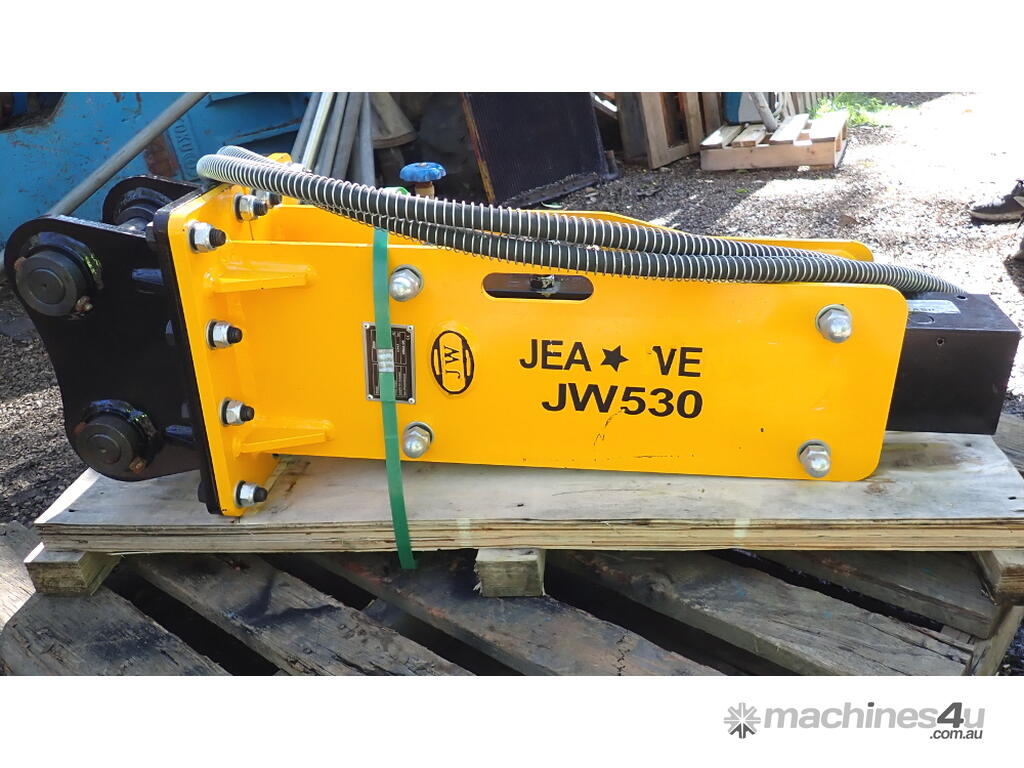

New Jea Wen JW530 Excavator Hydraulic Hammer Rock Breaker to suit: 2-5 ton machine. Great for loosening and breaking up rock, rocky ground, concrete, tarmac, paved areas, demolition etc.

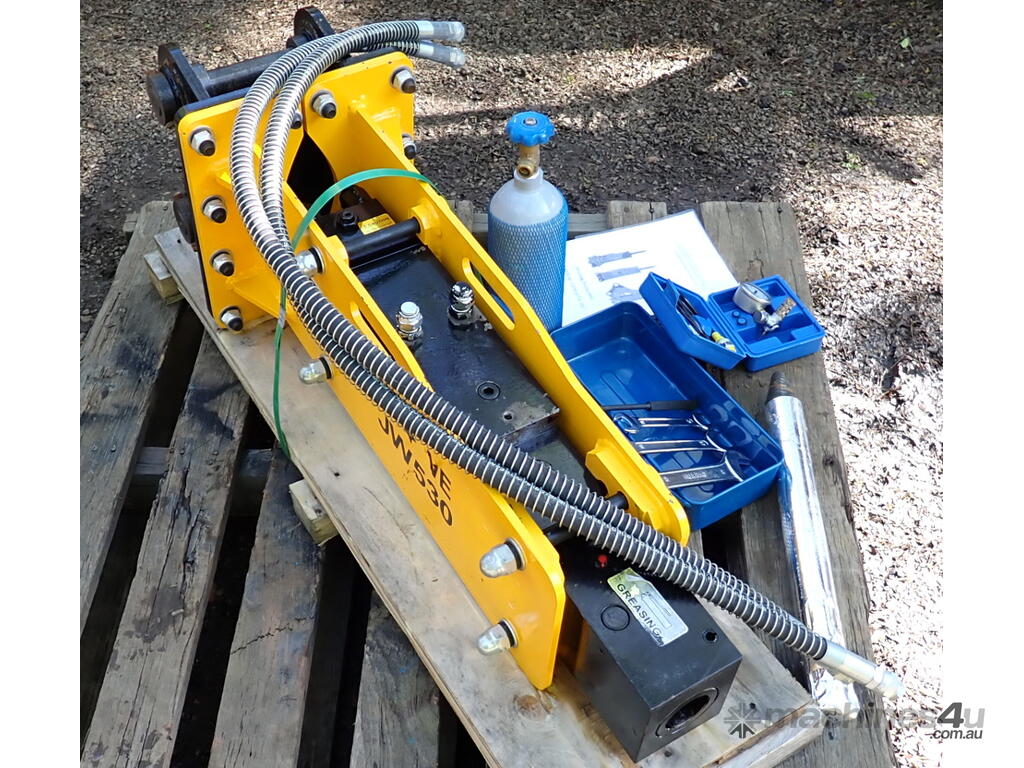

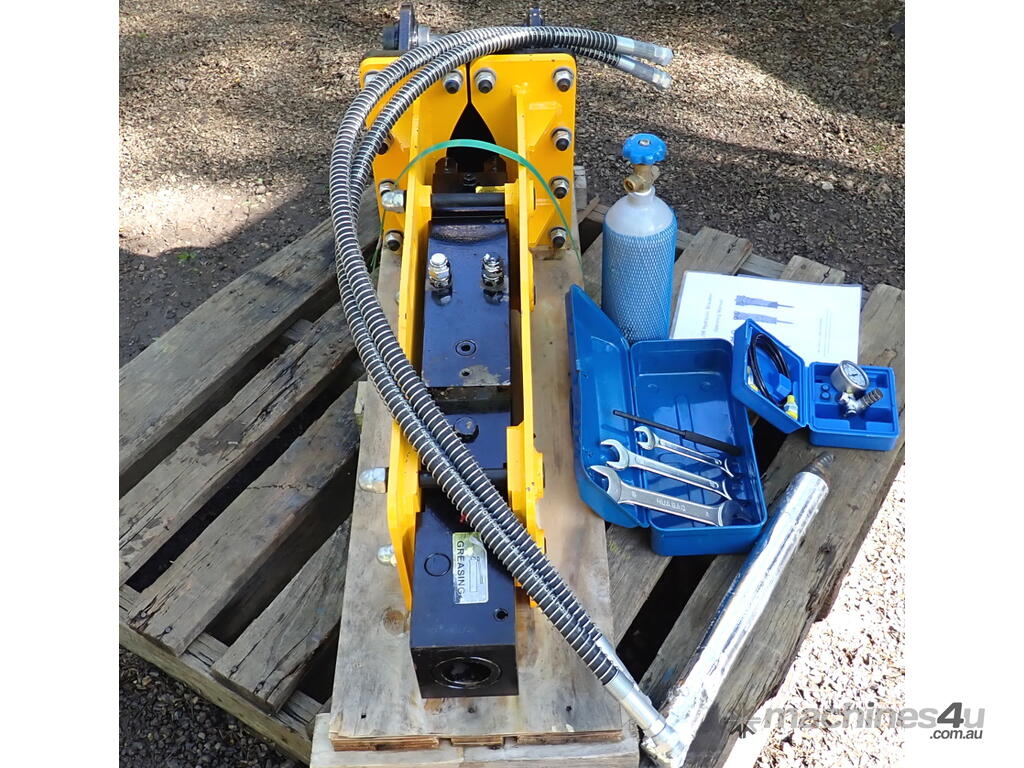

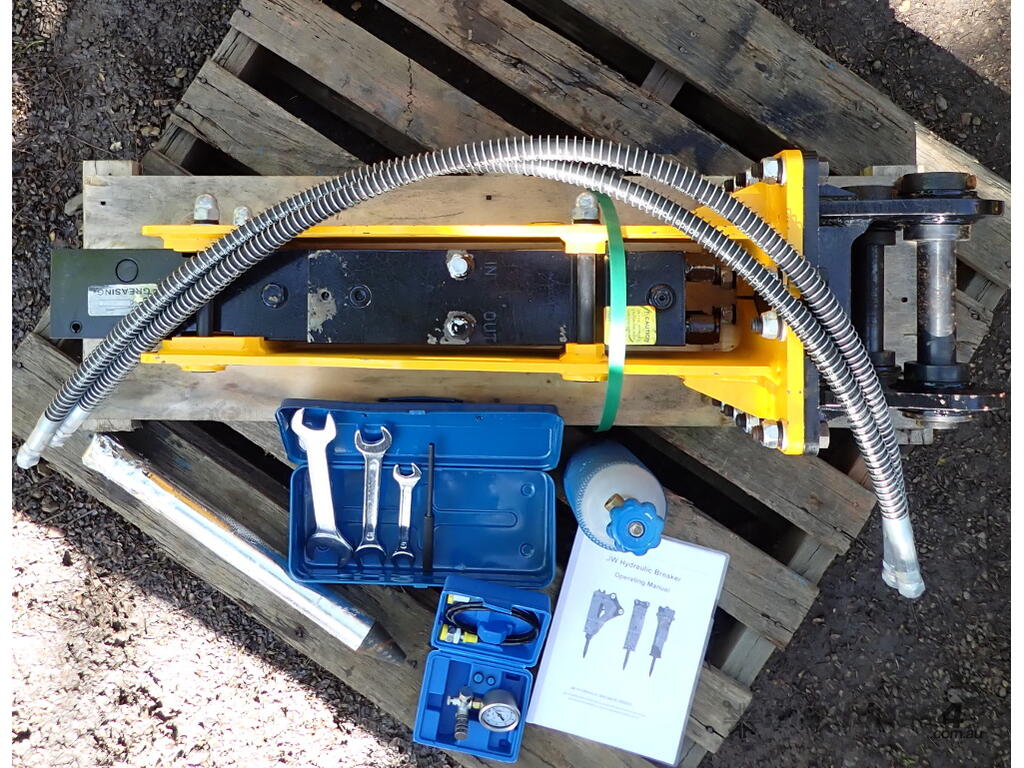

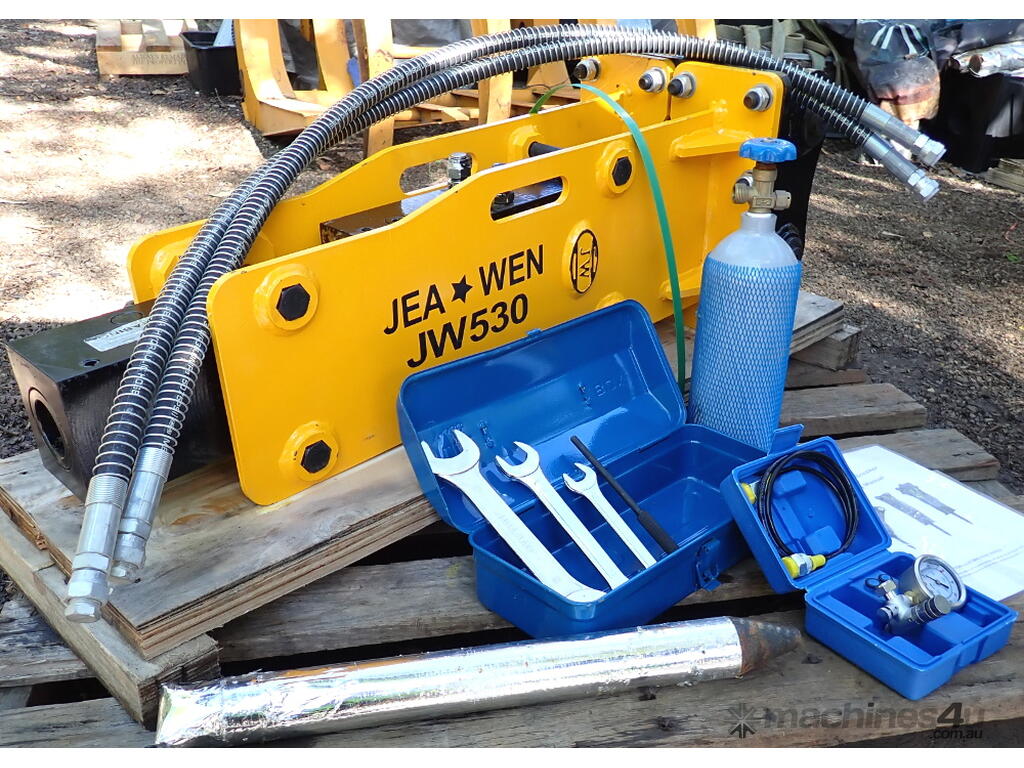

Comes with a 52mm Point Moil, Hoses, Manual, Toolbox with various Spanners etc. and a Nitrogen Gas Bottle & Pressure Gauge Kit for regassing the breaker.

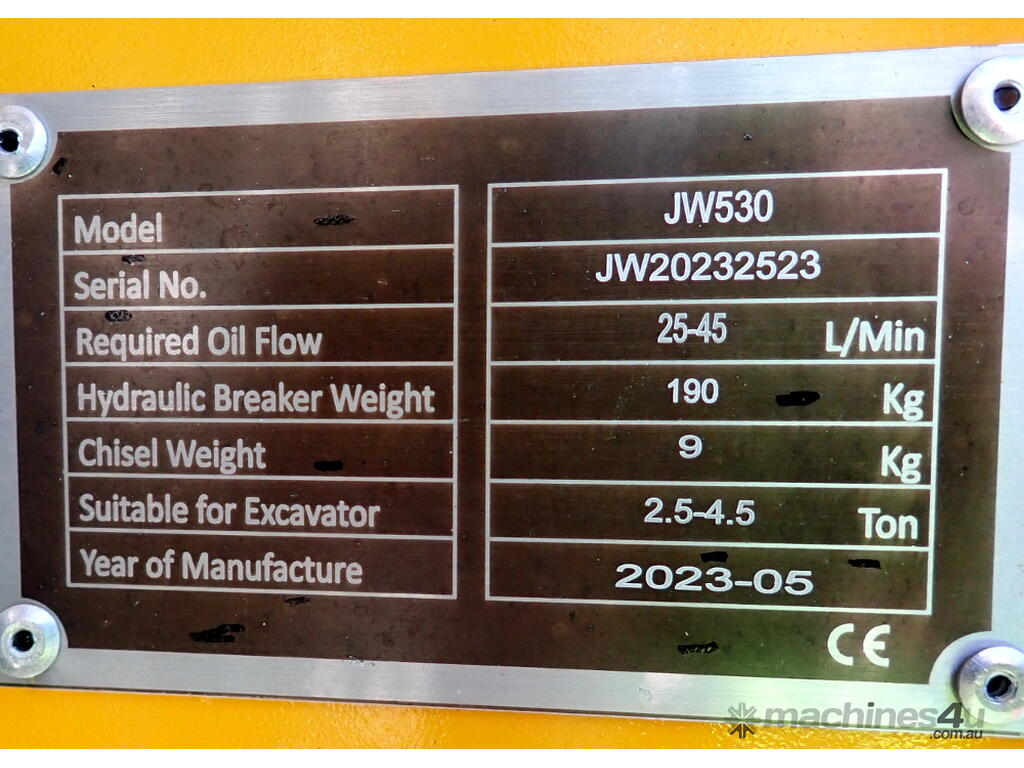

Required Oil Flow: 25-45 L/min.

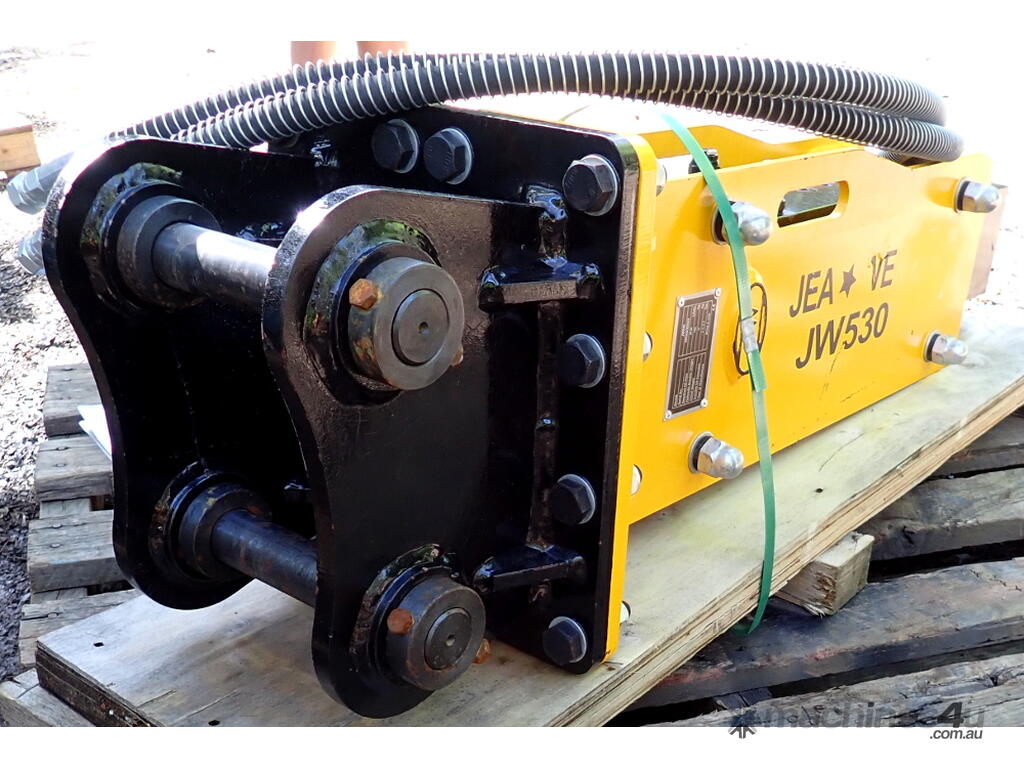

Current Headstock Setup:

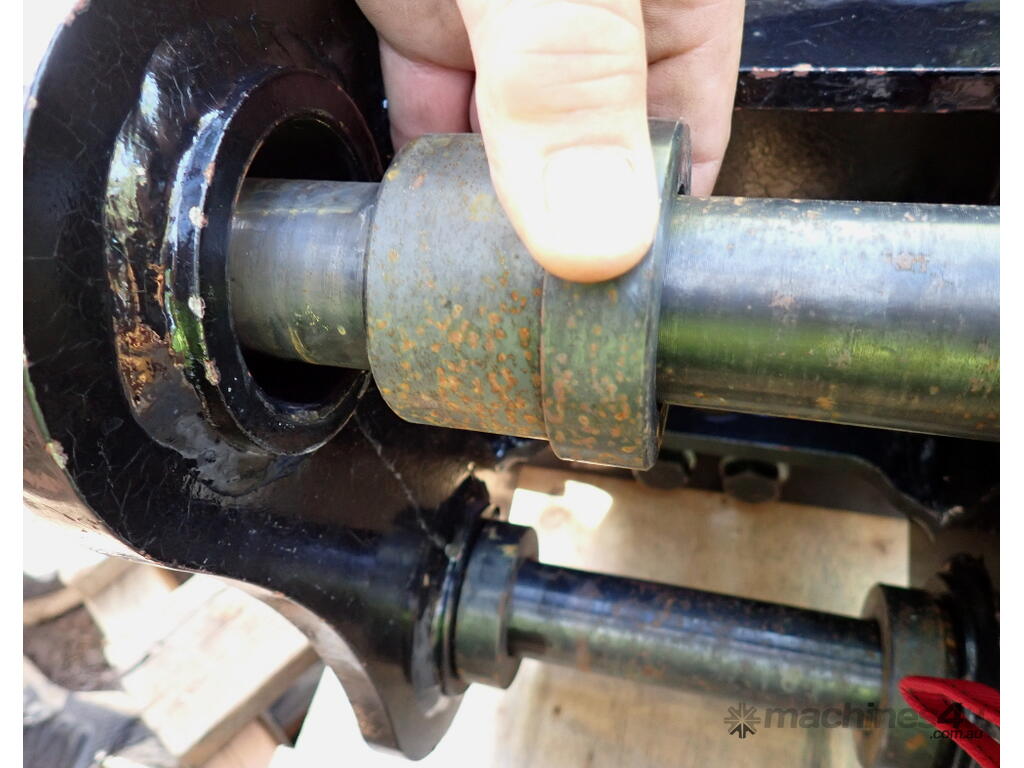

* The Hitch Headstock currently has 40mm Pins fitted into collar bosses that fit into 60mm diameter Pin holes (see pic# 9), so pins up to 60mm diameter can be fitted without needing to bore out the holes in the headstock.
* The Pin Center to Pin Center (CtoC) is 200mm.
* The distance between the collar bosses is 134mm. Removing the collar bosses, the distance between the headstock bosses is 169mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 188mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.

Should fit: Case CX 31 / CX 35 / CX 36 / CX 36B, Caterpillar 303.5 / 303CR-ISJ / 303CR-OSJ, Daewoo Solar 035, IHI 35J / (Cheiftain) 35G/H/J / 35NX, Kobelco SK 30SR-2 / SK 30SR-3 / SK 30UR / SK 32 / SK 35 / SK 35SR / SK 35SR-2 / SK 35SR-3, New Holland EC 35 / EH 30.B / EH 35 / EH 35.B / LE 35, Pel Job EB 36 / EB406, SMC MX35, Sumitomo SH 35, Takeuchi TB 35 / TB 36 / TB 135.

Maybe fit: Airman AX30 / AX32U / AX36U, Hitachi EX 30 / EX 30U / EX 33U / EX 35 / EX 40UR, Hitachi Zaxis 30U, Kubota KX 91-3 / KX101-3 / KX121-3 / U35 / U35-3, Wacker Neuson 3003 / 3503 / 3703 / 28Z3 / 38z3, Yanmar B 25 / B 27 / B 30V / B 37 / VIO27-2 / VIO30 / VIO30-1 / VIO35-2 / VIO40 Import to UK / YB301 / YB351, Yuchai YC 35SR and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Breaker Dimensions (without moil or hoses): 1110mm(L) x 322mm(W) x 364mm(H), Weight: 176kgs (188kg with Moil & Hoses).

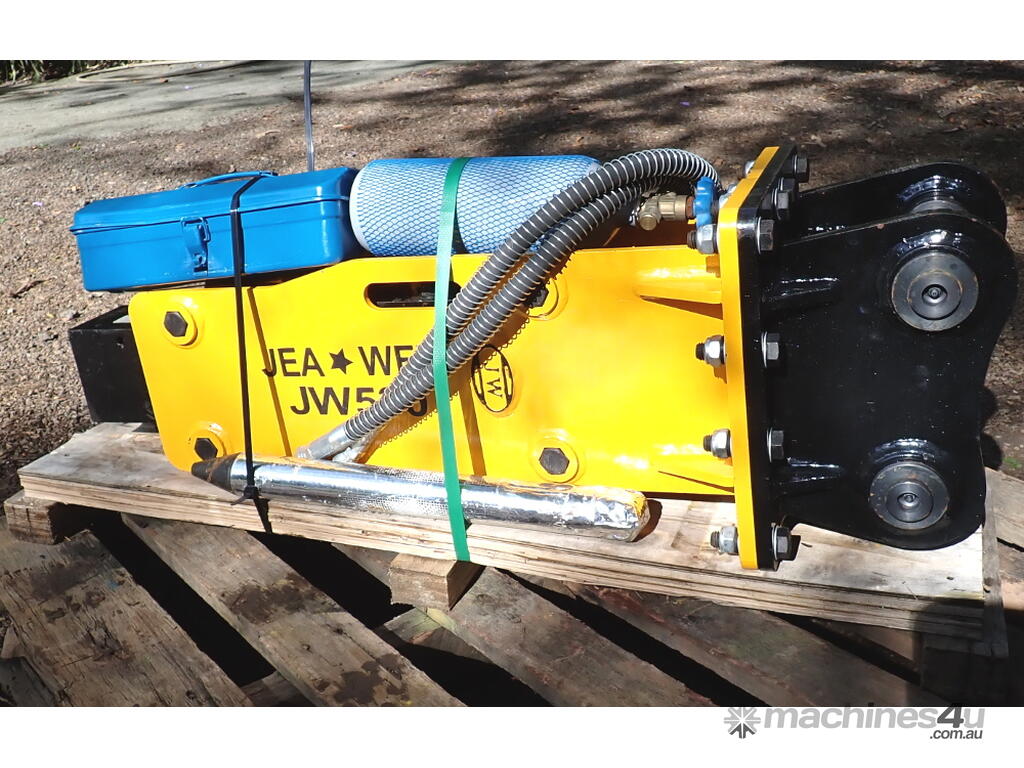

Shipping Dimensions (everything strapped to skid): 1190mm(L) x 390mm(W) x 470mm(H), Weight: 203kgs.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
