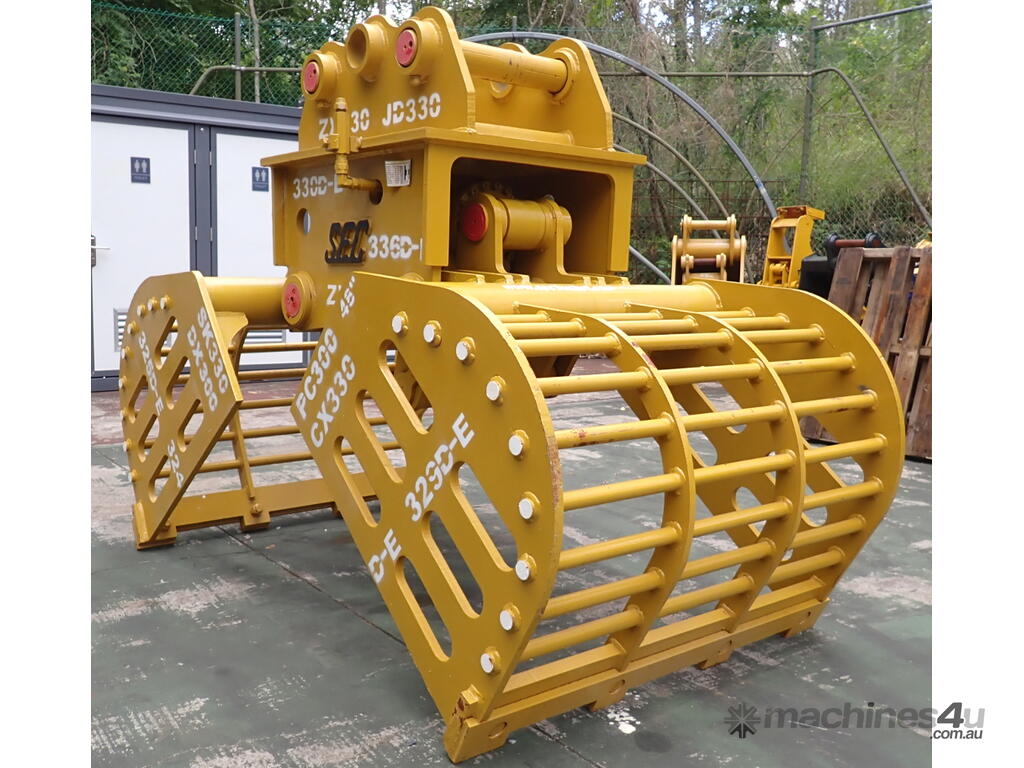

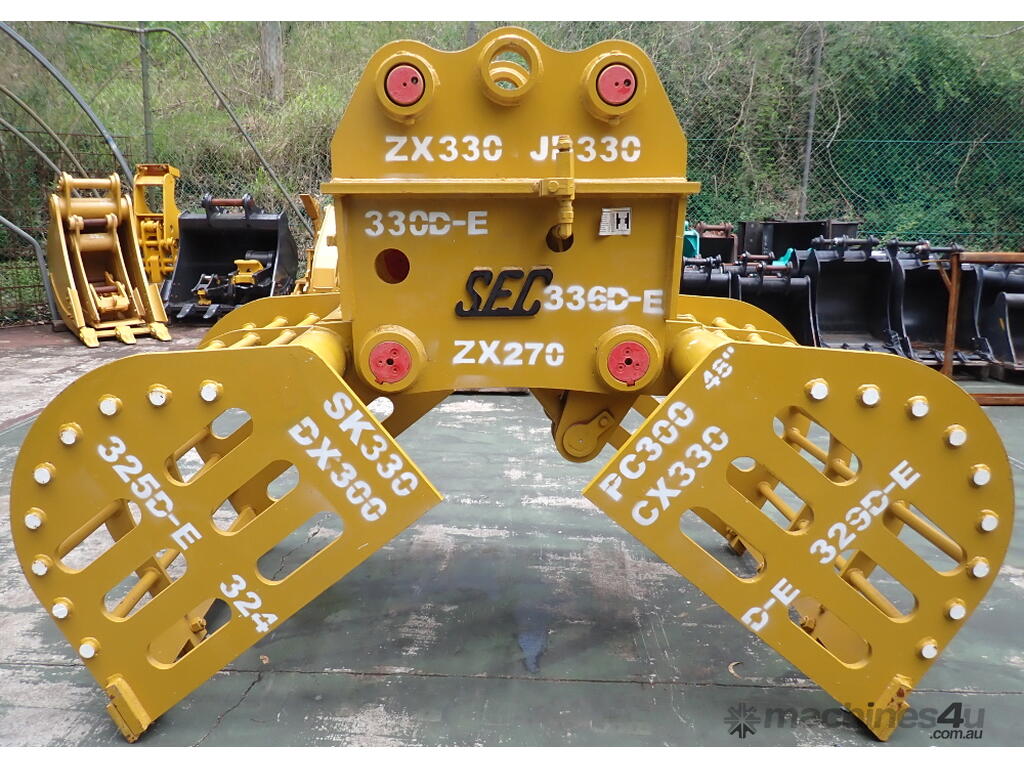

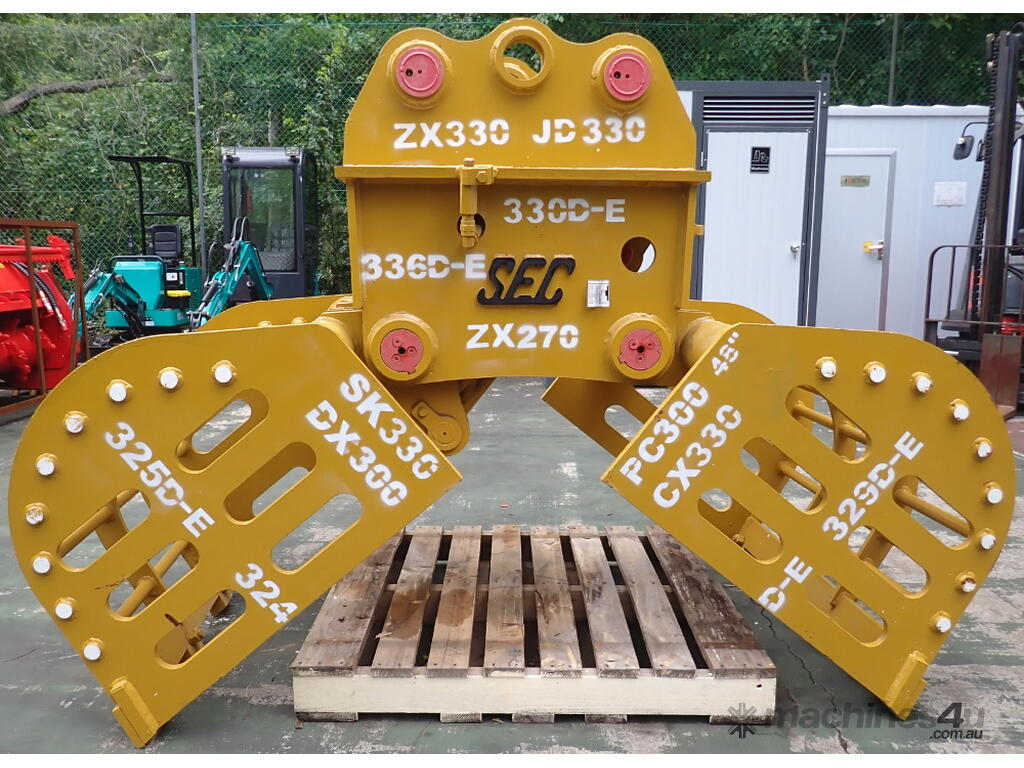

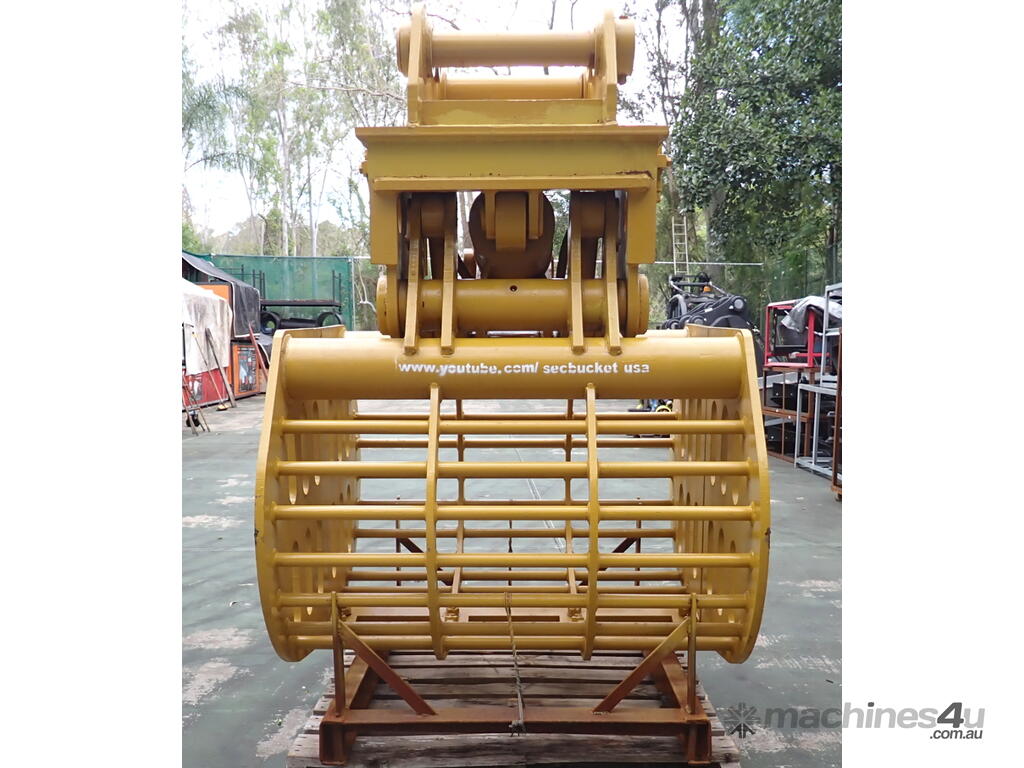

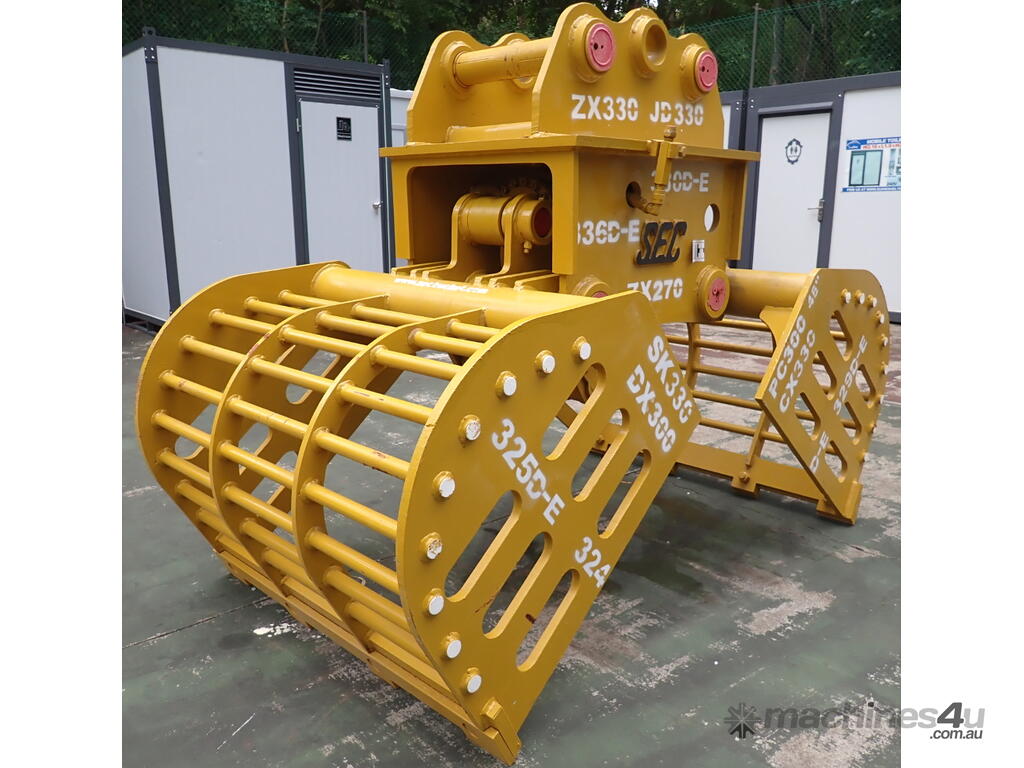

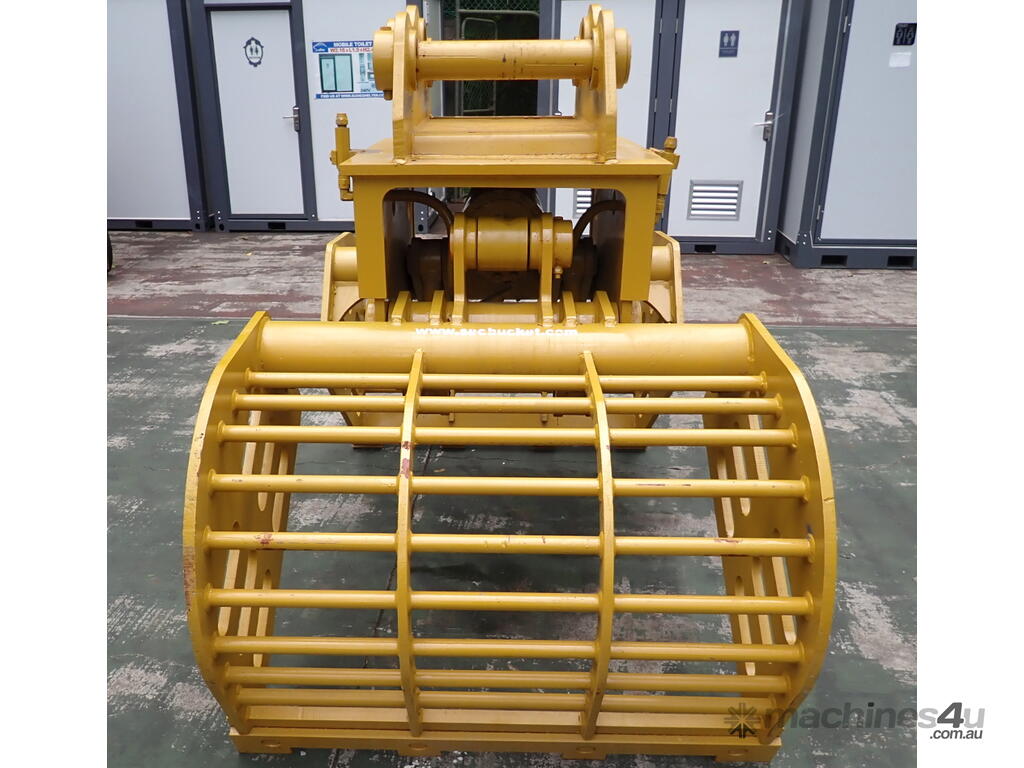

New 20-48 ton (90 or 100mm pin) Excavator Hydraulic Clamshell Skeleton Grapple Bucket

New 20-48 ton (90mm or 100mm pin) Excavator Hydraulic Clamshell Skeleton Sieve Bucket Grapple Grab.

A great multi-functional tool to have on the job site for loading, dumping & sifting through aggregate, rock & sand, separating debris and large stones from soil etc. Can even be used as a trash grapple.

The 3 Pin Hole Design allows the bucket to be used on excavators that don't have any additional hydraulic lines available. Simply mount the end of your machine's dipper arm to the middle pin hole with just 1 pin, and reroute the bucket cylinder hydraulic line to the Clamshell Grapple Bucket.

Capacity: around 1 cubic meter.
Opening Width: 1800mm.

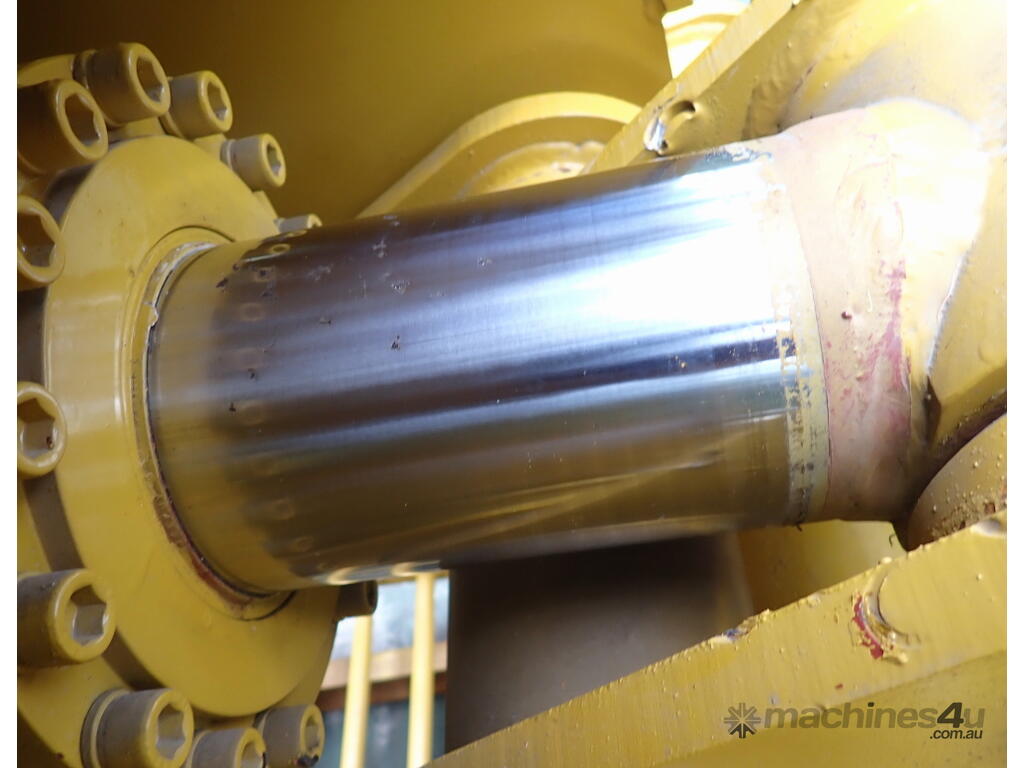

Note! There is some small rust on the just the top side of the ram chrome (see pic#10), the price has been reduced.


Currently setup with 90mm pins but could easily be configured for 100mm pins by removing the collar spacers (see pic #9) and inserting 100mm pins.

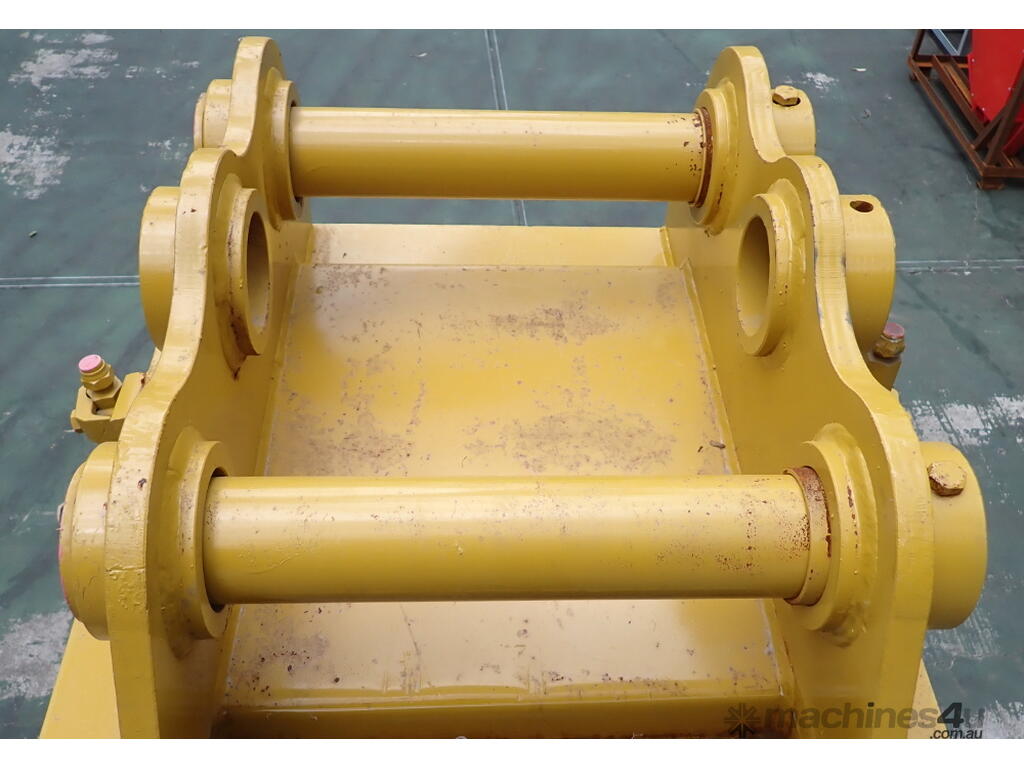

Headstock Dimensions:
* The Pin Diameter is 90mm but they are fitted into collar spacers that fit into 100mm diameter Pin holes (see pic# 9), so pins up to 100mm diameter can be fitted without needing to bore out the holes in the headstock.
* The Pin Center to Pin Center (CtoC) is 506mm.
* The distance Between the inside Ear Bosses is 424mm (which can be shaved back up to 464mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

*** 90mm Pin configuration (current):
* SHOULD FIT: Caterpillar 330D w/DB Link, Daewoo DX300 LC, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-7 / R290LC-7, Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8 / SK320 / SK330, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Volvo EC240 / EC240B / EC240C / EC250D / EC290 / EC290B / EC290C / EC290C LR / EC300D / ECR305C / MX255LS / MX295LS / SE240LC-3 / SE280LC-3.
* MAYBE FIT: Case CX240 / CX290 / CX330, Caterpillar 235 / 322 / 325B w/D Link / 325C w/D Link / 325C w/Mass Linkage / 330B w/D Link / 330C w/D Link / 330C w/Reach Linkage / 330D w/D Link / D Family Linkage, Daewoo Solar 280LC-2 / 280LC-3 / 320 / 330-3, Halla HE280, Hitachi EX220 / EX255 / EX270 / FH220 / FH285, Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270 / 270LC, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), John Deere 240D LC / 270D LC, Kato 1800 / 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK290LC / SK300 / SK310 / SK330LC / SK350LC, Link-Belt 240LX / 290LX / 330LX / 3400 QUANTUM / 3900 QUANTUM, New Holland EC240LC / EC270LC, Samsung SE240LC / SE240-3 / SE280LC / SE280-3, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-3 / SH300-5 / SH300LC-3 / SH330-5 / SH350HD-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

*** As a 100mm Pin configuration (remove spacer Collars & insert 100mm pins):
* SHOULD FIT: Caterpillar 330D L w/DB Link.
* MAYBE FIT: Caterpillar 330B w/E Link / 330C w/E Link, Daewoo DX340 LC, Daewoo Solar 330LC-V / 340LC-V / 360LC-V, Doosan DX340 / DX350LC-3 / S340LC-V, Hyundai R320L / R320LC-3 / R360LC / R360LC-3 / R360LC-7 / R420LC / R450LC-3, Komatsu PC400 / PC400 Mighty / PC400-3 / PC400-5 / PC400-7 / PC400-8 / PC450 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

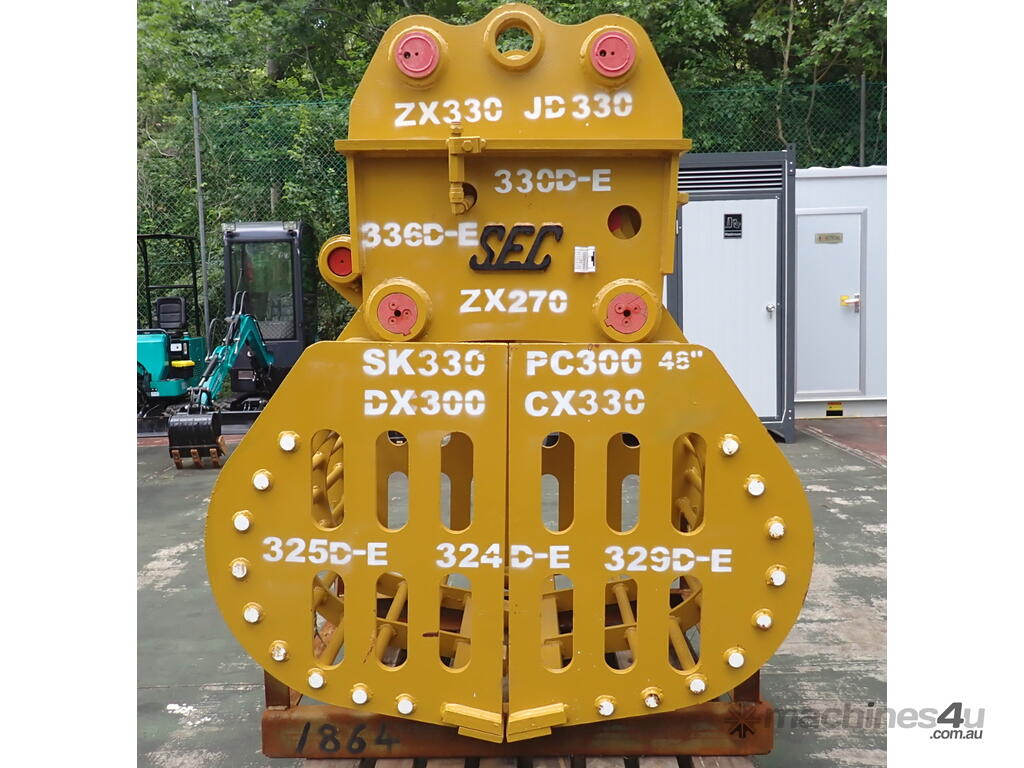

Grab Dimensions (closed as in pics# 7 & 8): 1471mm Long, 1268mm Wide, 1845mm High. 1808kg.
Shipping Dimensions (strapped in skid as in pics# 7 & 8): 1471mm Long, 1268mm Wide, 1967mm High. 1857kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
