New 25-50 ton (100/90/80mm pin) 810mm Excavator Compaction Wheel

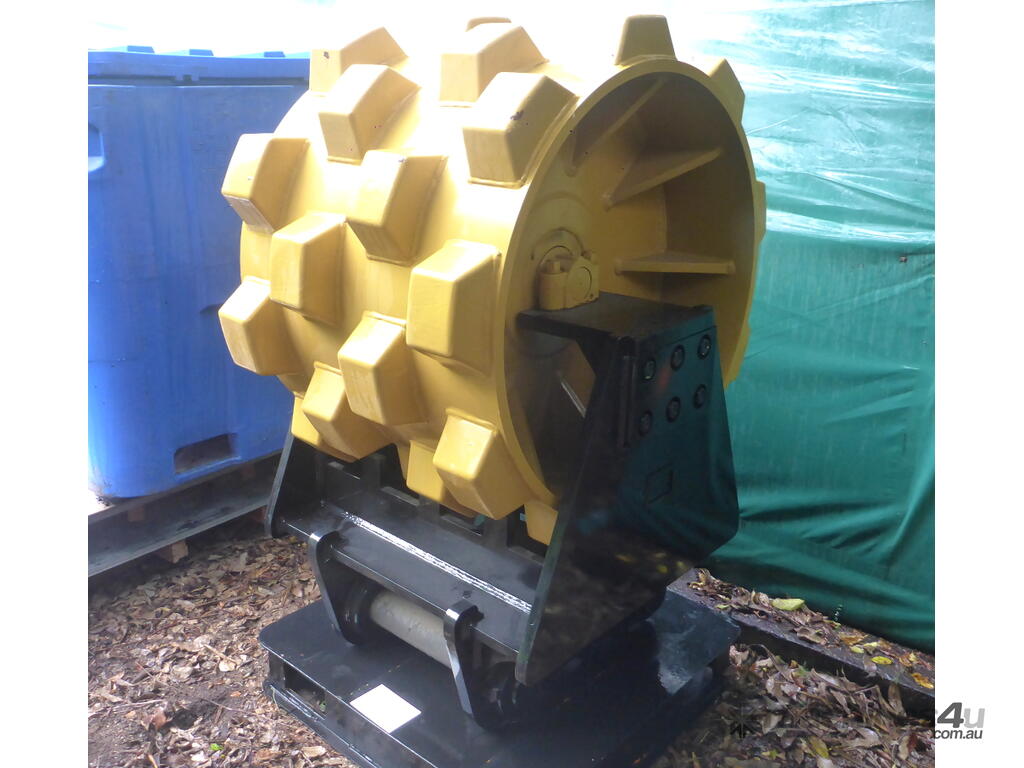

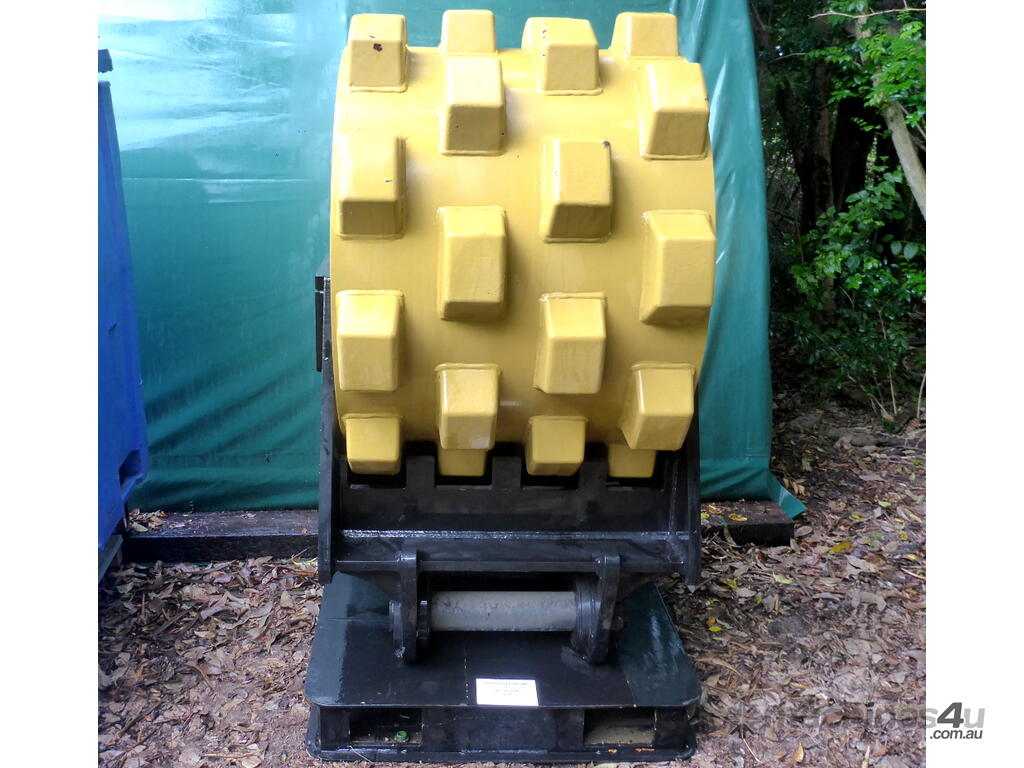

New 810mm Wide Drum, Excavator Compaction Wheel suit 25-50 Ton machine.

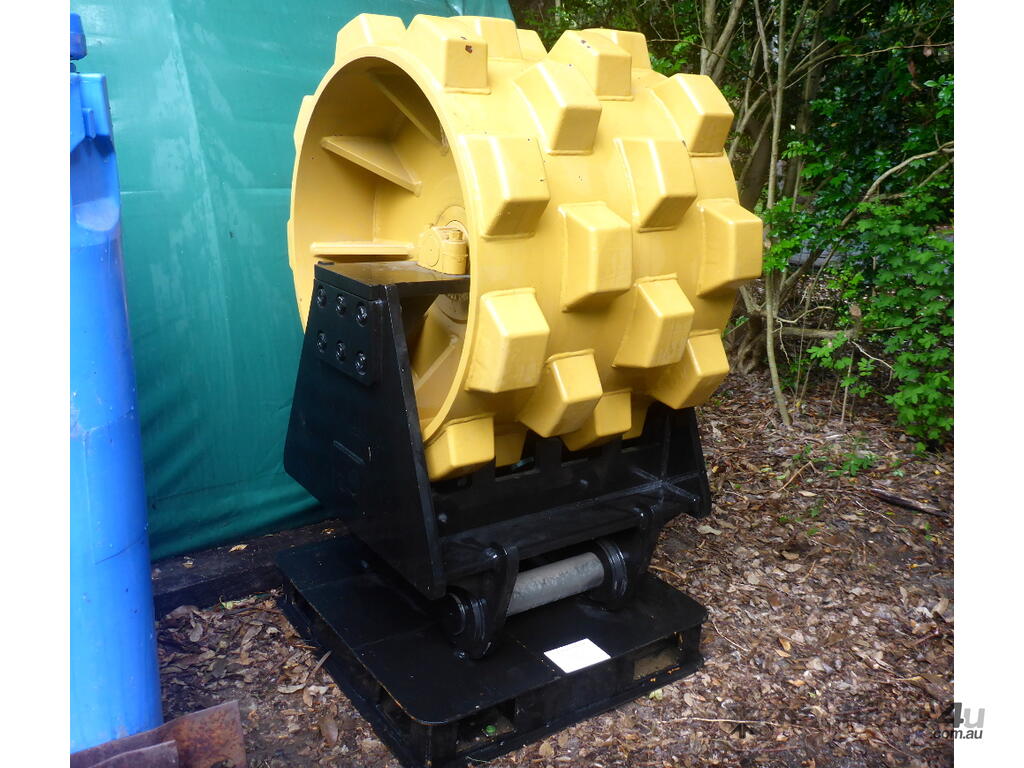

4 rows of pads. Fitted with dual mud scrapers between the pads.

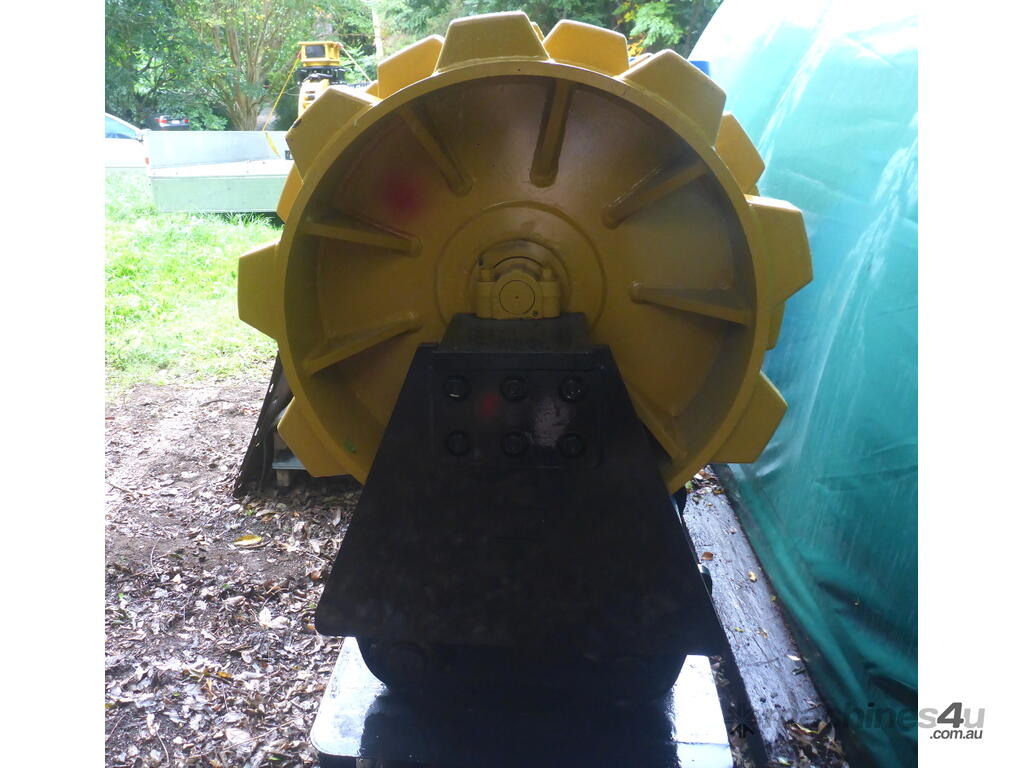

Drum:
* Width: 810mm.

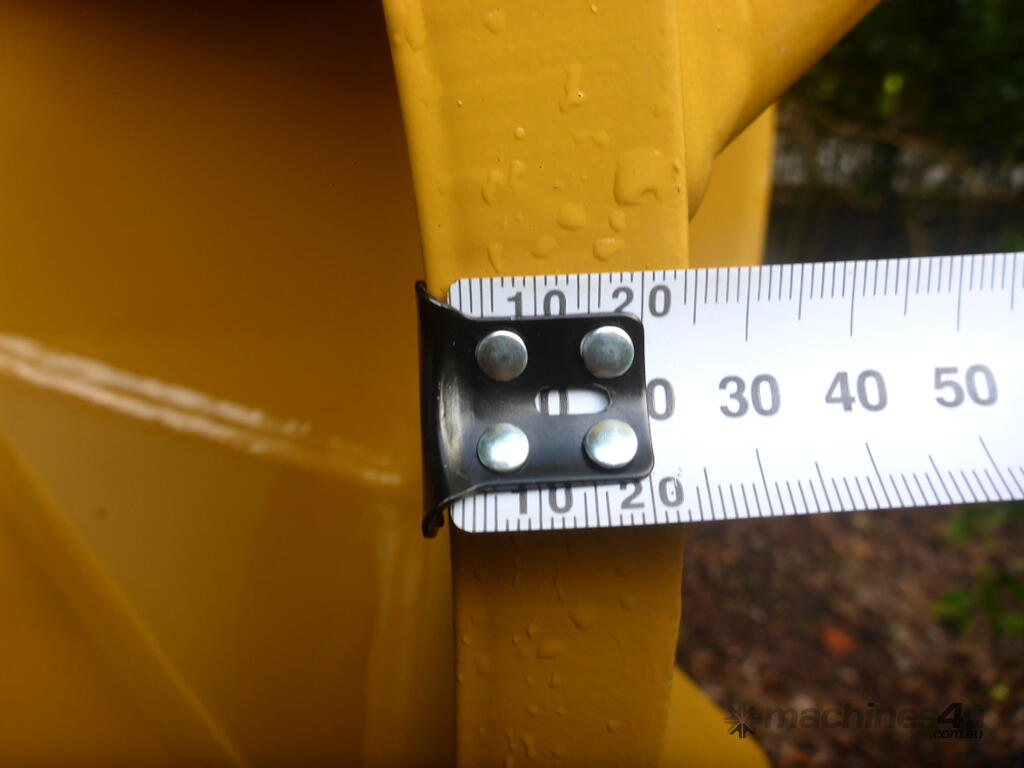

* Curved Steel Plate thickness: 25mm (see pic#8).
* Curved Steel Plate Diameter: 1005mm (not including pads).
* Total Diameter including pads: 1185mm.

Pads (tapered):
* Height: 90mm.
* Size at Top: 120mm wide x 140mm long.
* Size at Base: 130mm wide x 225mm long.

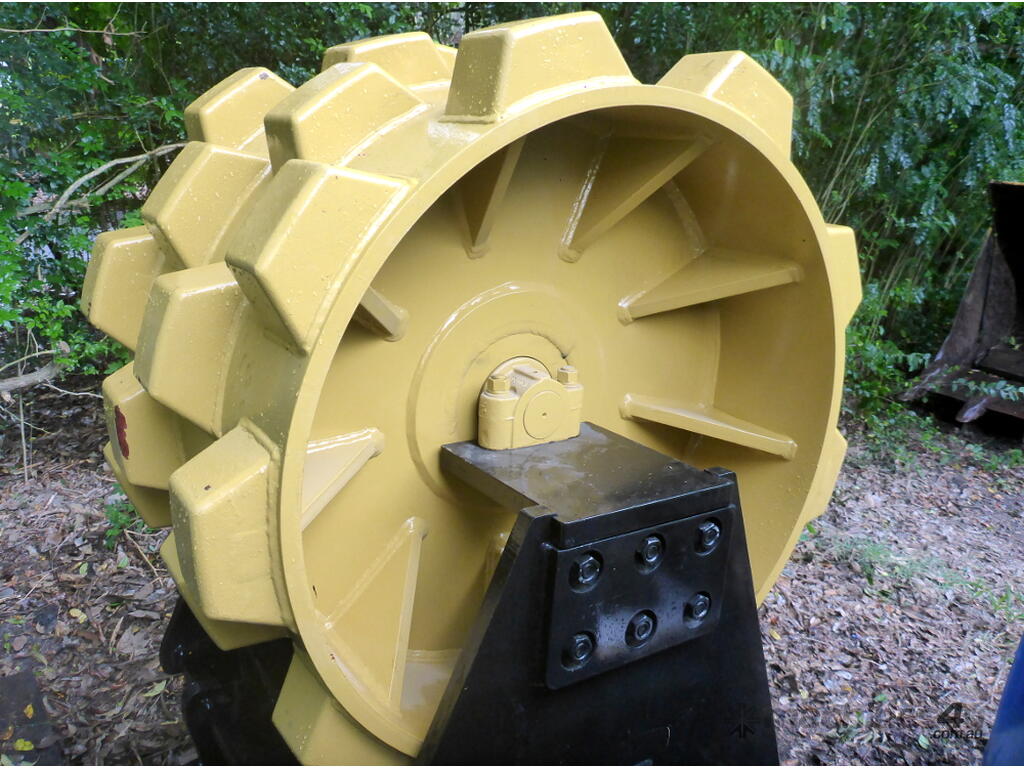

Frame Steel:
* Vertical Side Plate thickness: 30mm.

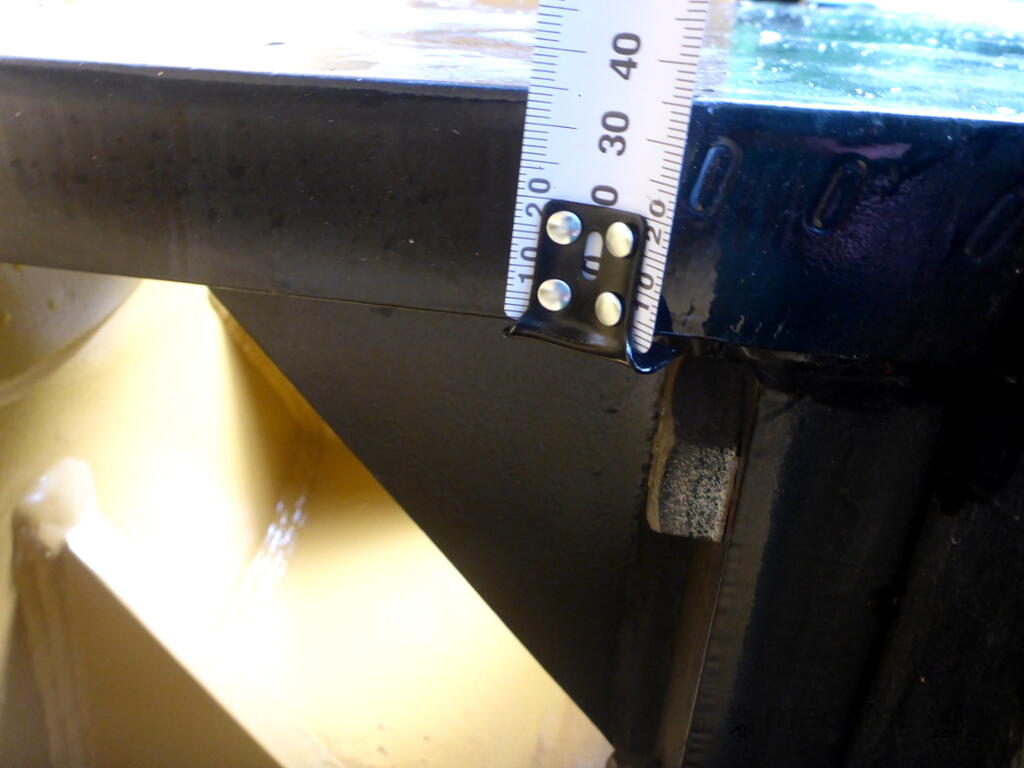

* Horizontal connection Plate thickness: 35mm (see pic#9).

Shipping dimensions: 1000mm Wide, 1185mm Deep, 1800mm High.
Weight: 2000kg (with the steel pallet welded to the headstock, maybe 1950kg when the pallet is cut off?).

This is a well engineered, heavy duty Compaction Wheel, made by Atlas Heavy Engineering and :xzSF.

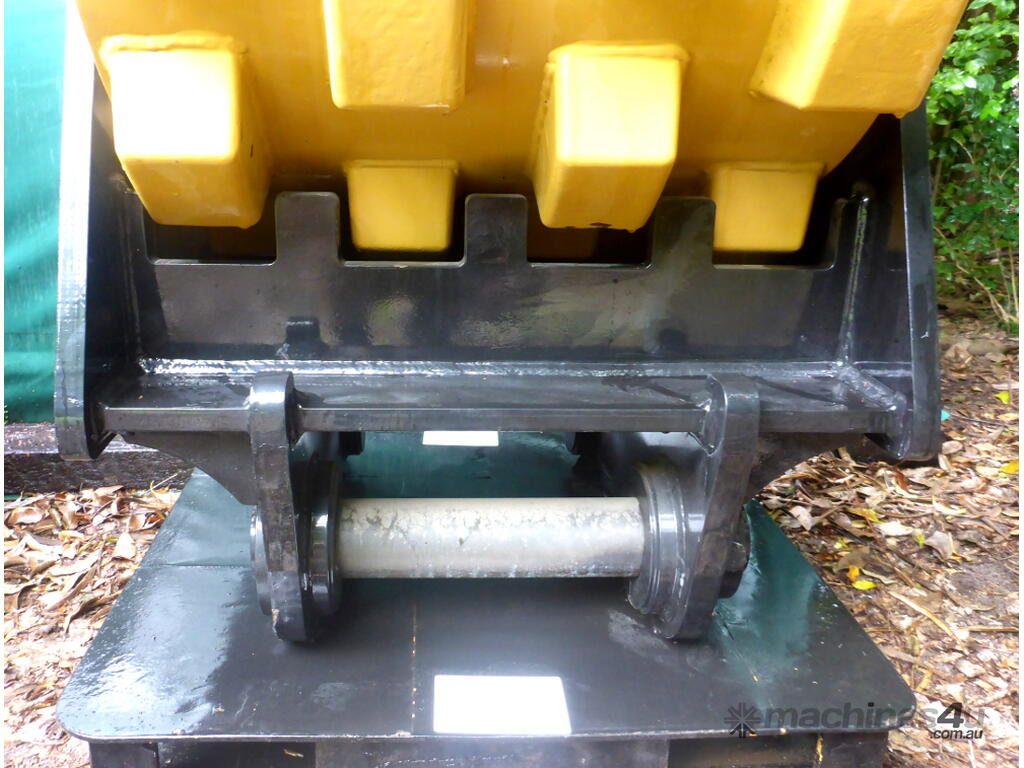

Current Headstock configuration:
100mm Pin Diameter (the pins could be milled down to 90mm or 80mm), 540mm Pin Center to Pin Center, 443mm Between the Ear Plates (375mm Between the Ear Inside Bosses which can be shaved back up to 443mm if you need more inside width for your hitch or dipper arm to fit in).

As a 100mm Pin Configuration (current setup):
Should fit: Caterpillar 330B w/ E Link, Caterpillar 330C w/ E Link, Daewoo DX340 LC, Daewoo Solar 330LC-V, Daewoo Solar 360LC-V, Doosan DX340, Doosan DX350LC-3, Doosan S340LC-V, Hyundai R320L, Hyundai R320LC-3, Hyundai R360LC, Hyundai R360LC-3, Hyundai R420LC, Hyundai R450LC-3, Komatsu PC400, Komatsu PC400 Mighty, Komatsu PC400-3, Komatsu PC400-5, Komatsu PC400-7, Komatsu PC400-8, Komatsu PC400HD-6, Komatsu PC450.
Maybe fit: Caterpillar 330D L w/ DB Link, Caterpillar E Family Linkage,Halla HE360, Hyundai R450lC-7, Samsung SE350-3, Samsung SE450-3, Volvo EC330B, Volvo EC360, Volvo EC360B, Volvo EC460, Volvo EC460B, Volvo MX365LS, Volvo SE360LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

As a 90mm Pin Configuration (mill pins down to 90mm):
Should fit: Case CX330, Caterpillar 235, Daewoo Solar 320, Daewoo Solar 330-3, Halla HE280, Kato 1220SE2, Kato 1250SE, Kato HD700SEV, Kato HD900SEV, Kobelco SK290LC, Kobelco SK300, Kobelco SK310, Kobelco SK330LC, Kobelco SK350LC, Link-Belt 330LX, Sumitomo SH300-3, Sumitomo SH300LC-3, Sumitomo SH330-5, Sumitomo SH350HD-3.
Maybe fit: Case 9033, Case 9050B, Caterpillar 330D w/ DB Link, Daewoo DX300 LC, Daewoo Solar 290LC-V, Daewoo Solar 300LC-V, Daewoo Solar 300LC-V SLR, Doosan DX300, Doosan DX300LC-3, Doosan S300LC-V, Doosan S470LC-V, Hyundai R250LC-7, Hyundai R290LC-7, JCB JS300, JCB JS330, Kato HD1430, Kobelco SK220, Kobelco SK230, Kobelco SK250, Kobelco SK250LC, Kobelco SK320, Kobelco SK330, Komatsu PC300, Komatsu PC300 Mighty, Komatsu PC300-3, Komatsu PC300-5, Komatsu PC300-6, Komatsu PC300-7, Komatsu PC300LC-7, Komatsu PC340, Komatsu PC350, Komatsu PC360, Link-Belt 4300 QUANTUM, Samsung SE280LC, Sumitomo SH300, Volvo EC240B, Volvo EC240C and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

As an 80mm Pin Configuration (mill pins down to 80mm):
Should fit: Kato HD1023.
Maybe fit: Hyundai R250LC-3, Hyundai R280LC, Hyundai R290LC, Hyundai R290LC-3, Hyundai R290LC-3LR, Kato 820, Komatsu PC290 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
